Product Description
FEATURES

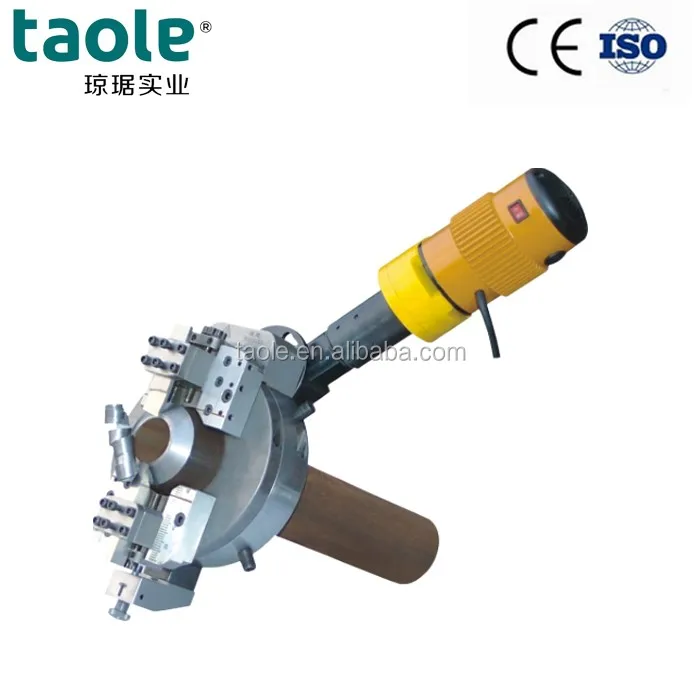

This series are portable OD-mounted pipe cutting and beveling machine with the following advantages:lighter weight, minimal radial space, easy to operate.
APPLICATION RANGE
The are widely used in the feilds of petroleum, chemical natural gas, power plant construction, boiler and nuclear power, such as the project of WestGas Transporting to East China
DRIVING TYPE
Electric-OCE, Pneumatic -OCP, Hrdraulic-OCH, CNC-OCS
Detailed Images
MODEL | OUT-DIAMETER(Dia.mm) | WALL THICKNESS(mm) | ROTATION SPEED(r/min) |
OCE-89 | 25-89(3/4-3inch) | <=30 | 42 |
OCE-159 | 50-159 (2-5inch) | <=30 | 20 |
OCE-168 | 50-168(2-6inch) | <=30 | 21 |
OCE-230 | 80-230(3-10inch) | <=30 | 20 |
OCE-275 | 125-275(5-10inch) | <=30 | 18 |
OCE-305 | 150-305(6-10inch) | <=30 | 16 |
OCE-325 | 168-325(6-12inch) | <=30 | 13 |
OCE-377 | 219-377(8-14inch) | <=30 | 12 |
OCE-426 | 273-426(10-16inch) | <=30 | 12 |
OCE-457 | 300-457(12-18inch) | <=30 | 12 |
OCE-508 | 355-508(14-20inch) | <=30 | 12 |
OCE-560 | 400-560(16-22inch) | <=30 | 11 |
OCE-610 | 457-610(18-24inch) | <=30 | 11 |
OCE-630 | 480-630(20-24inch) | <=30 | 11 |
OCE-660 | 508-660(20-26inch) | <=30 | 11 |
OCE-715 | 560-715(22-28inch) | <=30 | 11 |
OCE-762 | 600-762(24-30inch) | <=30 | 10 |
OCE-830 | 660-813(20-26inch) | <=30 | 10 |
OCE-914 | 762-914(30-36inch) | <=30 | 10 |
OCE-1066 | 914-1066(36-42inch) | <=30 | 10 |
OCE-1230 | 1066-1230(42-48inch) | <=30 | 10 |
0CE-1430 | 1230-1430(48-56inch) | <=30 | 8 |
Requirements from Customer:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
Packing & Delivery
Packing
The packing is following the different size of beveling diameter. The box, woodencase can be avaialbe in the packing. the kits and accessoris will be with the equipment.
Delivery
All the equiment will be shipped to the customer after commission finshing in the factory.
