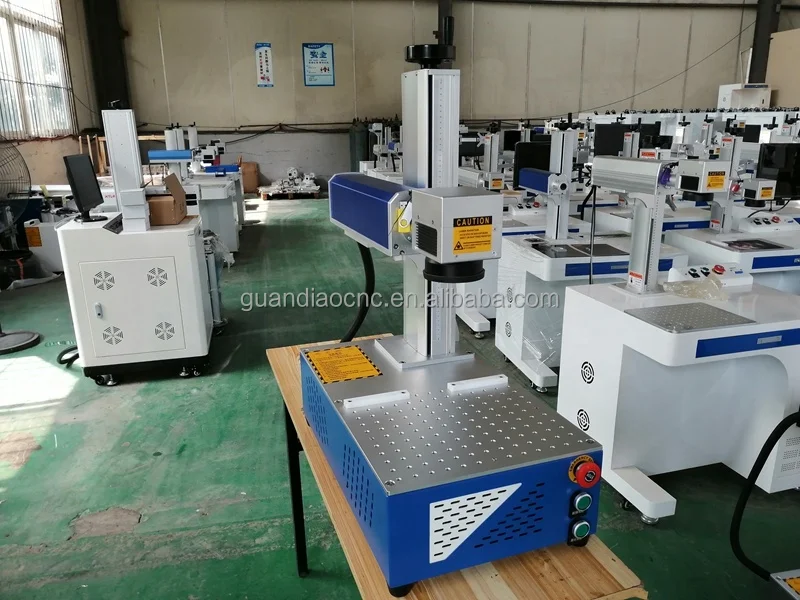

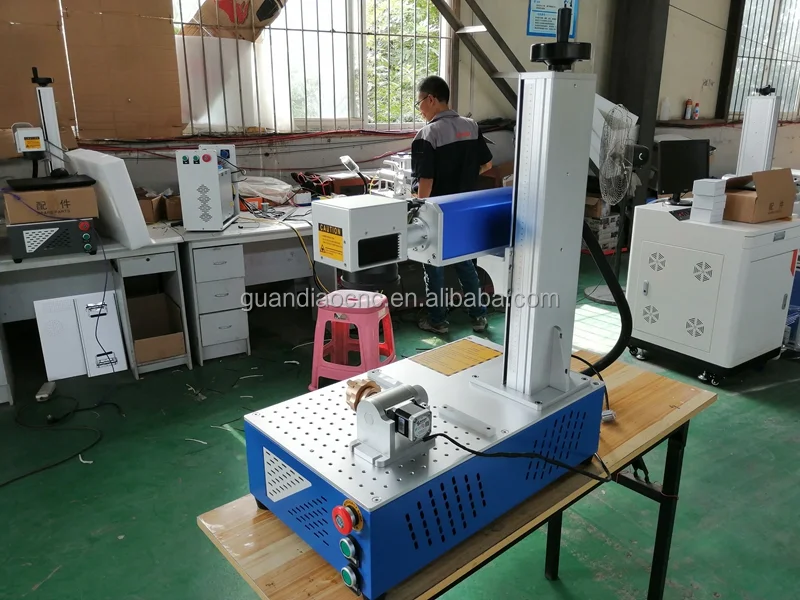

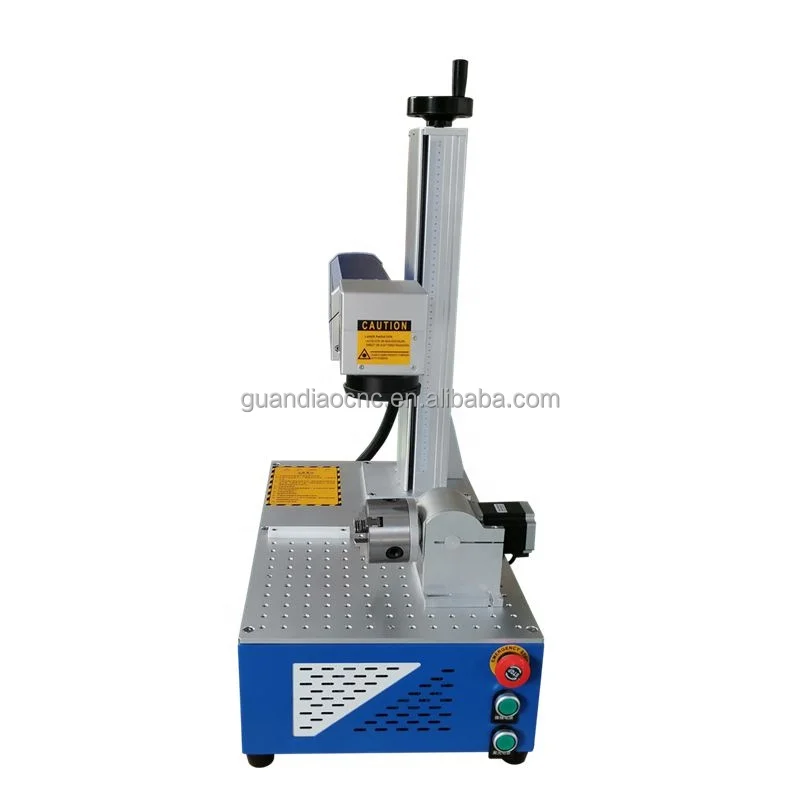

This machine adopts one-type design, small size and space saving, especially suitable for foreign agents and end users. In this time of crazy sea freight, it can greatly save sea freight. was equipped with Raycus laser source or MAX Laser source as customer request,and original and high-speed Scanleb galvanometer,Laserhous Filed Lens the speed is extremely fast and the precision is very high,it adopted original EZCAD software,more stable and while working.
Split Desk Portable Type 20w 30w 50w Fiber CO2 Laser Marking MachineThe machine performance is steady and can continuously working 12 hours. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate.
Model | Fiber Laser Marker |
Laser Power | 20W / 30W Raycus |
Supports Graphical Format | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
Beam Quality | M2<2 |
Power Stability | (8h)<±1%rms |
Pulse Repetition Frequency | 20KHZ----100KHZ |
Power Consumed | <800W |
Minimum Line Width | 50μm |
Minimum Character | 0.3mm |
Laser Wavelength | 1064nm |
Working Size | 110*110mm 150*150mm 200*200mm 300*300mm |
Whole Machine Power | 500W |
Cooling Way | Air Cooling |
Operating Voltage | 110/220V ±10%, 50/60Hz |
Ambient Operating Temperature | 15℃-35℃ |
Packing | Plywood Wooden Packaging |
Red Pointer | Double Red Pointer |
Galvanometer | Scanleb |
Filed Lens | Laserhous |
Laser Source | Raycus |

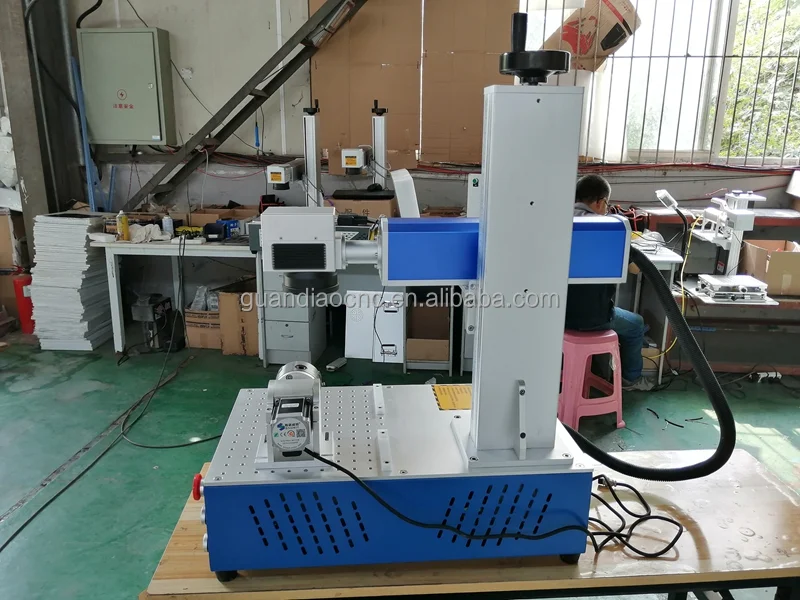

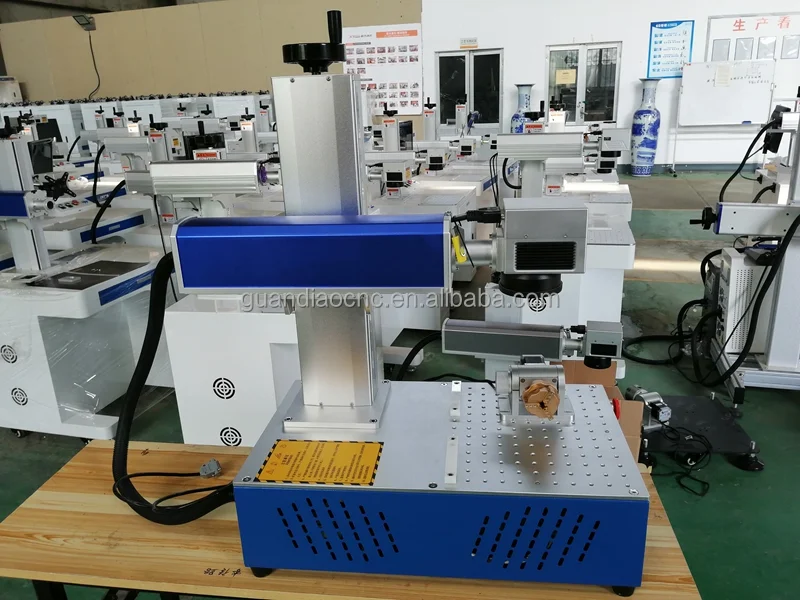

Optional | Rotary axis |
Control system | JCZ (EZcad) |

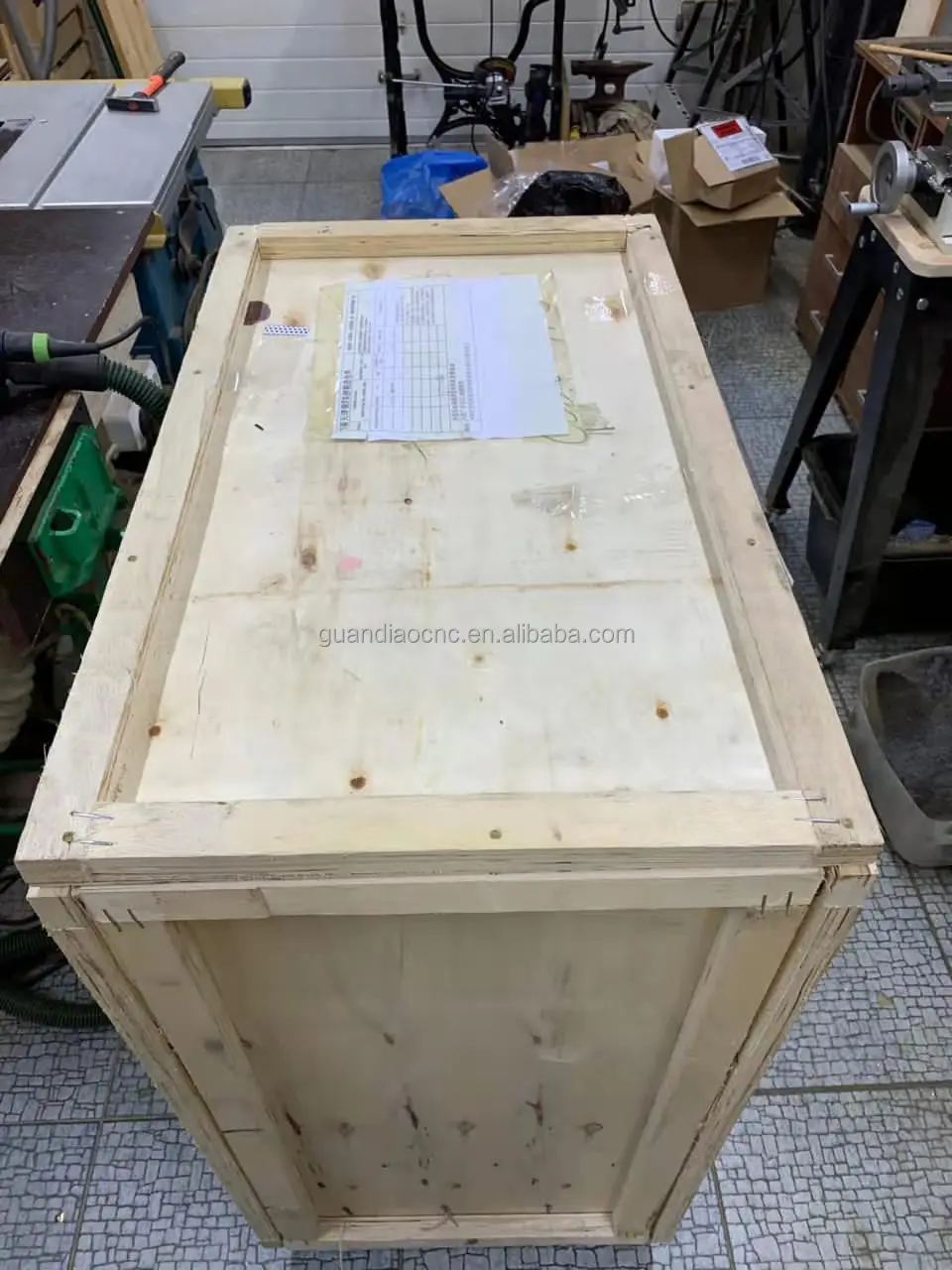

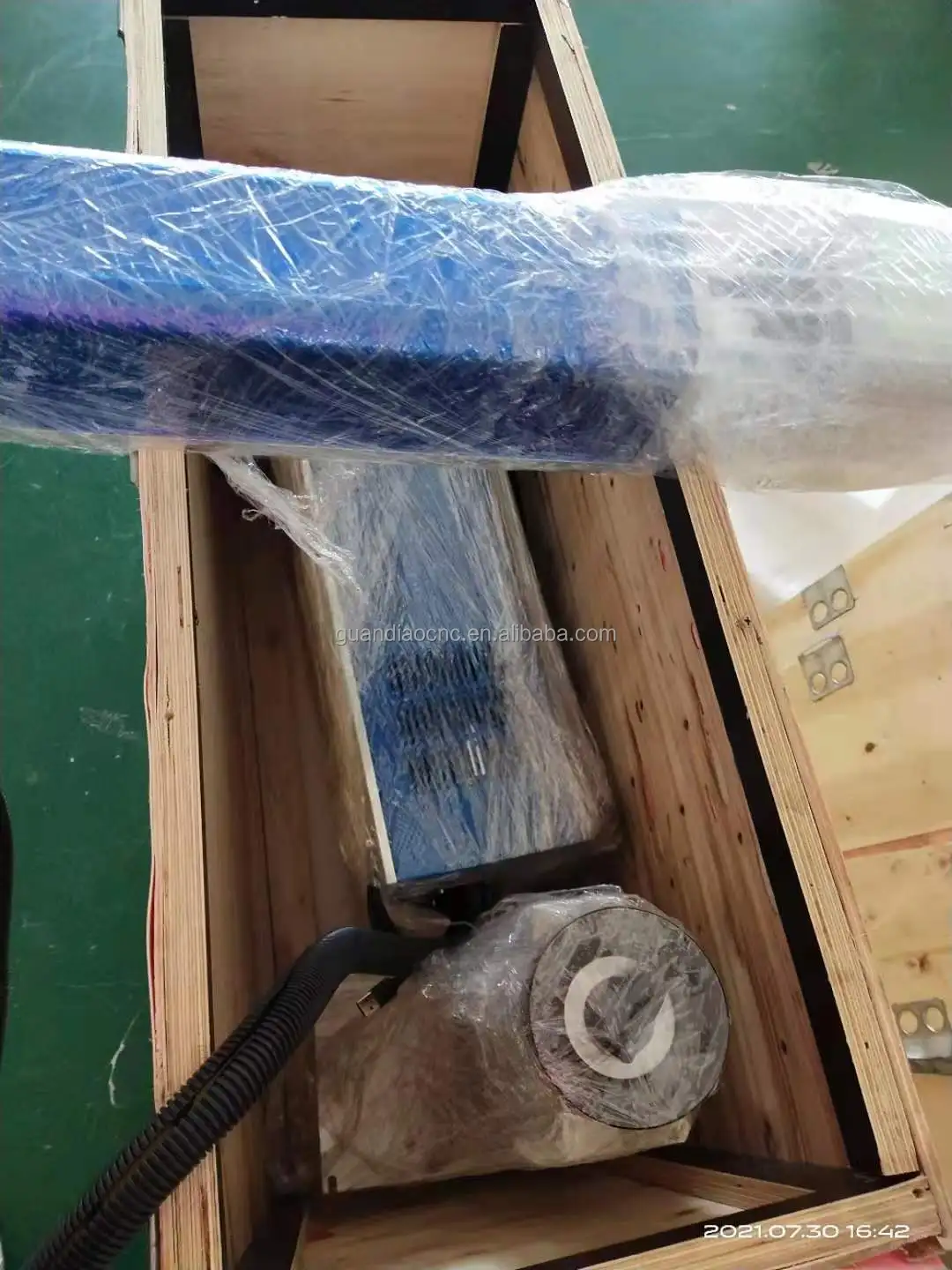

Package details
About packaging, we will wrap the machine with a waterproof membrane, then wrap the machine with shock-proof foam again, then put the wrapped machine into a standard export wooden box, and stuff soft and elastic shock-proof foam in the space between the wooden box and the machine. , And then pack the wooden box to ensure that the machine reaches the customer’s home safelySplit Desk Portable Type 20w 30w 50w Fiber CO2 Laser Marking Machine

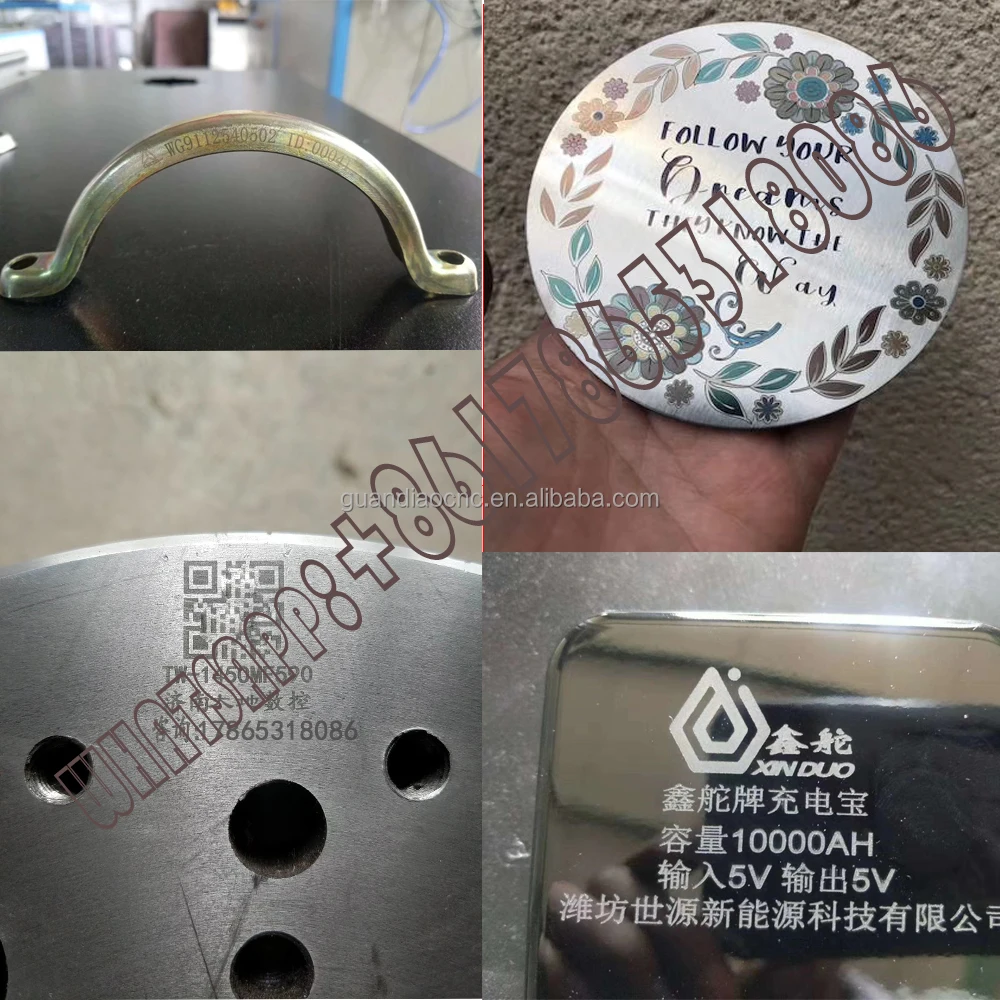

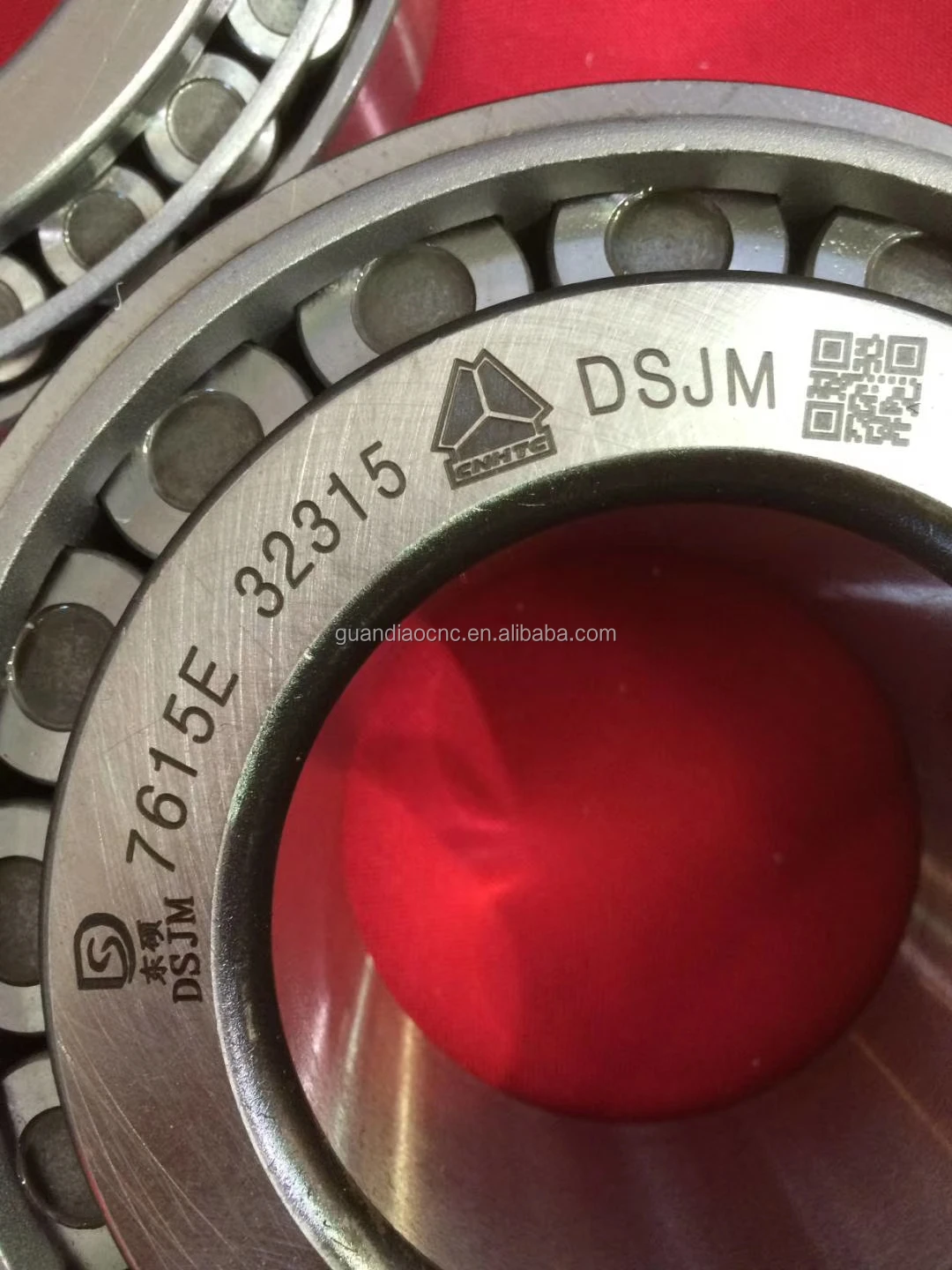

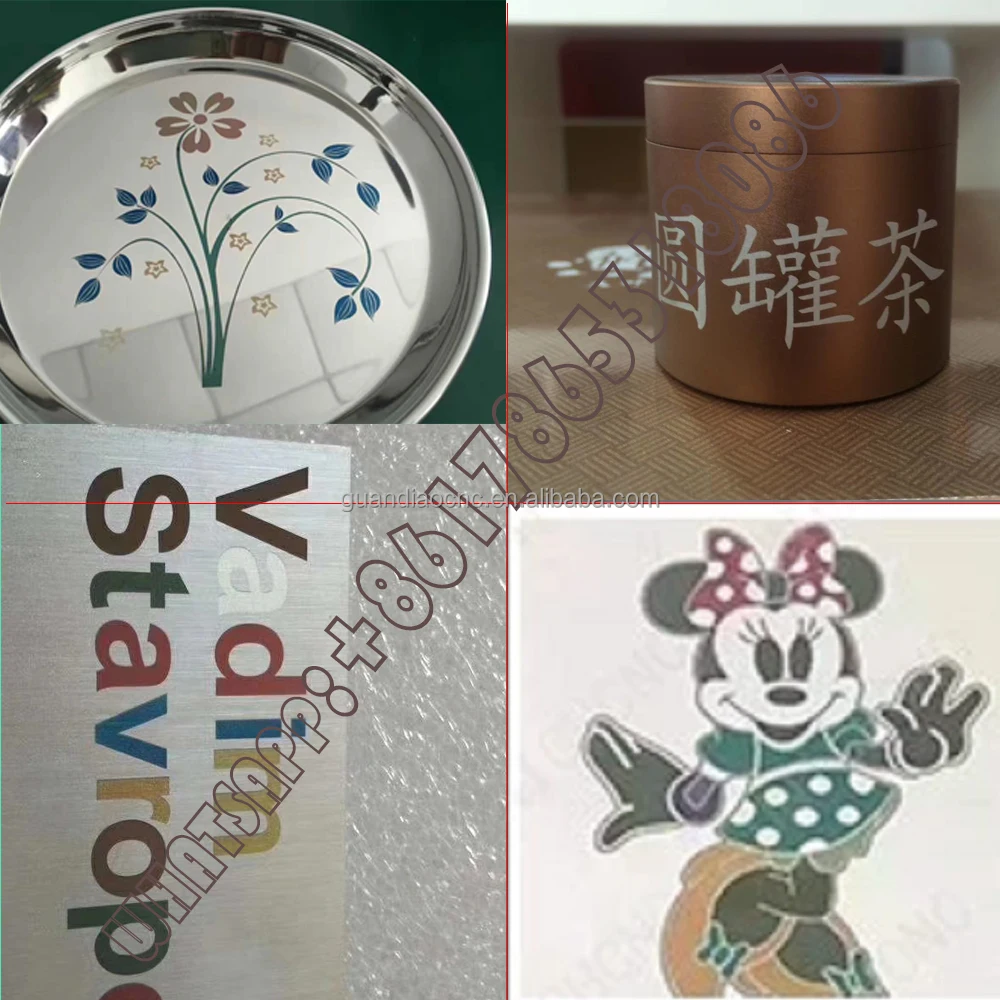

Samples display
Application for Iron,aluminum,copper,steels ,hard plastic All metals.
Split Desk Portable Type 20w 30w 50w Fiber CO2 Laser Marking Machine

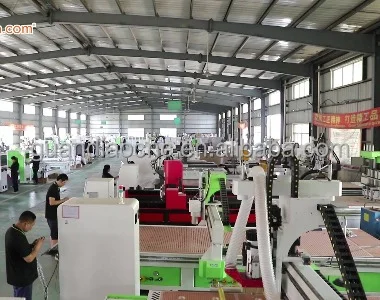

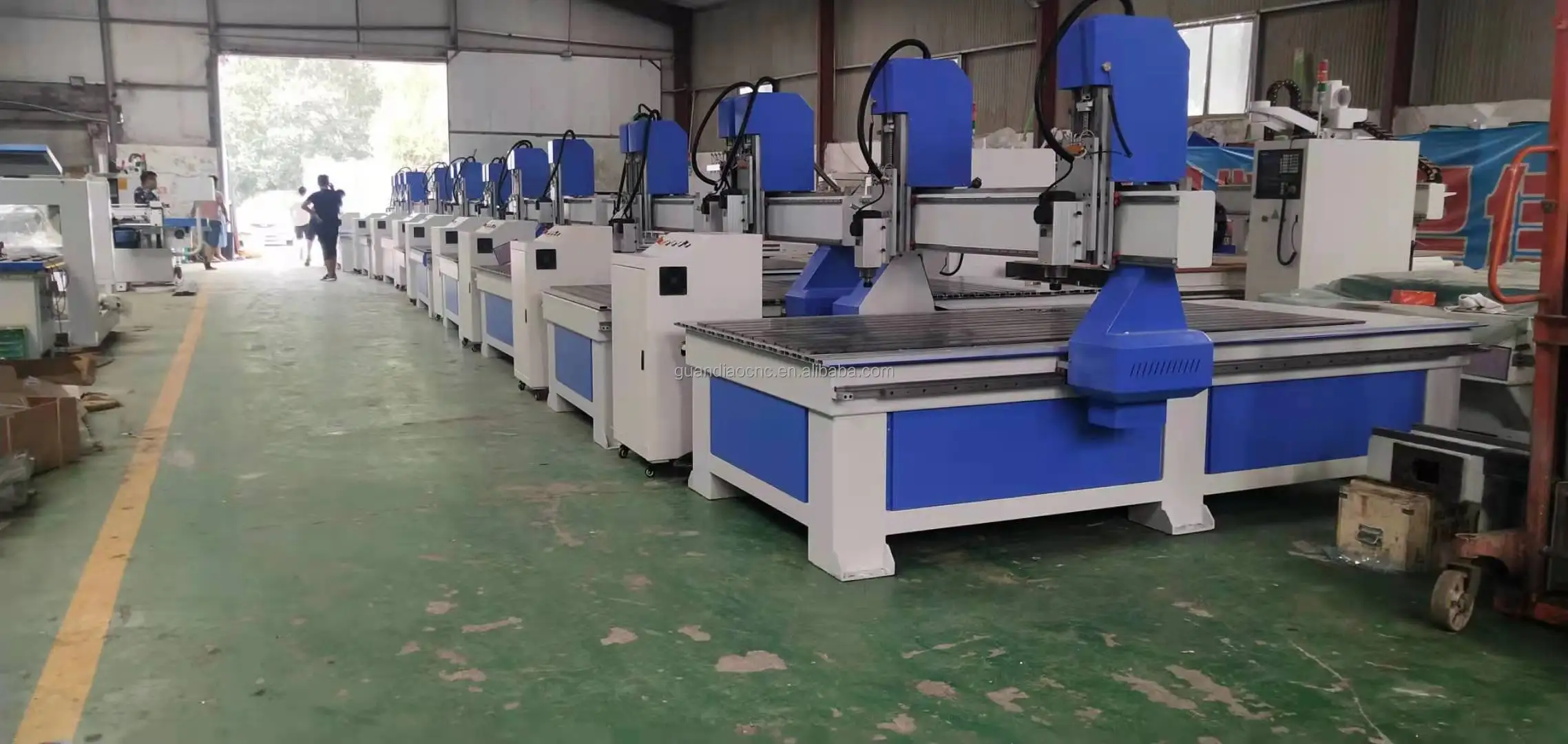

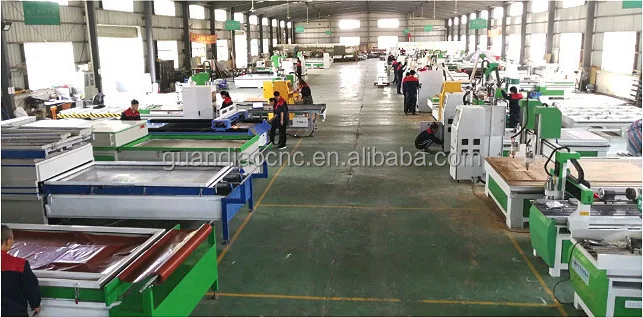

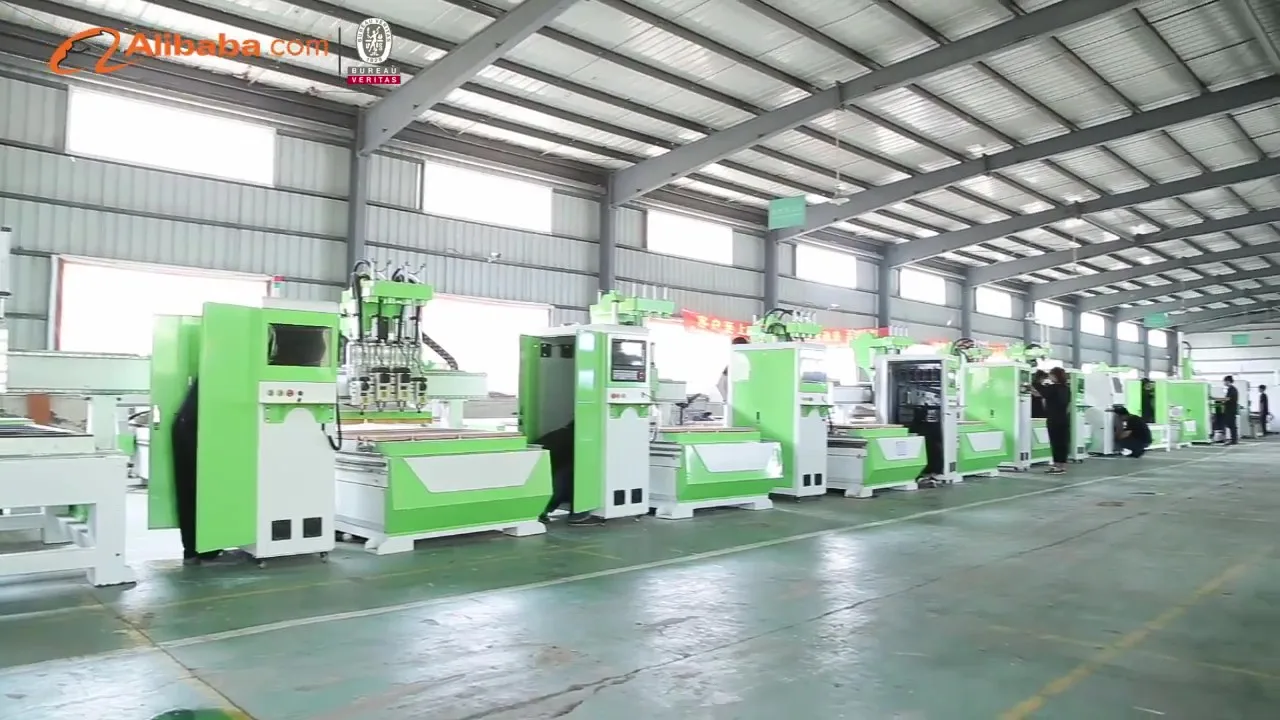

Shangdong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. We have 118 production workers for machines,33 members for technical support team,26 R&D manage saller and service in company.The company’s main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Laser machine,fiber machine and finer laser marker, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
Looking for agent all over the world!Wait for you!More discount price just contact Ellen!
WELCOME TO COPPERATE WITH US!

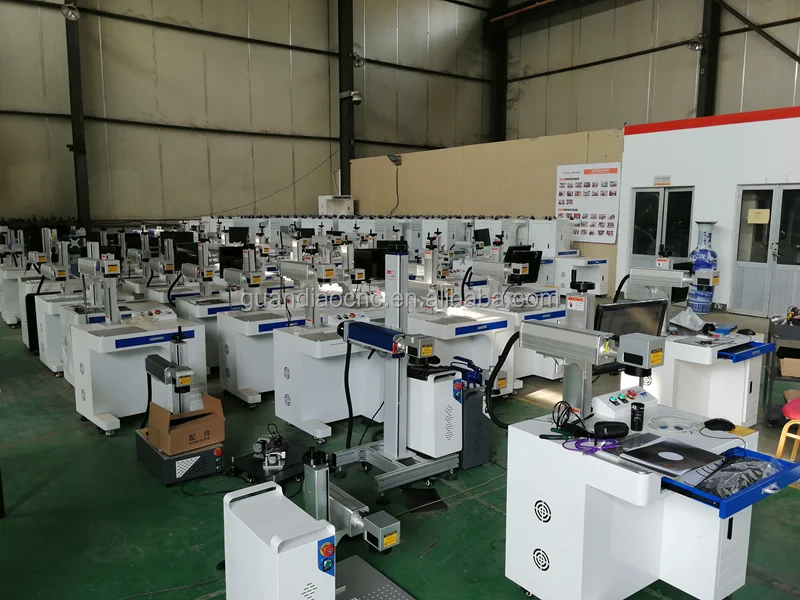

After nearly 16 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company’s products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
