Китайские производители полуавтоматическая машина для упаковки блистеров
- Категории: Blister Packaging Machines >>>
- Поставщик: Dongguan,Chenghao,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Characteristic:

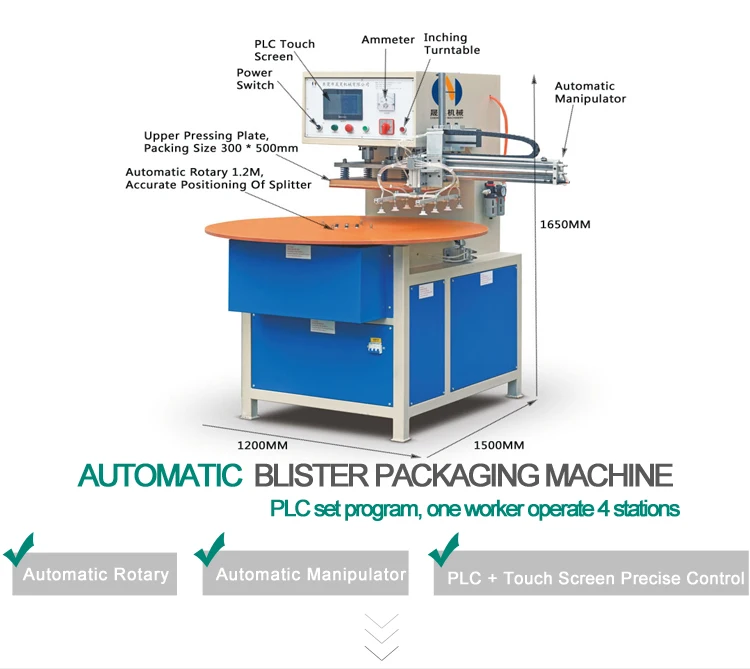

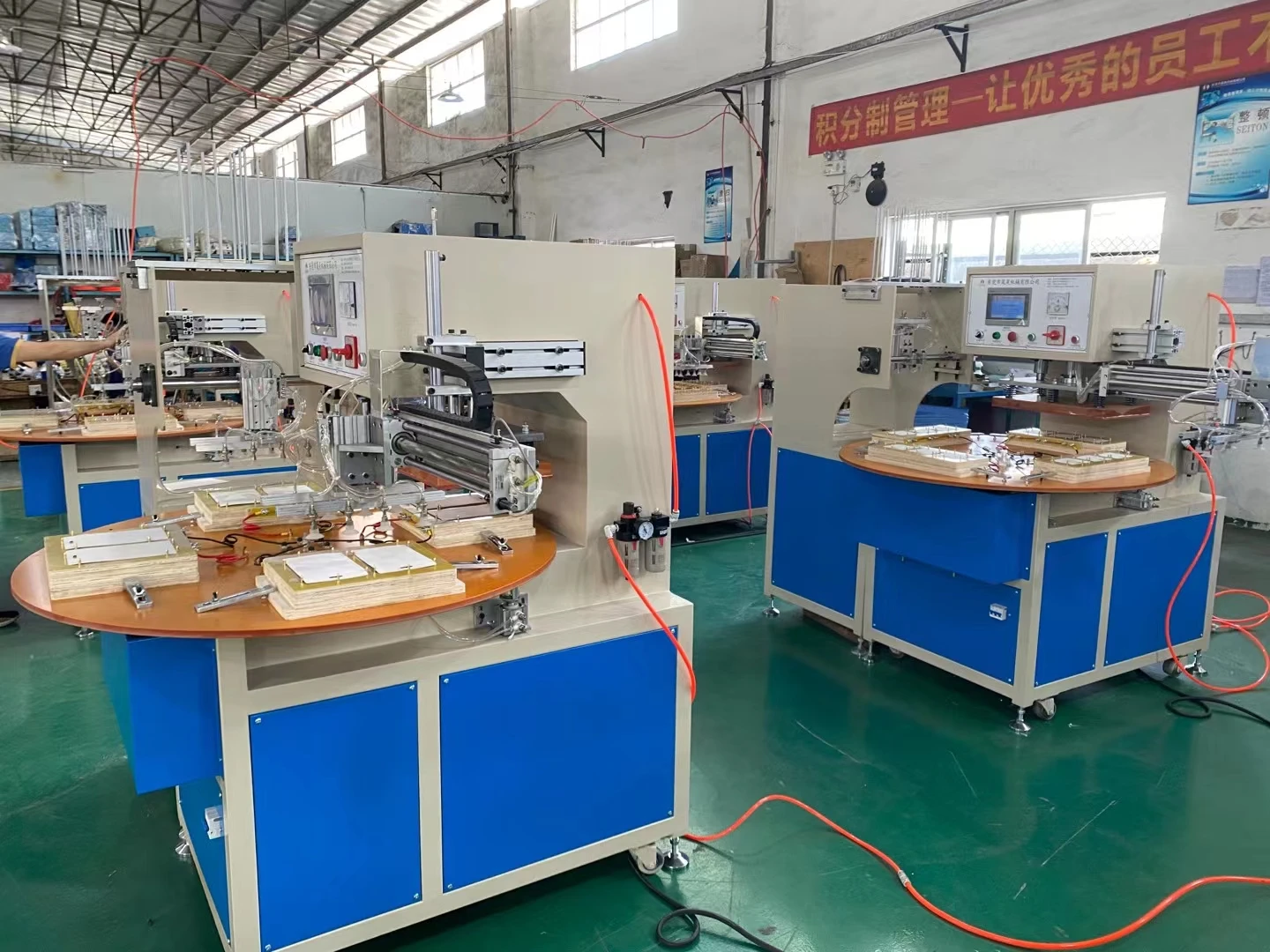

1. Three position automatic turntable blister packaging machine, saving manpower, high efficiency and easy operation;
2. Suitable for different thickness of plastic blister bonding;

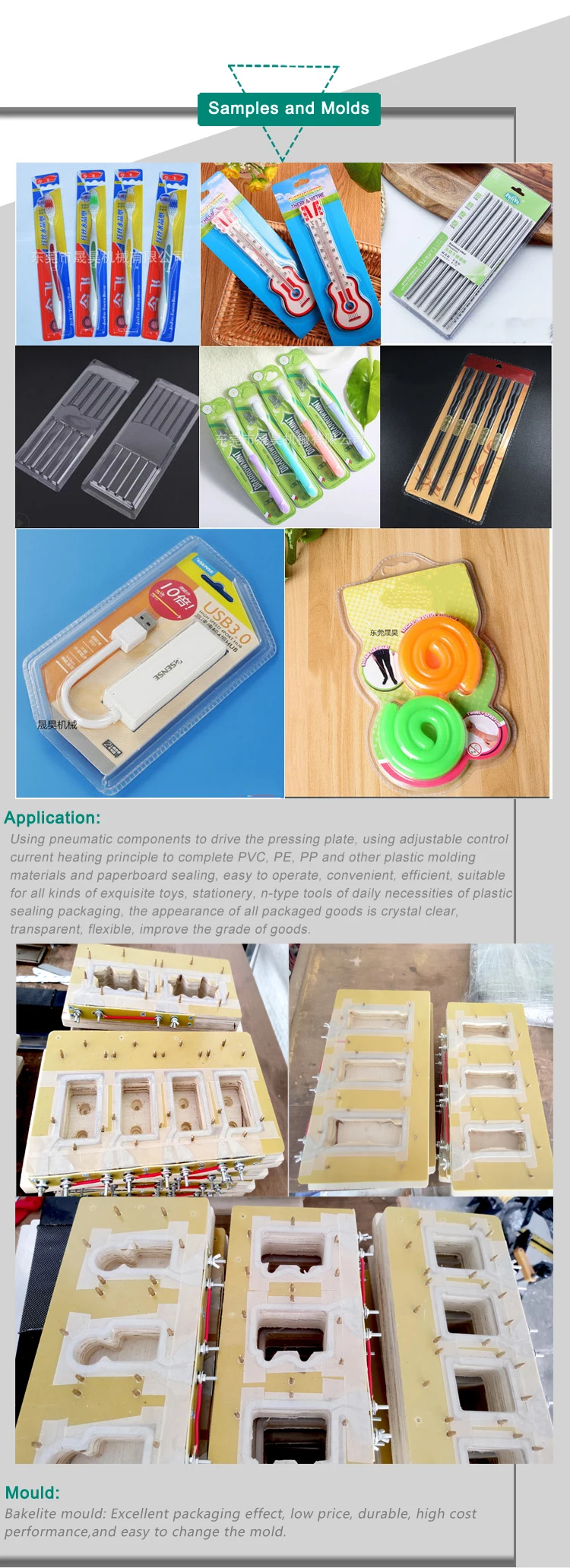

3. By changing the mold, different sizes and shapes of blisters can be bonded;
4. Heating and cooling time is controlled and adjustable by time breaker.
5. With counting display device, it is convenient for counting production
2. Suitable for different thickness of plastic blister bonding;
3. By changing the mold, different sizes and shapes of blisters can be bonded;
4. Heating and cooling time is controlled and adjustable by time breaker.
5. With counting display device, it is convenient for counting production
Attention:
1. It is required that the surface of the paper card must pass through the blister oil (in order to heat bond with the PVC foam shell);
2. The foam shell is used for PVC or PETG;
3. Because the blister is only adhered to the surface of the card, the packaged product is not easy to be too heavy;

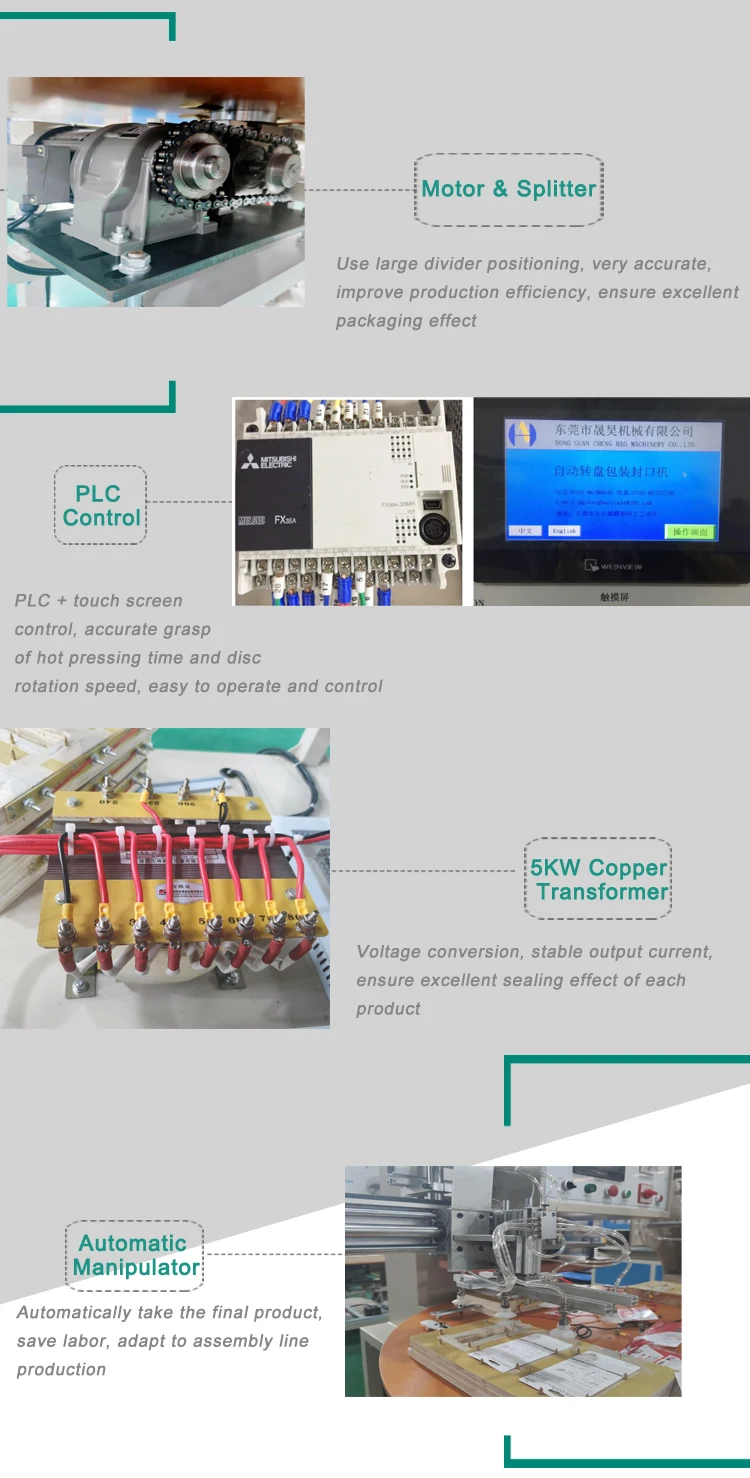

4. The operator only needs to select the heating and cooling time and power output, rotate
the worktable by hand, trigger the micros witch, and the pulse heating system and cooling system will operate automatically.
the worktable by hand, trigger the micros witch, and the pulse heating system and cooling system will operate automatically.
Model | CH-3160-FKJ | CH-3170-FKJ | CH-3180-FKJ |
Operation | Semi-automatic | Automatic | Manual |
Power Supply | 220V/380V 3P 50/60HZ | 220V/380V 3P 50/60HZ | 220V/380V 3P 50/60HZ |
Power | 5KW | 8KW | 1500W |
Package size | 300*500MM | 300*500MM | 310*510MM |
Station | 4 Stations | 4 Stations | 3 Stations |
Packing speed | 6-10 Times / min | 6-10Times / min | 6-15 Times / min |
Machine Size | 1500*1200*1650MM | 1500*1750*1650MM | 1000*1200*1650MM |
Machine Net Weight | 400KG | 500KG | 100KG |
