Products Description
Description

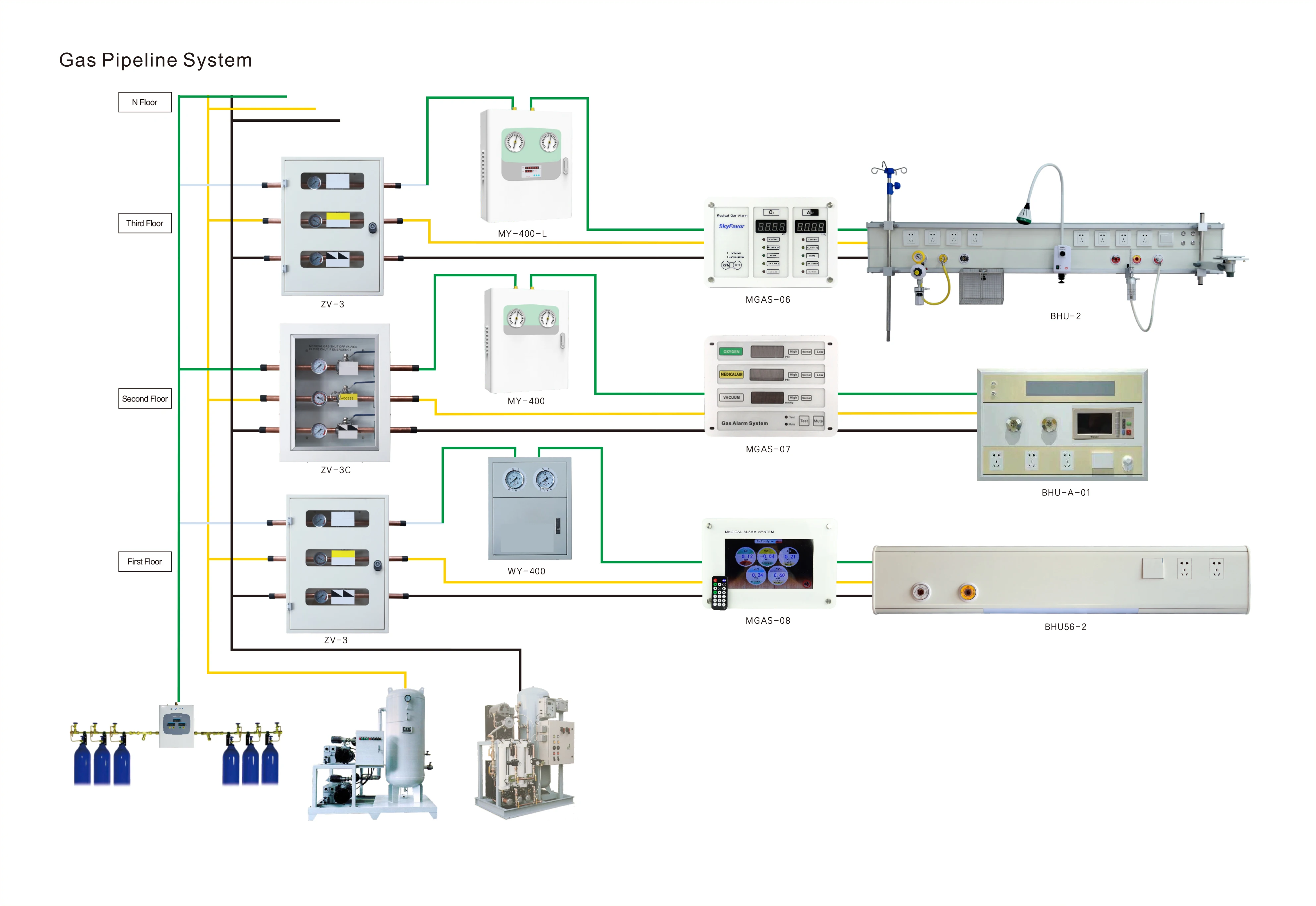

Gas Manifold is a system equipment that transfers several cylinders after grouping together and then conveyed through the main pipe to the use terminal.
lt is mainly used in small and medium gas supply stations and other applicable places.
According to the different switching modes of the left and right cylinders, they can be divided into three kinds: manual switching, pneumatic(semi-automatic) switching and automatic switching.
lt is mainly used in small and medium gas supply stations and other applicable places.
According to the different switching modes of the left and right cylinders, they can be divided into three kinds: manual switching, pneumatic(semi-automatic) switching and automatic switching.
Product name | Oxygen Manifold | Material | copper |
Input Pressure | ≤15Mpa | Output pressure | 0-2.5Mpa |
Flow | 100cbm / h | Kind of Gas | O2/N2O/CO2 |
Configuration | 3+3; 4+4; 5+5; 10+10 | Power Source | Manual and automatic |
Details Images

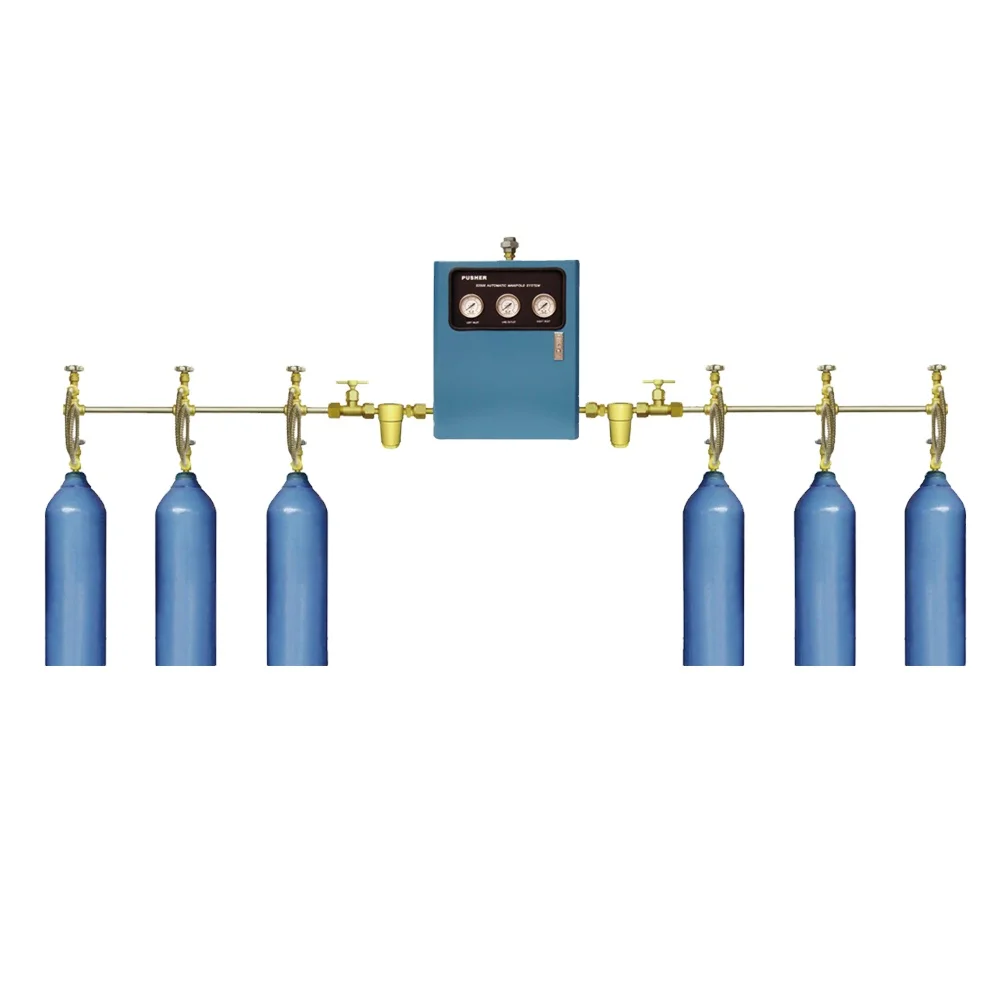

Manual switching gas manifold
1)Manually switch the gas supply on both sides, suitable for bottled gas.
2)The manifold pipe is made of high quality copper material, and the system is subjected to pressure test, safe and reliable.
3)It has bottle and acoustooptic alarm function and remote pressure alarm function. It is easy and reliable to operate.
4)The pipe is connected by silver welding, which can prevent leakage effectively.
5)Open structure design can increase and decrease the number of gas cylinders
Application of gas: oxygen, nitrogen, carbon dioxide and nitrous oxide
5)Open structure design can increase and decrease the number of gas cylinders
Application of gas: oxygen, nitrogen, carbon dioxide and nitrous oxide

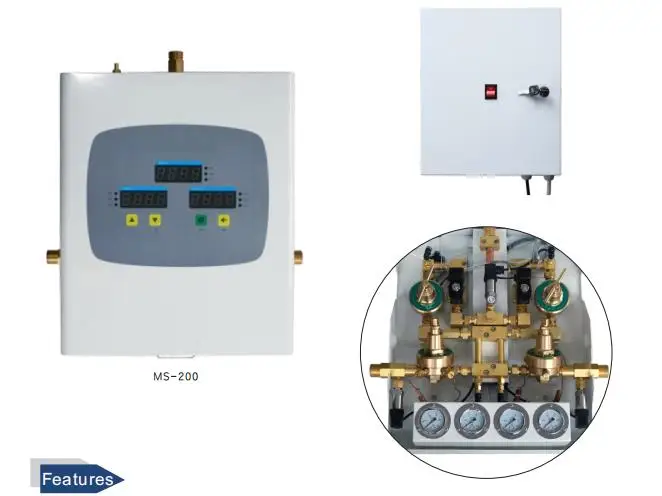

Automatic switching gas manifold
1)Designed for automatic switching between two gas sources, suitable for bottled gases.
2)With decompression device and over pressure discharge device, ensure stable output pressure and use safety.
3)It has bottle and acoustooptic alarm function and remote pressure alarm function. It is easy
and reliable to operate.
4)The pressure indicator can be a clear indication of both sides of cylinder outlet pressure and pressure value of total exports.
5)Equipped with gas filtration device, it can effectively block impurities in gas.
6)The whole system is tested through pressure, safe and reliable, and has obtained People's Republic of China medical device registration certificate.
7)Application of gas: oxygen, nitrogen, carbon dioxide and nitrous oxide
2)With decompression device and over pressure discharge device, ensure stable output pressure and use safety.
3)It has bottle and acoustooptic alarm function and remote pressure alarm function. It is easy
and reliable to operate.
4)The pressure indicator can be a clear indication of both sides of cylinder outlet pressure and pressure value of total exports.
5)Equipped with gas filtration device, it can effectively block impurities in gas.
6)The whole system is tested through pressure, safe and reliable, and has obtained People's Republic of China medical device registration certificate.
7)Application of gas: oxygen, nitrogen, carbon dioxide and nitrous oxide
Recommend Products
Packing and Shipping

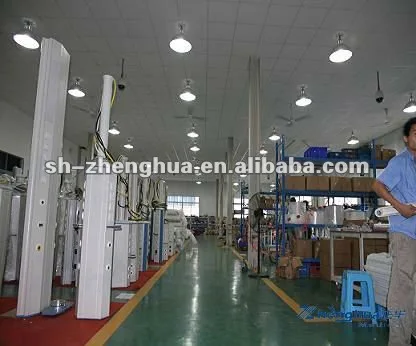

Our Company
