^{Top Selling Ti CC2540 Bluetoo Gps Rf Module Ble Low Energy Smart Home Zigbee 2.4ghz for Iot Industrial Solution}



Overview

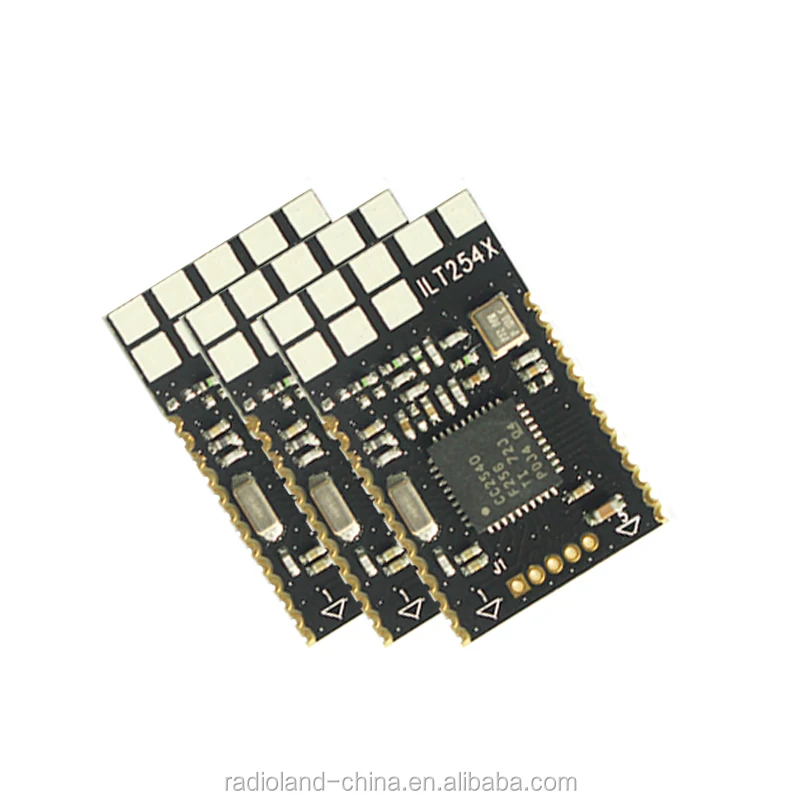

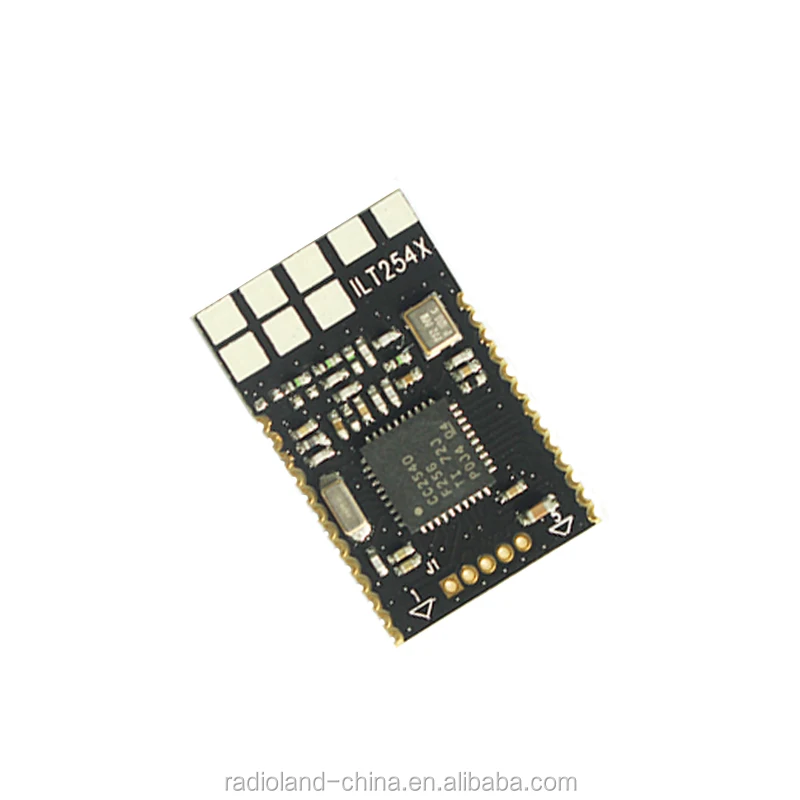

        RL-CC2540 module is a cost-effective, low-power, true system-on-chip (SoC) for BLE low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2540 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The CC2540 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.





Electrical Characteristics

ITEM	TEST REQUIREMENT	REMARKS
Voltage supply	2.0-3.6V	DC
Center frequency	2400-2483.5MHz	Programmable
Frequency error	±50KHz
Modulation	GFSK
MaxOutput power	4dBm	Programmable
Receiving sensitivity	-97dBm	High gain Mode
Receiving current	19.6mA
Transmitting current	32mA	TX Power 4dBm
Sleep consumption At power mode2	0.9uA	Sleep Timer ON
Sleep consumption At power mode3	0.4uA	External interrupts
Transmit distance	>50M	BER<0.1%
Antenna	50ohm

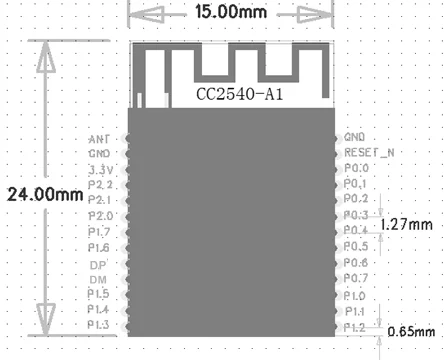

Module size	15*24mm



Feature

1.BLE low energy technology Compatible.

2.Excellent Link Budget

3.Enabling Long-Range Applications

4.Accurate Digital RSSI

5.Compliance With FCC & CE standard

6.High-Performance and Low-Power 8051 MCU core

7.Battery Monitor and Temperature Sensor

8.Sample Applications and Profiles

9.I2C Interface

10.AES Security Coprocessor



Applications

1.2.4-GHz BLE low energy Systems

2.Mobile Phone Accessories

3.Sports and Leisure Equipment

4.Consumer Electronics

5.Human Interface Devices (Keyboard, Mouse Remote Control)

6.Health Care and Medical



Our services



- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.
