Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Лидер продаж подъемник с 4 телескопическими рычагами для грузовиков подъемная платформа шарнирной стрелой
- Категории: High-altitude Operation Trucks >>>
- Поставщик: Liuyang,Economy,And,Technology,Development,Area,High,Tech,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

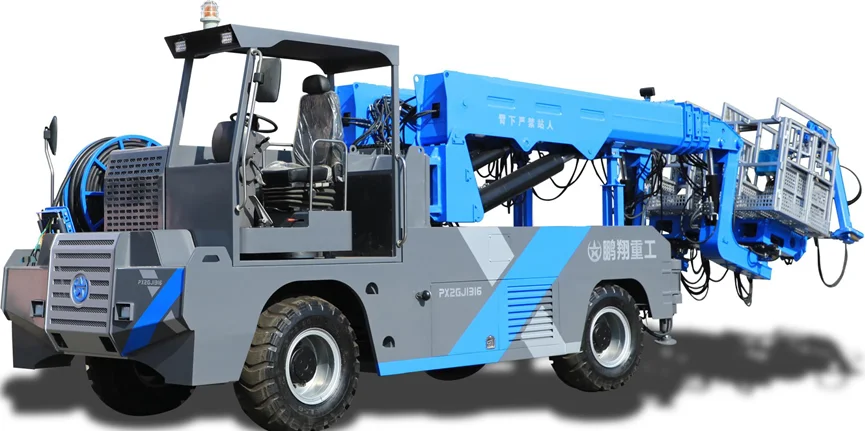

Tunnel arch arms lift platform Telescopic articulating boom lift work truck platform for aerial work/sky arm
2: The manipulator can be lifted and lowered independently, and can be twisted independently on the horizontal and vertical planes. Multiple degrees of freedom enable the arch frame to be initially positioned by the arm frame. Use the manipulator to fine-tune the proportions, which greatly reduces the difficulty of arch docking operations.
3: One piece of equipment and 4 people can complete the installation of the moistening frame and the setting of the steel mesh. Greatly reduce labor costs.
4:The industry's first all-electric proportional manipulator with hydraulic control brake, arm positioning and manipulator action. Make softer. More precise.
5: Double arm, double manipulator and double working platform. The lifting capacity is large, the working range is large, and the installation of 3 arches can be completed in one shutdown;
6: The dual-arm vehicle industry is the first in the industry to use both fuel-efficient engine and electric motor, taking into account construction economy and convenience.
7: Four-wheel drive, integral frame, front axle twisting and rear axle fixed to ensure the effective fit of rugged roads and tires, strong road applicability, and quick transitions
8: Four-wheel steering, it is better to rotate 180 degrees. Flexible entry and exit of the tunnel.
9:SUN, EATON well international first-class manufacturers of hydraulic inserts,. Ensure the reliability and excellent performance of the hydraulic system
10:Two-speed forward and one-reverse hydraulic walking system, reliable, easy to learn, conducive to smooth and fast driving, fast and automatic conversion between two working conditions of climbing and large torque
11: 4-cylinder 95KW non-road country Ⅲ. Diesel engines. Strong power. Flat ground. The maximum vehicle speed on flat ground is not less than 25km/h, and the maximum climbing ability is not less than 20°
12:Standard equipped with domestic well-known brand wet axles, low heat generation on long slopes, reliable braking, convenient maintenance and low cost.
13: Equipped with special electric slow reel. The electric brake cable is retractable, easy to operate, and comes standard with 100 meters of wear-resistant rubber cable.
14:The electrical system adopts the imported LS brand. IP67 level dedicated controller. With over-current, over-cut, phase loss, over-heat protection, energy saving, higher safety
15: Taiwan WINVIEW touch screen. Real-time display of equipment status and failure status. Make work smarter, more humane,
16: Meet the FOPS anti-falling object impact) to ensure the safety of the operator in the cab
17: Four heavy-duty hydraulic outriggers, front fixed and rear swing support structure form, ensure high passability, and the bottom plate" is as solid as a rock during construction.
18: The three parts of the car body, the gondola and the manipulator are insulated from each other, which can prevent the leakage of cables from causing casualties in the gondola. It can also prevent the current from damaging the controller and engine ECU during welding
19: The patented technology of hydraulic cylinder linkage ensures that the crane platform is still in a horizontal state with the arm, and the operation is simple. Personnel stand more steadily.
20: Patented gondola area variable technology, which can not only ensure the size of transportation and convenience, but also ensure the convenience of operation. 21 Electric control cabinet reserved welding machine 38OV wiring young child. Optional 2X7-5OOK inverter manual arc welding machine.
Telescopic Work Platform Truck parameter | YZ27 | |

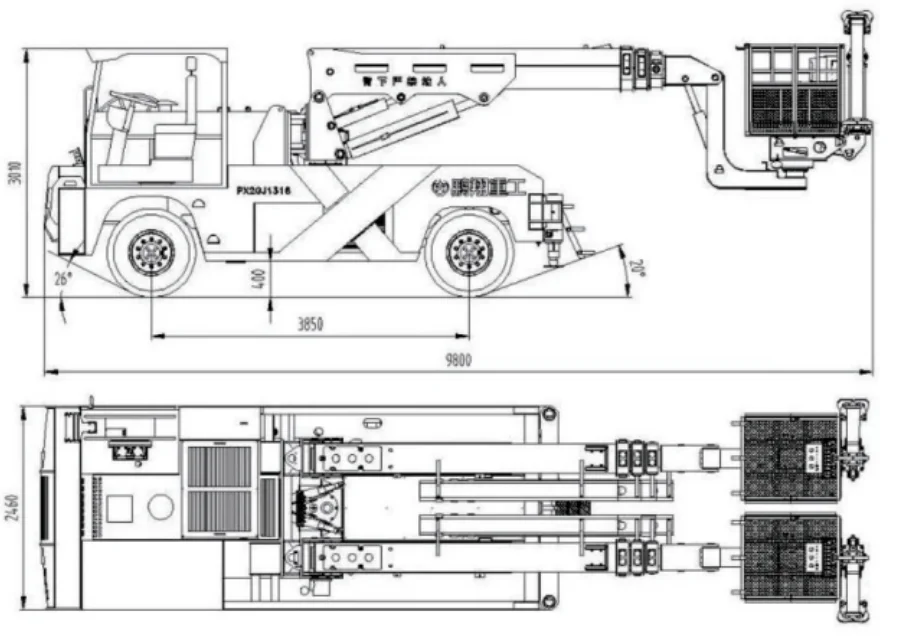

Overall dimensions(L*W*H) | 9800*2460*3100(mm) | |
Weight(KG) | 21800 | |

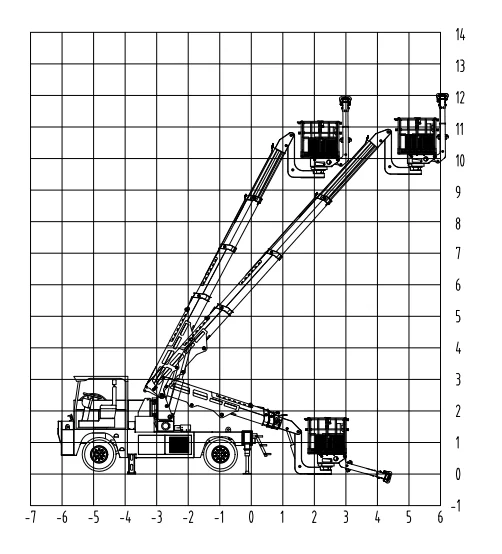

working height(m) | 13 | |
Engine style | Diesel 4-cylinder | |
Engine Power | 95KW | |
operating voltage | 380V | |

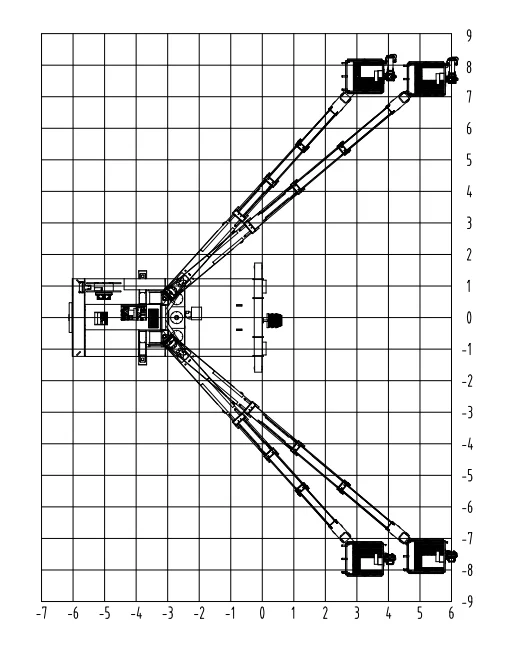

working width(m) | 16m | |
Working method: | diesel engine + motor | |
Motor Power | 45KW | |
Maximum lifting weight(kg) | 2*1000 | |
Basket size | 930*1120 | |
Rotation method of hanging basket | Turbine reducer | |
Manipulator pitch angle(°) | -17+90 | |
Manipulator swing angle | -3+40 | |
Manipulator telescopic length(mm) | 400 | |
Number of boom sections | 4 | |
Drive way | 4 | |
Steering direction | 4 | |
Tire specifications | 16/70-20 | |
Gradeability | ≥15 | |
Accumulator | 24V | |
cable length | 80m | |

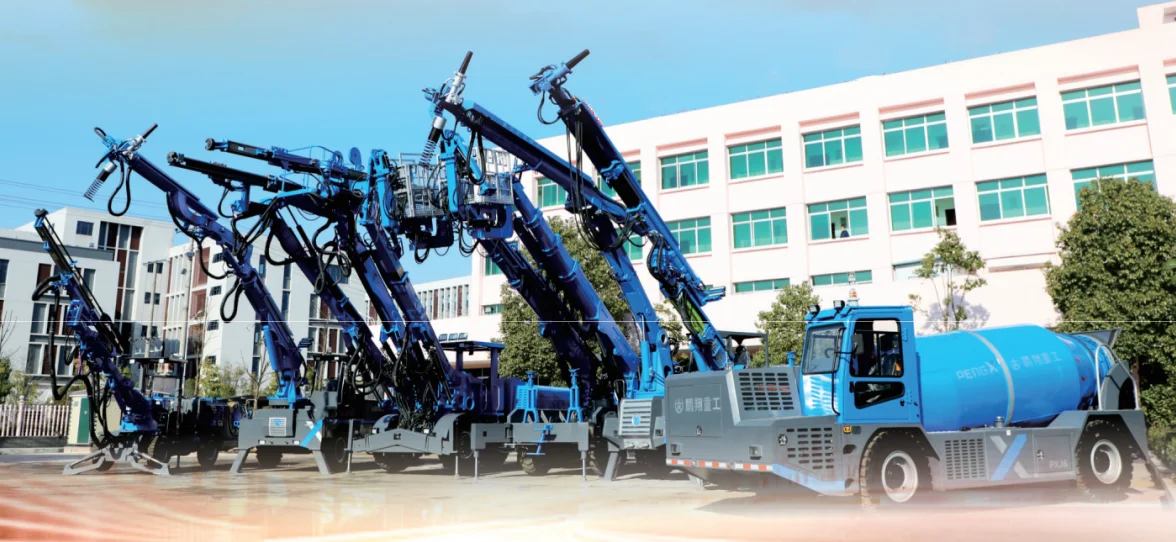

Successful Project
Company Profile
Why Choose Us
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
(2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
Delivery and package
After-sales service
To train operating,maintenance and construction people for our customers.
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
4: Inspection and testing the product before delivery;
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8： Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8： Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
FAQ
Q1: Why should I choose you?
1. after sales service support in different languages;
2. Guidance of installation and commissioning
on site can be provided by factory-trained technicians or local Authorized Service Center;
on site can be provided by factory-trained technicians or local Authorized Service Center;
3. Technical training can be carried out for customers in the factory or on the job site
4. Plenty of original spare parts with proven quality are all available from our central stocks in HUNAN Province and alldistributors'depots;
5. All kinds of technical documents in different languages.
Q2:Where is your factory located?
Q2:Where is your factory located?
A:Our factory is located in HUNAN
Q3: How many do you produce every month?
A: We can produce 3000 pcs every month.
Q4: Can you use our brand?
A: Yes, OEM is available.
Q5: What is delivery time?
A: It depends on the order quantity .Normally our lead-time is 7-30 days.
