Внешний ротор Трехфазный постоянный магнит бесщеточный двигатель N5065 270KV 320KV 400KV электрический скейтборд 5065 датчик холла
- Категории: Motors >>>
- Поставщик: Shenzhen,Octave,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Notice
This three-phase outer rotor brushless can not be directly connected to the power supply, it needs ESC
The KV value is the idling speed of the motor per minute at a voltage of 1V. For example, KV800, the idling speed at a voltage of 1V is 800 rpm. Under the voltage of 10V, the idling speed is 8000 revolutions per minute.
With more turns, the KV value is low, the highest output current is small, but the torque is large
The number of winding turns is small, the KV value is high, the highest output current is large, but the torque is small
With more turns, the KV value is low, the highest output current is small, but the torque is large
The number of winding turns is small, the KV value is high, the highest output current is large, but the torque is small
Specification
Diameter | 50mm | |
Height | 60mm | |
Motor shaft diameter | 8mm (round) | |
Output shaft length | 23mm | |
Top mounting hole pitch | 30*30mm, hole diameter 4mm | |
Bottom mounting hole distance | 20*20mm, hole diameter 3mm | |
Maximum power | 1800W | |
Maximum current | 80A | |
No-load current | 0.5-1A | |
Recommended voltage | 24-36V (3S-10S LIPO) | |
No-load speed | = voltage * KV value | |
Torque | 1.5-2N/m | |
Number of poles | 7 pairs 14 poles | |

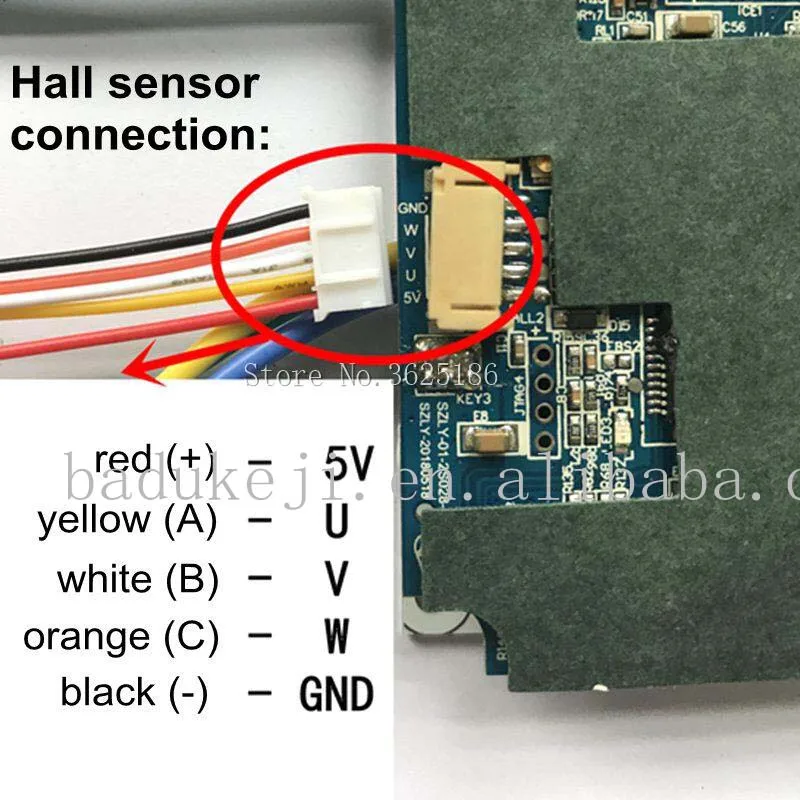

Hall plug type | H-JSY 5pin 2.0 | |
Hall angle | 60 | |
Hall operating voltage | 5V | |
All motors are welded with 4.0mm banana heads | All motors are welded with 4.0mm banana heads | |
Can produce KV value range | 60-600 (600kv current will be relatively large, it is recommended to use 100A ESC, and the heat is serious) | |
The increase in KV value, the increase in speed, and the decrease in torque; the decrease in KV value, the decrease in speed, and the increase in torque | ||
