Цифровая Конференц-система высокого качества 1080P широкоугольная USB-камера с интерфейсом
- Категории: Conference Camera >>>
- Поставщик: Shenzhen,Grandvideo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

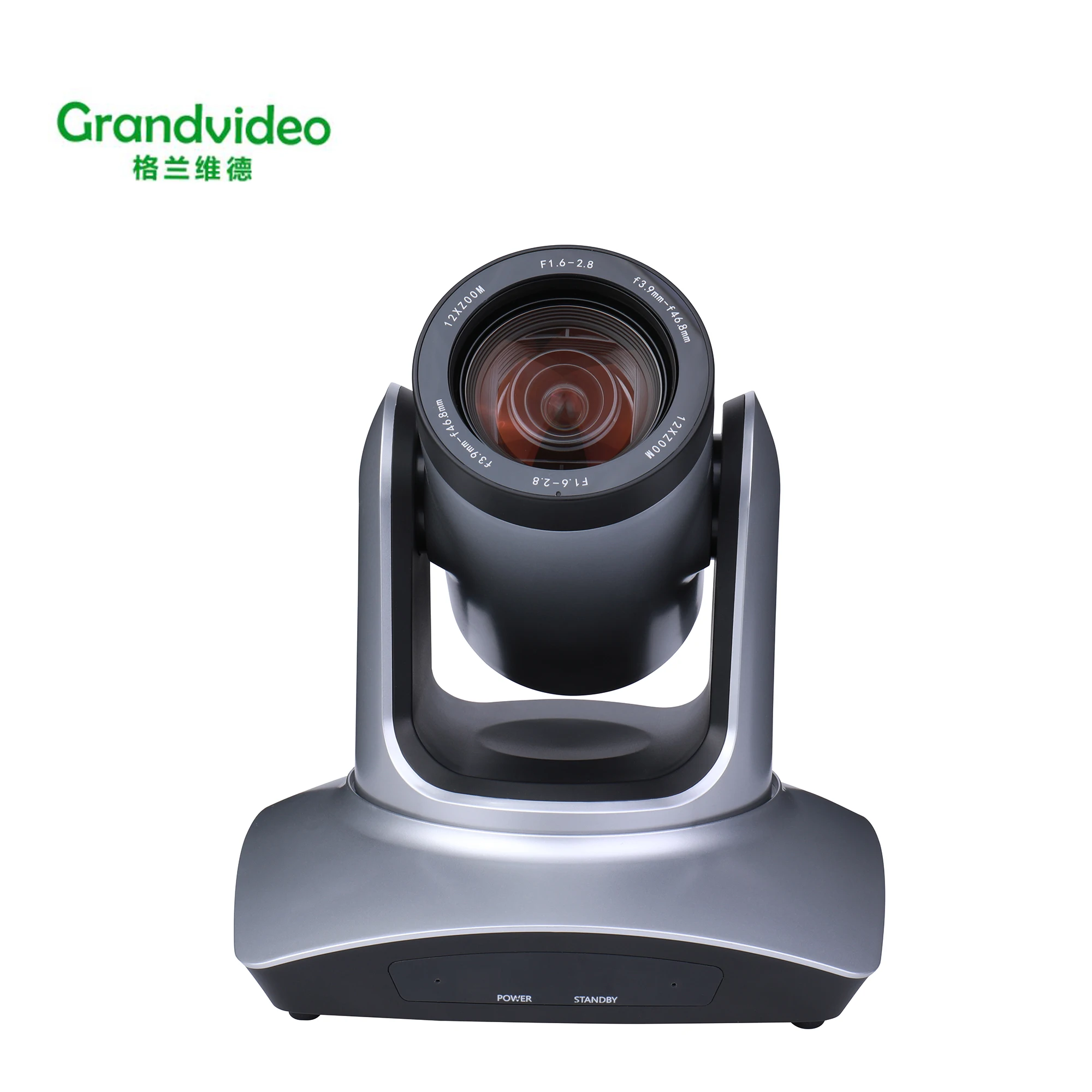

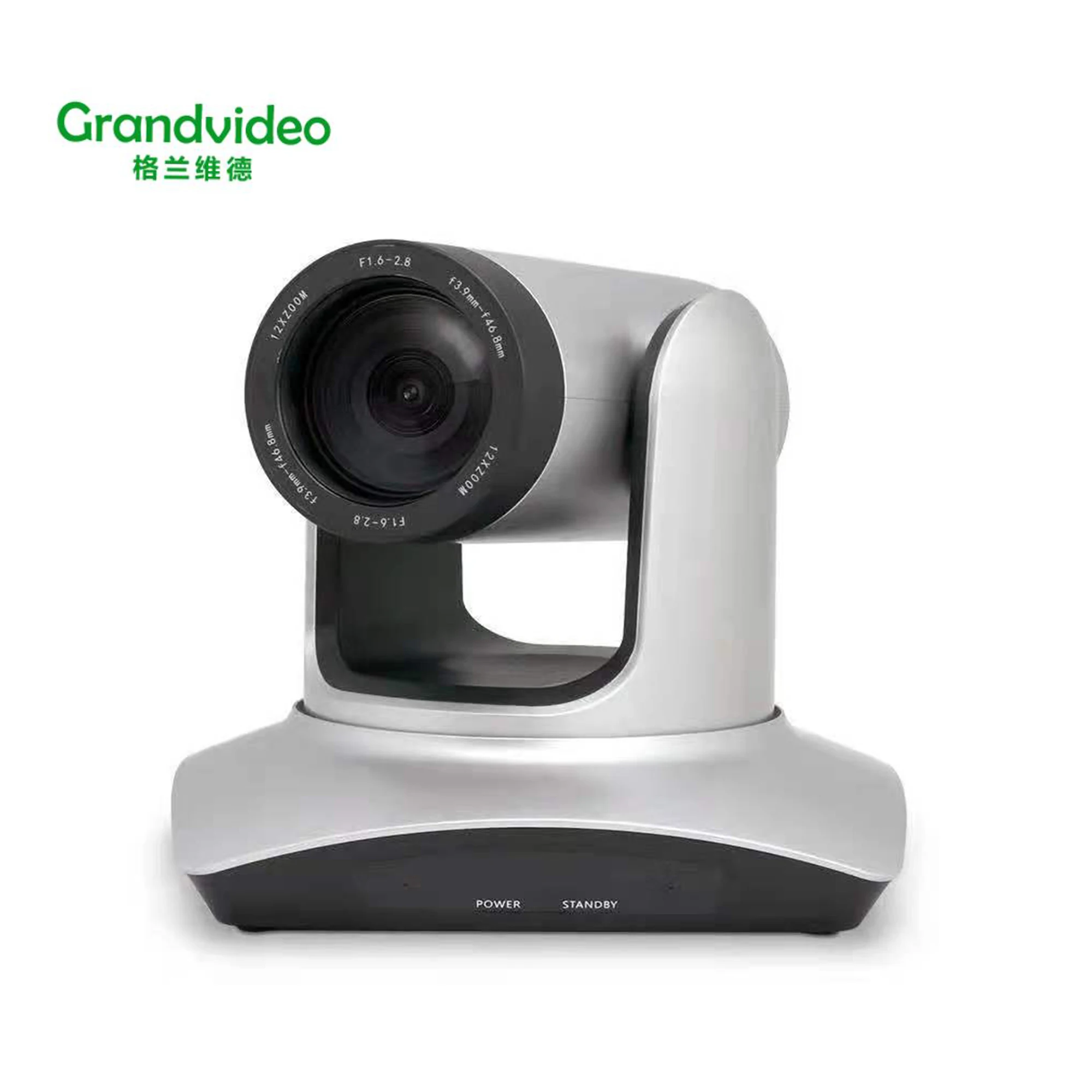

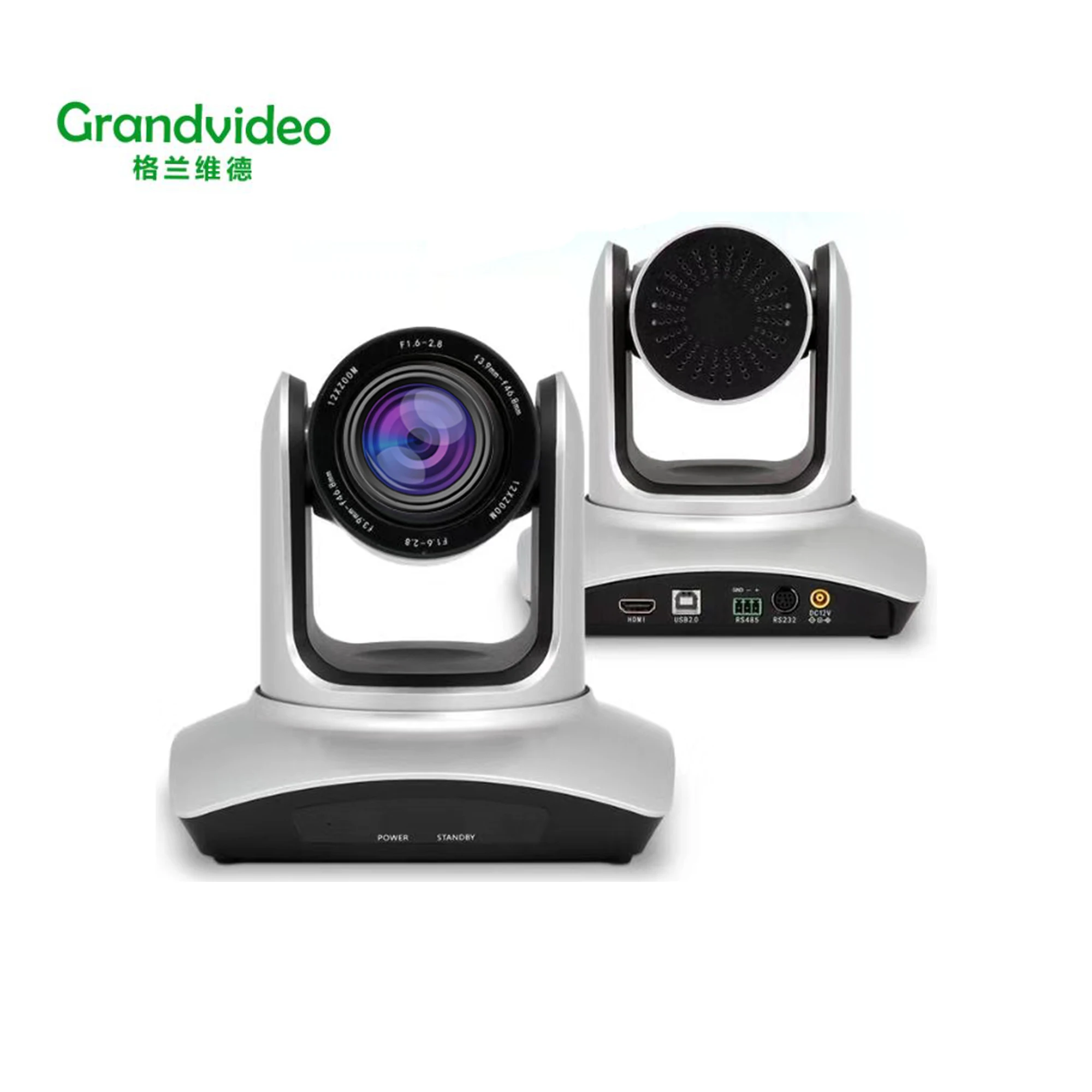

GV-HD40 1080P Ultra Wide Angle USB Camera
●1080P high-definition video, 12/20x optical zoom, can achieve long-distance close-up capture

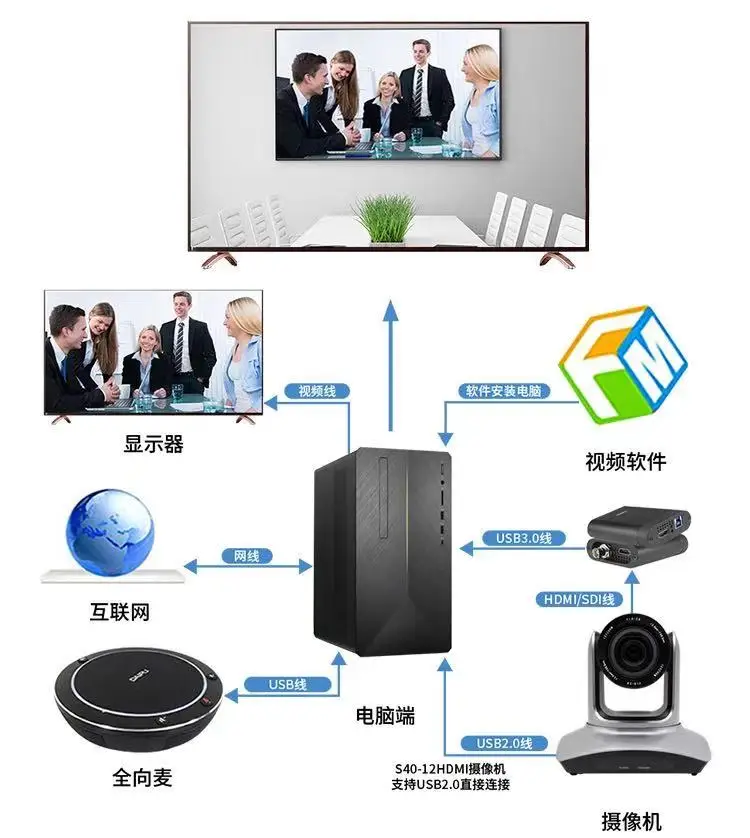

●Support USB 2.0 plug-and-play drive-free access, simple connection, suitable for various conference and video applications
●Mainstream HDMI interface, which can support the docking and matching of mainstream devices
●355-degree rotating pan-tilt can realize almost panoramic multi-angle image capture
●72.5°/58.7°Large wide-angle lens to meet the needs of small scenes and large fields of view
●Multi-function infrared remote control, with multi-function OSD menu, can flexibly adjust the image effect, adapt to the complex
meeting environment
●Compatible with SONY VISCA protocol and PELCO P/D protocol
●Support image flipping (suitable for desktop and ceiling installation)
●Support USB 2.0 plug-and-play drive-free access, simple connection, suitable for various conference and video applications
●Mainstream HDMI interface, which can support the docking and matching of mainstream devices
●355-degree rotating pan-tilt can realize almost panoramic multi-angle image capture
●72.5°/58.7°Large wide-angle lens to meet the needs of small scenes and large fields of view
●Multi-function infrared remote control, with multi-function OSD menu, can flexibly adjust the image effect, adapt to the complex
meeting environment
●Compatible with SONY VISCA protocol and PELCO P/D protocol
●Support image flipping (suitable for desktop and ceiling installation)
Video camera
Video resolution : U2:MJPG/H.264:320*240,640*480,800*600,1280*720,1920*1080 HDMI: 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50
Sensor : SONY 1/2.8 inch CMOS effective pixels 3.5 million pixels
Scan method :Line by line
Sensor : SONY 1/2.8 inch CMOS effective pixels 3.5 million pixels
Scan method :Line by line
Lens focal length
(optical zoom) :1: 20x f=4.7mm～94.0mm, 2: 12x f=3.9mm～46.8mm
Auto focus Support
Minimum Illumination: 0.1Lux
Electronic shutter : 1/1～1/10000S
White balance : Auto/Manual/Indoor/Outdoor
Backlight compensation: Support
Digital noise reduction : 2D&3D digital noise reduction
Signal to noise ratio : ≥ 50dB
Horizontal field of view1: 20x 58.7° ～3.2°, 2: 12x 72.5°～7.4°
Horizontal rotation range : ±177.5°
Vertical rotation range : -30° ~ +90°
Vertical rotation range : -30° ~ +90°
Horizontal rotation speed range : Maximum speed 80°/s
Vertical rotation speed range : Maximum speed 60°/s
Horizontal/Vertical Flip : Support
Number of preset positions : 255
Preset position accuracy : 0.1°
USB features
Support operating system : Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color space/compression : MJPEG / H.264
Video format : HDMI: 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50
USB video communication protocol : UVC 1.1
UVC PTZ control : Support

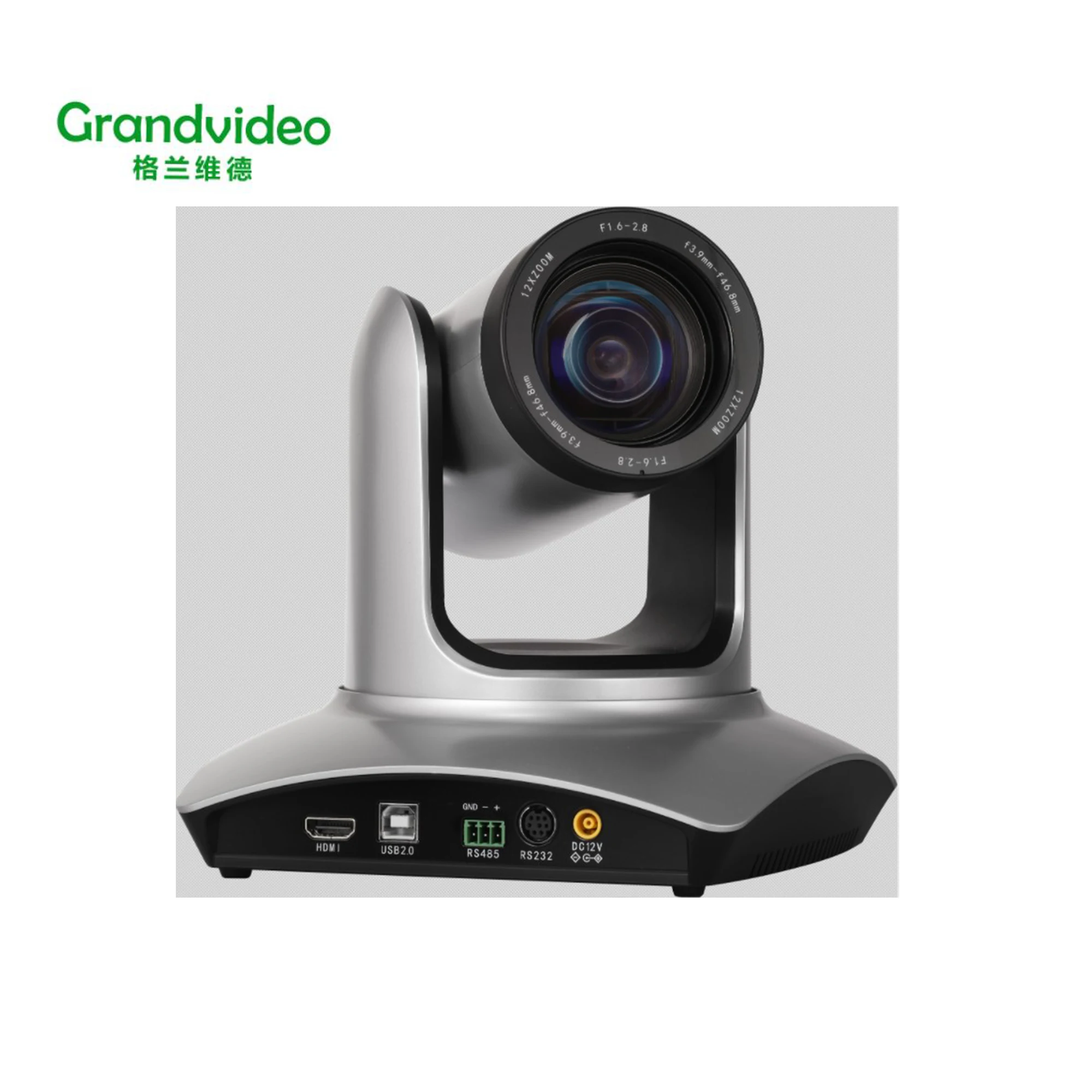

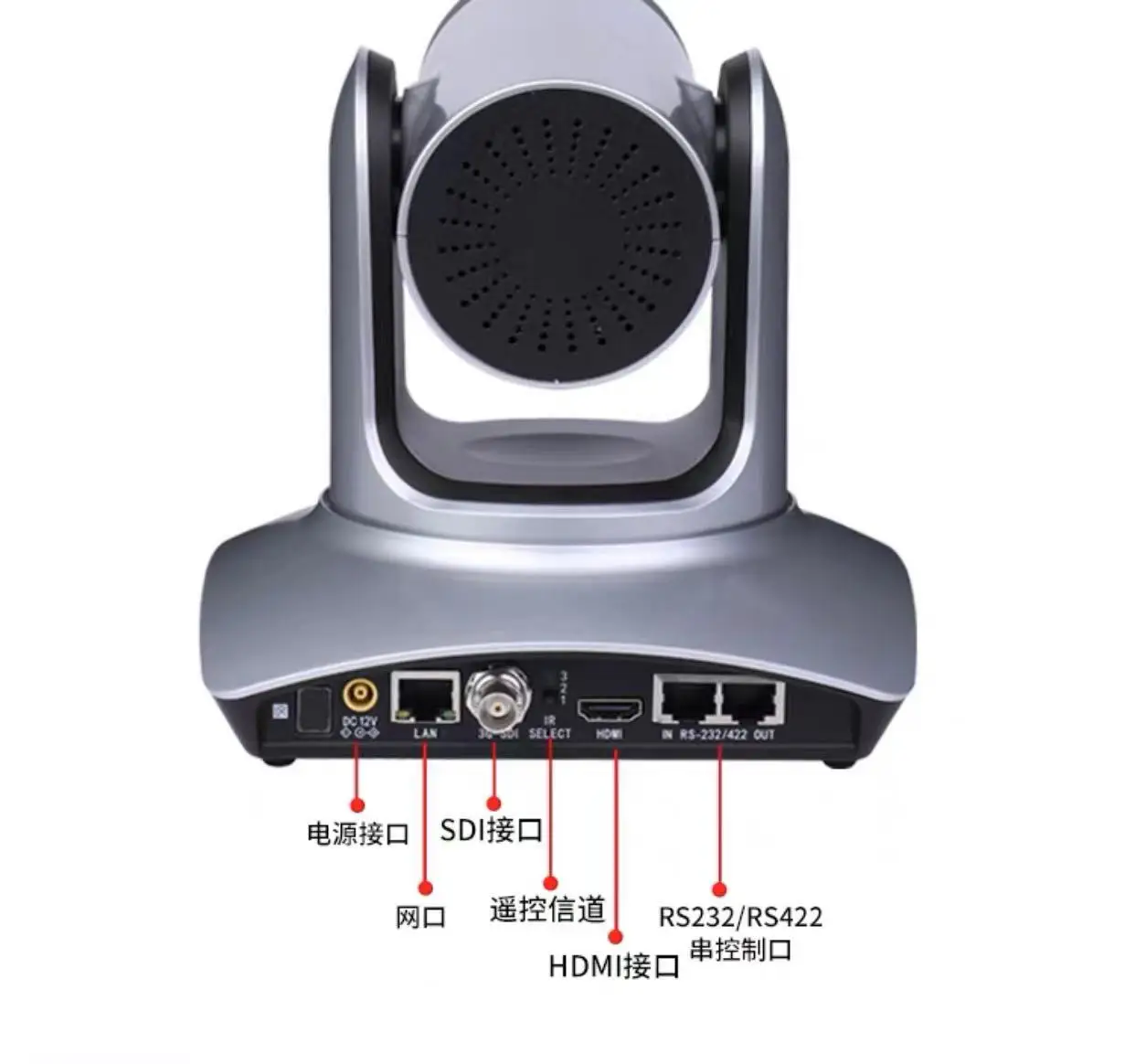

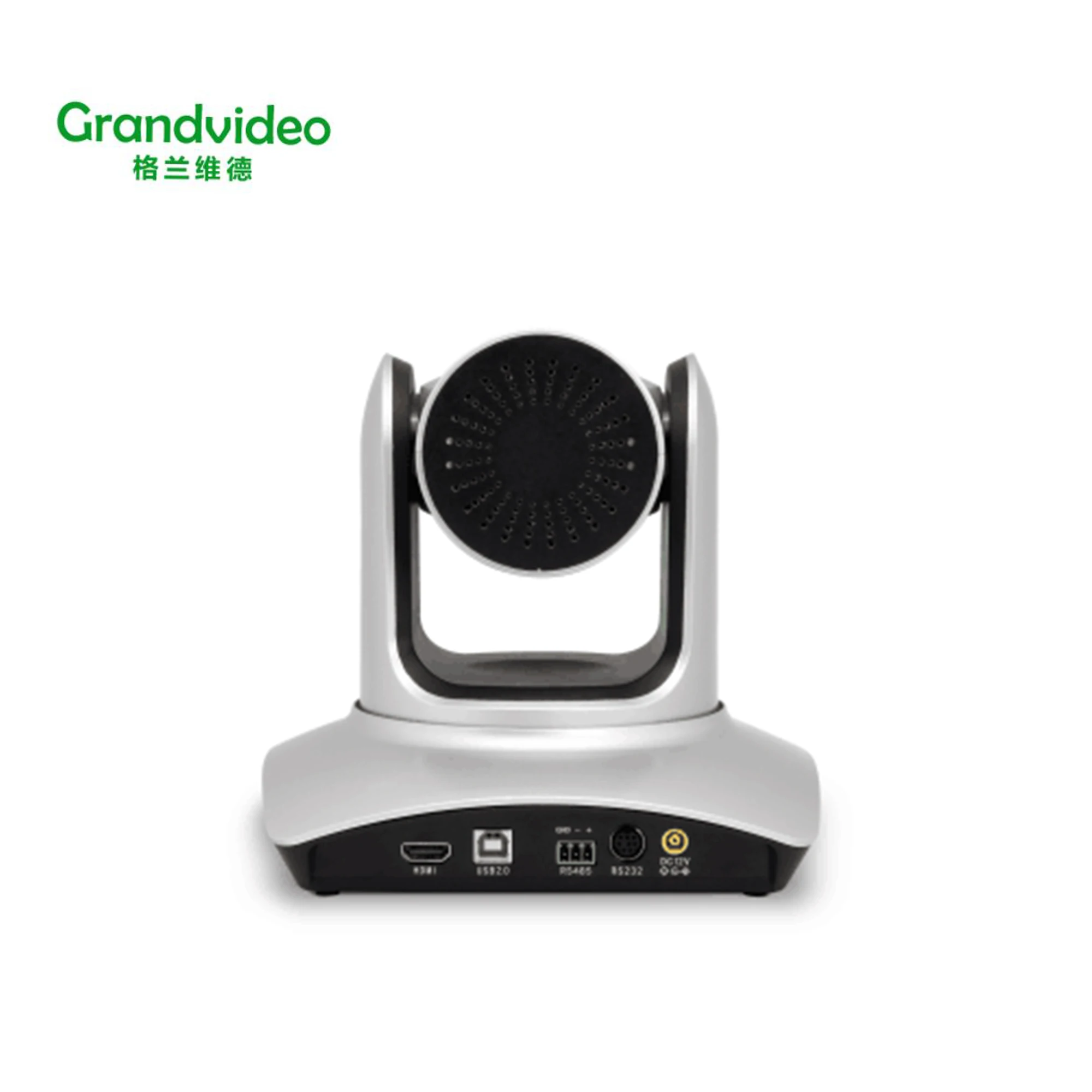

Input and output interface
HD transfer out : 1: )HDM+USB2.0, 2) HDMI+3G-SDI
Network interface : 1 channel, RJ45: 10M / 100M adaptive Ethernet port
USB interface : 1) USB 2.0 2) None
Control Protocol: SONY : VISCA, PELCO P/D
Control Protocol: SONY : VISCA, PELCO P/D
Control method: RS-232/485/USB control
General specification
Input voltage : 12V DC(10.8～13.0V DC)
Working temperature : 0℃～40℃
Storage temperature : -20℃～60℃
Power consumption : Maximum 12W (at DC 12V)
Size : (length) 170 × (width) 151 × (height) 190mm
Weight : 1.31kg

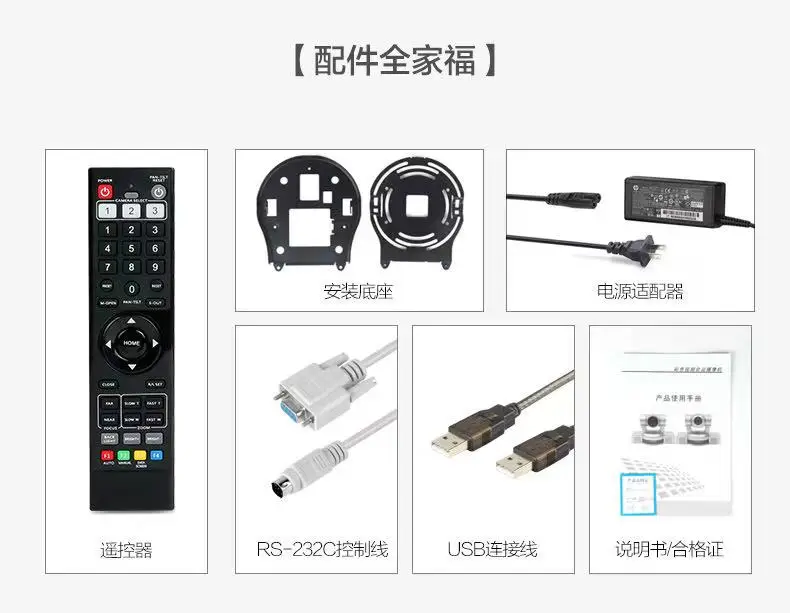

Supplied : DC 12V power adapter, IR remote control, operating instructions, RS-232
accessories : serial cable, USB video cable, ceiling mount
Our company
Shenzhen Grandvideo Technology Co., Ltd. is a high-tech enterprise focusing on the research and development, production, sales and
related technical services of audio and video equipment.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video
cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified
communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the
world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India,
South Africa, etc.

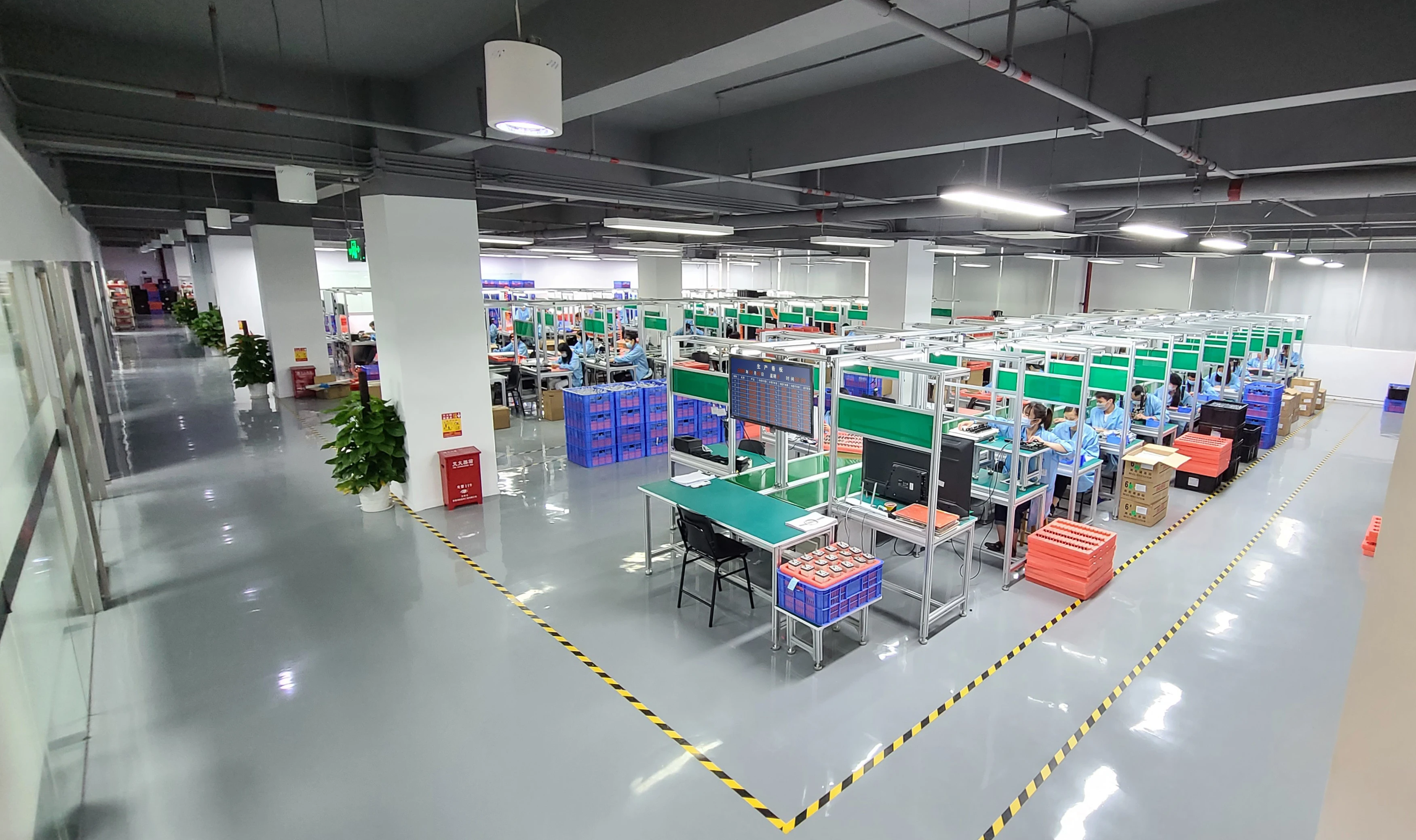

The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than
6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
related technical services of audio and video equipment.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video
cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified
communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the
world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India,
South Africa, etc.
The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than
6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
FAQ
1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM
/ ODM.
Contactor
Melody
Email :melody.liu @grand-video.com
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM
/ ODM.
Contactor
Melody
Email :melody.liu @grand-video.com
