Hot Selling 948 1054 Vessel Water Treatment Frp Fiberglass Pressure Tank Filter Media Frp Tank



01 Raw Materials Quality





PE Plastic		Fiberglass		Epoxy Resin
Ι		Ι		Ι
A: It is odorless, non-toxic, smooth, low temperature resistance, corrosion resistance, good electrical insulation, and CNPC supply. B: Harmless to the human body. C: Can work in low temperature, long life.  D: Can be filled with various filter materials.		A: Reinforced alkali-free fiberglass. B: Strong anti-oxidation ability, long life of tank.		A: Strong anti-oxidation ability, long life of tank. B: Certified by US NSF, with guaranteed quality. C: Bright color.





02 Working Parameter







Working pressure:	150psi (10.5 bar)
Operating temperature:	1-49℃ (34- 121 ℉)
Maximum vacuum:	127 mm Hg
Minimum ambient temperature	-27℃ (-17℉)
Bursting pressure:	42 bar (times)
Fatigue cycle:	100,0000

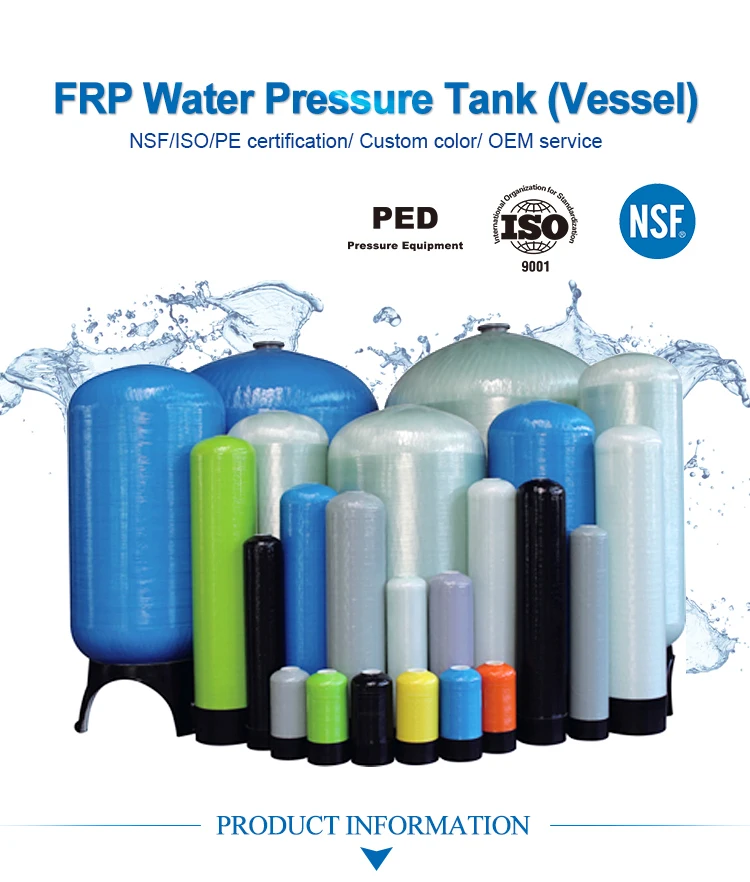

03 Colors Available





04 Models Available

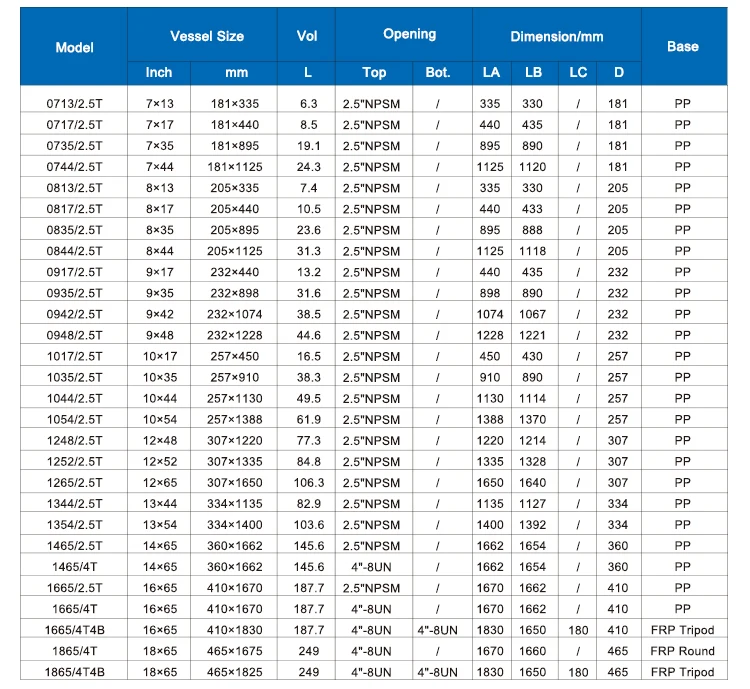

UMK-D TANK SPECIFICATION

♦ The actual dimmension may have ±1.2% error due to PE materlats contraction coefficient

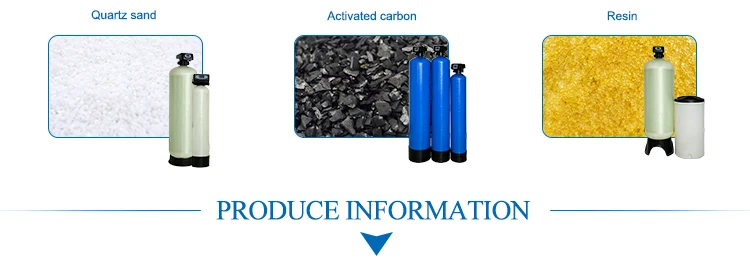

05 Applications





Frp water tank are widely used in zeolite, manganese sand, quartz sand, Medical stone, KDF, activated carbon, ion exchange resin filtration.it is important components for water filtration and softened water.

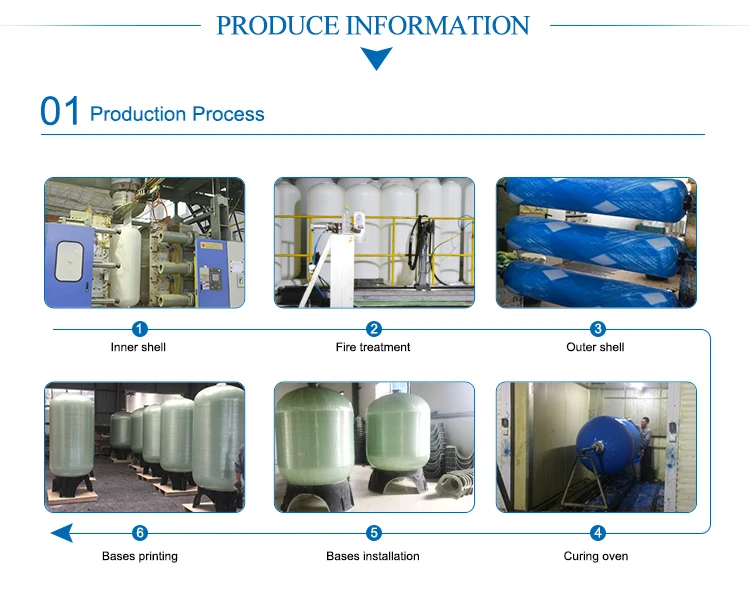

01 Production Process

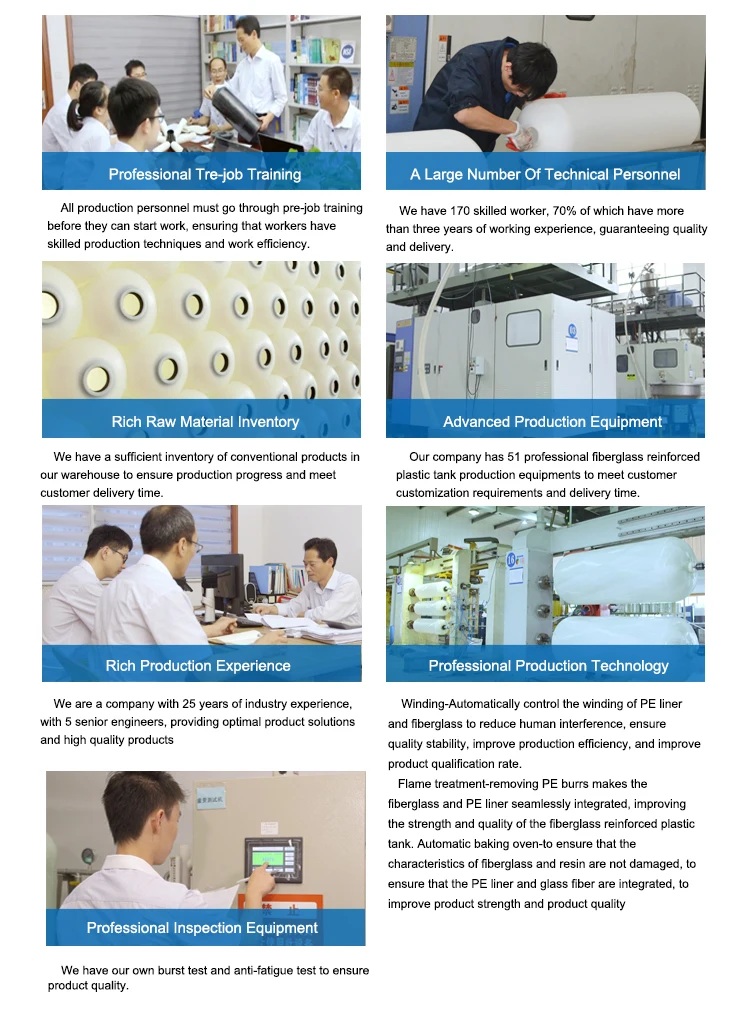

02 Production System

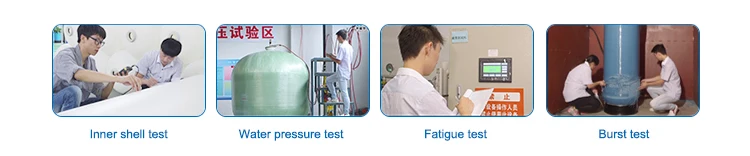

03 QC



    Every step in the production of Frp water tank will have quality inspection personnel. Strict inspection and testing of product quality to ensure the excellent quality of the final product. The company's quality department will also randomly select the finished product in batches and send it to the quality control laboratory for a burst test at 4 times the working pressure, a static pressure test at 2.4 times the pressure, and a fatigue test at 100,000 times. To ensure that Frp water tanks meet the requirements of the US NSF certification.

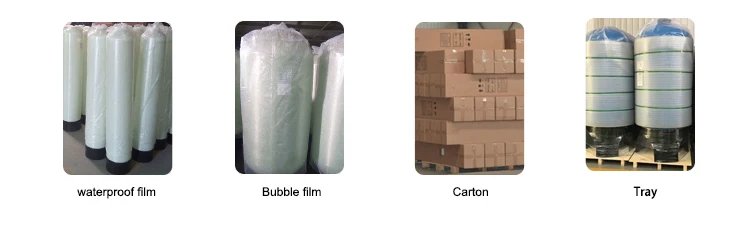

04 Packaging System





• Inner packing: < 10 inch waterproof film, > 18 inch bubble film

• Outer carton: <10 inch three-layer carton, 10-18 inch five-layer carton, >36 inch five-layer carton + tray

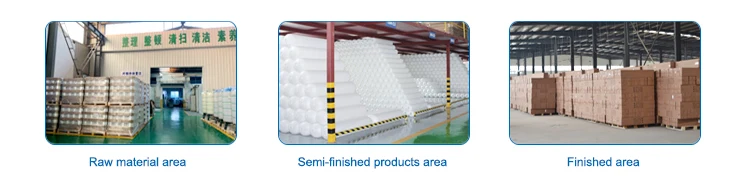

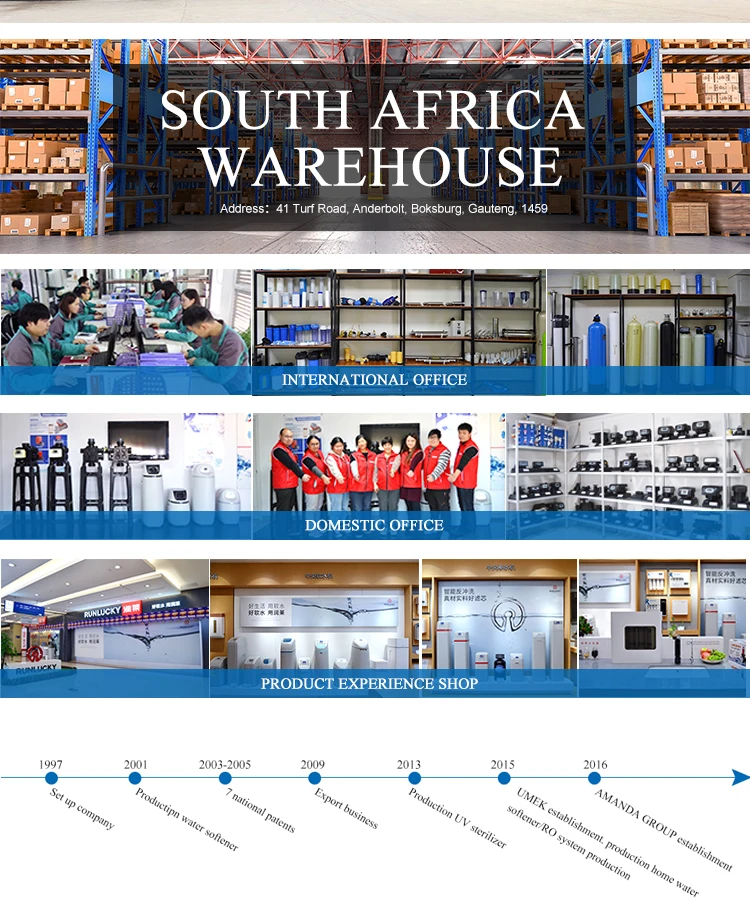

05 Warehousing System





• Obvious zoning system: the warehouse has a clear regional division to ensure the number of products; to ensure that the products are tidy.

• ERP software management: real-time online monitoring of inventory conditions; quickly find product quality and logistics information. Guaranteed delivery time; fast after-sales feedback.

• Warehouse manager: improve professionalism and efficiency; reduce storage and logistics errors; ensure timely delivery;

• Dispatch area: determine the name, model, quantity, and country of destination of the goods again; prevent wrong shipments and fewer deliveries;





06 Shipping





• Sampling products: product sampling must be performed before packing; ensure that the products are 100% qualified

• Check the package: check the integrity of the package, the clarity of printing, and the tightness of the package; ensure that the package is not damaged, high-quality printing, and the product is well sealed

• Check the cargo information: check the name, model and quantity of the cargo; ensure a lot of shipments

• Supervision of container loading: Each cabinet has supervising packing staff to ensure that the packing process does not violently packing, does not damage the packaging, and uses the space efficiently; guarantees that the complete packaged goods are received; saves freight

• Take photos before shiping: The process of taking photos: collection photos-product category photos-packing photos of each product category- sealing photos; convenient to know the packing details; check the cargo information





1. Q: What is the maximum temperature and pressure frp tank can handle?

A: Operating pressure 1-49℃(34- 121℉), working pressure 150psi(10.5bar)



2. Q: What is your main market for frp water tanks?

A: The United States, Africa (South Africa, Kenya, Nigeria), South Africa (Ecuador, Colombia, Venezuela, Peru, Brazil, Chile, Argentina)



3. Q: For the water tanks ,which valve you match ? how about the distributor ?

A: We have 23 years of experience and experienced engineers to help you match the right valve and distributor, both of which can provide you with competitive prices.



5. Q:Can you tell us the purpose of the product? Other product needs?

A: We can provide one-stop supply



6. Q: what is your water fiberglass tanks advantage ?

A:Raw materials guarantee that we pass NSF certification



6. Q: what is your sample policy?

A: 1. Our company shall bear the freight for VIP customers.
2. General customers need customers to bear the sample fee or freight, choose one (order return).
3. Half of the sample fee of high value shall be borne by the customer (return the order).



7. Q:Can i customize the boxes with my company information ?

A: We can OEM, we have our own design team, free design. Help you improve your brand.



8. Q:If the quantity is more, is the price will be cheaper ?

A: In order to improve the competitiveness of customers



9. Q:Are the FRP water tank certified for pressure?

A: We have NSF certificate and stress test report. Guarantee quality, reduce after-sales and improve customer brand.



10. Q:Please tell us about the quality problems in the past? what are the use environment and special requirements of the product?

A: We can provide solutions.



11. Q:What color can you offer for water fiberglass tanks?

A: We have natural, blue, black, yellow, orange and other colors, colored fiberglass tank for home and business very beautiful.



12. Q:How about after-sales service?

A: In order to solve problems quickly and minimize customer losses, our company's system is customer first, fast feedback, finding causes, analyzing causes and improving, special person in charge, general manager responsibility system for major problems, and emergency handling mechanism.



13. Q:How long does it take to manufacture once an order has been placed?

A: We have 7 production lines and 220 skilled workers. The monthly production capacity is 125000 pieces, and a normal order of 20 or 40 containers is generally 15 days.
