Product Description
Device model | Macex-5V3A | Single channel Output power | 15W | Communication method | TCP/IP (Network port） | ||||||||
Discharge voltage | 5V-0.8V | Charging voltage | DC0-5V | data record | 100mS~65535 S | ||||||||
Recharging current | 5Vseries：0.02A~3A | Discharge current | 5Vseries：0.02A~3A | ||||||||||
Current accuracy | ±(0.05%RD+0.05%FS) | Voltage accuracy | ±(0.05%RD+0.05%FS) | ||||||||||
Voltage resolution | The smallest unit used by lmV equipment when detecting or setting voltage | ||||||||||||
Electric current resolution | The smallest unit used by lmA equipment when detecting or setting voltage | ||||||||||||
Charging mode | Constant current charging Constant voltage charging | ||||||||||||
Discharge mode | Constant current discharge. Constant power discharge | ||||||||||||
Charging cut-off condition | Voltage,current,time, capacity,temperature | Discharge cut-off condition | Voltage,current,time,capacity,temperature | ||||||||||
Three key technologies:
1. Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology
2. High efficiency: labor efficiency increased by 50%3. High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology
Energy-saving battery based on high-frequency power feedback technology
The working principle of chemical composition equipment:
All products can be customized with different voltages and currents according to customer needs
Details Images
Charging mode: PWM switching power supply mode is adopted to realize constant current and
constant voltage charging of the battery. Advantages: high power conversion efficiency, generally above 85%.
constant voltage charging of the battery. Advantages: high power conversion efficiency, generally above 85%.
Discharge mode: First, the voltage of the battery is increased by the PWM boost circuit and sent to the inverter power supply, and then gradually increased to be converted into AC power and sent to the AC grid, and finally the battery discharge power is fed back and reused. Advantages: The discharged electric energy of the power supply is well recycled and reused, and the energy saving effect is obvious.
Function Description:

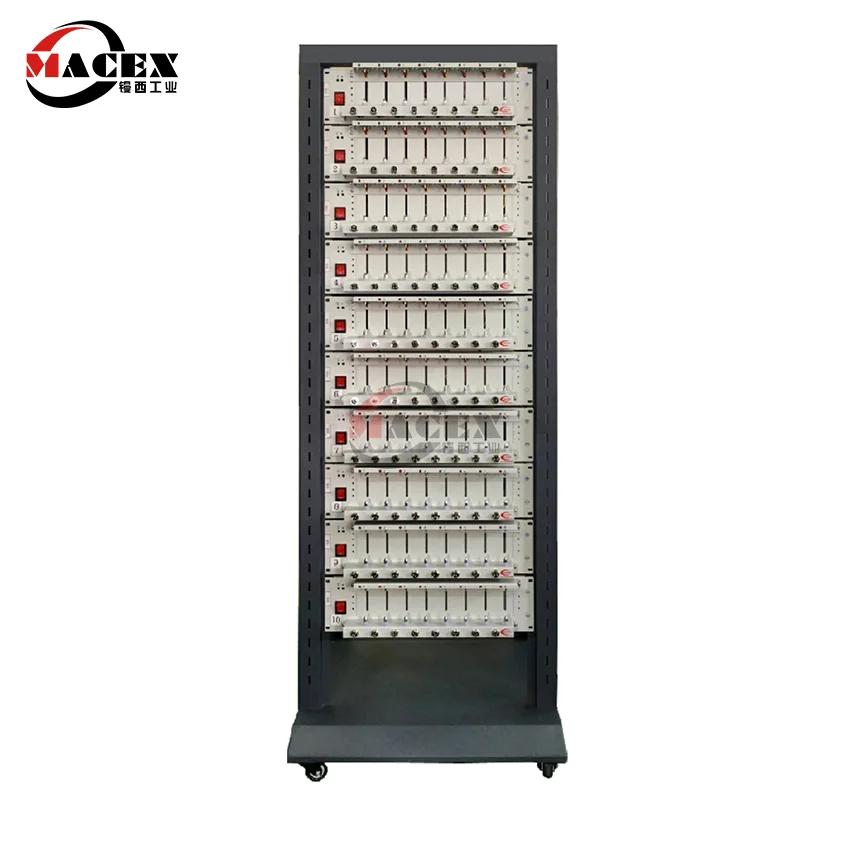

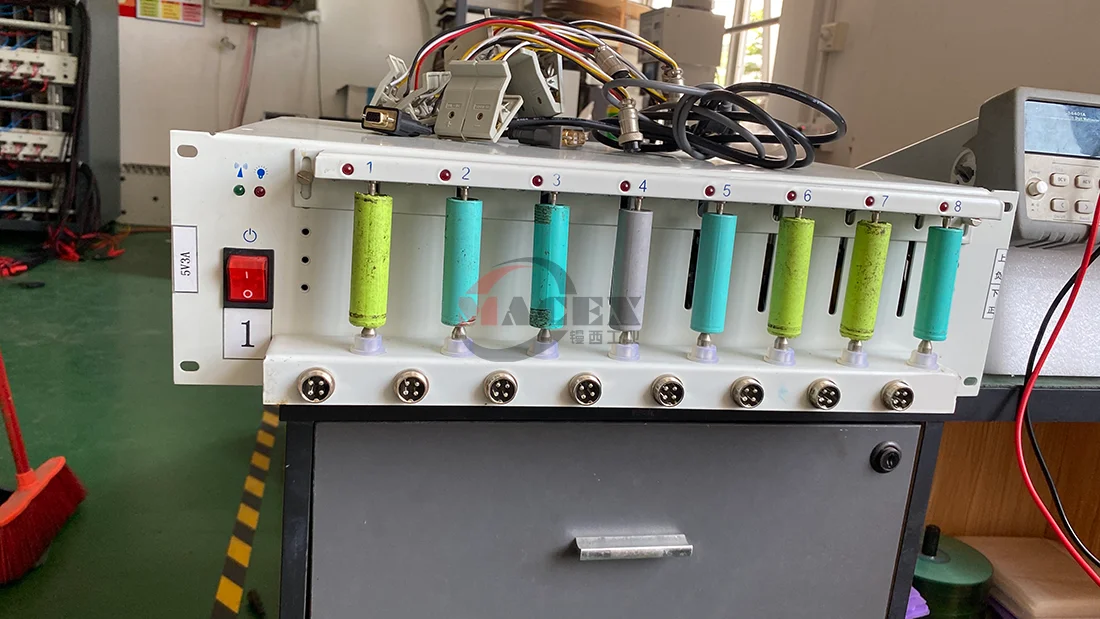

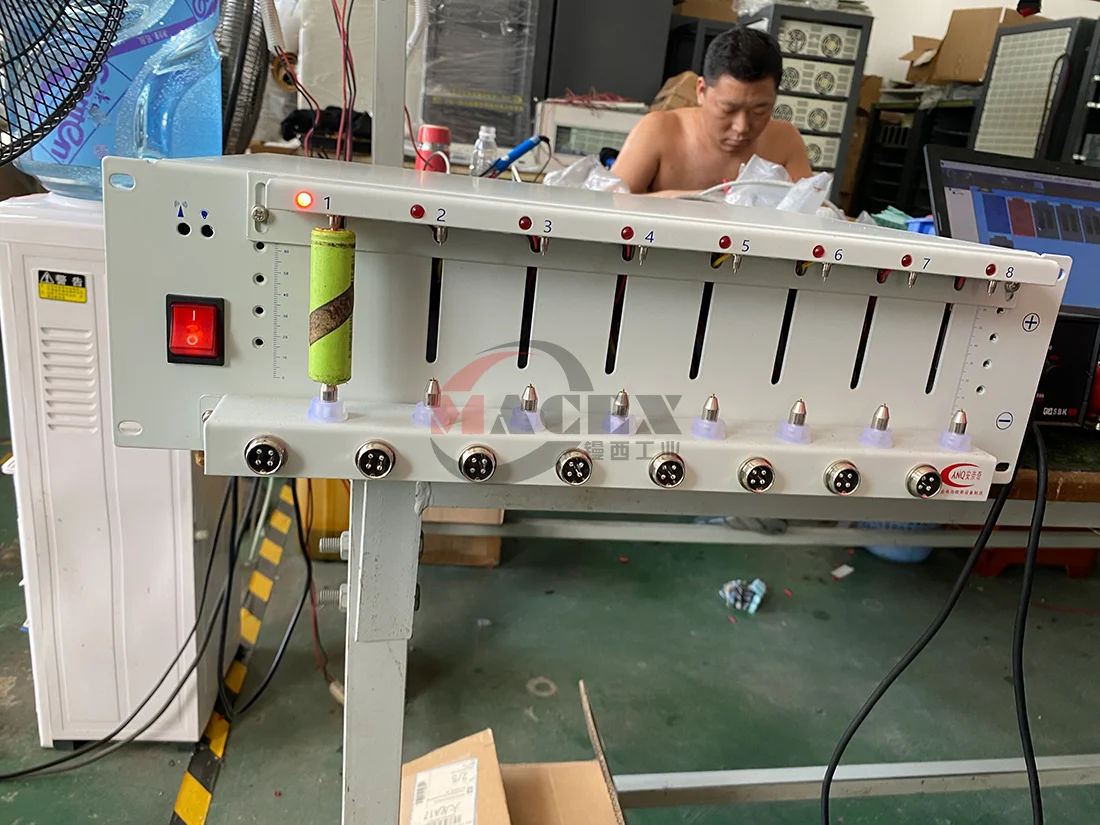

1. Each unit has 8 channels, and each channel can be individually set to work steps and run independently;
2. Mainly used for 18650 and soft pack polymer battery charging and discharging capacity detection and charging and discharging cycle aging test;

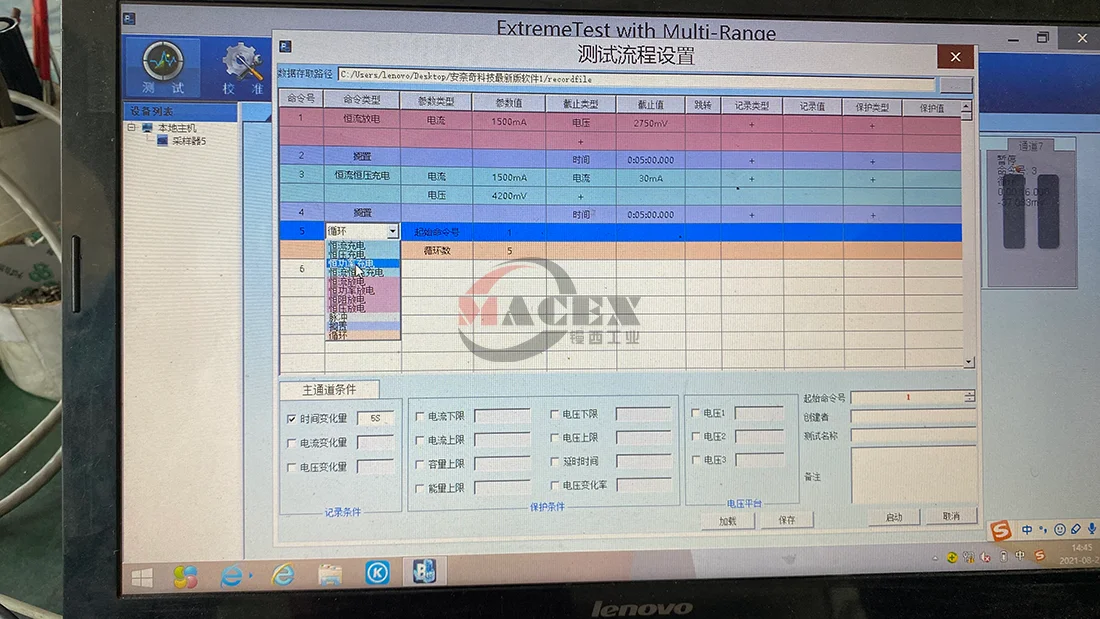

3. Connect to a computer, with a PC upper computer, and automatically generate data files for all test results;
4. Working mode: charging (constant current charging and constant voltage charging), pause (standstill, shelving), discharge (constant current discharge);

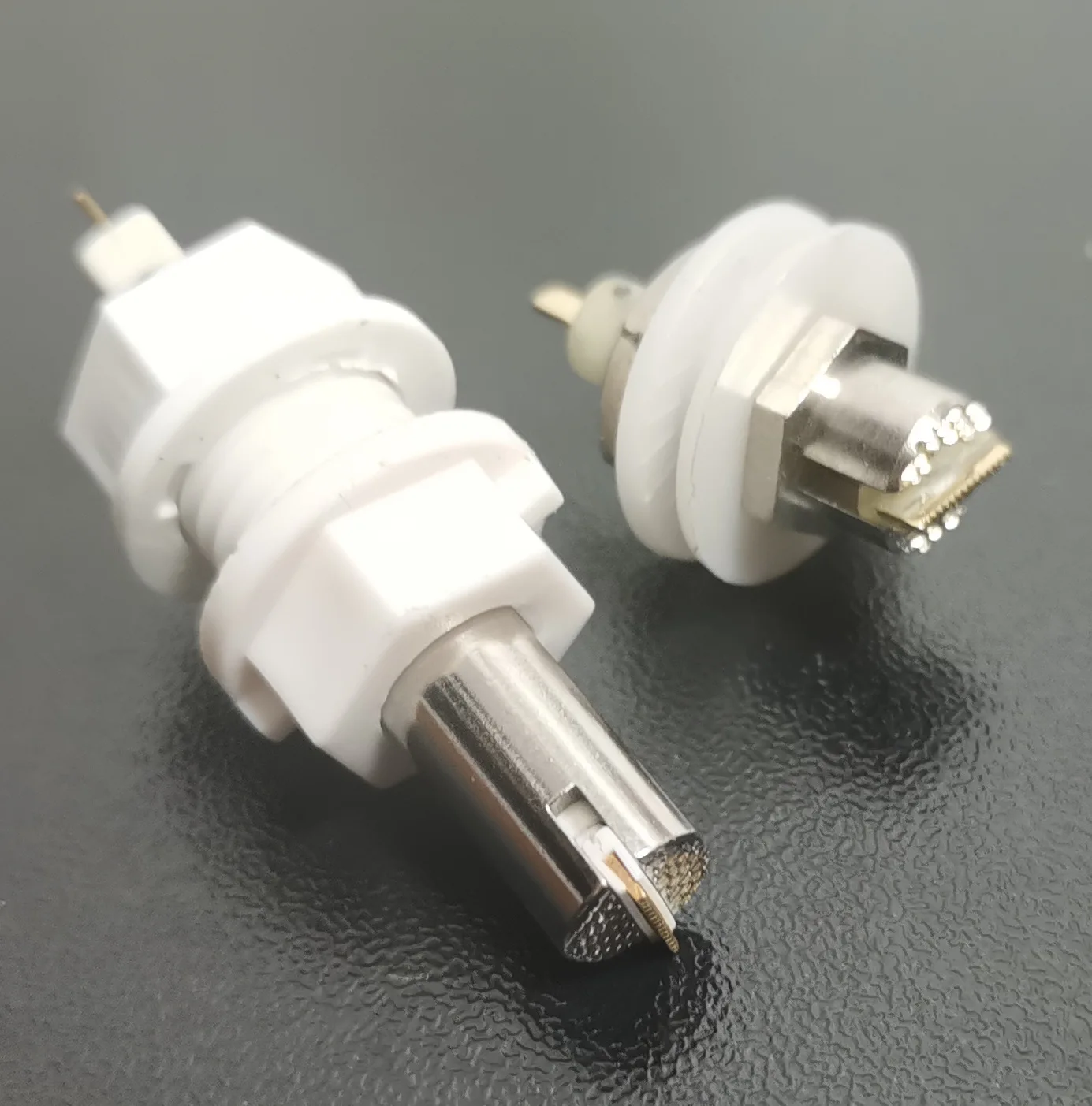

5. The four-wire test method is adopted, with high accuracy;
6. Using advanced constant current source and constant voltage source technology, the loop has current and voltage limiting functions and battery reverse protection functions;
7. Intelligent power failure protection measures. During the battery test process, any time there is a power failure or power failure of the power supply system (cooperate with the UPS system to ensure that the system software exits normally), the test system can guarantee that no data will be lost. After power on again, The test system has a self-recovery function, which can seamlessly connect from the place where the power was lost last time and continue the test process.
2. Mainly used for 18650 and soft pack polymer battery charging and discharging capacity detection and charging and discharging cycle aging test;
3. Connect to a computer, with a PC upper computer, and automatically generate data files for all test results;
4. Working mode: charging (constant current charging and constant voltage charging), pause (standstill, shelving), discharge (constant current discharge);
5. The four-wire test method is adopted, with high accuracy;
6. Using advanced constant current source and constant voltage source technology, the loop has current and voltage limiting functions and battery reverse protection functions;
7. Intelligent power failure protection measures. During the battery test process, any time there is a power failure or power failure of the power supply system (cooperate with the UPS system to ensure that the system software exits normally), the test system can guarantee that no data will be lost. After power on again, The test system has a self-recovery function, which can seamlessly connect from the place where the power was lost last time and continue the test process.

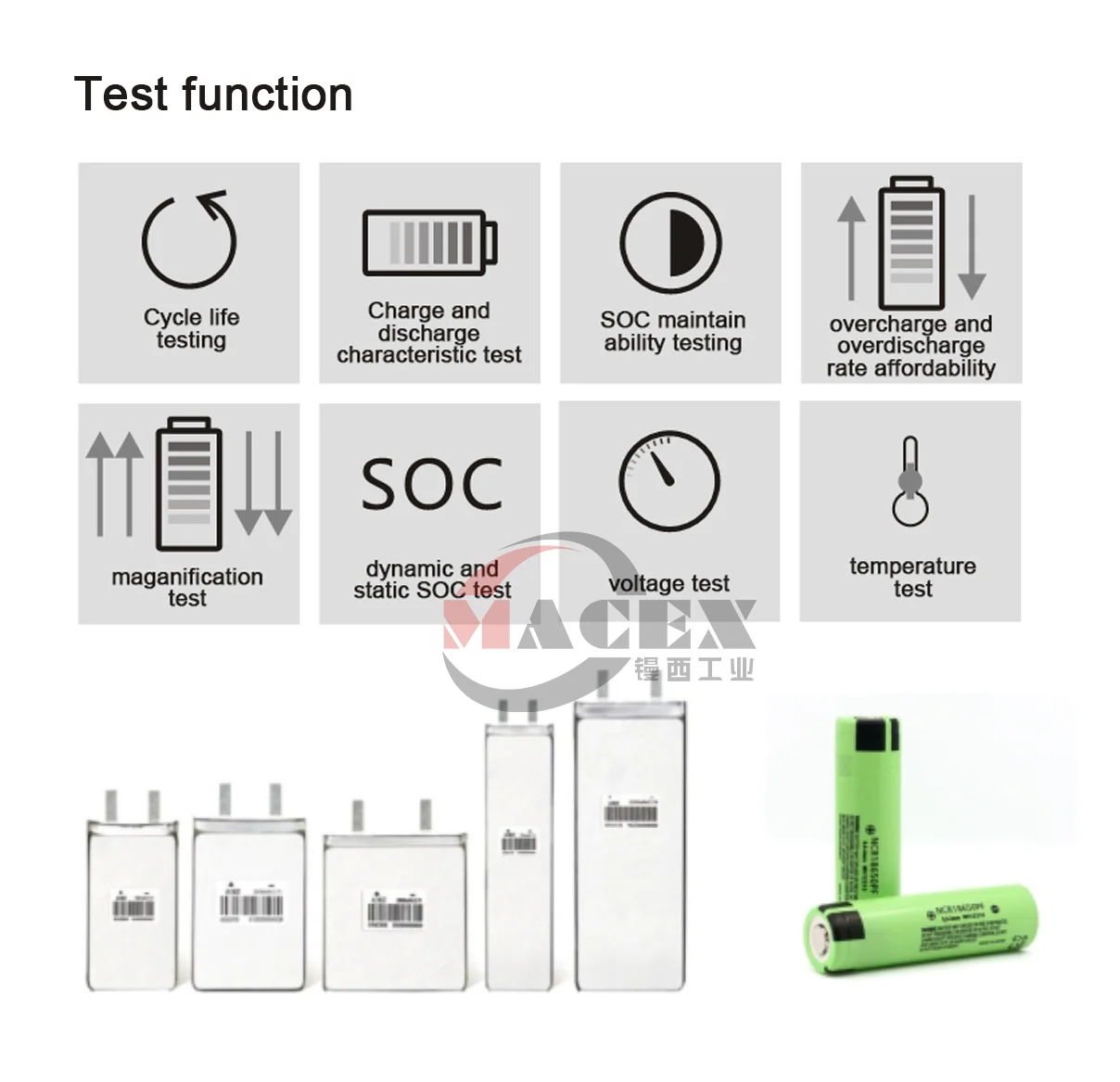

Scope of application:
It is suitable for the detection of the capacity of 18650, soft-pack polymer and other lithium-ion batteries and the charge-discharge cycle aging test..
Related Products
Packing&Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

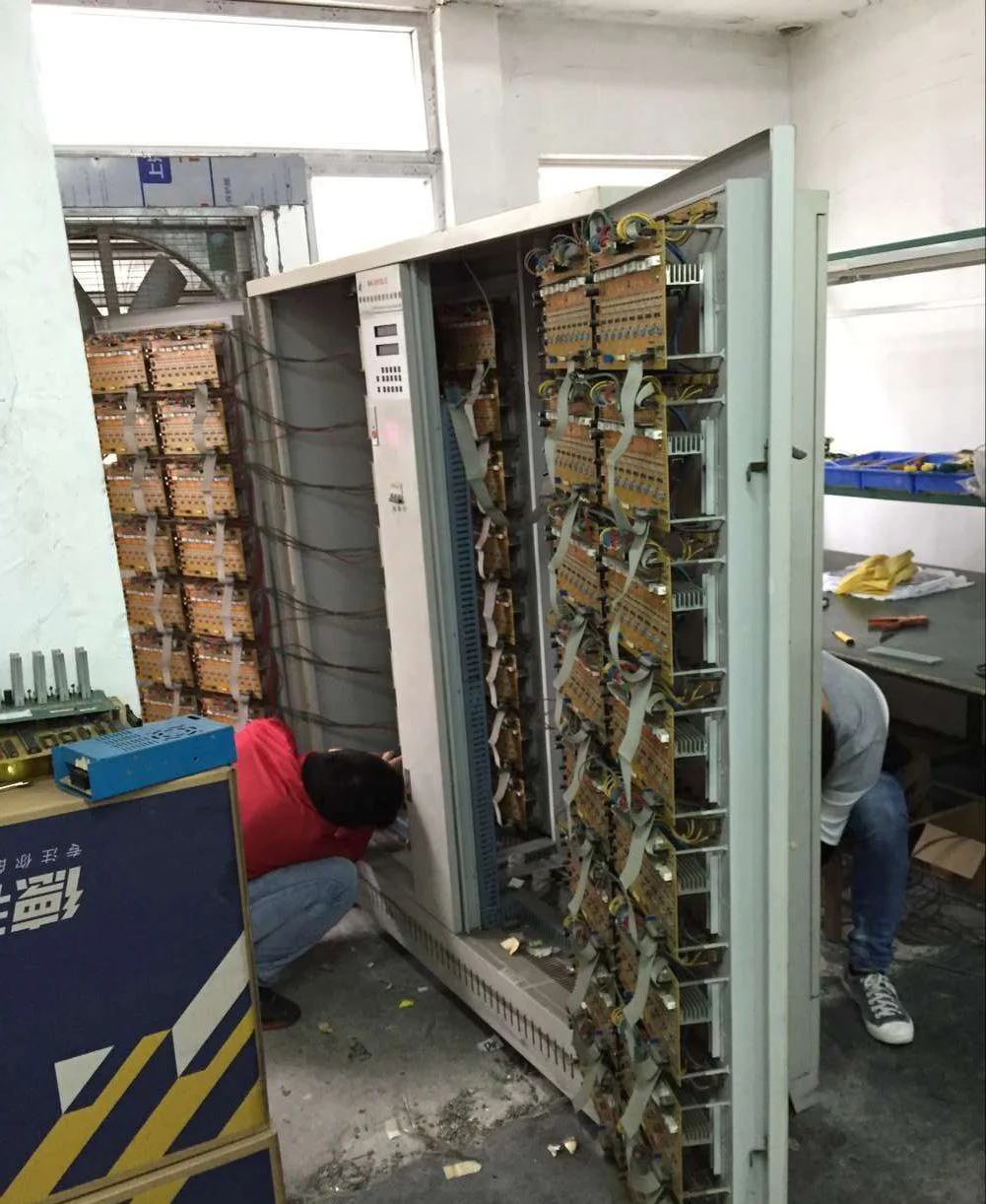

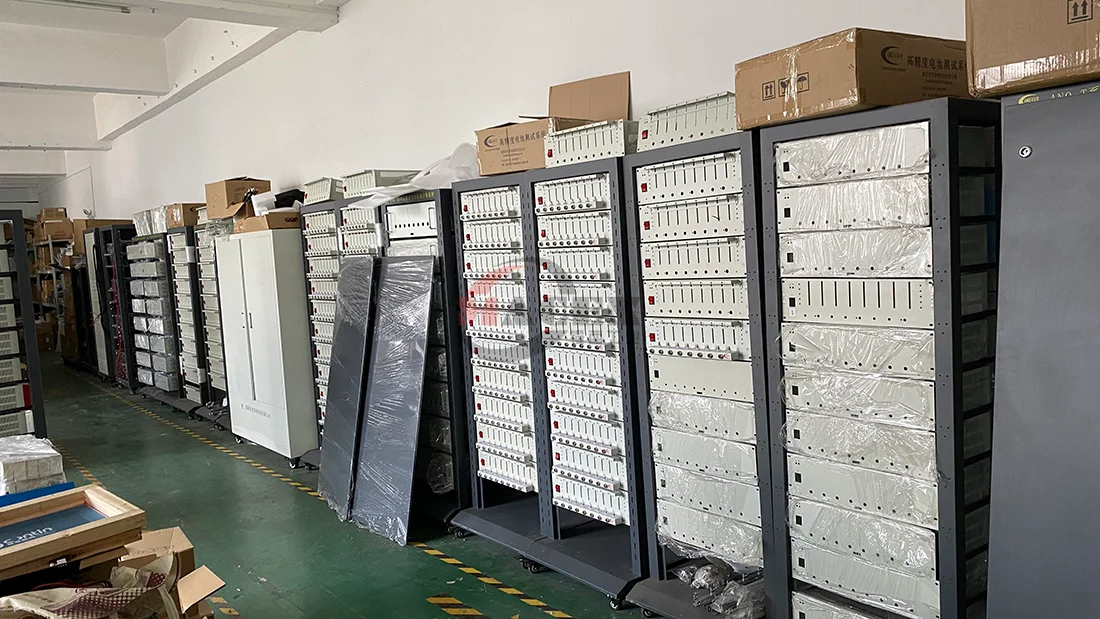

Factory
Our Service
FAQ
1. Are you the manufacturer?
Yes, our factories located in Guangzhou and Shenzhen .We can offer OEM and ODM services..
2. What's your MOQ?
We have no MOQ for this item, we can customize for one piece order according your requirment.
3. What's your payment terms?
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
4. Your products have certificates?
Most our products are complied with CE.
5. How to make an order? What's the lead time?
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days..
6. Can I visit your factory before order?
Yes, welcome to visit our factory.
7. Can you provide sample before a regular order?
Sure, we accept sample order.
For more details or catalogs, please contact our sales engineer.
Yes, our factories located in Guangzhou and Shenzhen .We can offer OEM and ODM services..
2. What's your MOQ?
We have no MOQ for this item, we can customize for one piece order according your requirment.
3. What's your payment terms?
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
4. Your products have certificates?
Most our products are complied with CE.
5. How to make an order? What's the lead time?
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days..
6. Can I visit your factory before order?
Yes, welcome to visit our factory.
7. Can you provide sample before a regular order?
Sure, we accept sample order.
For more details or catalogs, please contact our sales engineer.
