Product Overview

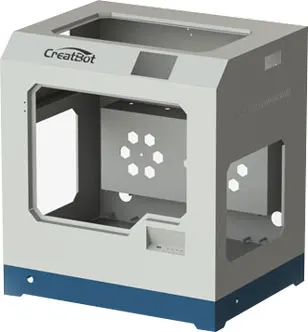

CreatBot F430 3D Printer Machine 400*300*300mm high performance 3d printer
* Prints up to 420°C with dual extruder
* Heated build plate 120°C
* Heated build chamber 70°C
* Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc
*Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc
*High Performance: Metal Fill, PEEK, etc
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Heated build plate 120°C
* Heated build chamber 70°C
* Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc
*Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc
*High Performance: Metal Fill, PEEK, etc
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Large Build volume: 400 x 300 x300 mm large scale 3d printer
Details Images

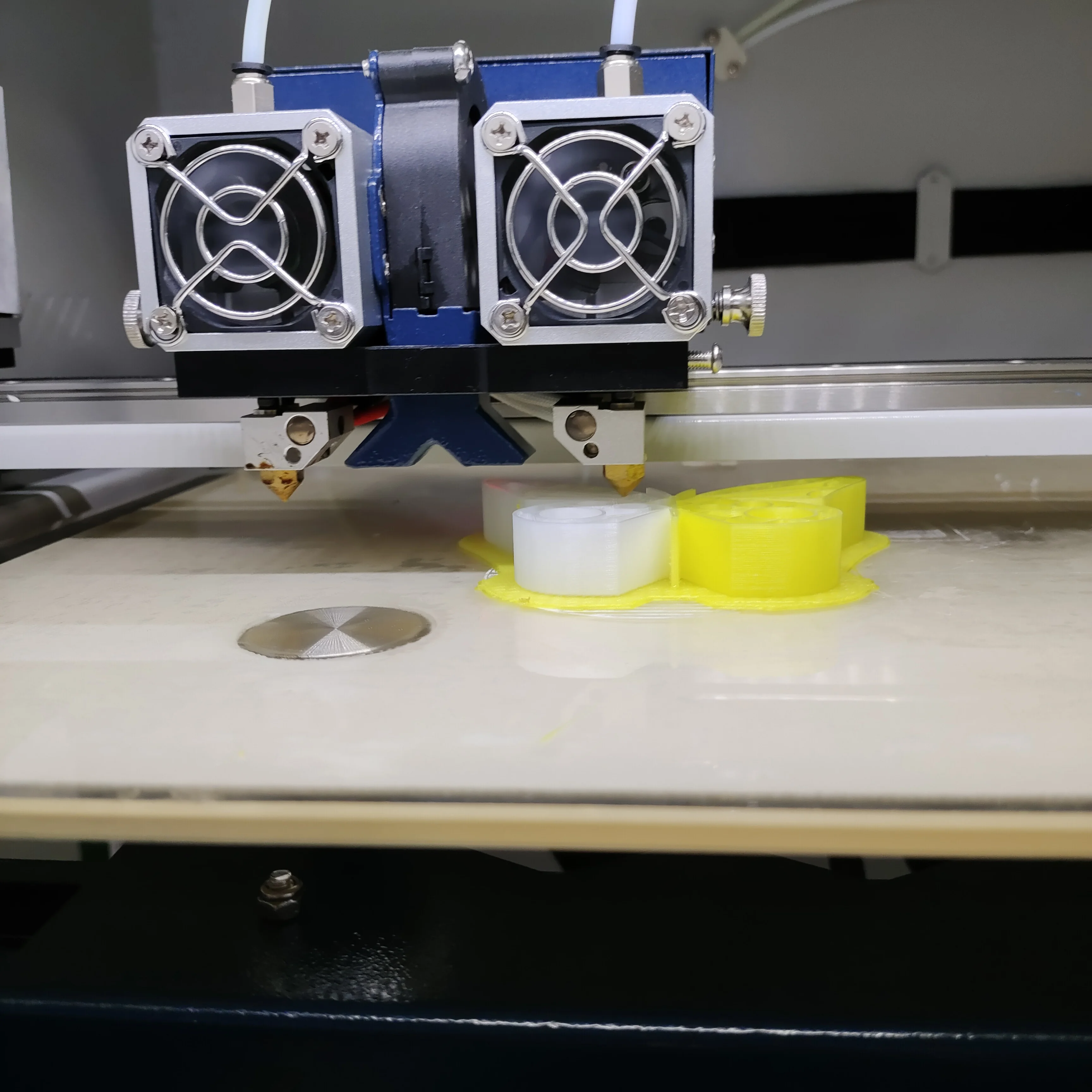

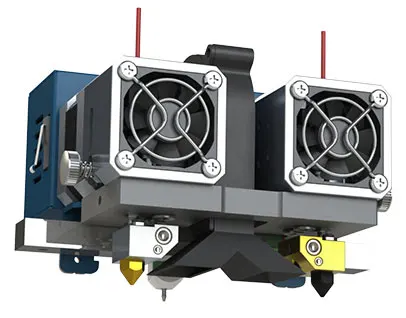

Support 420°C Hotend
We are the first one to publish 420°C high temperature nozzle to large 3d printer market since year of 2016, now it is the 4th new tech version.
F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc.

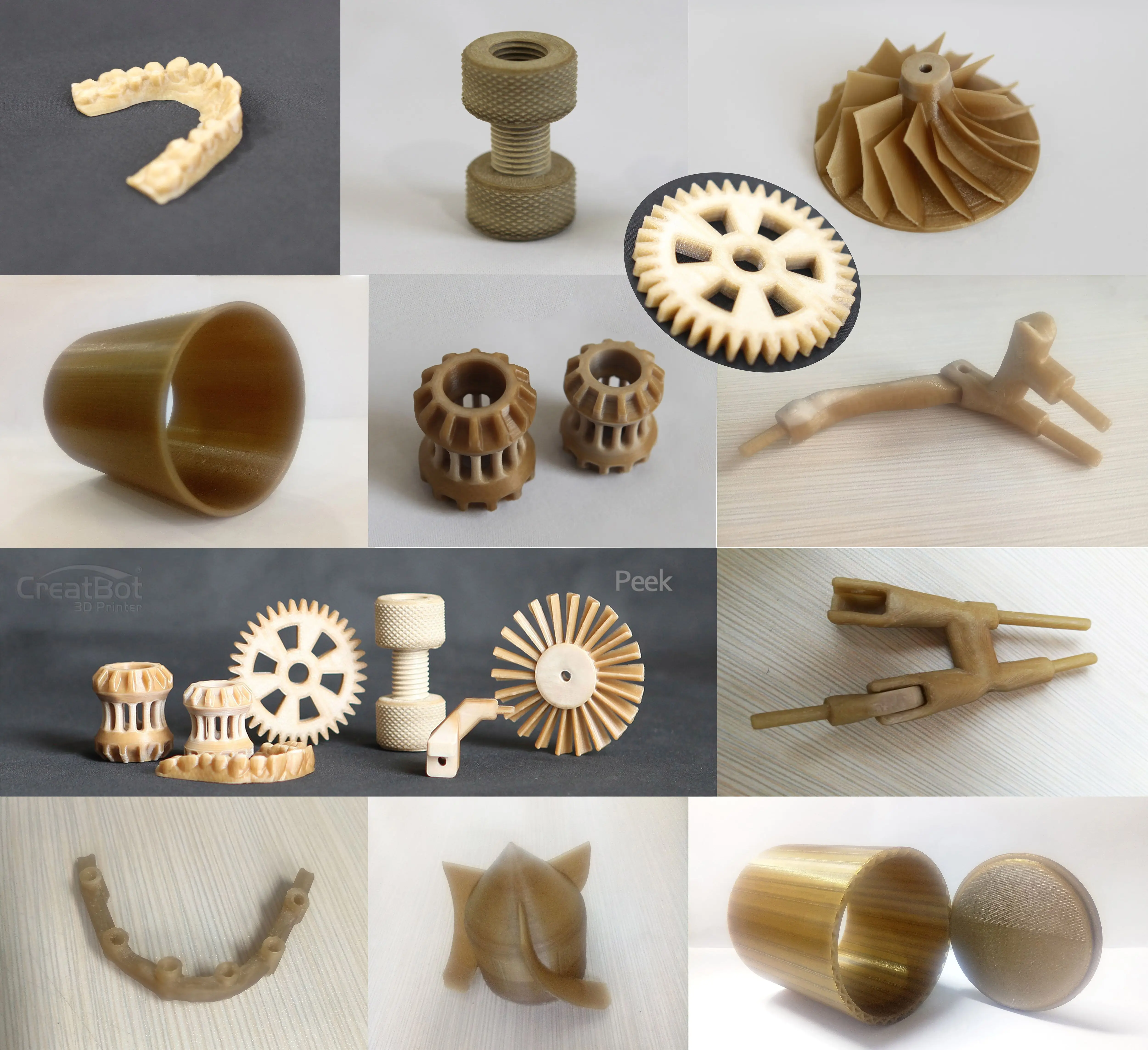

The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc.
The dual hotend is replaceable, which provide more possibility on your application.

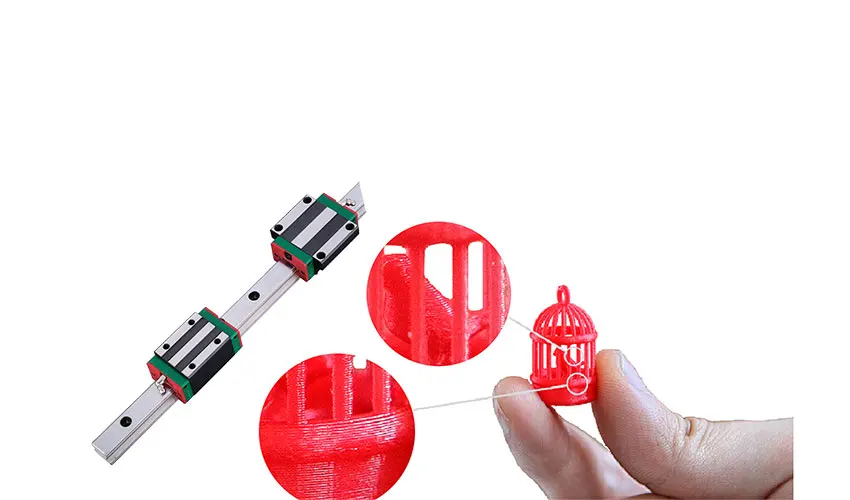

High Precision & High Speed
accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.
Stability
cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been
working for 9 years and more than 30,000 hours. It is a professional 3d printer.

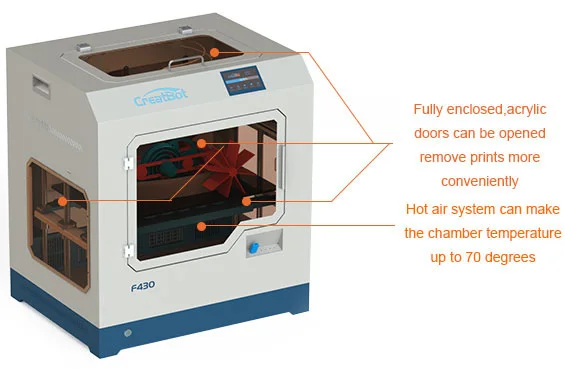

Fully Enclosed+Hot Chamber 70°C
-Hot chamber device provide constant room temperature 70°C,which is able to prevent prints from warping and deform.

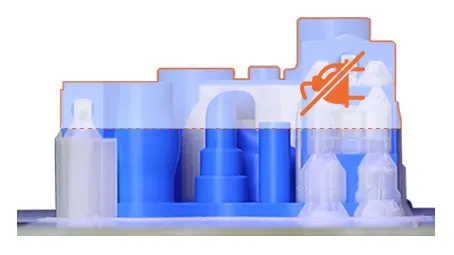

Outage Restored & Filament Detection
Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after
power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.

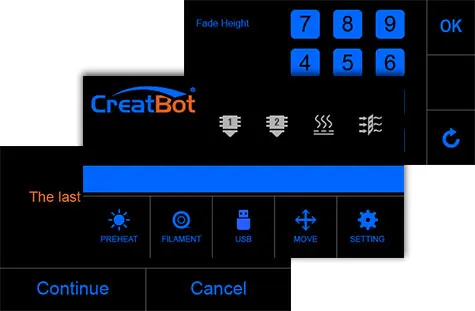

Touch Screen
The printer have all-english-menu touch screen which is easy - -Operate and friendly use. One key to warm,one key to print as well
as many other shortcut keys.
as many other shortcut keys.

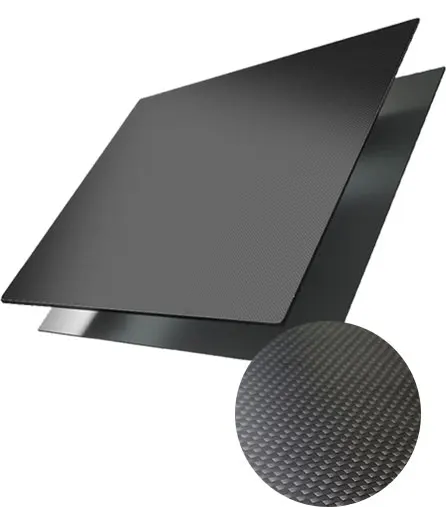

Glass-Ceramic Platform + Carbon Fiber Sheet
Glass-ceramic have hight thermal efficiency and best low-expansion coefficient, so it don't deform when heating&cooling.
-Carbon fiber sheet is tough and removable. Heat can be deliver efficiently. Most materials can be extruded and sticked to bed
very well.

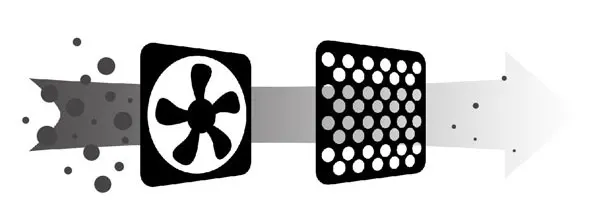

Air Filter System
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental
protection which is more suitable for house, school, office space.
protection which is more suitable for house, school, office space.
The F430 is fully enclosed to maximize the printing success rate by creating a stable temperature inside. This also protects children from sticking their hands into the work area during prints.
PRODUCT SPECIFICATIONS
Technical Specs | ||||||||
Build Volume | 400*300*300mm | Special Function | Save data when power is off;Pause printing when filament run out;Turn off the power automatically when printing is complete | |||||
Print Resolution | 0.04mm-0.4mm | Platform | Glass-Ceramic Platform + Carbon Fiber Sheet | |||||
Filament Diameter | 1.75mm | Positioning Precision | X Y axis 0.01mm, Z axis 0.0025mm | |||||
Number of Nozzles | Dual Extruder | Extruder | Directly Drive | |||||
Print Speed | 10-150mm/s | Machine Construction | Fully enclosed hot chamber | |||||
Nozzle Diameter | 0.4mm (0.3~1.0mm optional) | Bed Leveling | Manually/Automatic | |||||
Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc. | Software Bundle | Creatware, Simplify3D, Cura, Slice3r | |||||
Nozzle Max. Temperature | 420℃ | Operating Systems | Win7/8/10 | |||||
Chamber Temperature | 700℃ | Print File Type | STL, OBJ, AMF, Gcode | |||||
Platform Max. Temperature | 140℃ | Product Dimensions & Weight | 620*485*680 mm 48 kg | |||||
Storage Media | U Disk | Packing Size & Weight | 750*580*720 mm 62 kg | |||||
Installation Instructions

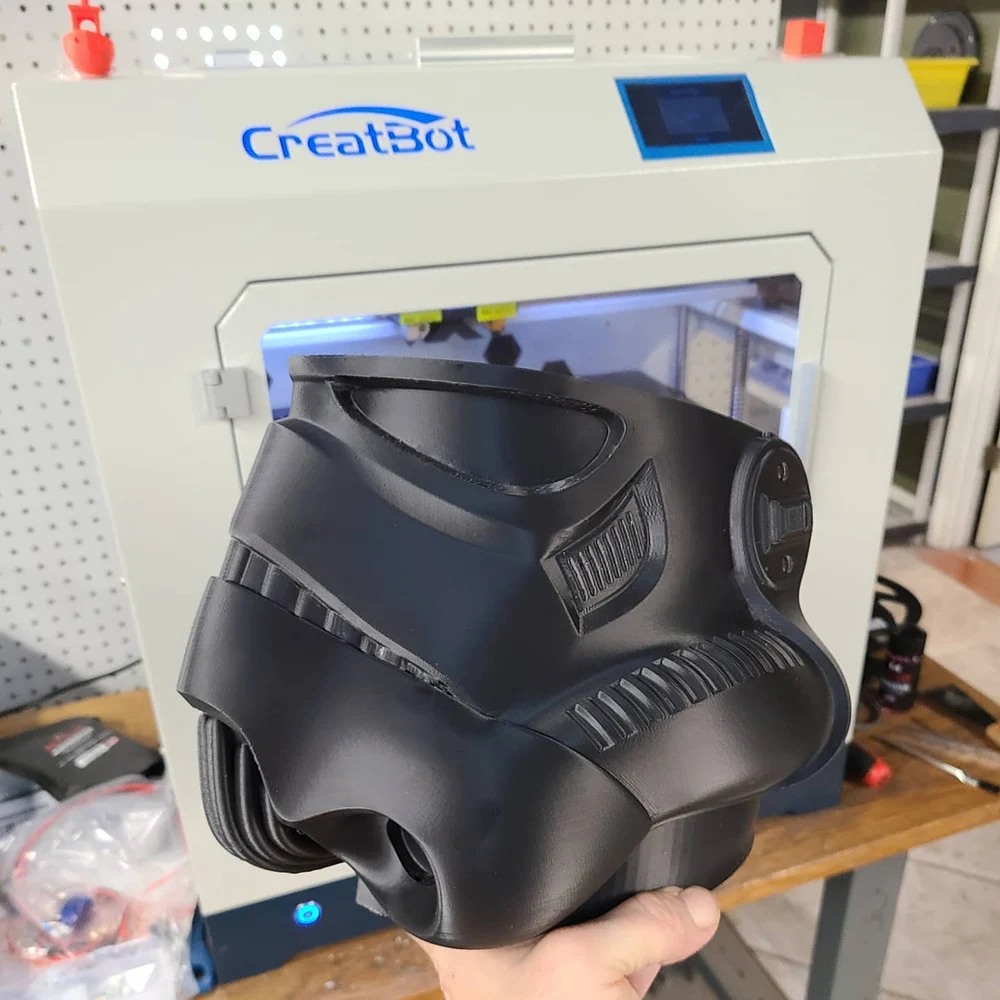

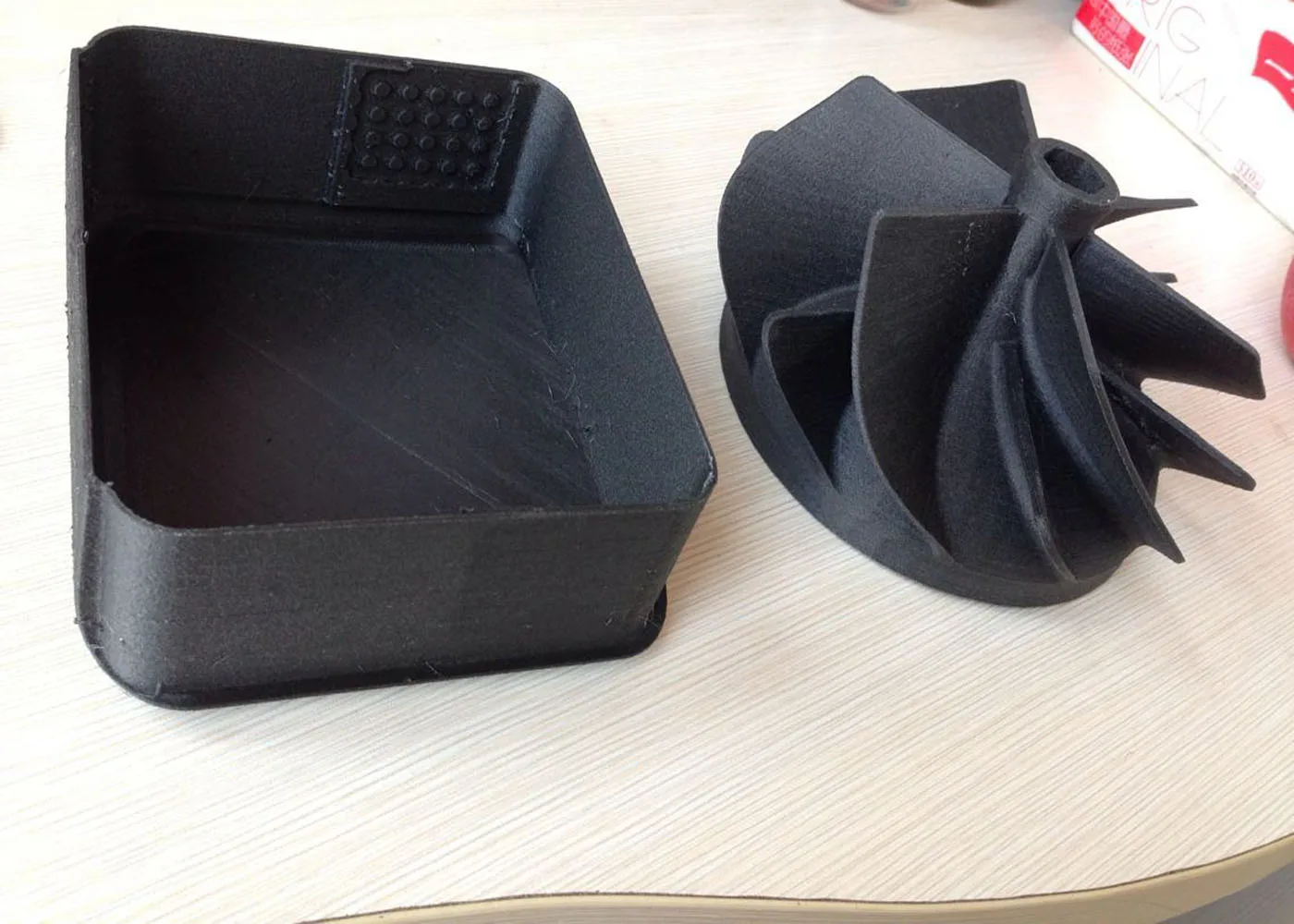

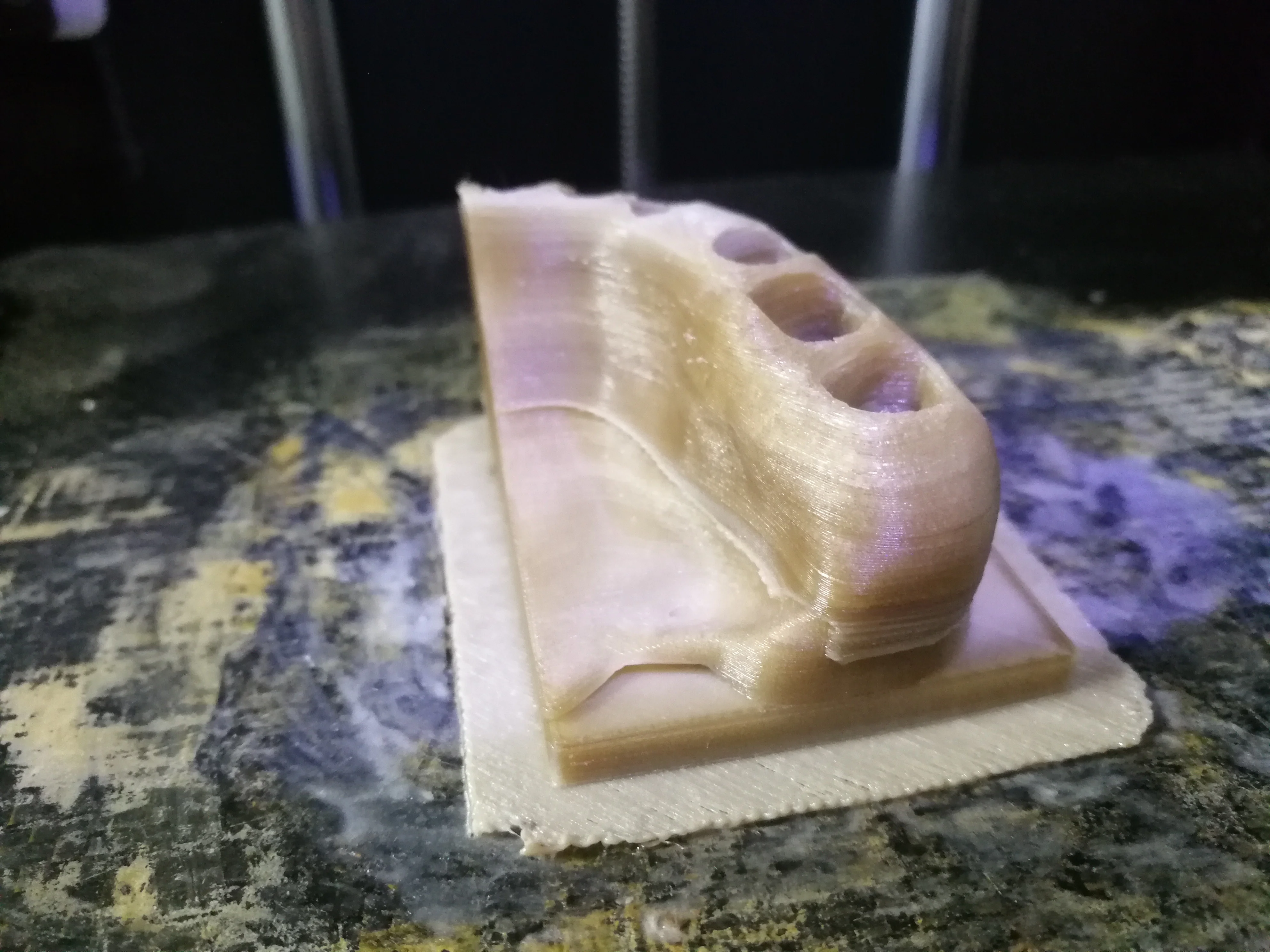

Customer Photos

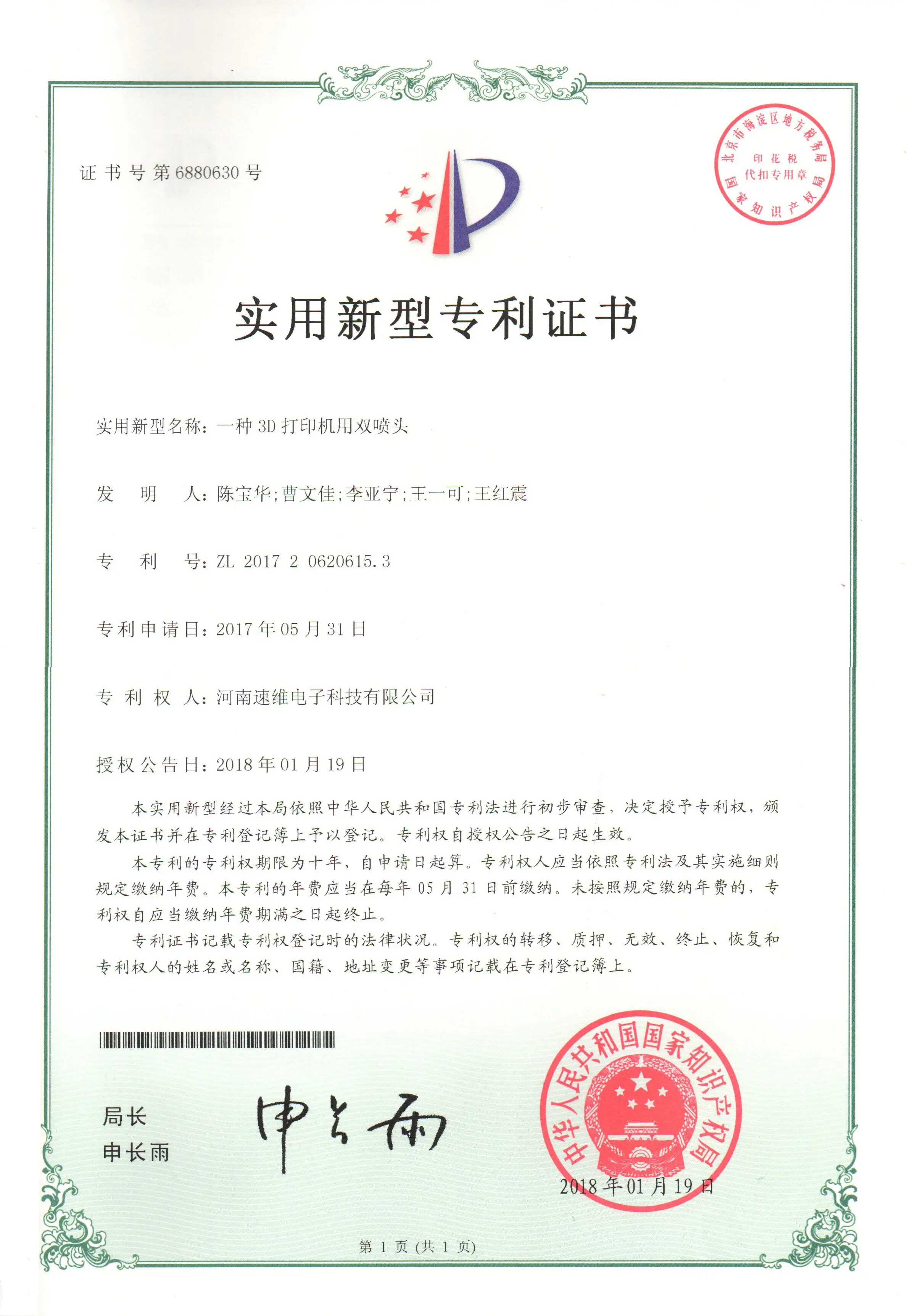

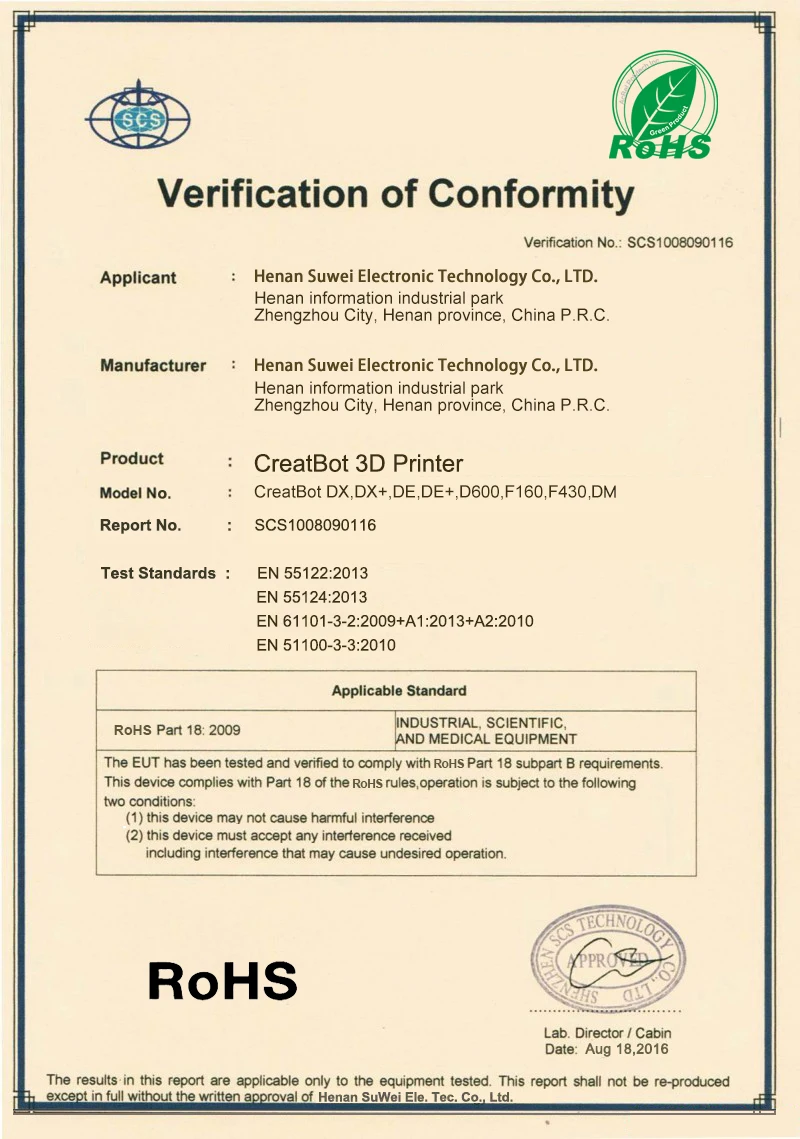

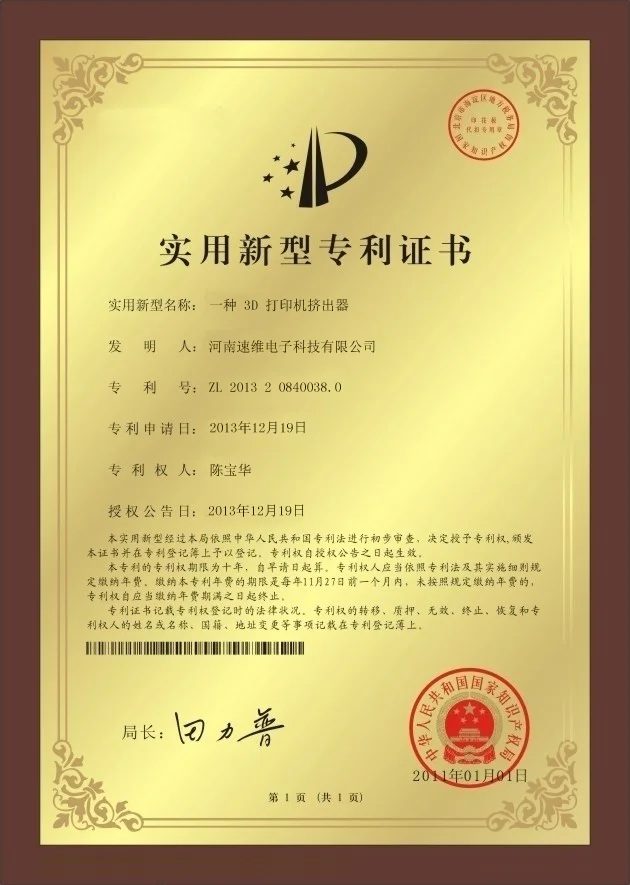

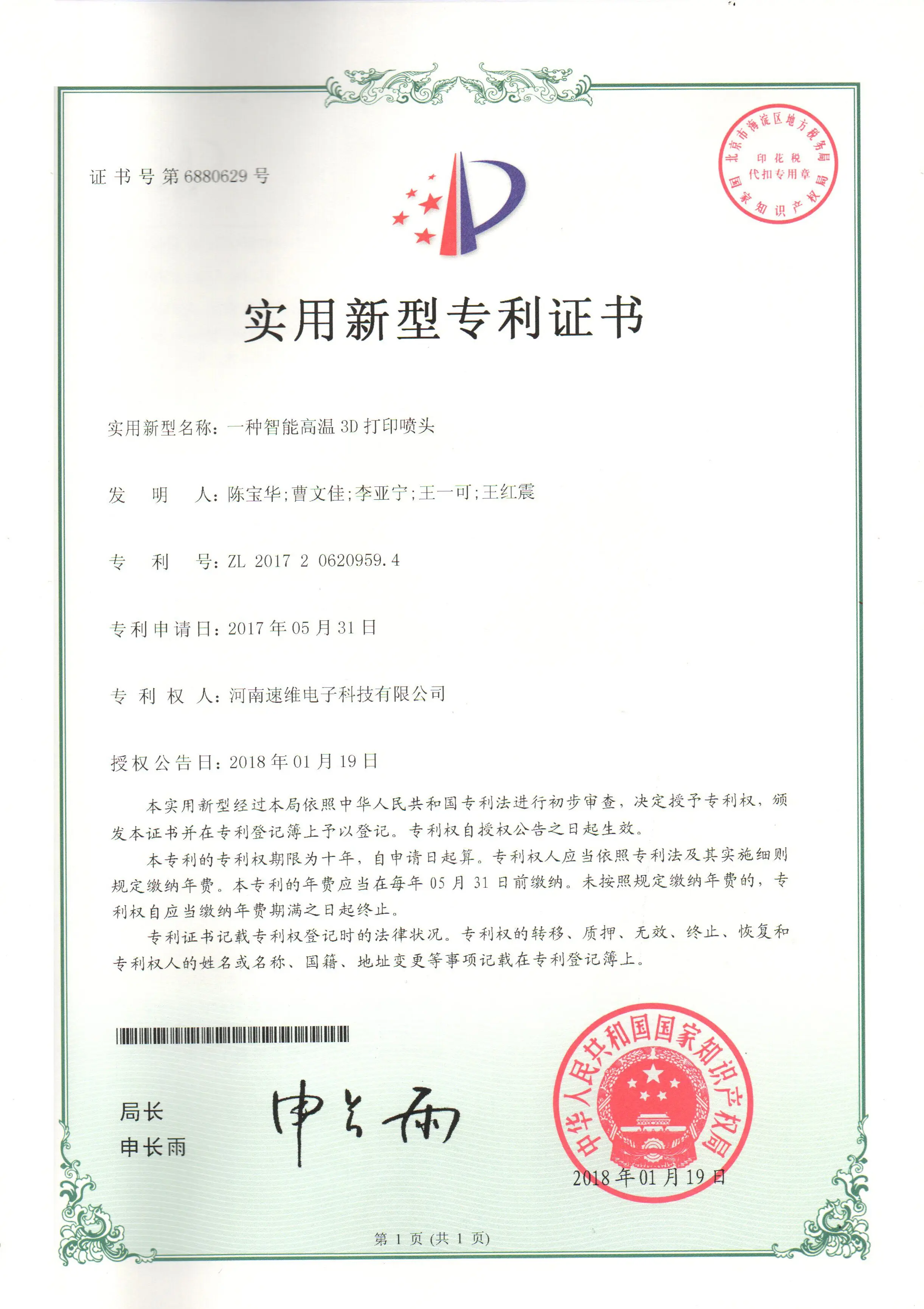

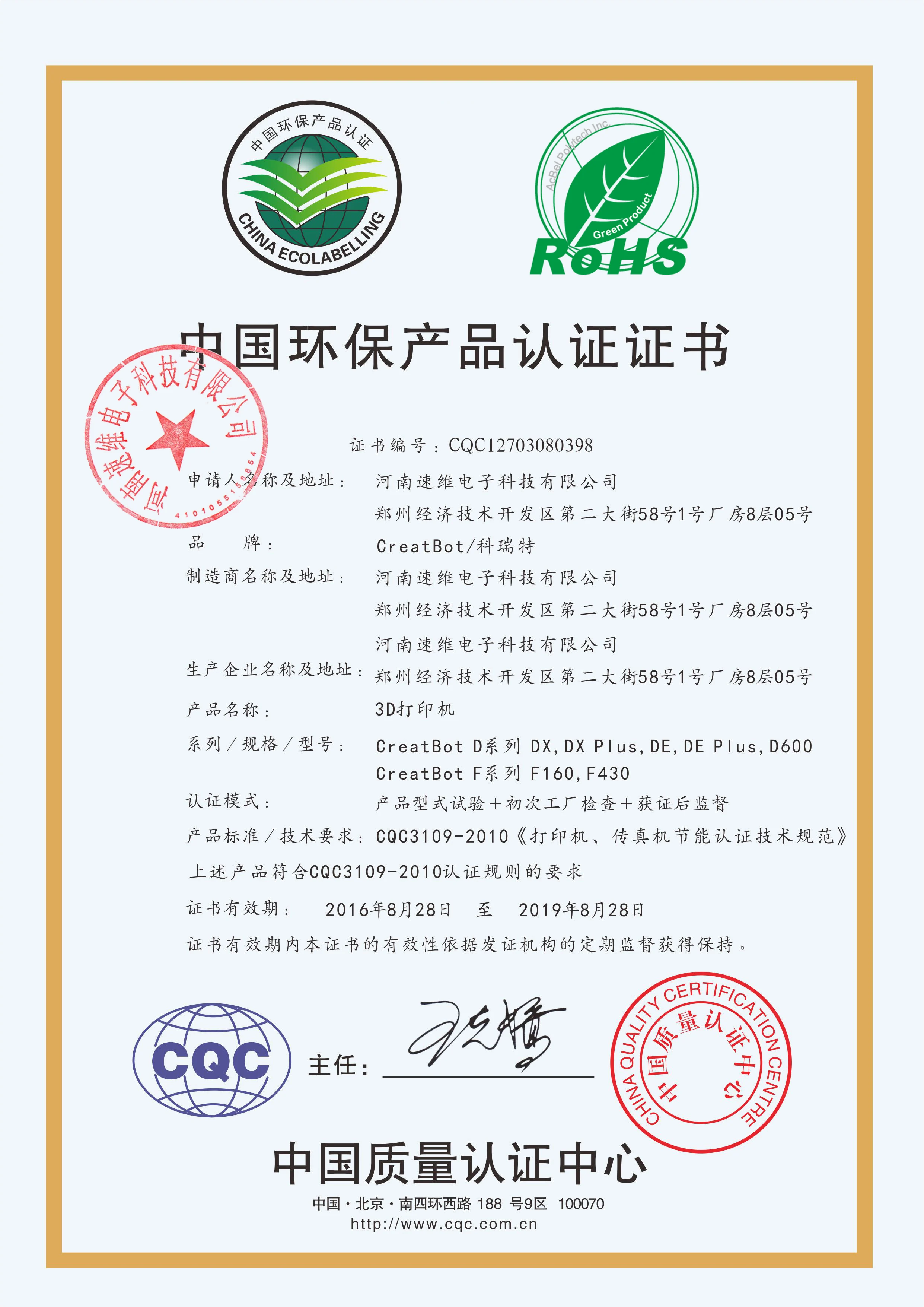

Certifications
