Высокое качество Автоматическая круглая бутылка этикетировочная машина для шоколадной банки/сока пластик/стеклянная
- Категории: Labeling Machines >>>
- Поставщик: Guangdong,Rifu,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
New design automatic sticker jar can beer wine medicine plastic glass round bottle labeling machine
Automatic round bottle positioning labeling machine adopts the label paper of the self-adhesive reel and the way of rolling paste.Positioning function reduce labeling error.It can be equipped with bottle feeding and bottle collecting device, which can complete feeding bottle, labeling and bottle collection procedures at one time. It can also be equipped with printer.It is a modern electromechanical integrated product with excellent and reliable performance,very easy to operate.
Technical Parameter
Voltage (V/Hz) | Voltage (V/Hz) | ||||||
Label length | 10mm～300mm | ||||||
Label width | 10mm～150mm | ||||||
Bottle diameter | 20mm～φ100mm | ||||||
Bottle height | 20mm～250mm | ||||||
Roll Label outer diameter | 300mm～350mm | ||||||
Roll Label inner diameter | 70mm～75mm | ||||||
Accuracy | ±1mm | ||||||
Label speed | 30～120pcs/min | ||||||
Conveyor speed | 5～25m/min | ||||||
Suitable label type | Adhesive sticker label(Transparent lable is available) | ||||||
Working air pressure | 0.4-0.6Mpa | ||||||
Power | 1500W | ||||||
Weight | 200KG | ||||||
Overall dimension | 2000mm×900mm×1500mm | ||||||

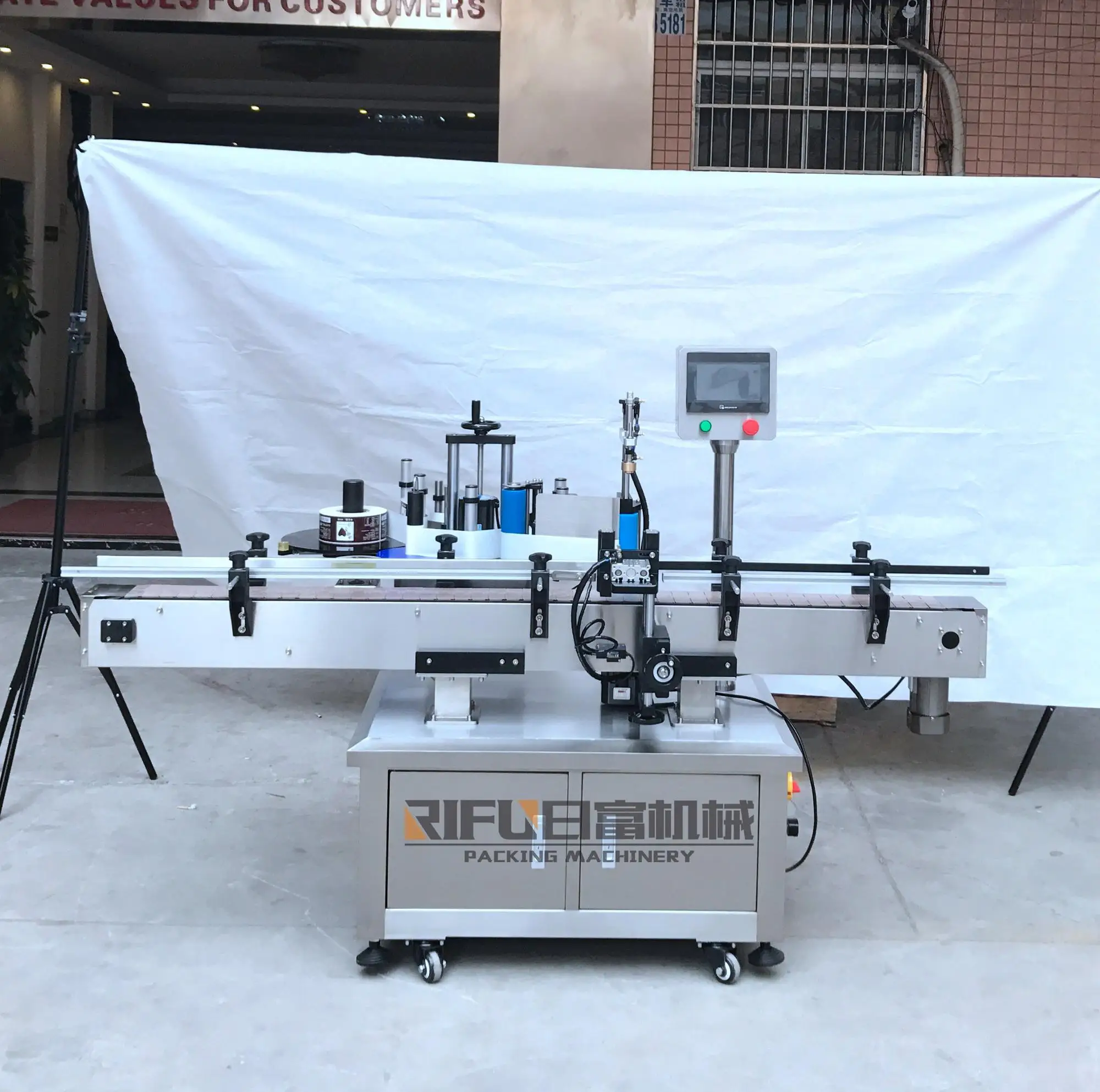

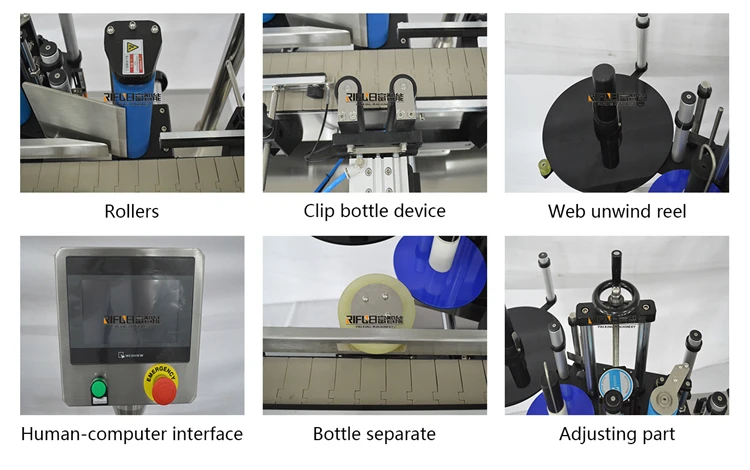

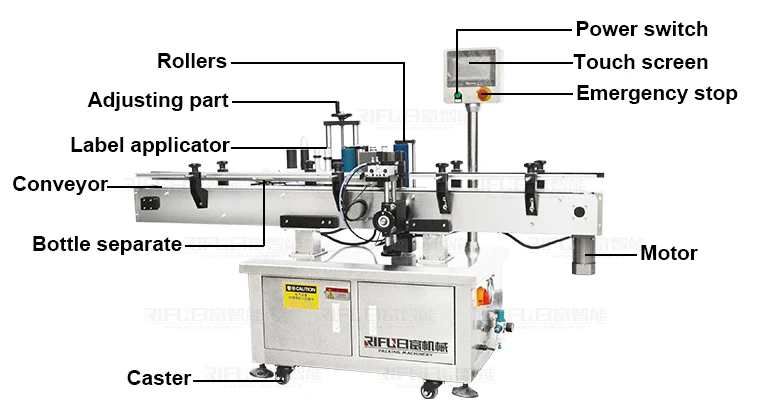

Detailed Images
Sample
Application
Suitable for all kinds of round bottles
Related Products
Company Introduction
Packing&Shipping
After Sales Service
