Веб-камера ELP 30fps 4K модуль камеры 3840x2160 Sony IMX317 высокоскоростная мини веб-видеокамера Mjpeg USB-модуль для сканирования
- Категории: Mini Camera >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
ELP 4K USB Camera USB Webcam Mini Camera Module,Wide Angle USB with Cameras Full HD 2160P USB Camera,100 Degree No-Distortion Camera USB with Sony IMX317,UVC Support,Plug&Play for Windows,Android,Mac

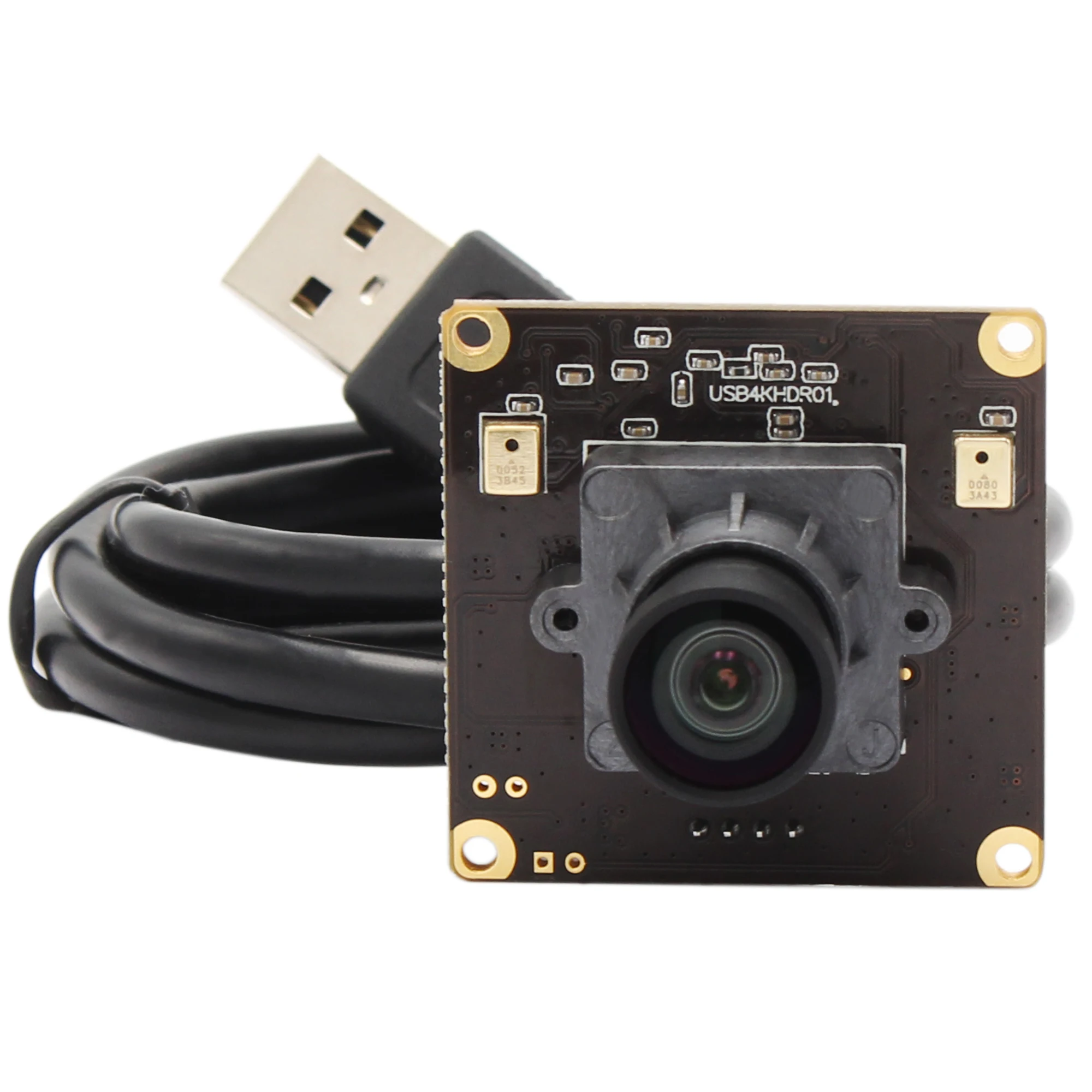

4K USB Camera Module:
Usb camera module with 100 Degree No-Distortion lens,wide angle usb cameras can meet most capturing and video requirements,High resolution 4K Camera USB with Sony IMX317 sensor,Equipped with 1 meter usb cable, Support otg optional.
Products Description
Specification of IEights 4K webcam mini camera 2160p.
* Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
* Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
* Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
* Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
* Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
Model | ELP-USB4KHDR01-V100 |
Sensor | Sony IMX317 (1/2.5” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Image area | 6100µmx4524µm |
Compression format | MJPEG / YUY2（YUYV） |
Resolution & Frame rate | MJPEG: 3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps YUY2: 3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/ 1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps |
Center Definition | 1000LW/PH (Center) |
S/N (Signal Noise Ratio) | 26dB |
Sensitivity | 0.65V/l@550 |
Mini illumination | 0.2Lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure |
Lens Parameter | Size: 1/2.3”, FOV: 100Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm |
Power Supply & Connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38*38mm |
Storage Temperature | -20～70℃ |
Working temperature | 0～60℃ |
USB Cable | Standard 1M ( 2M,3M,5M optional) |

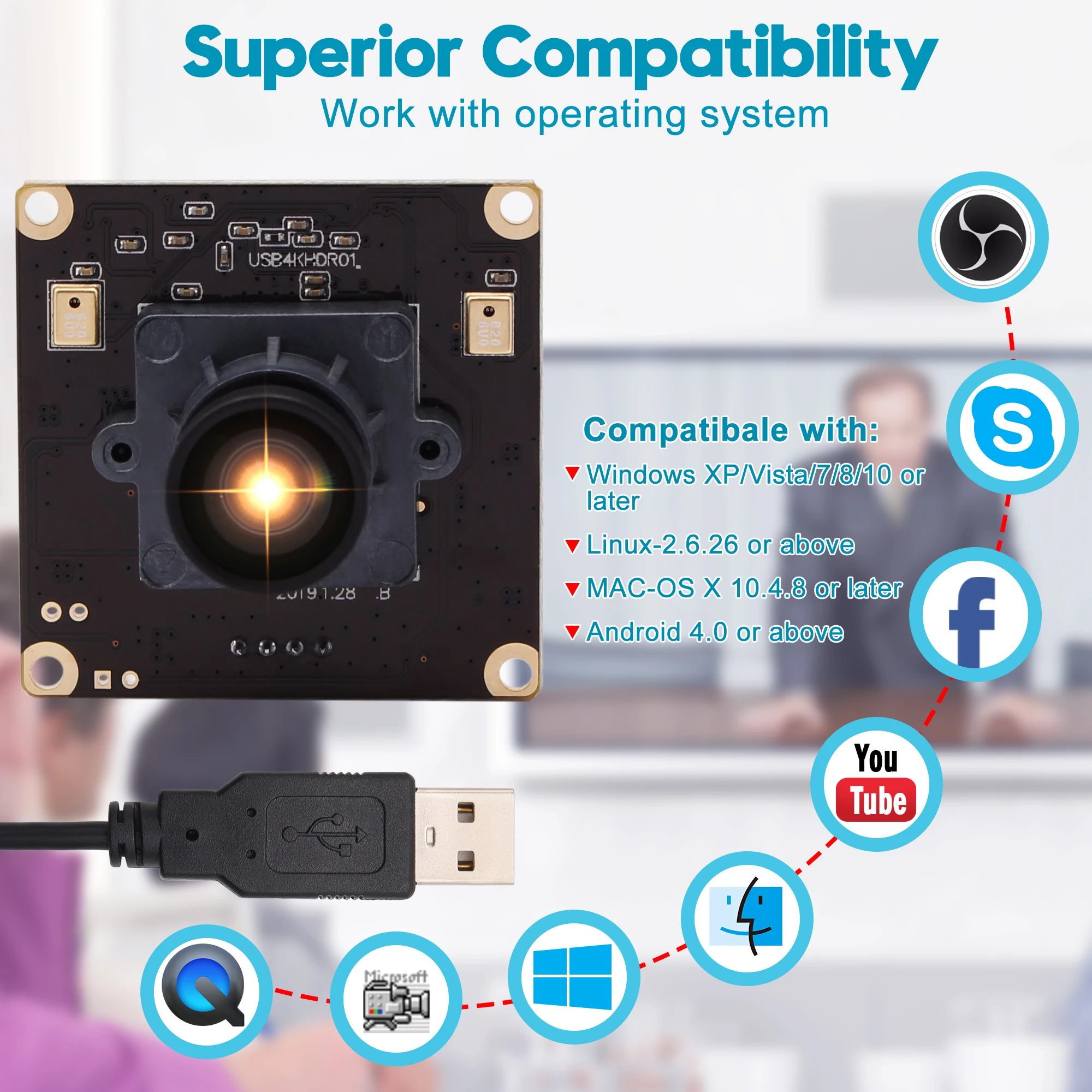

Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Storage temperature | -20~85℃ |
Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above |
FULL HD 4K 2160P USB WEBCAM:
The streaming camera provides incredibly sharp 4K HD to capture crystal clear images and records 2160/30fps video.Used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV, BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.
High speed USB 2.0 interface 4K Camera Module:
High quality Sony IMX317 image Sensor for high quality image,Max resolution:3840*2160P,High frame rate 2160P@30fps,Compression format :MJPEG / YUV2(YUYV),
White balance Function:Excellent,indoor and outdoor effects,vivid colors.
Packing and delivery
Package Include:
- 1 piece 1 meter usb cable
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
