China high quality chamber plate filter manufacturer export worldwide for dewateing
Brife introduction of the China manufacture hydraulic filter
This type of filter press machine is mainly consist of frame,filter plate ,hydraulic pressing system and electric control cabinet .Which has the advantage of hydraulic pressure, automatic maintain pressure,working stable ,compact structue,easy to use ,PP type durable use filter plate ,variety kinds of models ,large capacity ,energy and labor saving and so on.
The fitler press is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.
Working principle the China manufacture hydraulic filters :
When the filter press is suitable installation, you can push the power button ,and the pressing process is start as the machine is automatically controled :
The cylinder piston of hydraulic device drives the push plate to press the filter plate and filter cloth between push plate and tail plate.Filter chamber are formed between pressed filter plates and materials get into the filter chamber through the inlet of tail plate with the help of feeding pump.
Solid particles are remainned in filter chambers forming into cakes ,while liquid is discharged out of the machine through press cake and filter cloth.
To wash the press cakes,washing water can be introduced through the washing inlet of the tail plate.
Technical parameters of China manufacture hydraulic filters
450/630/800/870 chamber type hydraulic compress filter press
Type | (m2) Filter area | (mm) Filter plate size | (mm) Filter cake thickness | Filter chamber volume | (pcs) Filter plate number | (Mpa) Filtrating pressure | (kw) Motor power | (kg )Weight | (mm) Dimension (L×W×H) |
XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
XY30/870-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |

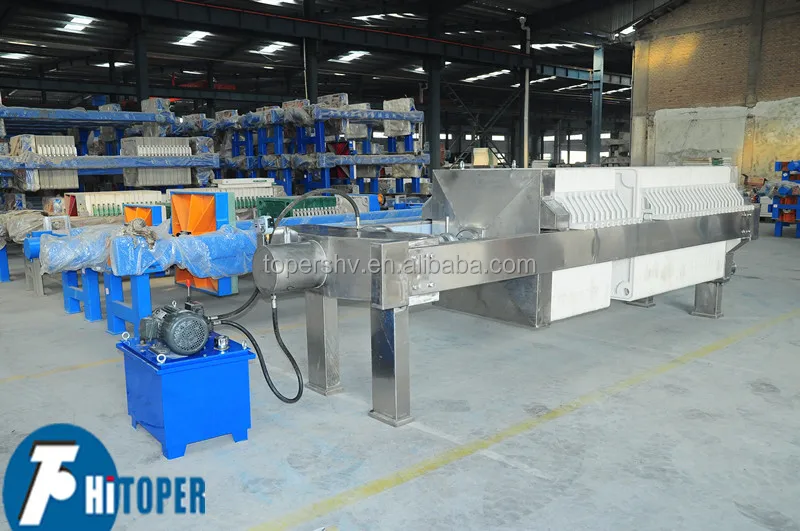

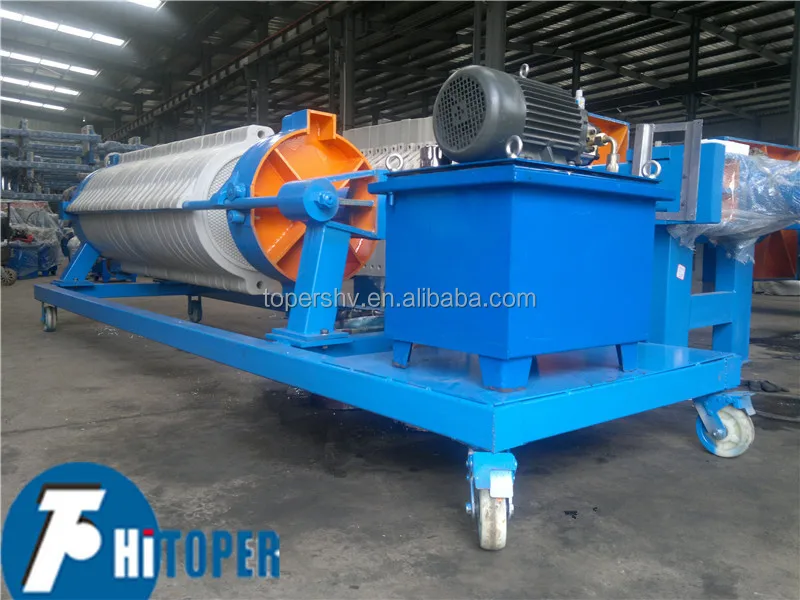

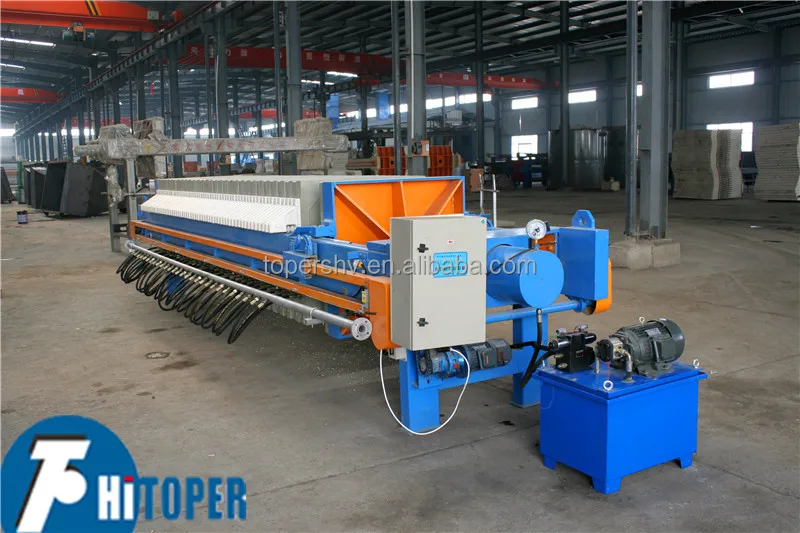

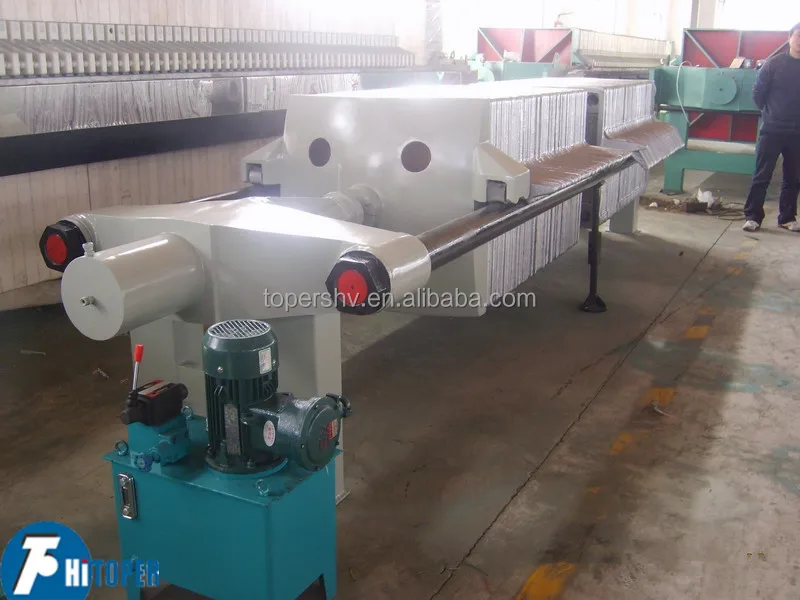

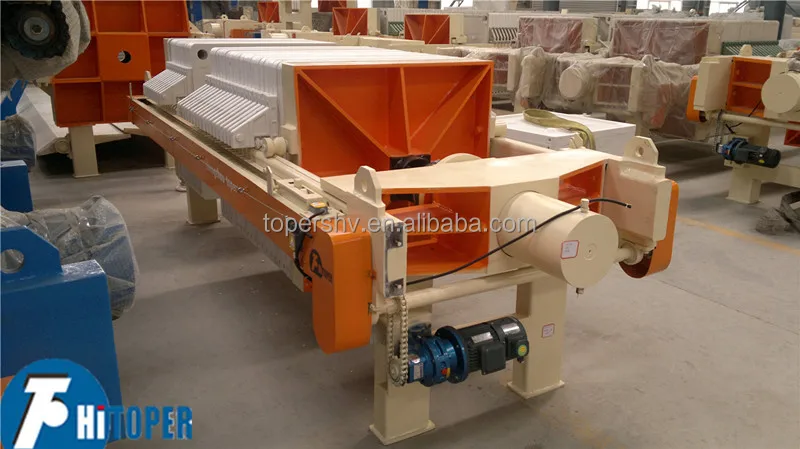

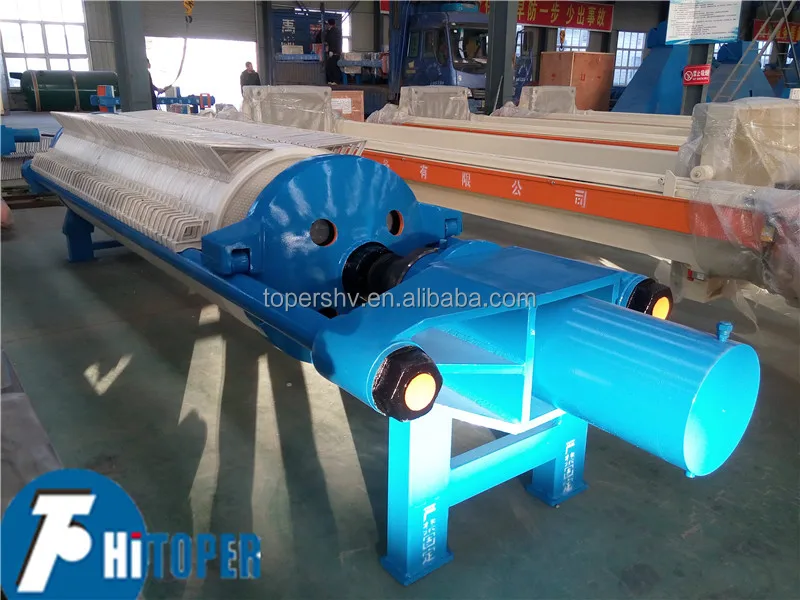

Other type of Toper's hydraulic compress filter press machine :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Also ,we focus on full service for filtering project from desigh to after -sale service and fast supply of spare parts.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
