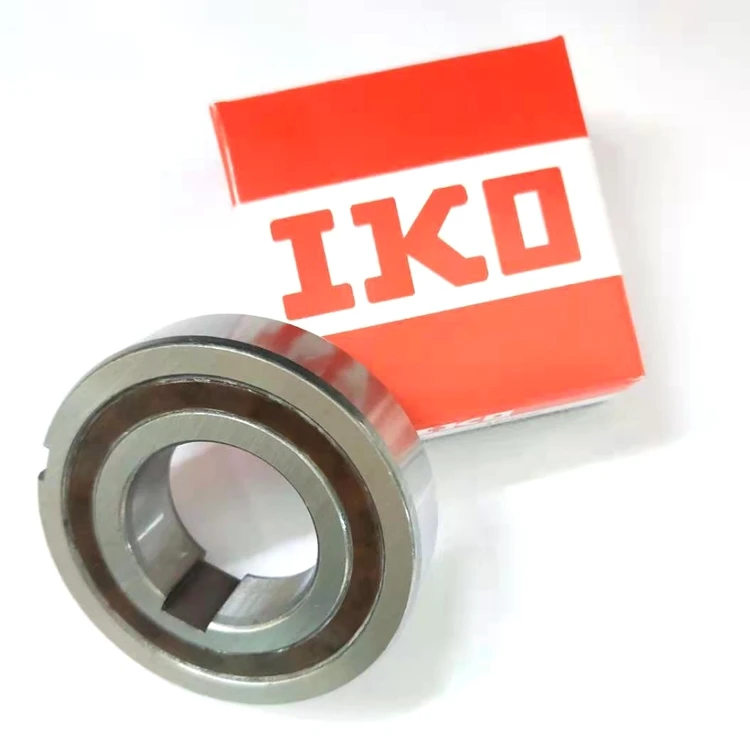

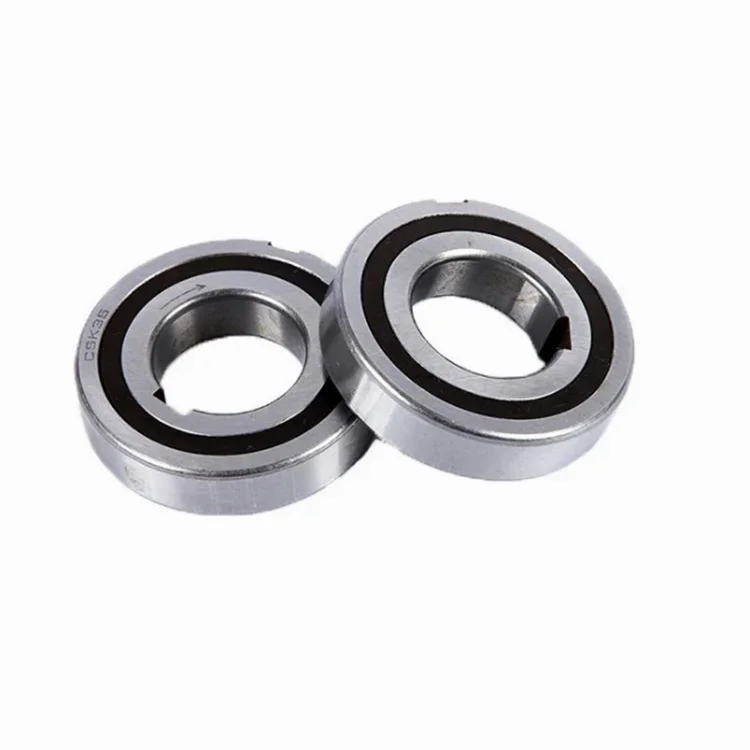

1.The CSK model freewheel is a sprag type clutch integrated into a 6200 series ball bearing (except sizes 8 and 40). It provides you with a one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space.
2.The CSK model freewheels can be used in backstop, overrunning or indexing applications.
3.The CSK model freewheels are available with bores to 40mm (1.57") and torque ratings to 384 lb. ft. They are supplied filled with grease and are maintenance free.
Bearings NO. | keyway | Dimensions(mm) | Nominal | Drag | weight | ||||||
torque | torque | approx. | |||||||||
Interchanged | d | D | B | Tkn/N.m | TR/N.m | KG | |||||
CSK10 | BB10 | KK10 | OW10 | P | PP | 10 | 30 | 9 | 5 | 0.006 | 0.032 |
CSK12 | BB12 | KK12 | OW12 | P | PP | 12 | 32 | 10 | 10 | 0.007 | 0.04 |
CSK15 | BB15 | KK15 | OW15 | P | PP | 15 | 35 | 11 | 30 | 0.009 | 0.06 |
CSK17 | BB17 | KK17 | OW17 | P | PP | 17 | 40 | 12 | 48 | 0.011 | 0.07 |
1. What is your Before-sales Service ?
1>.Offer bearing related consultation about technology and application;
2>.Help customers about bearing choice, clearance configuration, products' life and reliability analysis;
3>.Offer highly cost-effective and complete solution program according to site conditions;
4>.Offer localized program on introduced equipment to save running cost
5>.Design and develop non-standard bearing to support customers' technology innovation
2. What is your After-sales Service ?
1>.Offer training about bearing installation and maintenance;
2>.Offer guidance about bearing installation, adjustment and testing at site;
3>.Help customers with trouble diagnosis and failure analysis;
4>.Visit customers regularly and feedback their rational suggestions and requirements to company.
