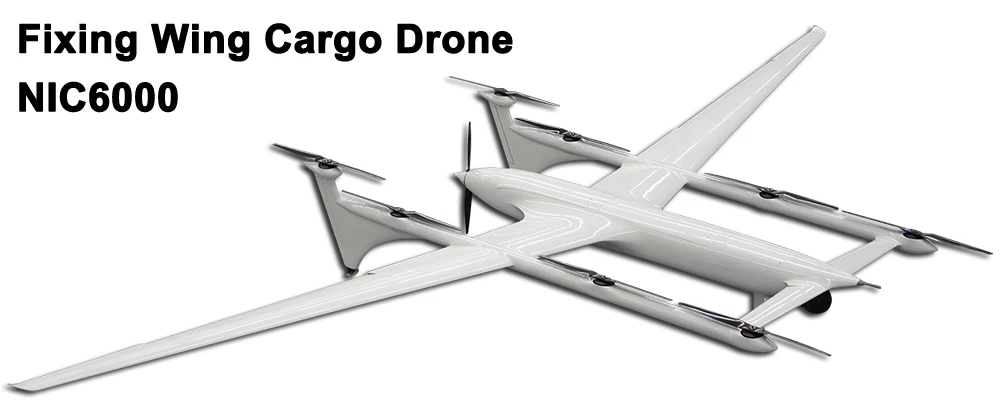

Рентабельный беспилотный летательный аппарат профессиональный беспилотник Vtol с неподвижным

Type of UAV

Pure electric vertical take-off and landing composite wing

Pneumatic layout

Duck wing layout

Dynamic redundancy distribution

8 lift motors and lift paddles / 1 tail push motor and tail push paddles

When the diagonal lift motor or lift propeller fails, it can hover normally

Dimension

6*3.2*0.6 m

Empty weight

29 kg

Maximum take-off weight

68 kg

Maximum load weight

(Low altitude region)

15kg (two large batteries)

20kg (one large battery + one small battery)

Maximum speed of rise (vertical state)

3 m/s

Maximum rate of descent (vertical state)

2 m/s

Typical speed of ascent

2.5 m/s

Maximum speed of descent

5 m/s

Typical cruising speed

25 m/s (90 km/h)

Maximum cruising speed

34.8 m/s (125 km/h)

Typical turning radius

200 m

Maximum take-off altitude

4500 m

ceiling

6000 m

Maximum wind resistance rating

Horizontal flight level 7 /Vertical takeoff level 6

Resistance to inclement weather

Light rain / Light snow / Fog

Normal operating temperature range

-20~60℃

The body material

95% carbon fiber composite

5% glass fiber composite material

Hover stability

Vertical ±1-2 m

Horizontal ±1-2 m

The size of the landing area is required

10*10 m

Landing precision

Standard configuration 2-3 meters

RTK configuration 0.5 meters

Range of GPR

50 m effective range

Maximum sailing hours per sortie

(Low altitudes region)

With 10kg : 3 hours +

With 15 kg : 2.5 hours +

Within 1 kg : nearly 6 hours

Maximum range per sortie

500 km

Navigation

GNSS+INS

Navigation lights

Optional

Inertial navigation

3 sets

Magnetic compass and orientation

1 set magnetic compass / 1 set dual GNSS antennas

AHRS

After loss of GNSS signal, normal flight is possible for 5 minutes

Airplane mode

Full automatic / Semi-automatic

Security policy

One key return / Digital signal loss return / Low power return / Large dip Angle abnormal attitude return / Key sensor abnormal return / Vertical motor can withstand up to 2 simultaneous failure / Can also glide after the failure of the tail-thrust motor

Flight record

Yes

Motor

Brushless motor

Electrically controlled

FOC electrically controlled

Dynamic paddle

Hang a 30-inch pure carbon fiber paddle

Tail push 24 inch pure carbon fiber paddle

IP rating

IP55

Battery

14S lithium polymer high performance battery

2 or 3 blocks can be selected according to the load

Battery capacity

Single 61500mAh/ 11.8kg

Charger

Quick charge, Single block charging time 2 hours

Digital frequency

840-845MHz/902-928MHz   Optional

Transmission distance

Max 150km

Figure number integrated frequency

1427.9-1447.9MHz

Model

TDMA / 5 time slot

Digital or graphic signals can be distributed on demand

Modulation

OFDM/QPSK/16QAM/64QAM

Antenna

Two antennas

Single transmission Double reception

Encryption

AES 128

Transmission distance

30 km version

100 km + version

Full vision + high gain directional antenna + low EMI environment + flight to take-off altitude over km

Transport box size

3*1.65*0.8 m

Structure

Can be disassembled into parts

Installation time

Takes about five minutes for two people
