Корпус газовой линзы 45V26 tig torch
US $1.80-$2.00
Алюминиевые сварочные машины 24 В WEWIN Auto Tig проволочный Фидер для
- Категории: Other Welding & Soldering Supplies >>>
- Поставщик: Guangzhou,Huiyun,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Specification
Model: D76L-2445-180-402D-BK0.6/0.8
Used for welding machine current less than 350A. For spot weld and continu weld.
Technical paramenters:
| Item | Typical |
| Motor type | 76L |
| Motor voltage | DC 24V |
| Motr output power | 45W |
| Noload speed | 180RPM |
| Noload current | 1.2A |
| Stall torque | 18N.m |
| Stall current | 15A |
| Feeder frame | 402D |
| Roller size | 40*22mm |
| Apply for wire roll weight | 15kg, 5kg |
| Feed wire diameter | 0.6, 0.8, 0.9, 1.0, 1.2, 1.6mm |
| Max feeder speed | 16m/min |
| Mini steady opration voltage in load | DC4.5V |
Product code introduction
How to distinguish the type of feed frame?
For example: P402D-AV0.8/1.0
P means plastic feed frame, casting feed frame without “P”.
402 is the code for wire feed frame. We have 20 401 402 404 501 504 P504 series.
D is the position of handle (looked from the positive direction),“D”is the righ handle, “E”is the left handle.
A is the diameter of roll, Unit:mm. “A”means the roll diameter is φ30,“B”means the roll diameter is φ40.
V is the type of roll,we have V, U, K, three type. “V”fit to steel wire,“U”fit to fluxcore wire and “K”fit to aluminium wire.
0.8/1.0 is the trough dimension of roll, unit:mm,the figure same as the welding machine diameter.We can change it for you.
The feed-roll dimension can change it for your welding wire size. Our Standard feed-roll size: 0.6/0.8,0.8/0.9,0.8/1.0,1.0/1.2, 1.2/1.6,1.6/2.0,2.0/2.4.

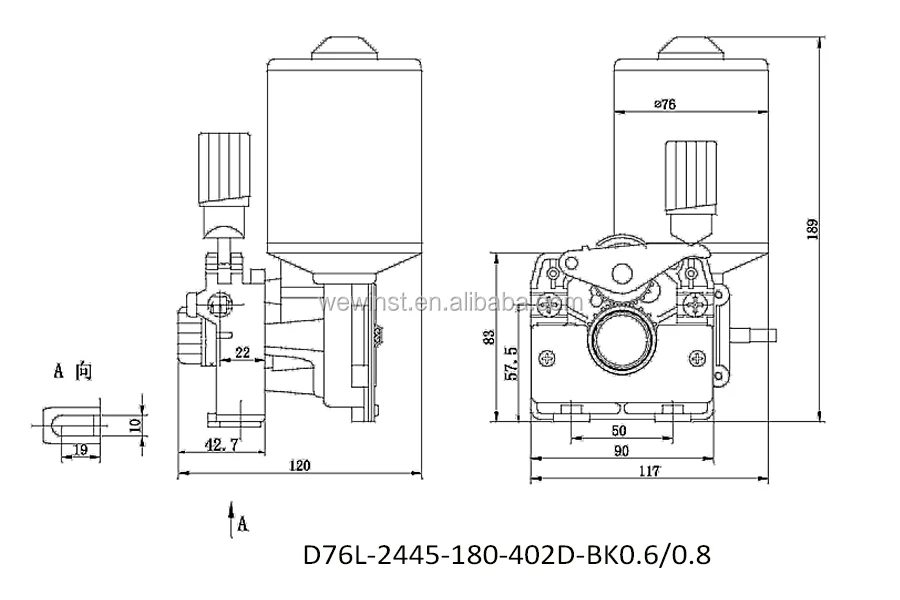

Drawing:

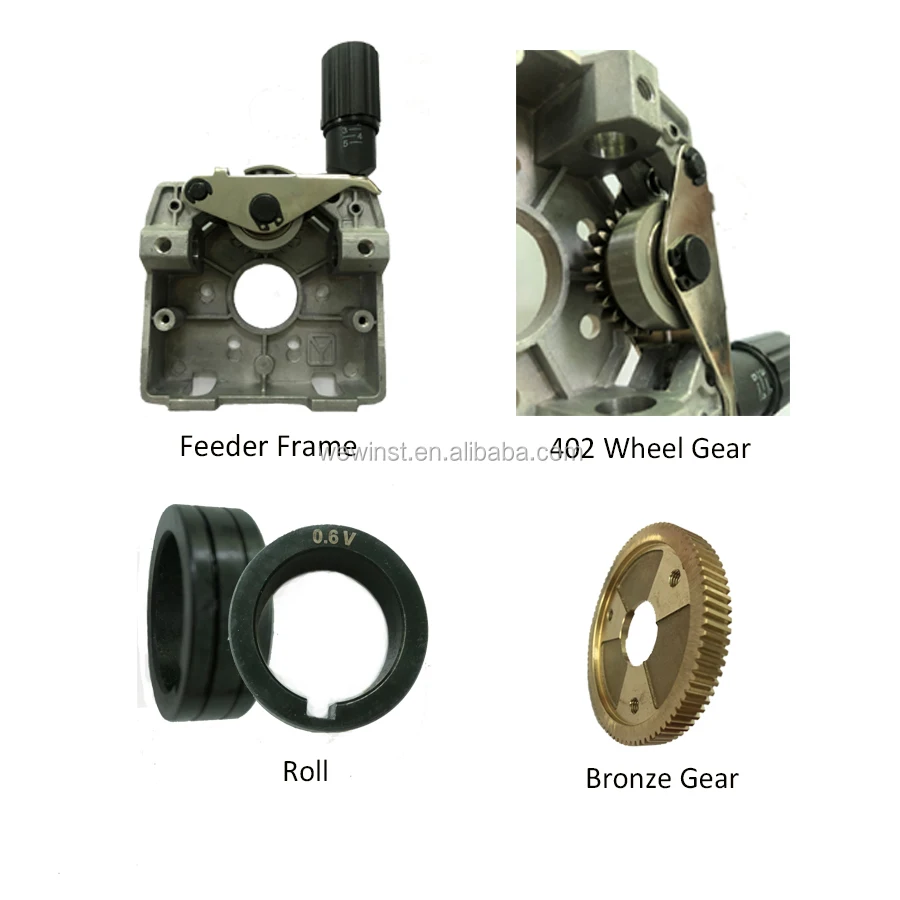

Roller:
Company Information
Guangzhou Huiyun Science & Technology Co.,Ltd is a subsidiary of Guangzhou Wewin Motor Co.,Ltd.The factory is located in Huadu,Guangzhou,we can design and manufacture of motors according to all our customers' demands so far,we can manufacture about 60,000 motors per month.
Our main market:
Europe,America and Asia,including United Kingdom,Germany,Italy,France,Sweden, United State,Brazil,India,Korea and so on.
Certifications
Exhibition
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in DC worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: Gear motor, Square motor, Stepped motor, and Micro motor
-Welding equipment: Wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
