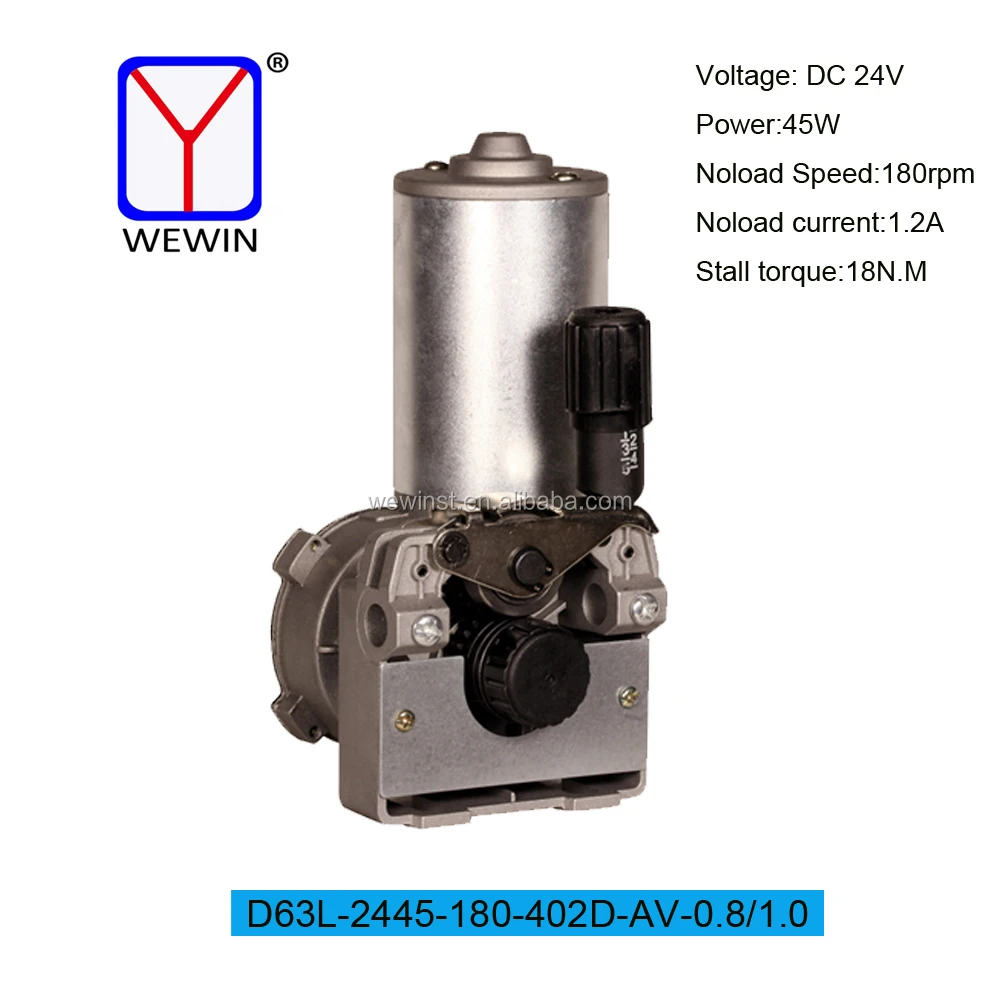

 Product show

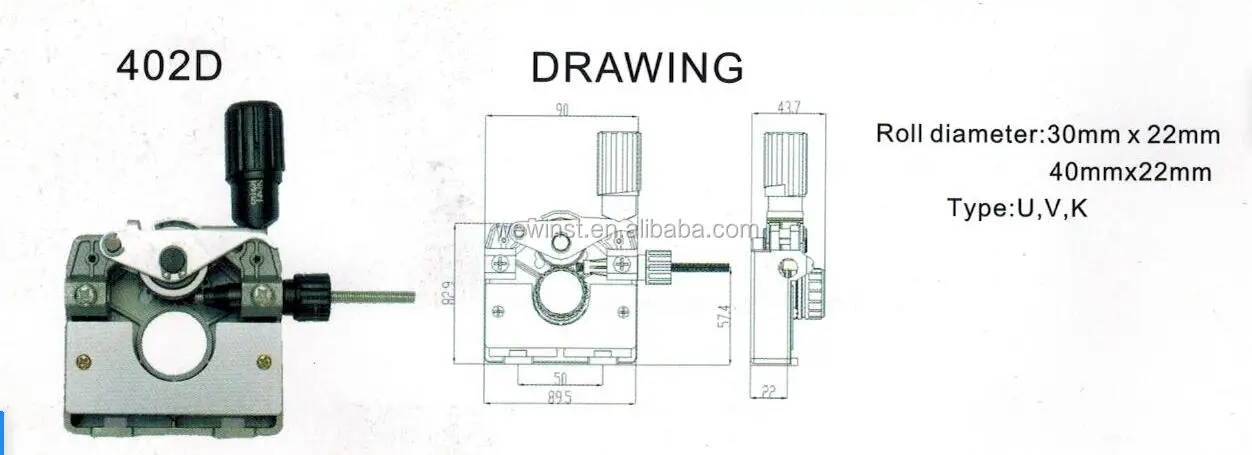

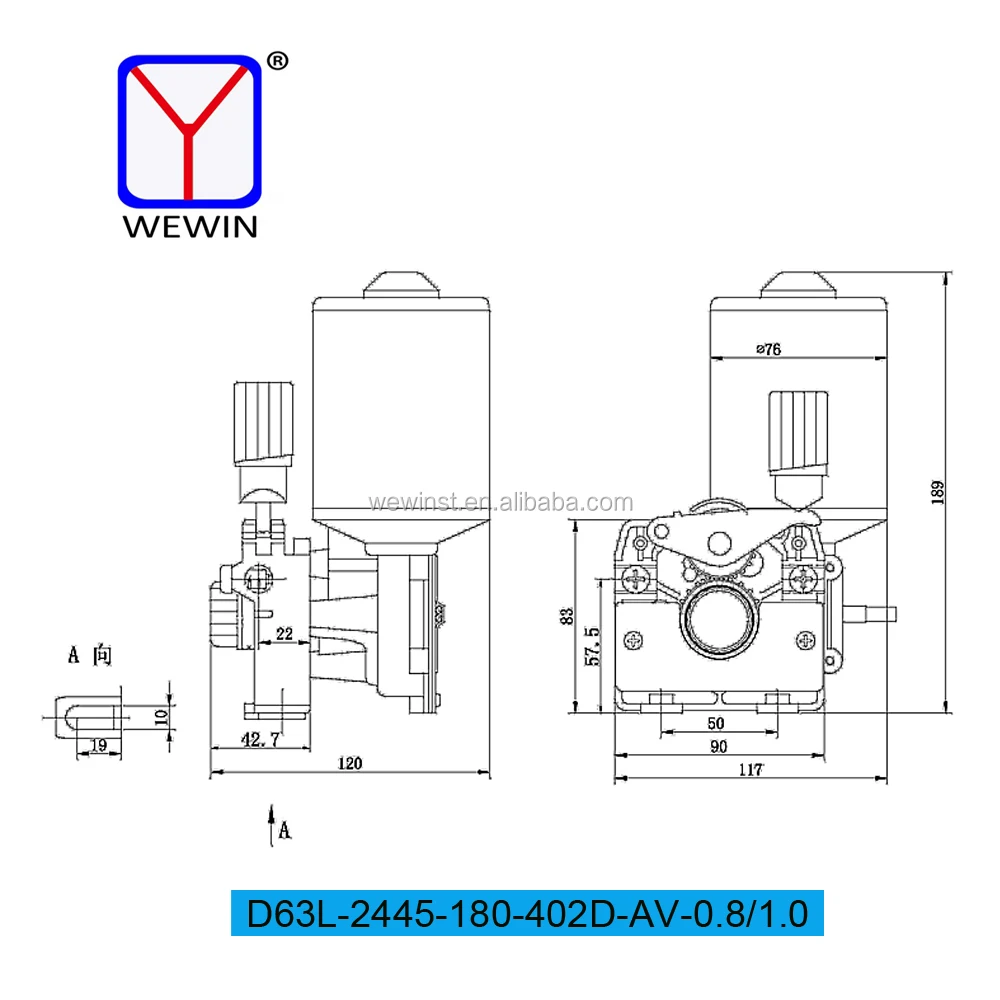

 Drawing



wire feeder frame







 Product Information



Product Name : MIG/MAG WIRE FEEDER

Product Model: WF6L4-402D

 Model Number : D63L-2445-180-402D-AV-0.8/1.0

 Scope Of Application: It can be used for the welding machine which the welding current is less than 350A, the welding machine can work at spot weld and continu weld.



The following parameters can be changed according to customer requirements)

No.	Item	Parameter	Remarks
1	Motor type	63L\\76L
2	Voltage (V)	DC24V	Optional
3	Output Power (W)	45W	Optional
4	Noload Speed(RPM)	180RPM	Optional
5	Noload Current(A)	1.2A
6	Stall Torque(N.M)	18N.M
7	Stall Current(A)	15A
8	Frame Type	401D\\402D
9	Wire feeder roll size	30MM*22MM
10	Wire feeder roll weight	15KG,5KG	Optional
11	Feed roll diameter	0.6MM,0.8MM,0.9MM,1.0MM,1.2MM	Optional
12	Maximum feed speed	16M/MIN
13	Min steady operation voltage in load	DC4.5V



Product Features



     (1) This wire feeder use our own designed motor which is special for welding machine with a gear ratio is 20/1,it works at low noise and high torgue.



    (2) The standard motor for this kinds wire feeder is 45w ,180RPM, also you can ask the 65w ,220RPM motor,than means the feeder speed can be choosed at 22m/min.



    (3) The roll also can use the 40mm rolls,motor can be fixed encoder and hall-sensor and opto-switch.



Product code introduction



How to distinguish the type of feed frame?



For example: P402D-AV0.8/1.0

P     means plastic feed frame, casting feed frame without “P”.

402 is the code for wire feed frame. We have 20 401 402 404 501 504 P504 series.

D     is the position of handle (looked from the positive direction),“D”is the righ handle,            “E”is the left handle.

A     is the diameter of roll, Unit:mm. “A”means the roll diameter is φ30,“B”means the             roll diameter is φ40.

V     is the type of roll,we have V, U, K, three type. “V”fit to steel wire,“U”fit to fluxcore             wire and “K”fit to aluminium wire.

0.8/1.0 is the trough dimension of roll, unit:mm,the figure same as the welding machine              diameter.We can change it for you.



The feed-roll dimension can change it for your welding wire size. Our Standard feed-roll size: 0.6/0.8,0.8/0.9,0.8/1.0,1.0/1.2, 1.2/1.6,1.6/2.0,2.0/2.4.

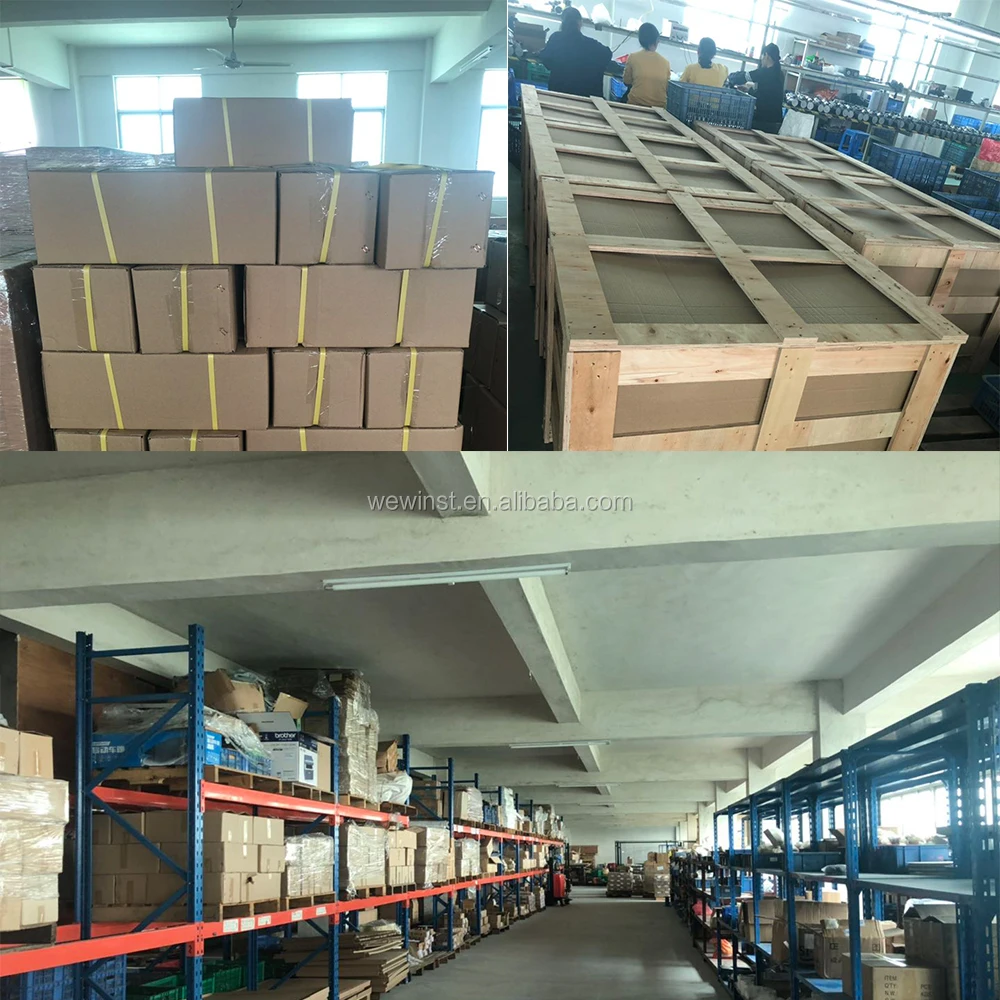

Packaging &Shipping

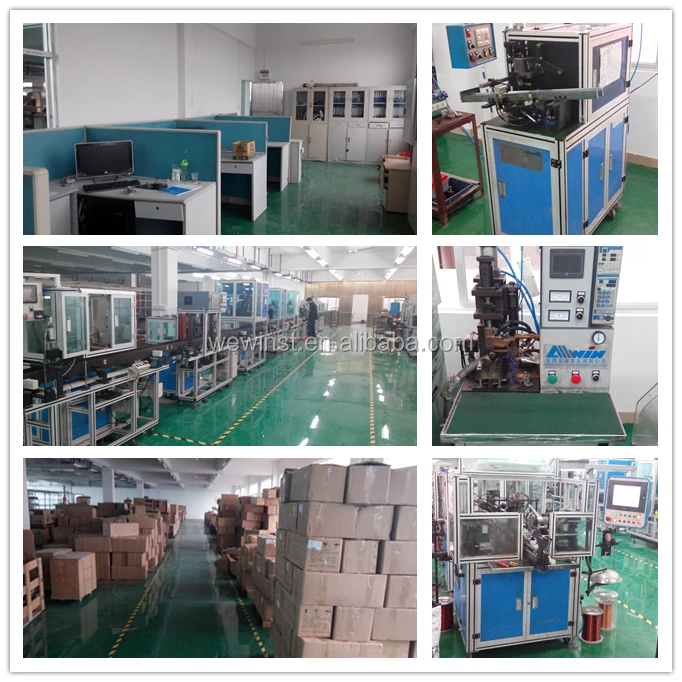

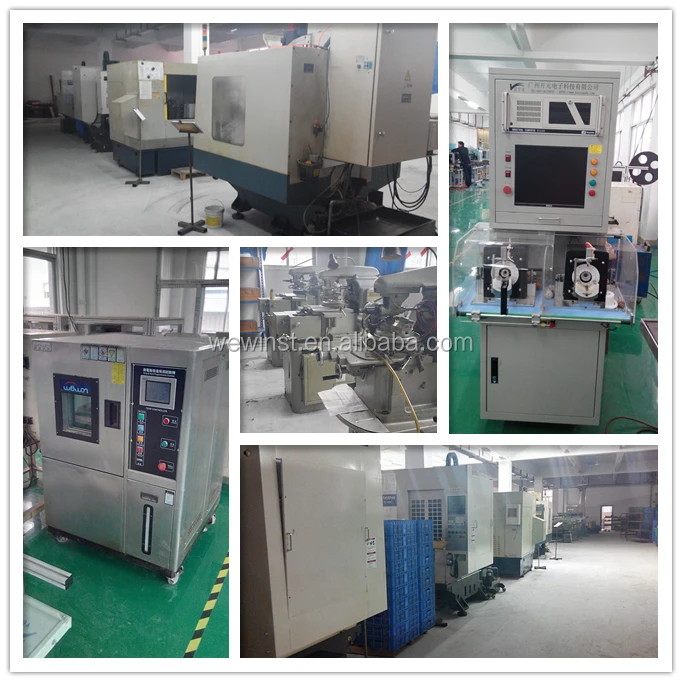

  Production line
