Машина для производства печенья для собак разных размеров и форм
US $40000-$60000
Лидер продаж Машина Для Производства Вафельных бисквитов автоматическая машина для производства
- Категории: Biscuit making machine >>>
- Поставщик: Henan,Ocean,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hot sales wafer biscuit machine production line automatic biscuit making machine price
Product Description
Specification
Capacity | 100KG-1000KG/H |
Total power | 220.00KW(380V, 50HZ) |
Finished product rate | ≥98％ |
Requirement for pressure of gas supply | 0.25-3.5kg/cm2 |
Baking plate size | 325mm×470mm |
Baking time | 90s |
Exterior size of complete line | 28.10m×3m×2.4m (L×W×H) |
Weight of complete line | About 20 T |
Operator | 4 people ( Not Including Packer) |
Installation and Commissioning | 1︿2 people |
Installation & Commissioning time | 20days |
Packing | Standard export seaworthy packing loading in container |
Workshop dimension | 30m×6m×( ≥3.5m) |
Main Features & Advantages
1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate
syrup distribution plate that used with the depositor.
7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.
1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate
syrup distribution plate that used with the depositor.
7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.

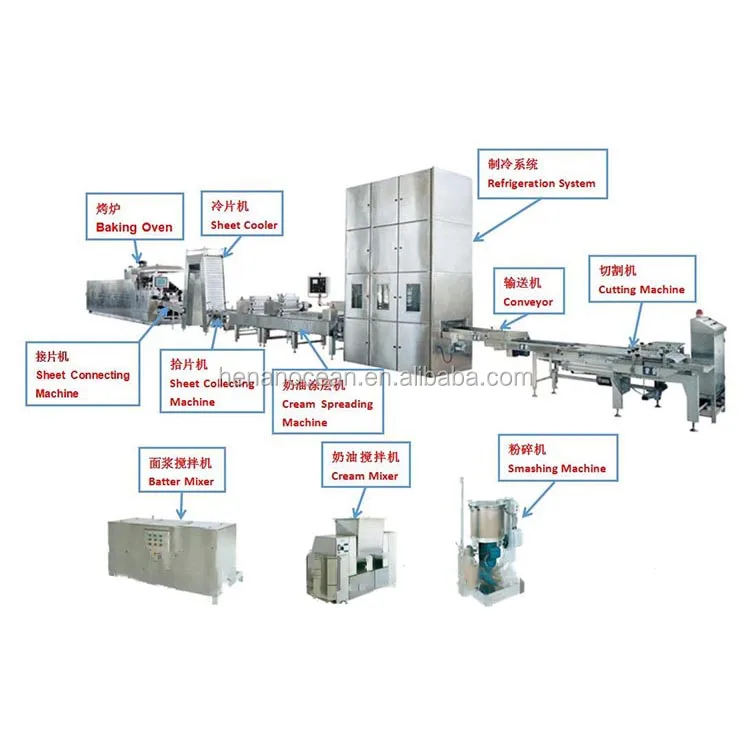

Equipment details
Splicer
The baked wafers are sent into the cooling channel, and the powder heads on the wafers are gently transported and swept until the hot wafers will not be damaged. All the conveying parts in contact with food are made of stainless steel and food-grade materials. manufacture.
Gas heating oven
The wafer baking system uses a gas heating plate to heat the baking plate, and the signal collection required by the controller is provided by the infrared temperature detector produced. Observation of the operating status of the oven and data change settings are provided by a touch screen.
Slope cold film machine
The wafer slices after cooling and baking are air-cooled and there is no other cooling device. The cooling time is about 2-4 minutes, depending on the product and the production capacity of the wafer production line.
The wafer slices after cooling and baking are air-cooled and there is no other cooling device. The cooling time is about 2-4 minutes, depending on the product and the production capacity of the wafer production line.
Cream coating machine
Spread the cream layer on the cooled wafer, evenly spread the cream and spread each layer of cream on each layer of the wafer, and then gently press to make the cake and cream combine with each other. The number of cream layers and the number of wafers can be Adjust to 3\\4\\5 layers as needed, and the machine will automatically calculate according to the adjusted number of layers.
Refrigerating system
It is used for the cooling necessary for the wafer cooling and the drying of the cold air at the same time. Especially for moisture-sensitive products or high-humidity product channels. The advantage of this system is that the dry air used to cool the wafers affects the product very good..
Wafer Stacking Conveyor
The frame is made of stainless steel. The transmission belt is made of food-grade rope. The power transmission is chain transmission. The power chain is equipped with a tensioning device. All tensioners are driven by bearings. The material of the rope pulley is PU material. Add a support bar below to effectively prevent the pie slices from falling apart.
The frame is made of stainless steel. The transmission belt is made of food-grade rope. The power transmission is chain transmission. The power chain is equipped with a tensioning device. All tensioners are driven by bearings. The material of the rope pulley is PU material. Add a support bar below to effectively prevent the pie slices from falling apart.
Recommend Products
Company Profile
Henan Ocean Machinery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and Vegetable Machine, Food & Packaging Machine, Water Well Drilling Rig and Poultry Equivalents, etc., which are widely sold worldwide and we have been recognized by our customers year after year.
FAQ
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 3: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 4: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 5: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Question 6: Are you factory?
Answer: Yes,we are factory with 20 years experience.
Question 7: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 3: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 4: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 5: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Question 6: Are you factory?
Answer: Yes,we are factory with 20 years experience.
Question 7: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
Packing & Delivery
