Product Description

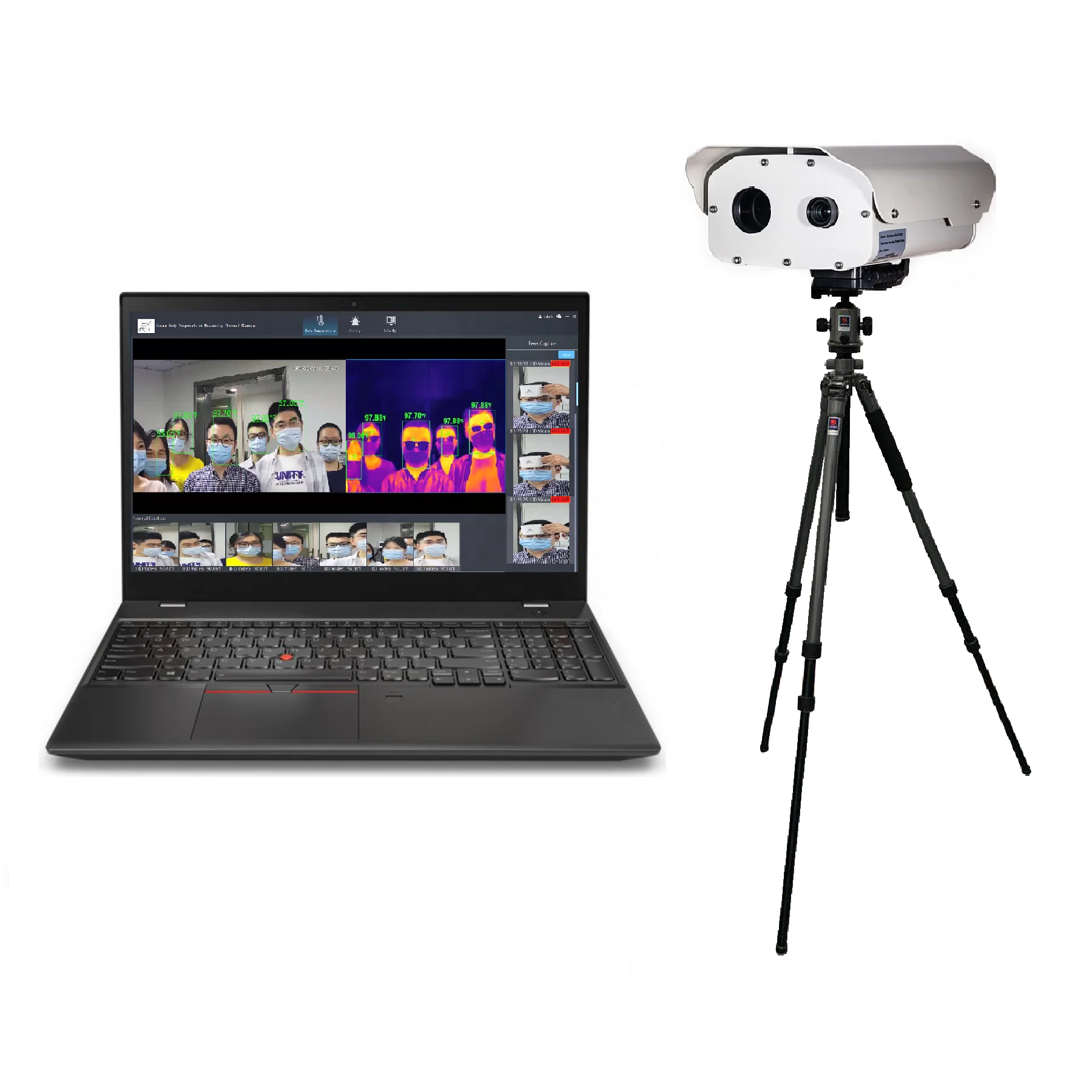

Artemis TI-CS-T11 Thermal Temperature Camera

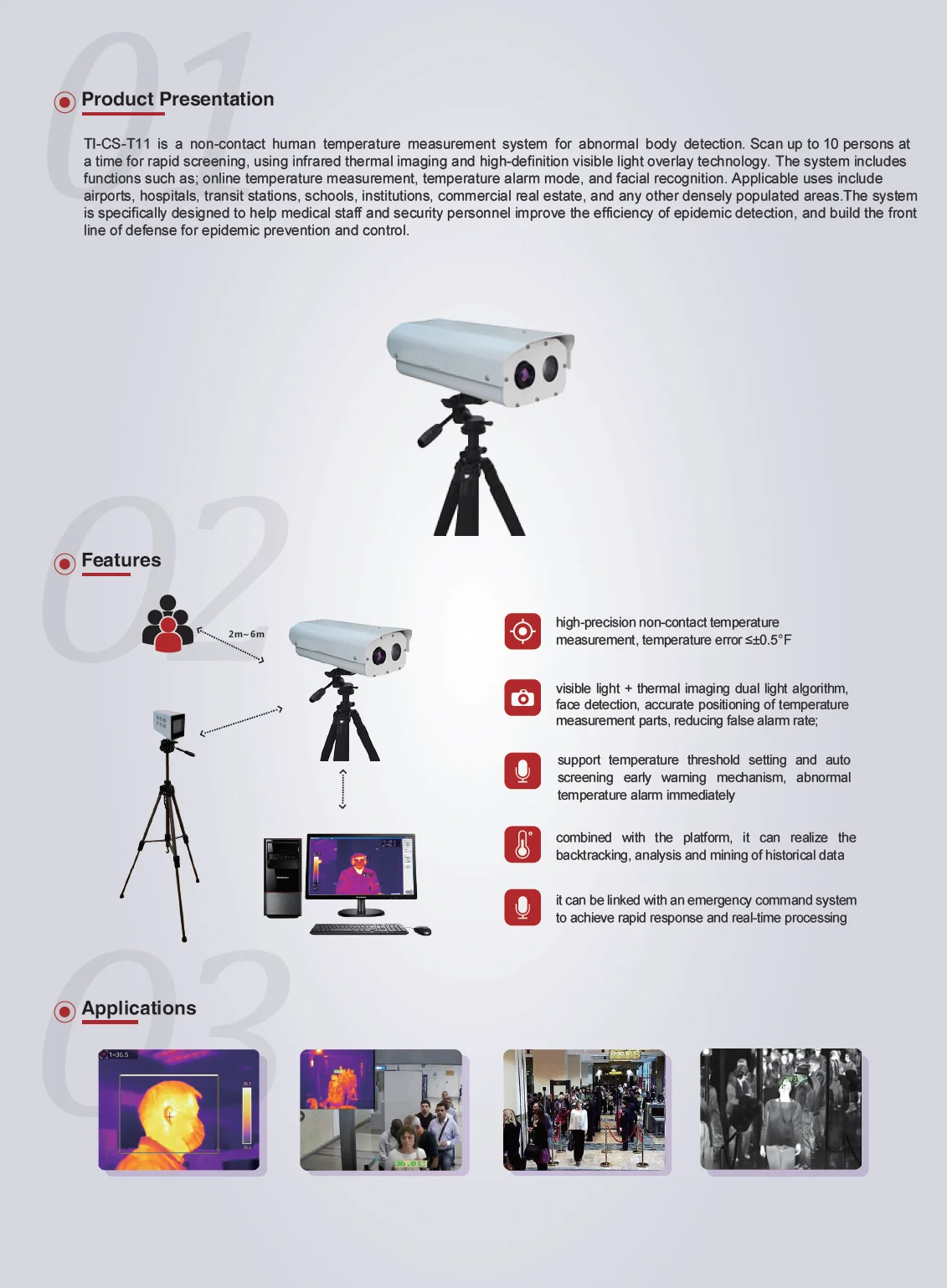

The TI-CS-T11 thermal temperature camera is a non-contact infrared thermal scanner designed for rapid human body temperature inspections. The system uses infrared thermal imaging and high-definition visible light overlay technology. This system also includes advanced functions such as facial detection and online data display capabilities.
Once the thermal imaging temperature camera detects a temperature higher than the temperature you set, it sounds alarms and takes pictures of the target. With the blackbody, the accuracy can reach as high as ±0.3℃ (+0.54°F) .
Product Usage
Airports
Railway stations
Hospitals
Schools
Specification Table
Product Name | Artemis Thermal Imaging Camera Simultaneous Temperature Measurement Infrared Thermal Scanner | |
Item | T1-CS-T11 | |
Thermal Imaging | ||
IR resolution | 320×240 | |
Spectral range | 8～14μm | |
NETD/Sensitivity | 50mK | |
Lens | 10mm | |
Focus | Athermal lens | |
Color palettes | 10 types (including iron red, rainbow, black heat and white heat, etc.) | |
Visible light | ||
Sensor type | 1/2.8 inch CMOS | |
Resolution | 1920×1080 | |
Focal distance | 10mm | |
Minimum illumination | 0.005Lux @(F1.5, AGC ON), | |
Temperature measurement | ||
Temperature range | +86℉～+113℉ | |
Measurement accuracy | ±0.54℉（with blackbody） | |
Highest temperature tracking | Real-time display of high temperature point position and temperature value | |
Emissivity correction | Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter | |
Atmospheric transmissivity correction | Auto (based on input reflected ambient temperature, distance, relative humidity, ambient temperature) | |
Function settings | Date / time, temperature unit ℃ / ℉ / K, language | |
Intelligent information overlay | Supports superimposed thermal imaging information in visible light channel images (only supports temperature measurement rules, temperature measurement values) | |
Linkage alarm | Support sound and light linkage alarm | |
Data storage | ||
Image format | Memory storage JPG format, PC-side BMP, JPG | |
Video format | AVI format, H.264 compression | |
SD card | Built-in 128G | |
Interface | ||
Network interface | 100M/1000M Ethernet, RJ45 interface, temperature data transmission | |
Network protocol | Support HTTP; TCP; RTSP; RTP; UDP; RTCP; Support ONVIF 28181 protocol; | |
Alarm I/O | Scalable | |
Communication serial port | RS422/RS485/RS232 Scalable | |
Power System | ||
Working voltage | DC: 12V | |
Power consumption | ≤6w | |
Environment Parameters | ||
Operating temperature range | -4℉～+122℉(Ambient temperature 59℉ ～ 95℉ accurate temperature measurement) | |
Humidity | ≤95%(non-condensing) | |
Vibration | 2G(IEC60068-2-6) | |
Shock | 25G(IEC60068-2-29) | |
Physical data | ||
Size | 335mm(L)×195mm(W)×116mm(H) | |
Weight | ≤2Kg | |
Packing | ||
Standard | Infrared camera, integrated cable, warranty card, certificate, carrying case | |
Quality assurance | ||
ISO9001 | Yes | |
Quick Questions About T11
Q1. Can the temperature screening equipment be installed outdoors?
A: The optimal installation environment is indoors. The thermal camera is IP66 weatherproof rated, but the calibrator – black body is not rated for outdoor use. Outside temperature, wind, sunshine and humidity may affect the temperature readings, so we recommend using the system indoors.
Q2. Can I use this T11 thermal scanner to monitor in real-time?
A: The T11 body temperature solution is designed to be used for real-time monitoring, allowing you to immediately detect high body temperatures in a controlled environment – range from 6 feet to 20 feet with 60-degree covered area. It can be used locally (off-network) or can be connected to a network for additional monitoring.
Q3. How to set up?
We have a team of U.S. based support agents to assist you with installation every step of the way. Installation consists of
physical installation, which takes only minutes, along with a software installation and configuration which is all detailed in our documentation.
Q4. What is blackbody? Do you have to match black body?
Blackbody is a calibration device that can set the temperature value and is the standard temperature source, so the temperature measurement accuracy is above a higher level (±0.54℉ accuracy). Thermal imaging equipment performs real-time calibration based on the temperature of the blackbody; the blackbody is placed opposite the thermal imager to ensure that the front of the blackbody appears on the thermal imager's screen. The blackbody only needs to be powered, and does not need to be networked.
Q5. Add-on Services and Professional Services?
With our add-on services, you can have a multiple-recipient notification system when elevated temperatures are detected, as well as the AI Facial Recognition feature to determine the name of the flagged person, and Full Maintenance feature to automatically clean up and back up data generated when using the T11 body temperature solution.
We have an experienced development team to provide you professional services, such as customizing the software per your special requirements.
A: The optimal installation environment is indoors. The thermal camera is IP66 weatherproof rated, but the calibrator – black body is not rated for outdoor use. Outside temperature, wind, sunshine and humidity may affect the temperature readings, so we recommend using the system indoors.
Q2. Can I use this T11 thermal scanner to monitor in real-time?
A: The T11 body temperature solution is designed to be used for real-time monitoring, allowing you to immediately detect high body temperatures in a controlled environment – range from 6 feet to 20 feet with 60-degree covered area. It can be used locally (off-network) or can be connected to a network for additional monitoring.
Q3. How to set up?
We have a team of U.S. based support agents to assist you with installation every step of the way. Installation consists of
physical installation, which takes only minutes, along with a software installation and configuration which is all detailed in our documentation.
Q4. What is blackbody? Do you have to match black body?
Blackbody is a calibration device that can set the temperature value and is the standard temperature source, so the temperature measurement accuracy is above a higher level (±0.54℉ accuracy). Thermal imaging equipment performs real-time calibration based on the temperature of the blackbody; the blackbody is placed opposite the thermal imager to ensure that the front of the blackbody appears on the thermal imager's screen. The blackbody only needs to be powered, and does not need to be networked.
Q5. Add-on Services and Professional Services?
With our add-on services, you can have a multiple-recipient notification system when elevated temperatures are detected, as well as the AI Facial Recognition feature to determine the name of the flagged person, and Full Maintenance feature to automatically clean up and back up data generated when using the T11 body temperature solution.
We have an experienced development team to provide you professional services, such as customizing the software per your special requirements.

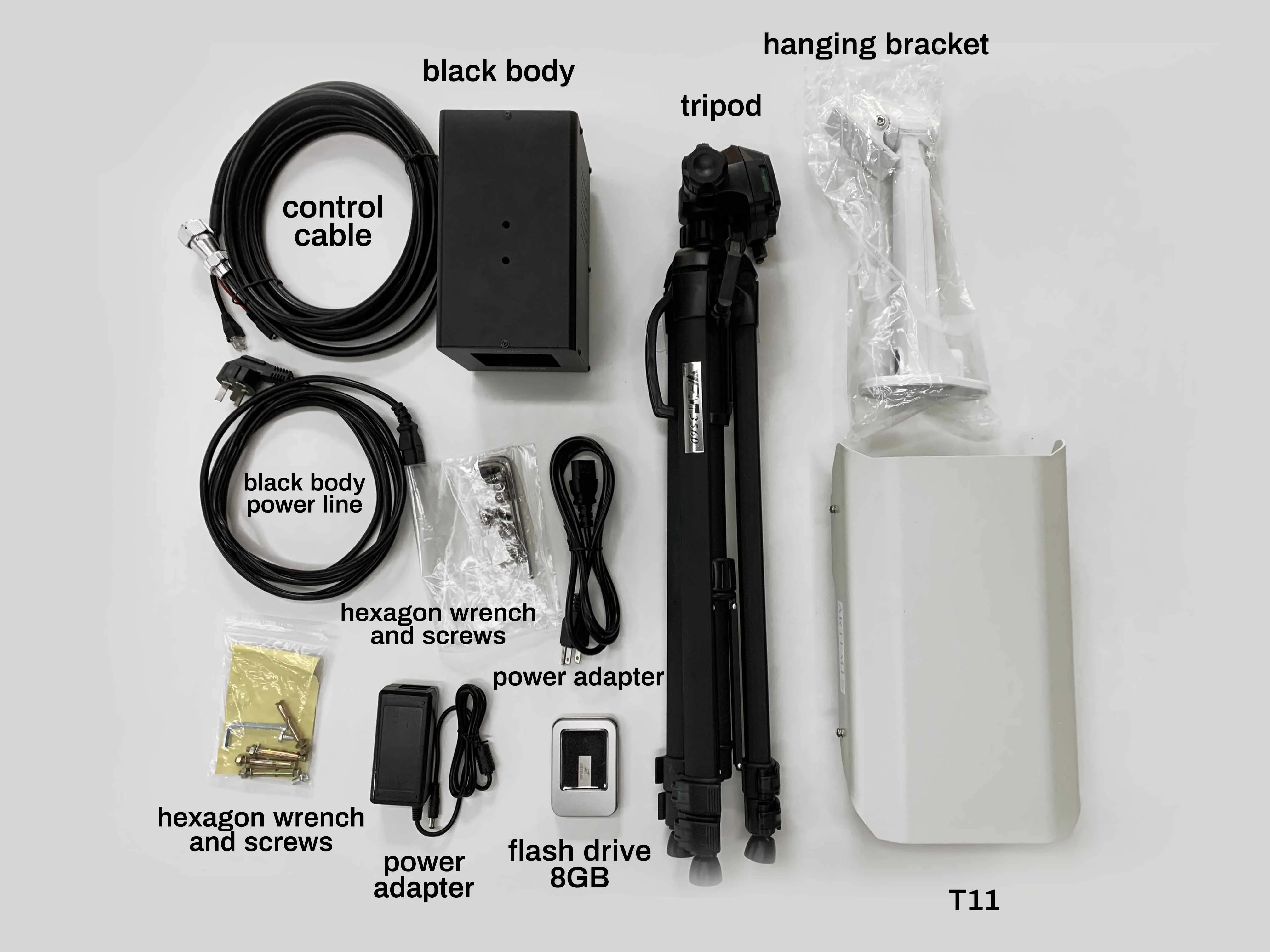

What's in Box
Our Customers
FAQ
1. What's the order process?
1) Inquiry --- You tell us your clear requirements (total quantity and package details).
2) Quotation --- We send you a quotation form including the product specifications, quantities and prices.
3) Ordering --- After you confirm the order details, we'll send you an invoice.
4) Payment --- You make full payment for the order.
5) Shipping --- We ship the product to you, WITHOUT any shipment fee.
1) Inquiry --- You tell us your clear requirements (total quantity and package details).
2) Quotation --- We send you a quotation form including the product specifications, quantities and prices.
3) Ordering --- After you confirm the order details, we'll send you an invoice.
4) Payment --- You make full payment for the order.
5) Shipping --- We ship the product to you, WITHOUT any shipment fee.
2. What terms of payment you use?
Only T/T payment is accepted. As for other payment terms, it depends on the total amount and products.
3. How do you ship the products?
By Sea, By Air, By courier, TNT , DHL, Fedex, UPS Etc.
4. What is the average delivery time?
Our warehouse is located in Boston, MA, USA. It usually takes about 5 to 10 working days if the amount is less than 50. Bulk order may take longer.
5. Is there a better price available?
All our products are at the lowest and best prices now.
