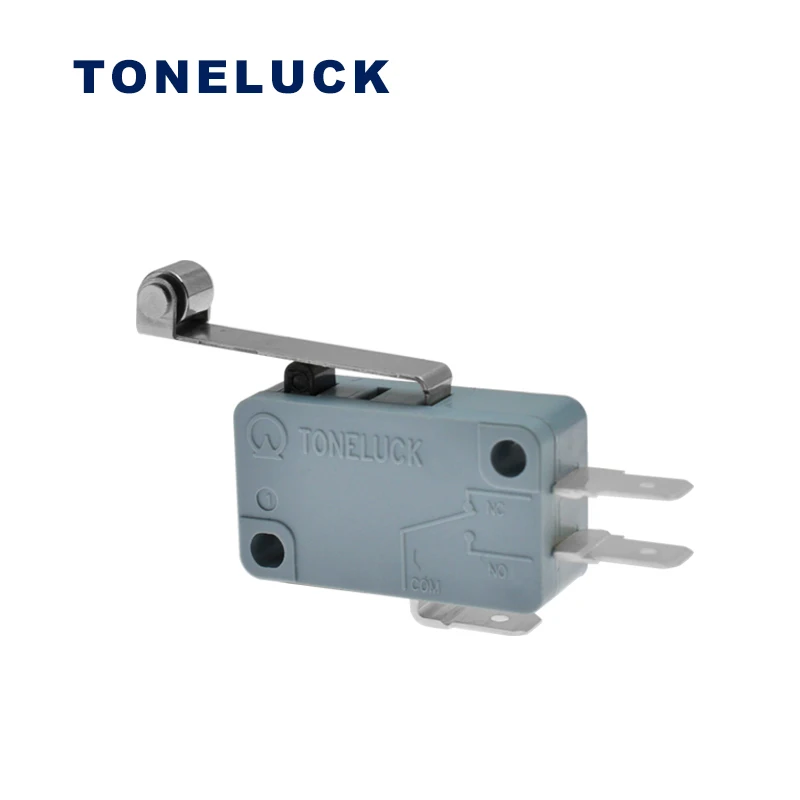

Product Name | TONELUCK E Series Switch |
Mechanical life | 1,000,000 cycles min. |
Contact resistance | 50mΩ max. initial |
Insulation resistance | 100 MΩ min. |
Dielectric strength | 1000VAC for 60+/- 5 sec |
Shell material | UL 94V-0 Thermoplastic |
product type | E41 ~ E73 |
Circuit | A= SPDT B= SPST-NC C= SPST-NO |
