Walk In Blast Freezer For Seafood Quick Freeze
In order keep the seafood or meat or beef or chicken and other meat, if want to long time store, we have to blast freeze them in
-40ºC temperature in short several hours to frozen them, and then store them into freezer room for long time store (-18ºC~-25ºC),
to balance the time of market, improve the economic performance.
-40ºC temperature in short several hours to frozen them, and then store them into freezer room for long time store (-18ºC~-25ºC),
to balance the time of market, improve the economic performance.
Advantage
1. Quality assure, ony need 3 USD per shift for machine, lot saving.
2. FREE money, Strong power technical supportall service are FREE.
3. Automatical, One stop solution for blast freezer, Automatic control.
4. Smart monitor system, will alarm reminder by SIM.
5. Power Saving, each shift needs 250KW*H power sorce, 0.125kw*H per KG for freezing cost, economic.
2. FREE money, Strong power technical supportall service are FREE.
3. Automatical, One stop solution for blast freezer, Automatic control.
4. Smart monitor system, will alarm reminder by SIM.
5. Power Saving, each shift needs 250KW*H power sorce, 0.125kw*H per KG for freezing cost, economic.
Frozen cargo specification
Products name | Fresh meat, chicken, beef, fish, shrimp, etc | ||||||
Enter temp: | +15 ºC | ||||||
Products weight | 2000 Kgs | ||||||
Core target temperature | -18ºC | ||||||
Freezeing shift | 8 hours | ||||||
Voltage | 380V/3PH/50HZ or 460V/3PH/60HZ | ||||||
Main part of project

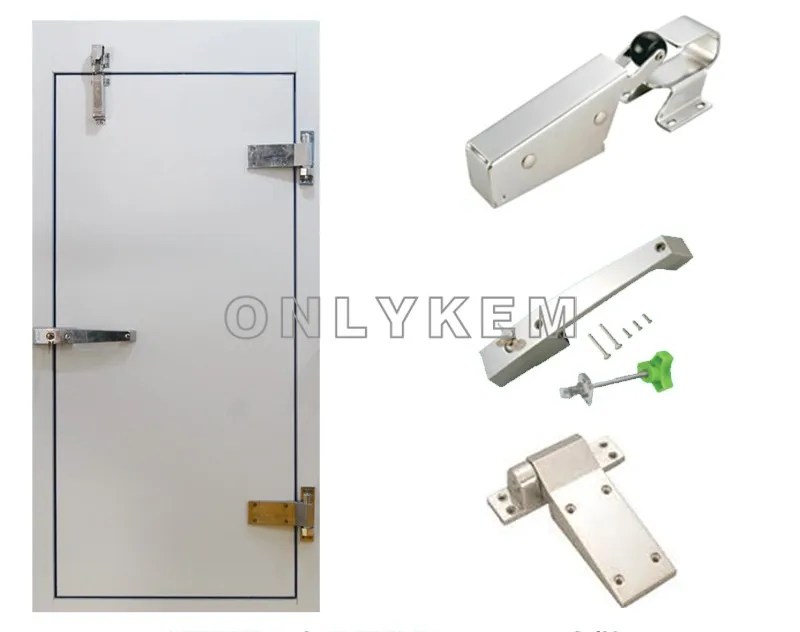

Insulation door
Hinged door, 200mm PU foam panel with 0.5mm thickness color steel, special heater for low temperature application. Door size is 0.9x1.9m.
Indoor unit---Unit cooler
1. Evaporator brand: OnlyKem
2. Evaporator model: DCJ-260
3. Refrigerant: R404a
4.Voltage: 380V/3Ph/50Hz
5. Cooling type: Air cooled
6. Defrosting type: Electrical
7. Defrost shift period: 8 hours
8. Defrosting power: 16KW.
9. Fin space: 9-18mm

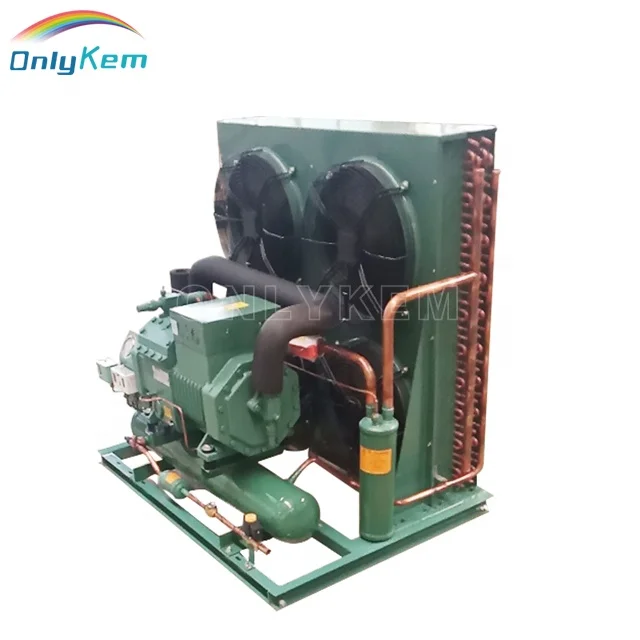

Outdoor unit---Condensing unit
Specification:
1. Compressor brand: Germany Bitzer compressor
2. Compressor model: S6F-30.2Y
3. Refrigerant: R404a
4.Voltage: 380V/3Ph/50Hz
5. Cooling type: Air cooled
6. configuration: Bitzer compressor(S6F-30.2Y), sub cooler, Vibration absorb, oil separator, air cooled condenser, axial fan,
liquid receiver, sight glass, solenoid valve, junction box, dual pressure switch, dual pressure gauge, crankcase heater, suction
accumulator, etc.
7. Control: Automatic
1. Compressor brand: Germany Bitzer compressor
2. Compressor model: S6F-30.2Y
3. Refrigerant: R404a
4.Voltage: 380V/3Ph/50Hz
5. Cooling type: Air cooled
6. configuration: Bitzer compressor(S6F-30.2Y), sub cooler, Vibration absorb, oil separator, air cooled condenser, axial fan,
liquid receiver, sight glass, solenoid valve, junction box, dual pressure switch, dual pressure gauge, crankcase heater, suction
accumulator, etc.
7. Control: Automatic

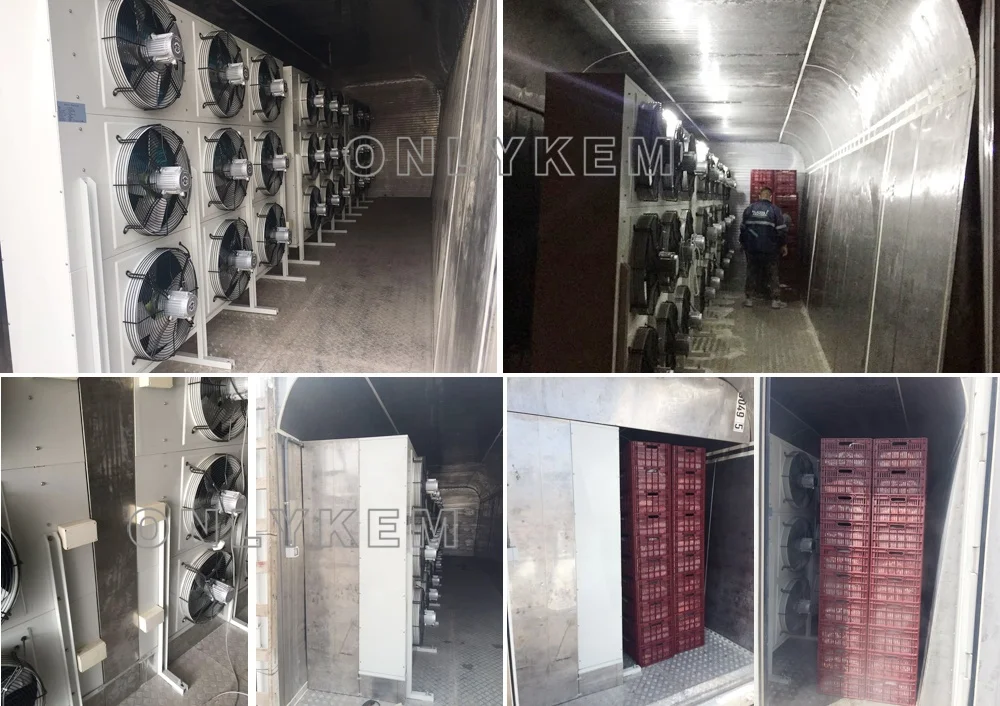

Our project
Blast freezer in Peru
2 tons beef will be frozen within 8 hours
Dimension | 4.0 m*3.5 m*3.0 m | ||||||
Panel | Polyurethane foam insulation panel,42~45kg/m3, fire resistance | ||||||
Thickness of panel | 200mm optional | ||||||
Surface steel | 0.5mm thickness color steel, double surface | ||||||
Panel Connection | cam lock connection | ||||||
Door type | Hinged door, 0.9x1.9m, 200mm thickness with 0.5mm color steel. | ||||||
Blast freezer temperature | -40ºC | ||||||
Refrigeration unit | Germany Bitzer two stage reciprocating compressor unit | ||||||
Refrigerant | R404a | ||||||
Recommend Products
Company Profile
OnlyKem Technology Co., Ltd. is the leading cold room and refrigeration unit designer, manufacturer, and exporter dedicated to supplying the finest quality cold room solutions to worldwide customers. We have over 20 professional cold room experts and an 8,000 square meters factory. Our innovative, high-quality products and solutions include Cold Room, Unit Cooler, Condensing Unit, Cold Room Door, PU Panel, etc. We have been kept on investing in technological innovation and product optimization with our more than 20 talented experts. Cooperated with domestic famous universities like Shandong University and Shandong Construction University in a cold room control system, structure design, and refrigeration system optimization. We are willing to become your partners with our high cost-performance cold room, excellent quality, and perfect after-sale service...

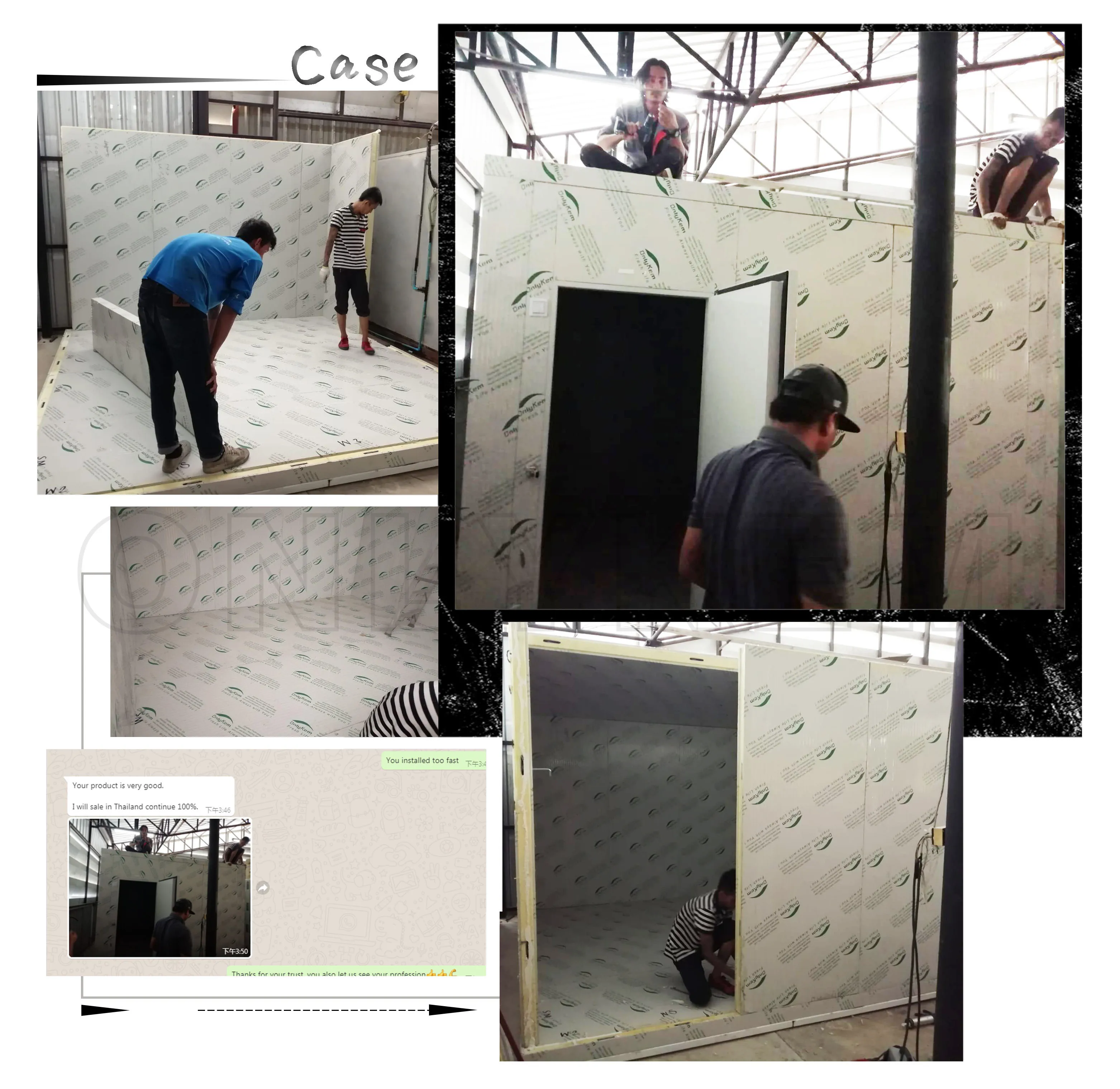

Customer Feedback
Stainless Steel Cold Room in Singapore.
Sample Cold Room in Philippines.
Restaurant Cold Room in Sweden.
Certifications
Product Packaging and Delivery
FAQ
Can you customize the cold storage room dimension?
Yes, we can customize the cold room dimension according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.
Yes, we can offer a panel insulation system and an equipment refrigeration system.
What brand compressor can you offer?
Normally with original New Bitzer and Copeland compressor. Famous in the world.
Normally with original New Bitzer and Copeland compressor. Famous in the world.
How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays. If you need a special customize, will be longer.
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays. If you need a special customize, will be longer.
How can you guarantee will ship for me in time? Do you know Alibaba Trade Assurance?
OnlyKem is a Trade Assurance company, so you can arrange payment to Alibaba account, Alibaba will protect your profit. If we do not ship in time for you, Alibaba will refund money to you.
OnlyKem is a Trade Assurance company, so you can arrange payment to Alibaba account, Alibaba will protect your profit. If we do not ship in time for you, Alibaba will refund money to you.
