Высококачественный вертикальный картридж для полировки ювелирных изделий пылесборники с фильтрующим картриджем двойным сроком

No.

Model No.

RJH-8-16-CX

RJH-12-24-CX

RJH-16-32-CX

1

No. of filter cartridges

16*X

24*X

32*X

2

Filtration area

155.2*X m2

232.8*X m2

310.4*X m2

3

Air volume

4656-9312*X m3/h

6984-13968*X m3/h

9312-18624*X m3/h

4

Filter cartridge cleaning method

Pulse jet blowing

5

Filter cartridge cleaning mode

On-line deashing

6

Filter cartridge installation

Vertical

7

Filtration mode

Filter fiber unitary dust removal structure

8

Equipment resistance

600-800Pa

9

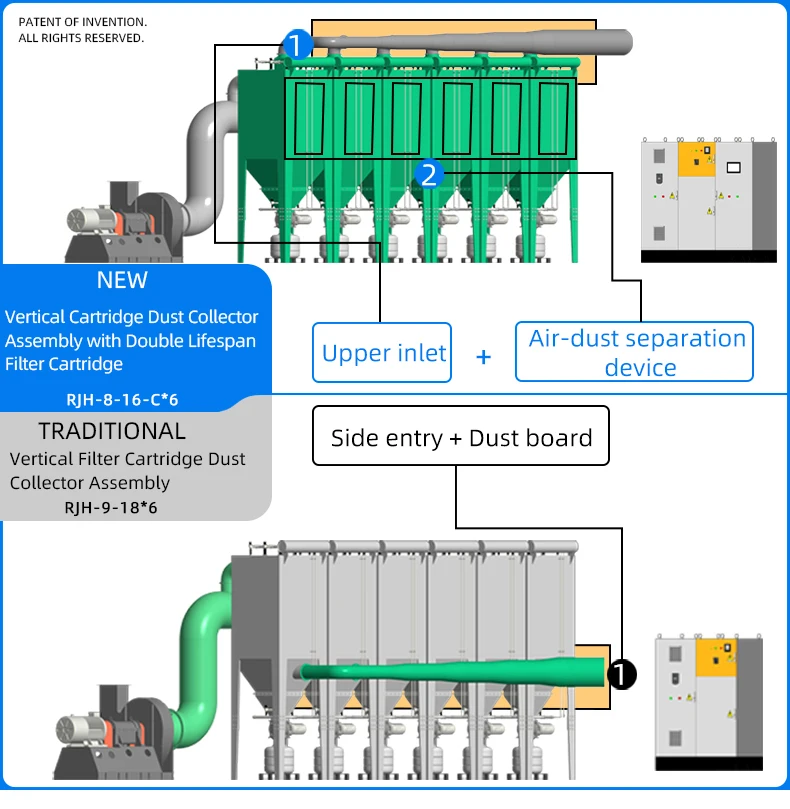

Air inlet mode

Upper inlet

10

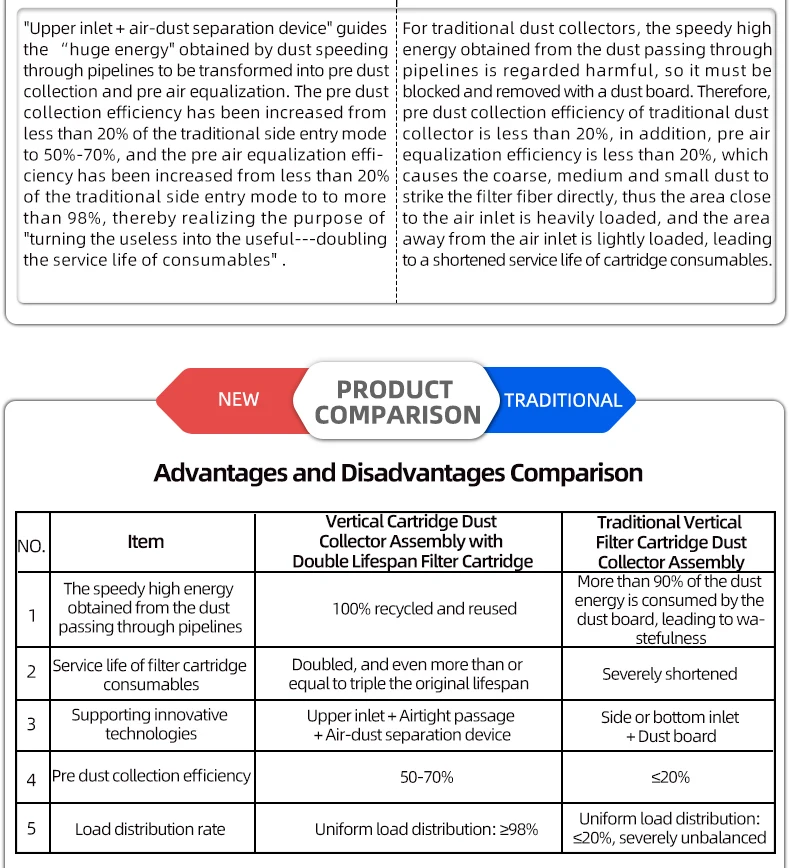

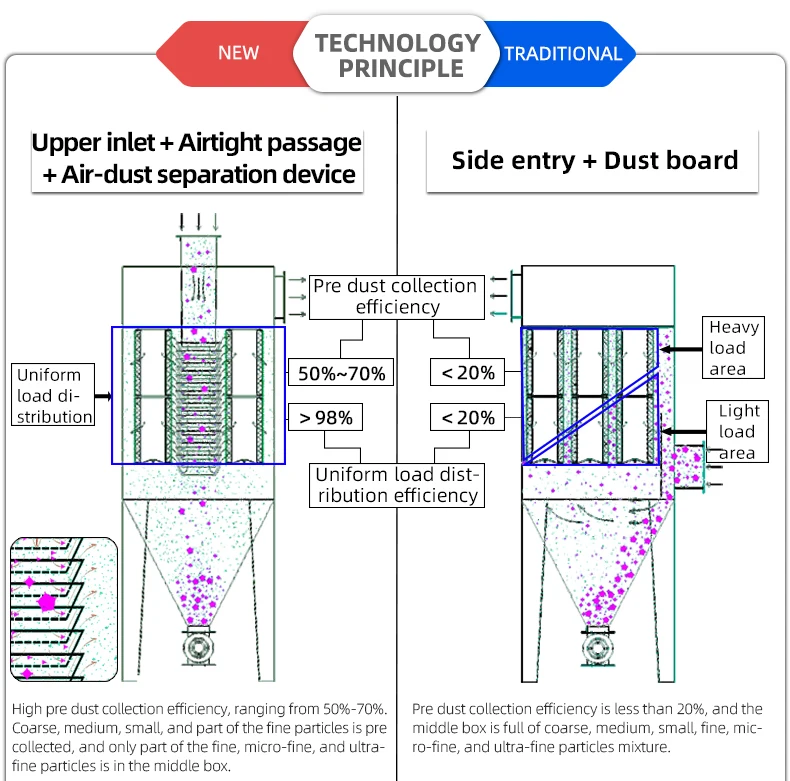

Pre dust collection mode

Air-dust separation device

11

Collection efficiency

Dust particles:≥0.3μm, collection efficiency: ≥99.98%

12

Dust composition

Dry dust

13

Temperature of exhaust gas

Normal temperature

14

Filtration velocity

0.5-1m/min

15

Filter cartridge type

Membrane-laminated+filter fiber

16

Filter cartridge precision

Dust particles: ≥0.3μm, collection efficiency: ≥99.98%

17

Dimension of filter cartridge

366*660mm

18

Heat resistance of filter fiber

≤80℃

19

Single filter cartridge area

9.7 m2

20

Air leakage percentage

≤2%

21

Pulse jet time

0.065-0.085s

22

Pulse jet pressure

2.0-4.0kg/cm2

23

Compressed air consumption

0.048m2 each time

24

Cleaning control mode

Single chip microprocessor

25

Maintenance mode

Off-line maintenance

26

Power of dust discharge motor

0.5-1.1KW

27

Dimension(mm)

1510x1510x5413

2020x2020x5941

1385x2830x6364

28

Gross weight (Kgs)

1160

1996

2700
