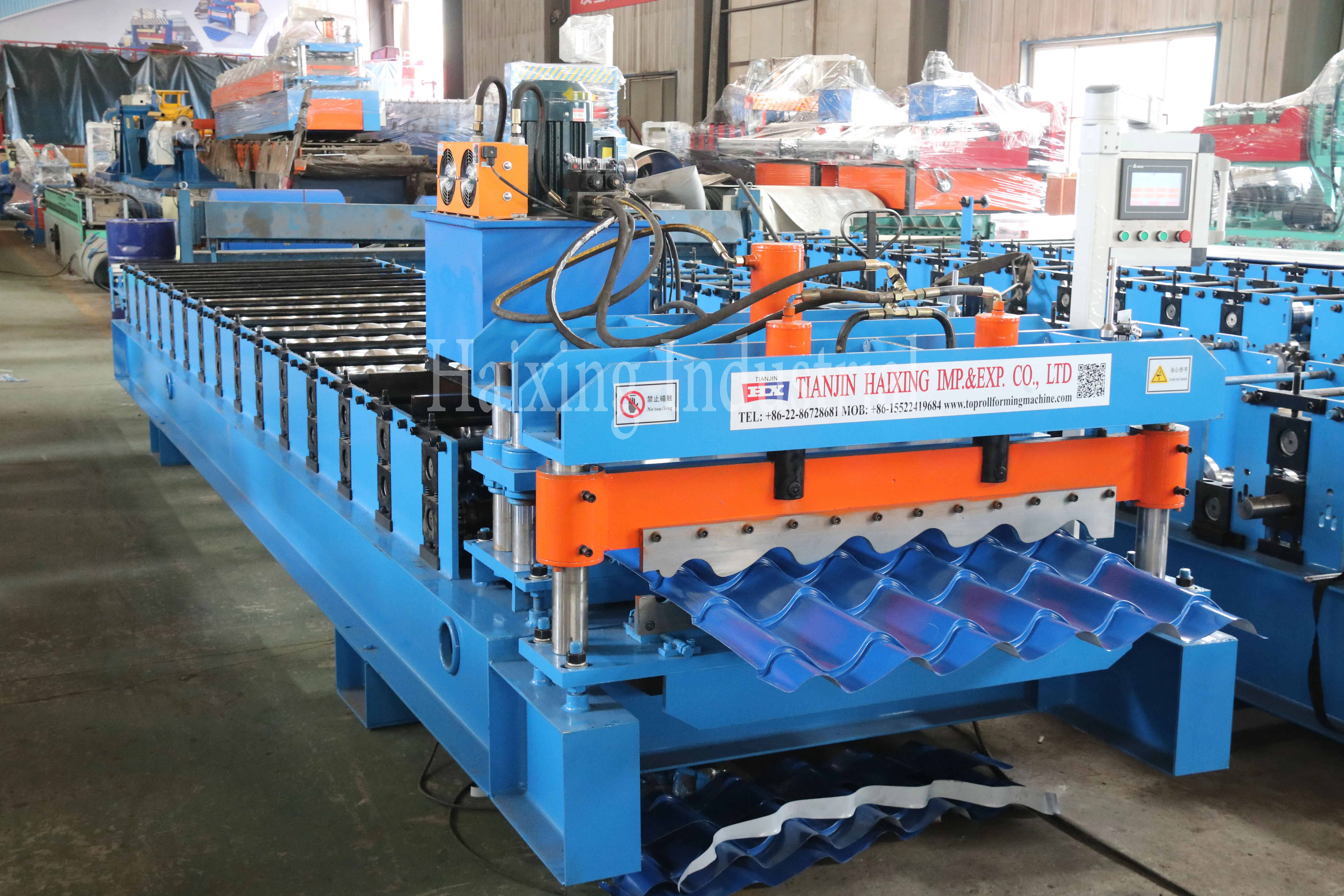

Машина для прокатки листового металла
US $10000
Maquina para hacer teja fabricar веталика
- Категории: Tile Making Machinery >>>
- Поставщик: HAIXING,(TIANJIN),INTELLIGENT,EQUIPMENT,CO.,LTDHAIXING,LTD
Поделиться:
Описание и отзывы
Характеристики
Product Description
Parametros de la maquina(Machine Parameters) | |
Producto (Product) | maquina para hacer teja para fabricar teja metalica laminadora techo |
Productividad (productivity) | 8-15m/min |
Cuchillo de corte (Shearing knife) | Cr12MOV, tratamiento térmico,(Cr12MOV, heat treatment,) |
Marco principal (Mainframe) | Soldadura de acero 350H (350H Steel weld) |
Espesor de la placa media (Thickness of Middle plate) | Acero de 16 mm (16mm steel) |
Rueda (wheel) | Acero # 45, tratamiento térmico superficial HRC 58-60 ℃ cromado (#45 steel, surface heat treatment HRC 58-60℃ chrome plating) |
Diámetro del eje (Shaft diameter) | φ70mm |
Material del eje (Shaft material) | Eje macizo, acero forjado n. ° 45 de alta calidad (Solid shaft, high quality #45 forged steel) |
Cadena (Chain) | 1 pulgada (1 inch) |
Voltaje (Voltage) | 380V / 50HZ / 3 fases (o personalizar) 380V/50HZ/3 phase（or customize） |
Potencia del motor principal (Main motor power) | 5.5KW |
Motor hidraulico (Hydraulic motor) | 4kw |
Sistema de control (Control System) | Sistema de control Delta PLC (Delta PLC Control System) |
Tabla de operaciones del PLC (PLC operation table) | Pantalla táctil, rotación de 360 grados. (Touching screen,360 degree rotation) |
Método de corte (Cutting method) | Corte de columna de guía hidráulica (Hydraulic guide column cutting) |
Idiomas de visualización del PLC (PLC Display languages) | Chino, inglés, (español o ruso) Chinese, English, (Spanish or Russian) |
Tolerancia de longitud (Length tolerance) | ±2mm |
Tolerancia de corte (Cutting tolerance) | ±1mm |
Components of Production Line
maquina para hacer teja para fabricar teja metalica laminadora techo
Componente principal (Major component)
Nombre: desbobinador manual
Usanza: Se utiliza para soportar la bobina de acero y desatar la bobina de acero mediante rotación.
Capacidad: 5T
Diámetro interno: 500-508mm
un juego es gratis y se entrega con la máquina,
Además, si necesita un decolier más preciso, también tenemos un desenrollador eléctrico y un decolier hidráulico, desea obtener más información. haga clic en avatar y póngase en contacto con wythe !!!
Name：Manual decoiler
Usage： Used to support the steel coil and untie the steel coil by rotation.
Capacity： 5T,
Inner Diameter:500-508mm
one set is free and deliver with the machine,
Also ,if you need more accurate decolier, we also have electric decoiler and hydraulic decolier , want to learn more. click avatar and contact wythe!!!
Nombre: rodillo principal
Uso: Ponga la materia prima a través de la plataforma de fabricación y proceso, se puede garantizar que los productos son muy ordenada, paralelo y todo es uniformidad.
Observaciones: El corte previo a mano es manual, es fácil de operar para cortar la hoja, por lo que puede ahorrar materia prima.

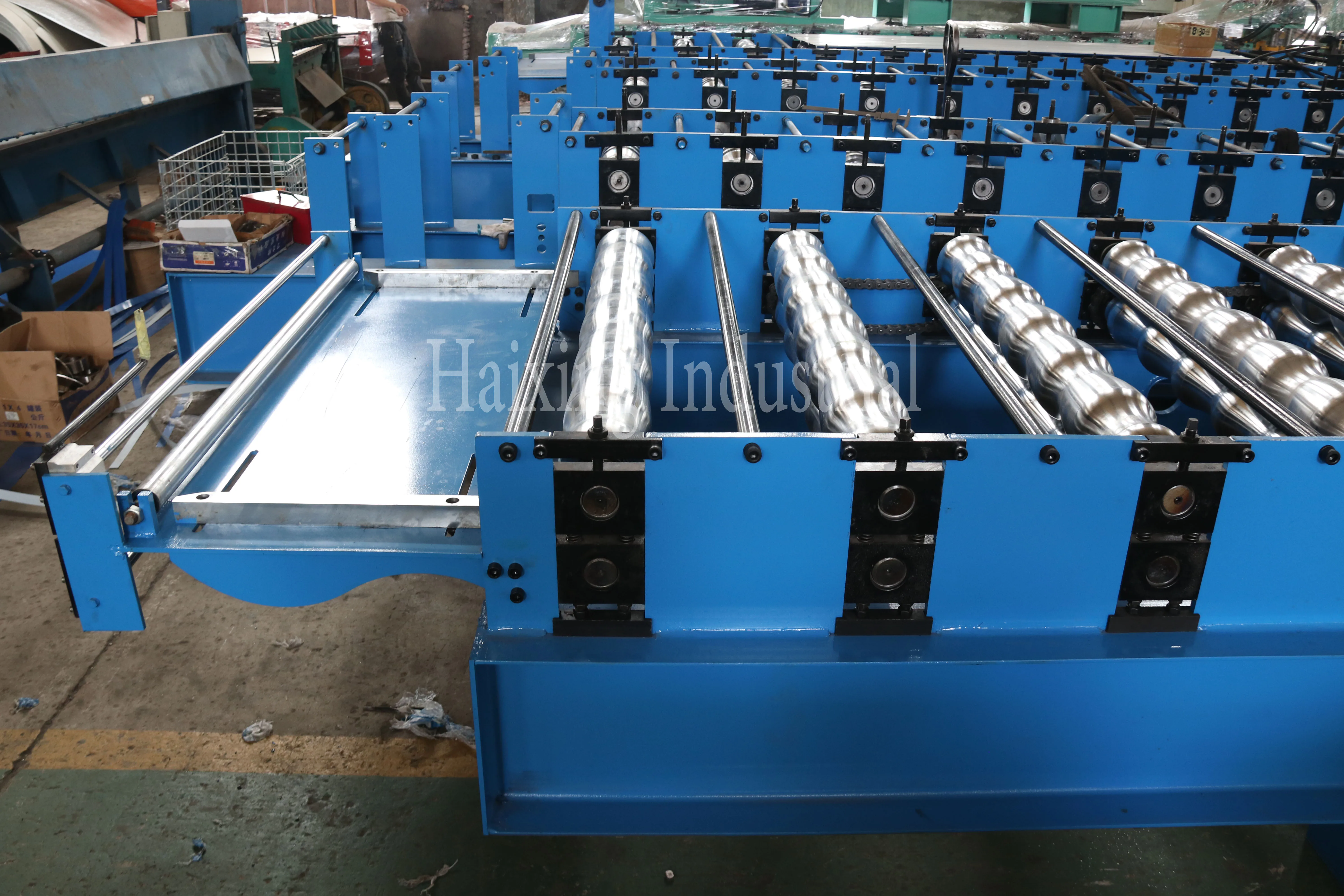

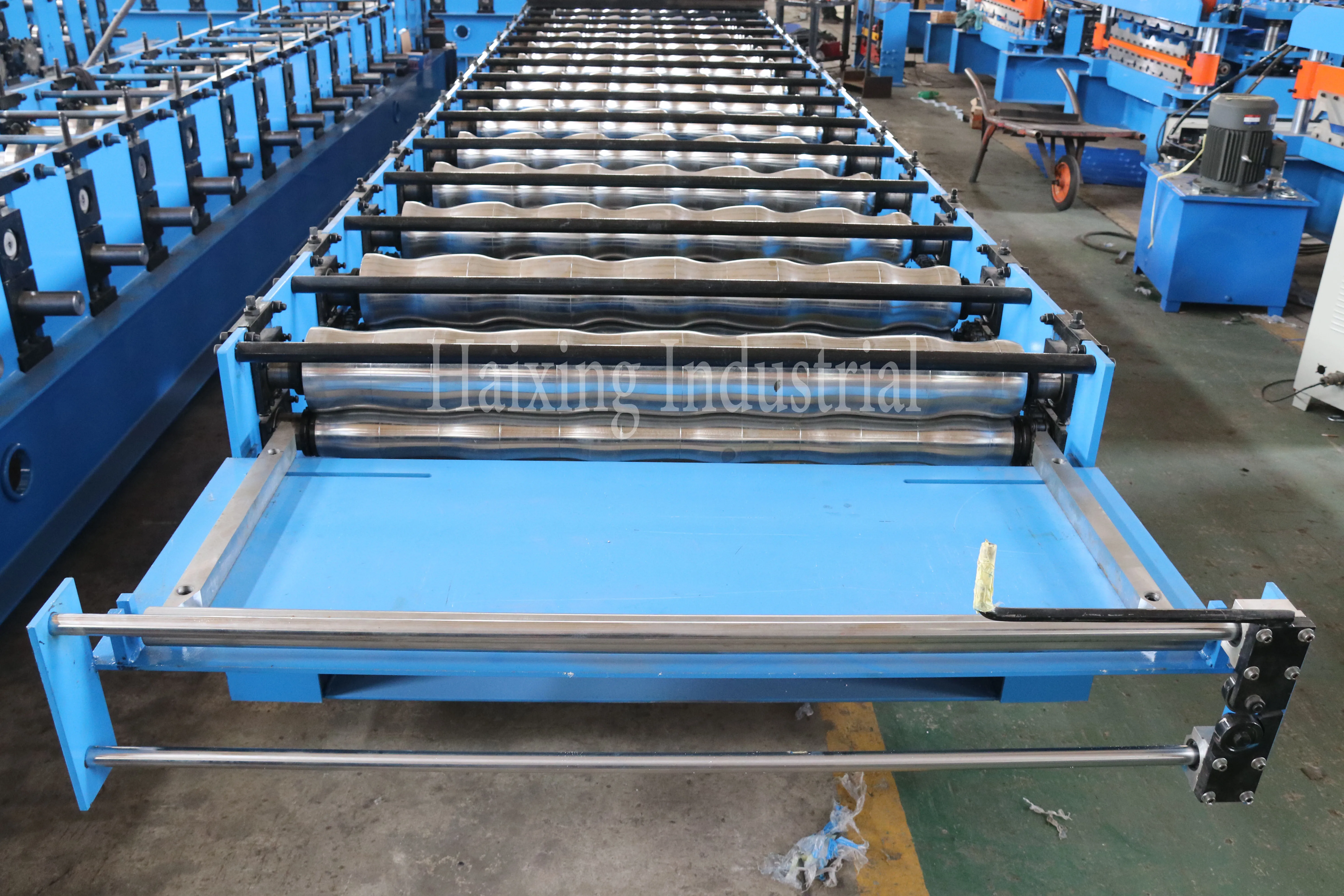

Name：Feeding table
Usage: Put the raw material through the platform to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Remarks: Pre-hand cutting is manual, it is easy to operate to shear the sheet, so can save raw material.
Nombre: rodillo principal
Material del rodillo:Acero forjado 45 # de alta calidad Proceso de forja: pulido y tratado a alta temperatura.
Característica: La superficie del rodillo principal se apaga al menos tres veces y la vida útil de la máquina puede alcanzar casi los diez años. No es fácil dañar la materia prima y puede aumentar la precisión de los productos.

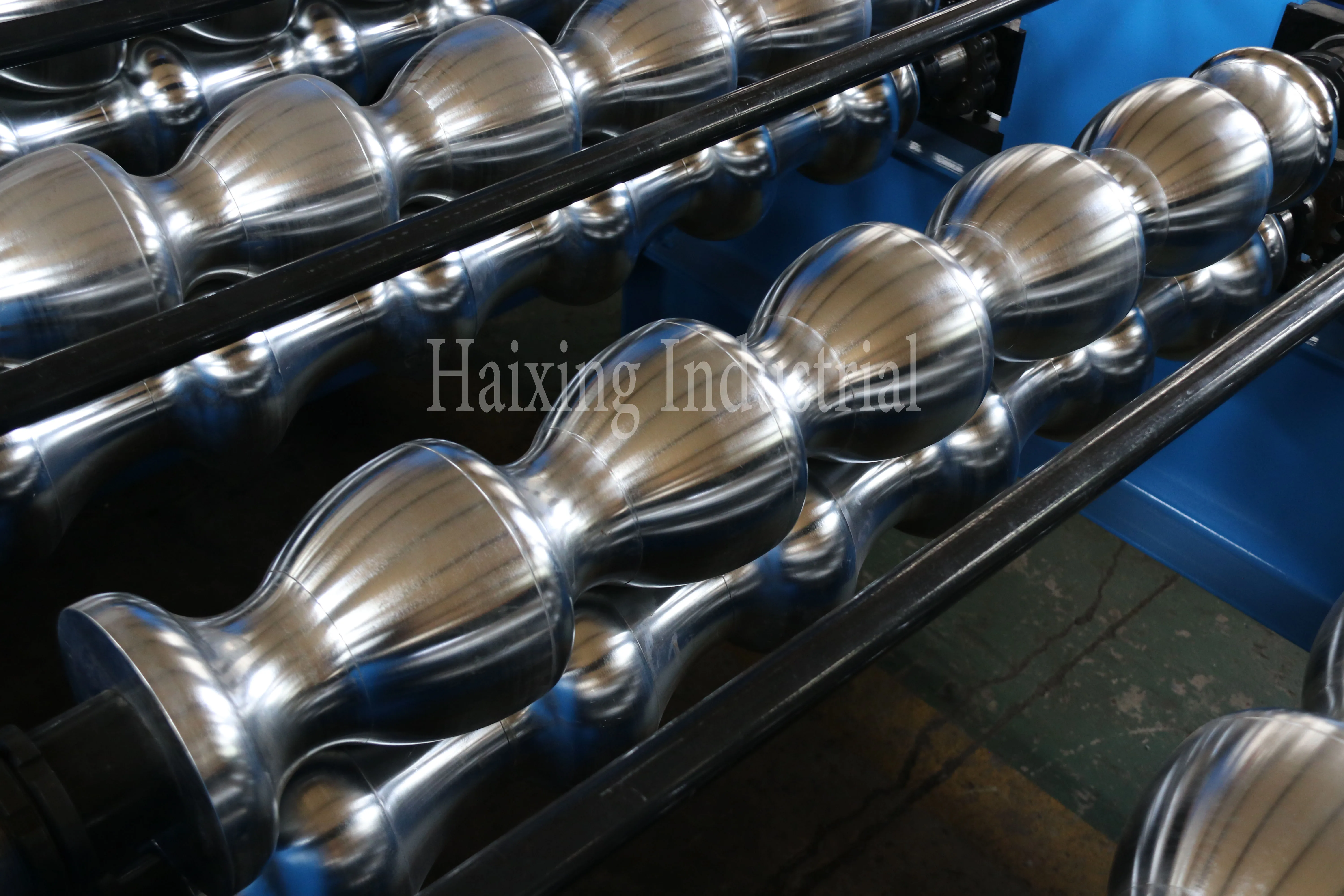

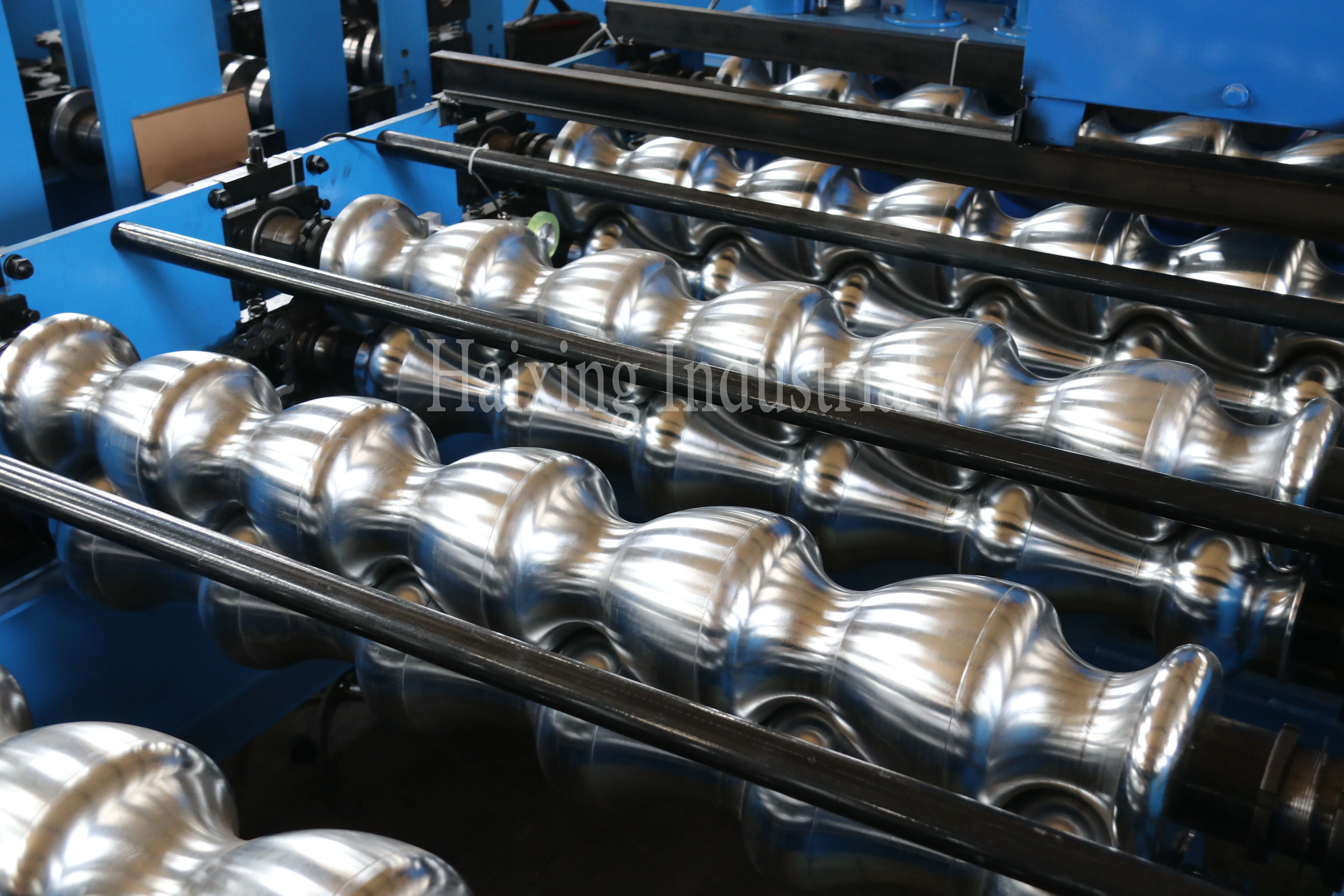

Name：Main Roller
Roller material:high-quality 45# forged steel Forging process: polished, and high temperature treated.
Characteristic:The main roller surface is quenched at least three times and the machine service life can almost reach ten years.and it is not easy to make demage to raw material and can increase the accurate of the products.

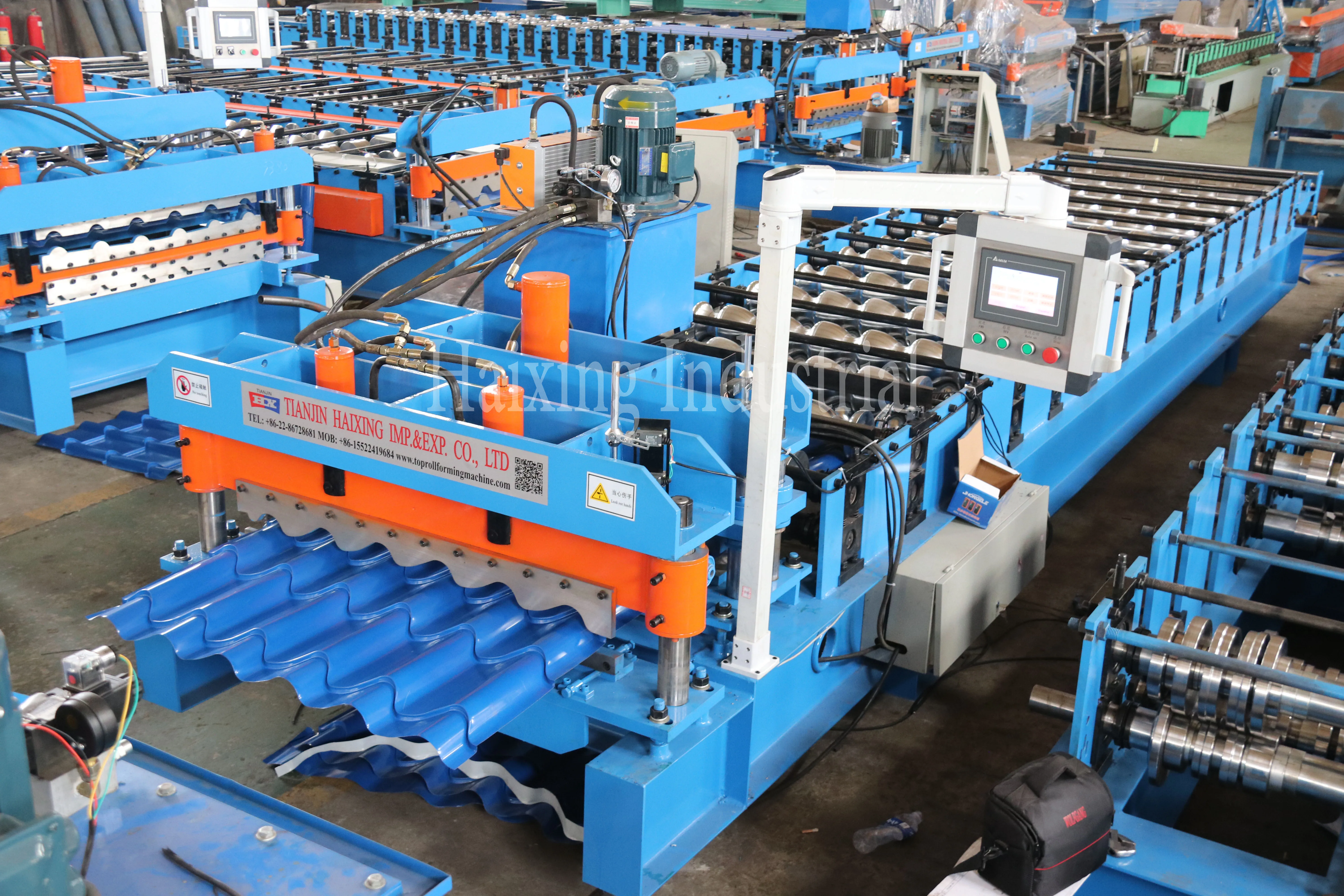

Sistema de control PLC automático de alto nivel
Marca: Delta PLC
Lenguaje: Chino / inglés / ruso / español
Nota: Puede girar 360 °, es conveniente para el trabajo.ahorrar mano de obra

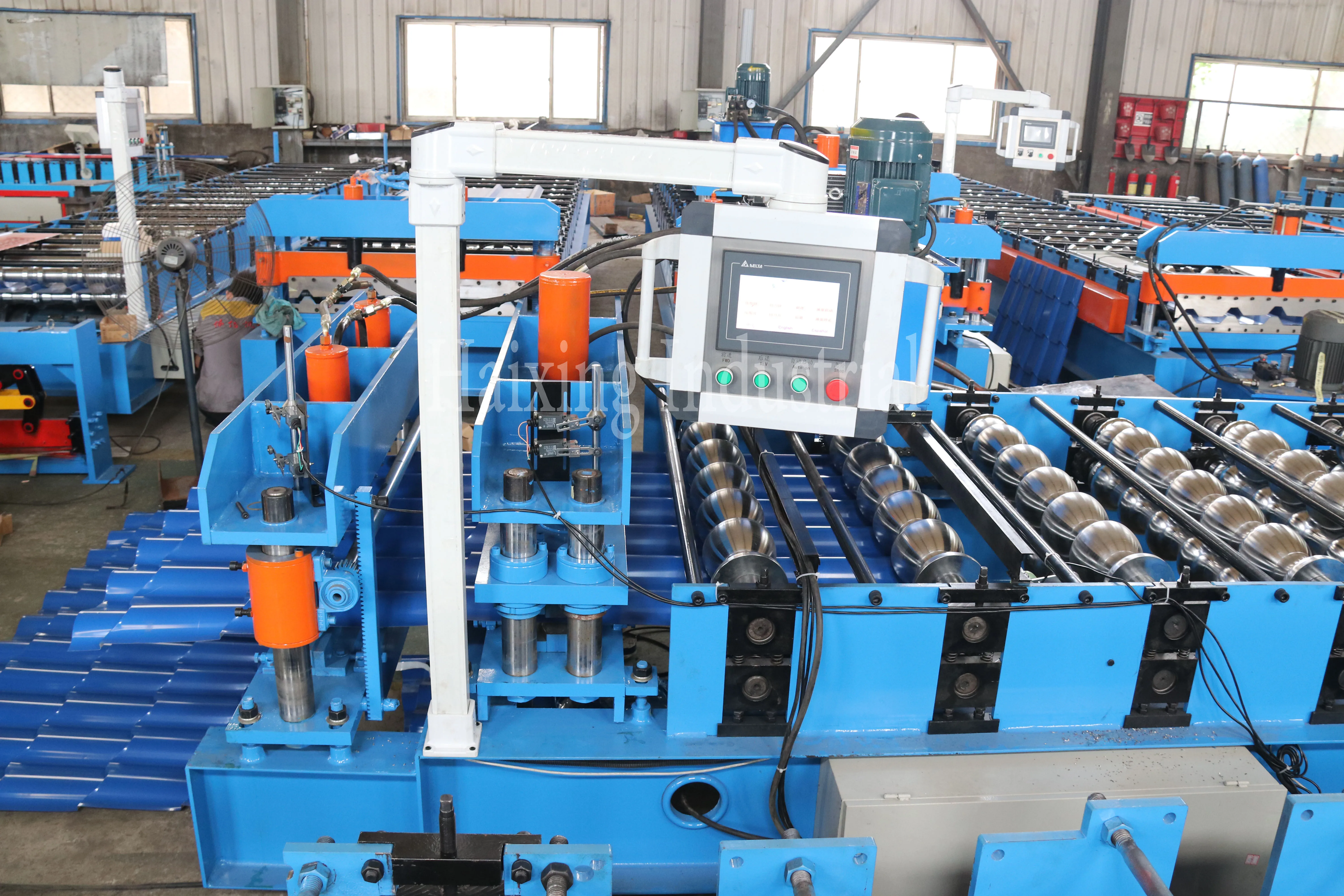

High-level automatic PLC control system
Brand：Delta PLC
Language: Chinese/ English/Russian/ Spanish
Note: It can rotation 360°， it is convenient for the work, save labor

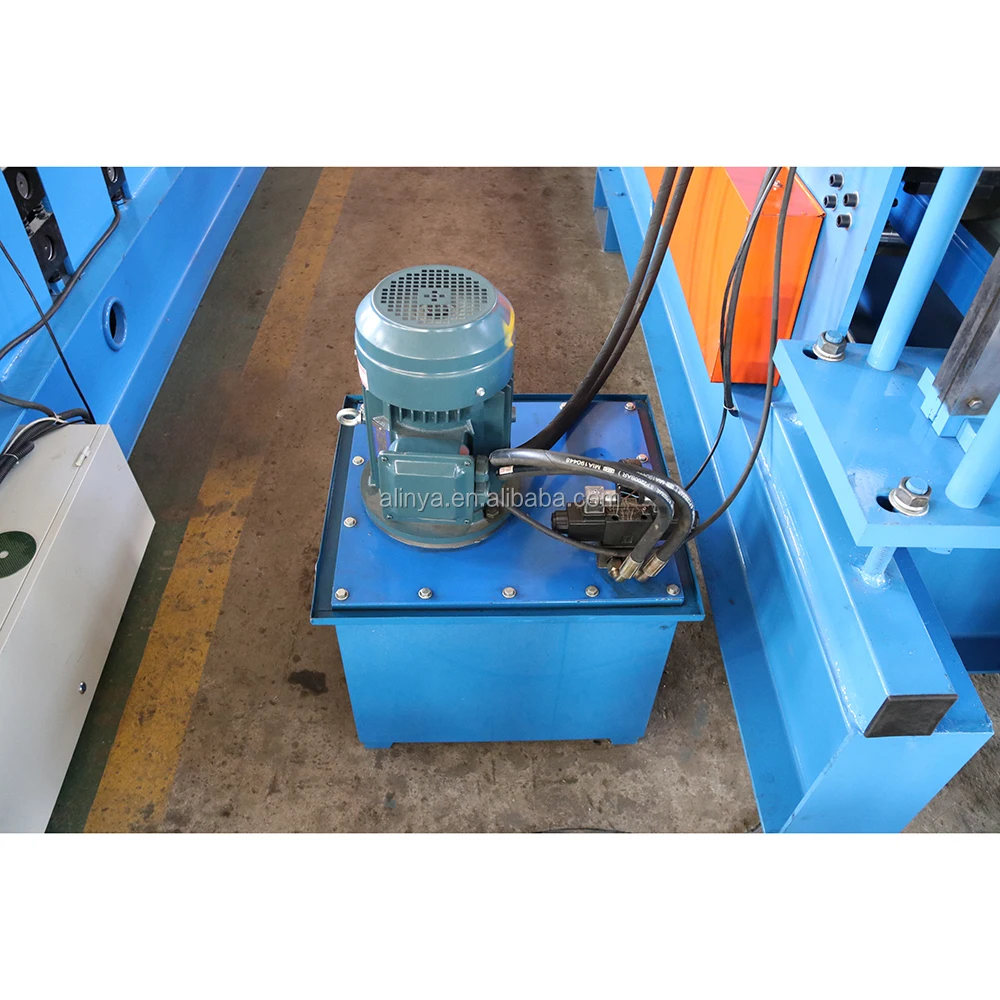

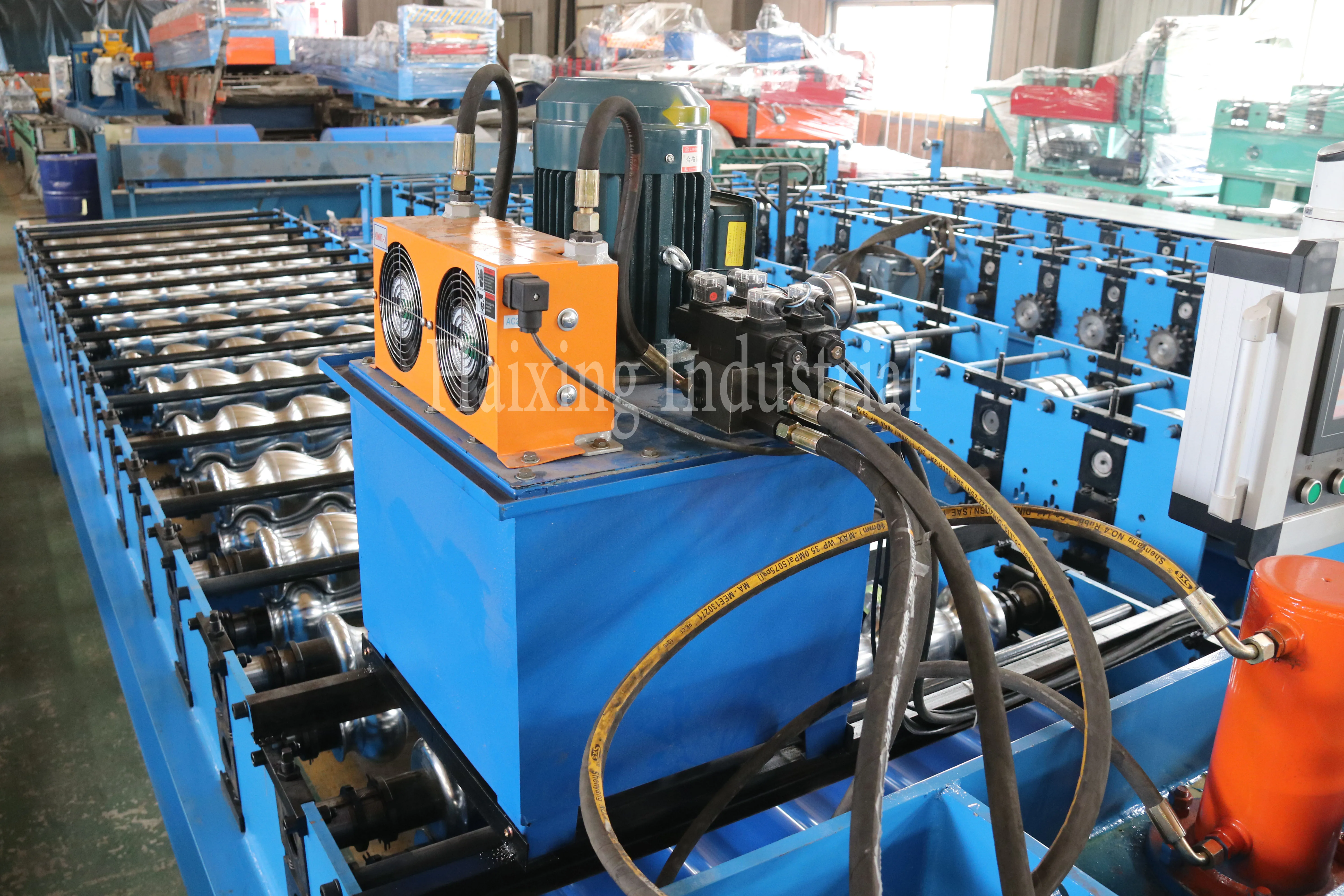

Energía de la estación hidráulica
Marca: Lichao,Shanghai
Energía de la estación hidráulica :4Kw,
Energía de la estación hidráulica :4Kw,
capacidad：45L
Brand: Lichao,Shanghai
Hydraulic station power :4Kw,
Hydraulic station power :4Kw,
Capacity：45L Big oil case

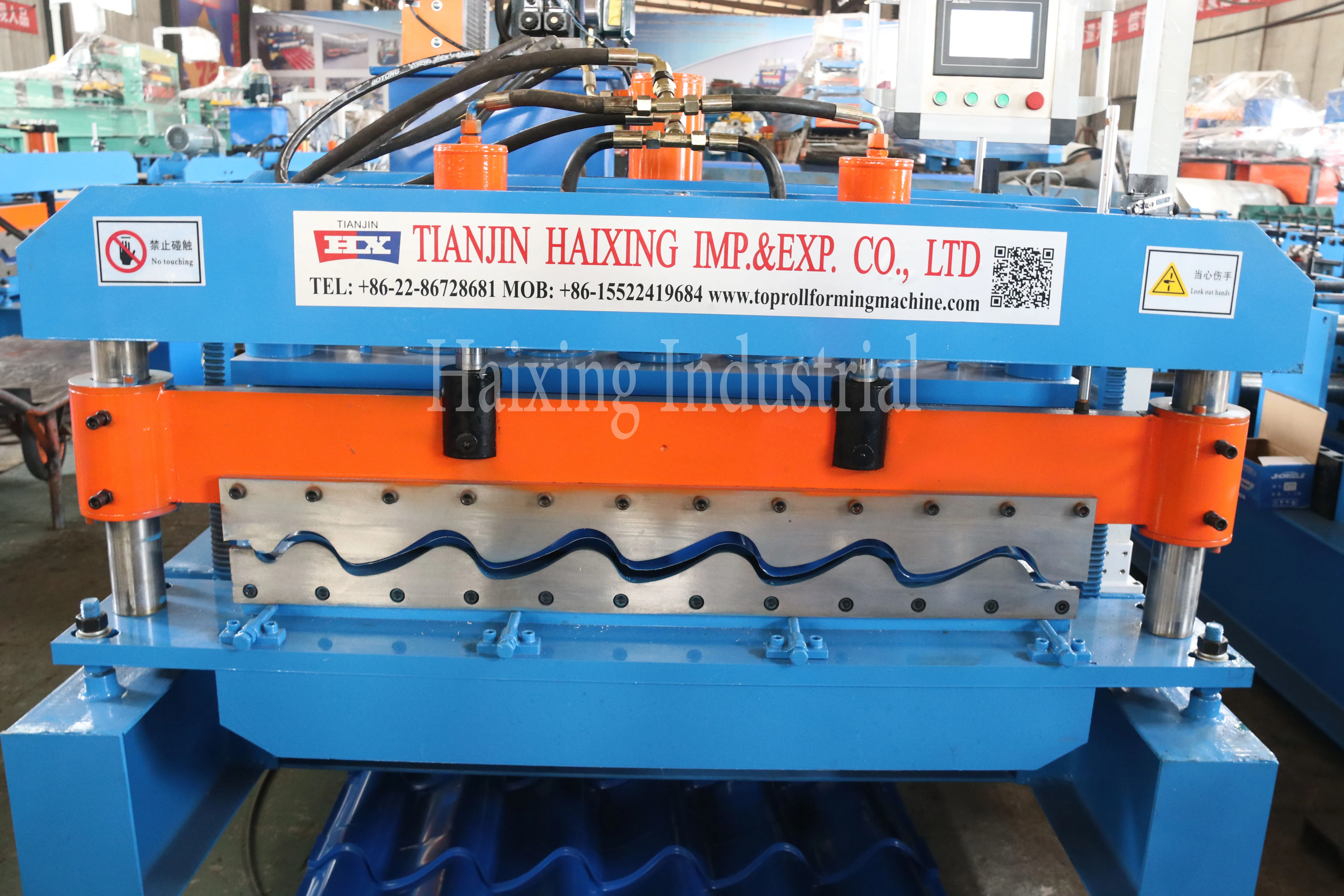

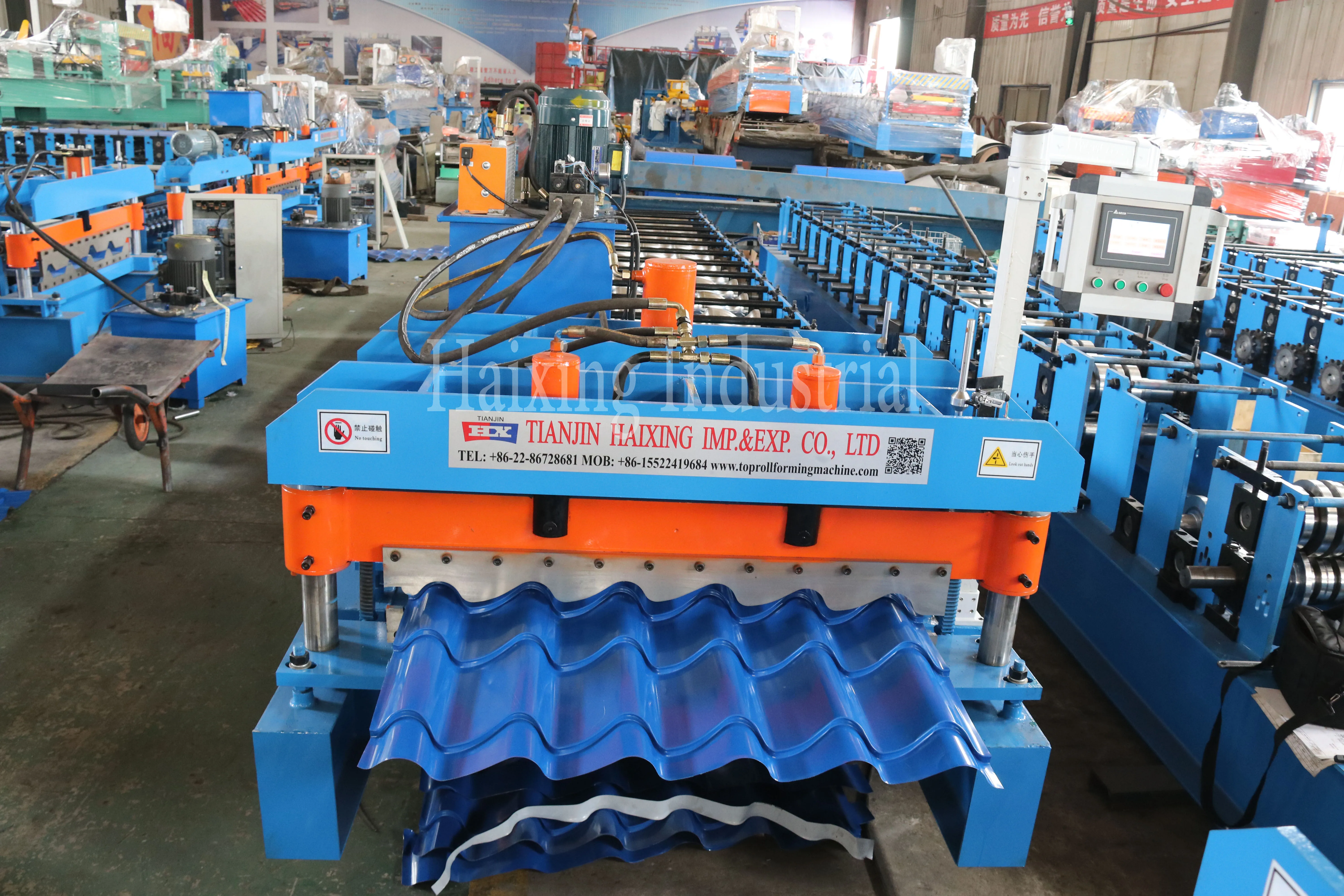

Nombre: cabezal de corte
Material de la hoja：Cr12MOV, forjado por tratamiento térmico.
Forma de corte: el corte de la columna de guía hidráulica.
Característica: El material de corte de alta calidad se puede usar durante mucho tiempo, y la superficie de corte es lisa y sin imperfecciones.
NOTA: La máquina es el cilindro hidráulico doble, será estable para cortar,

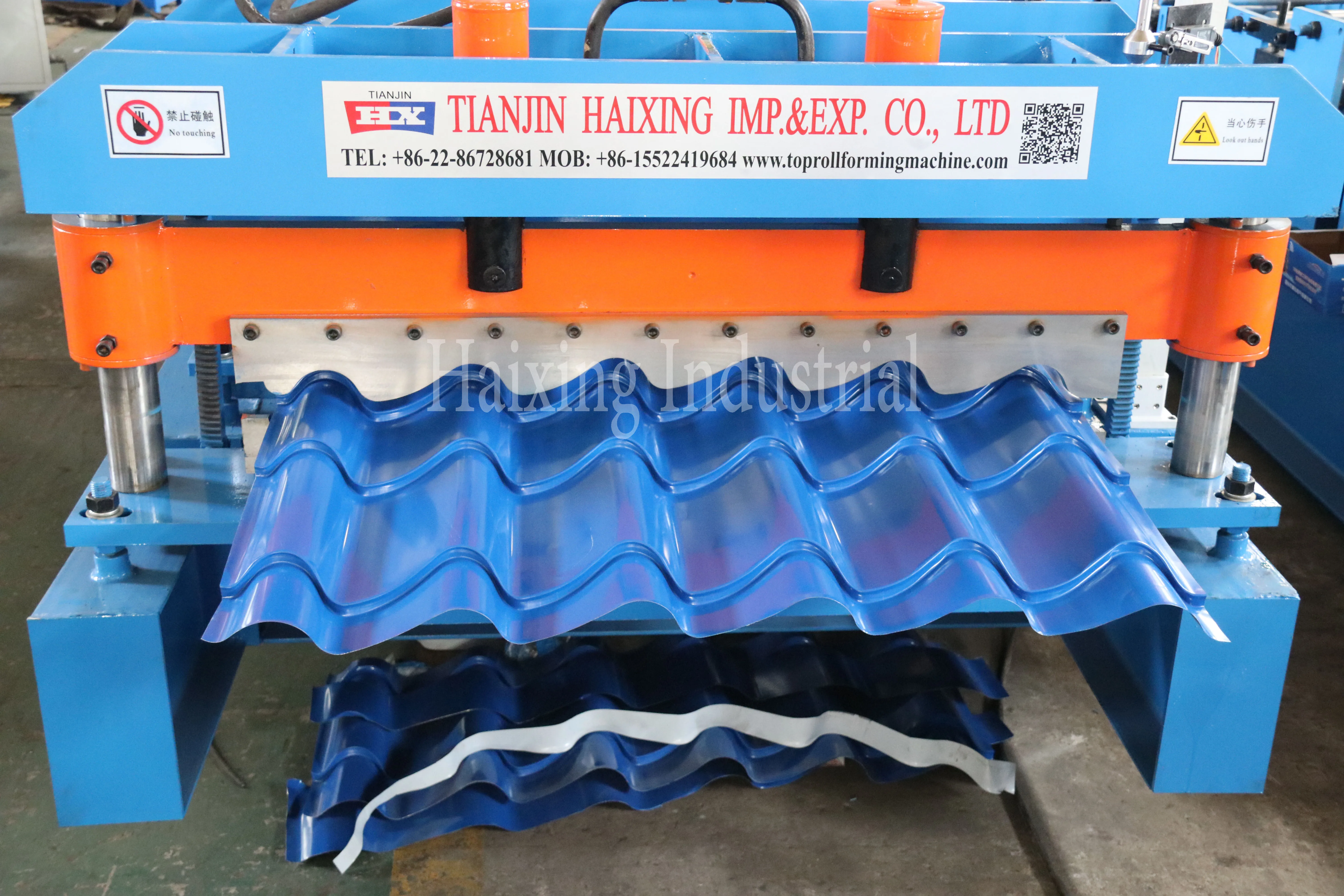

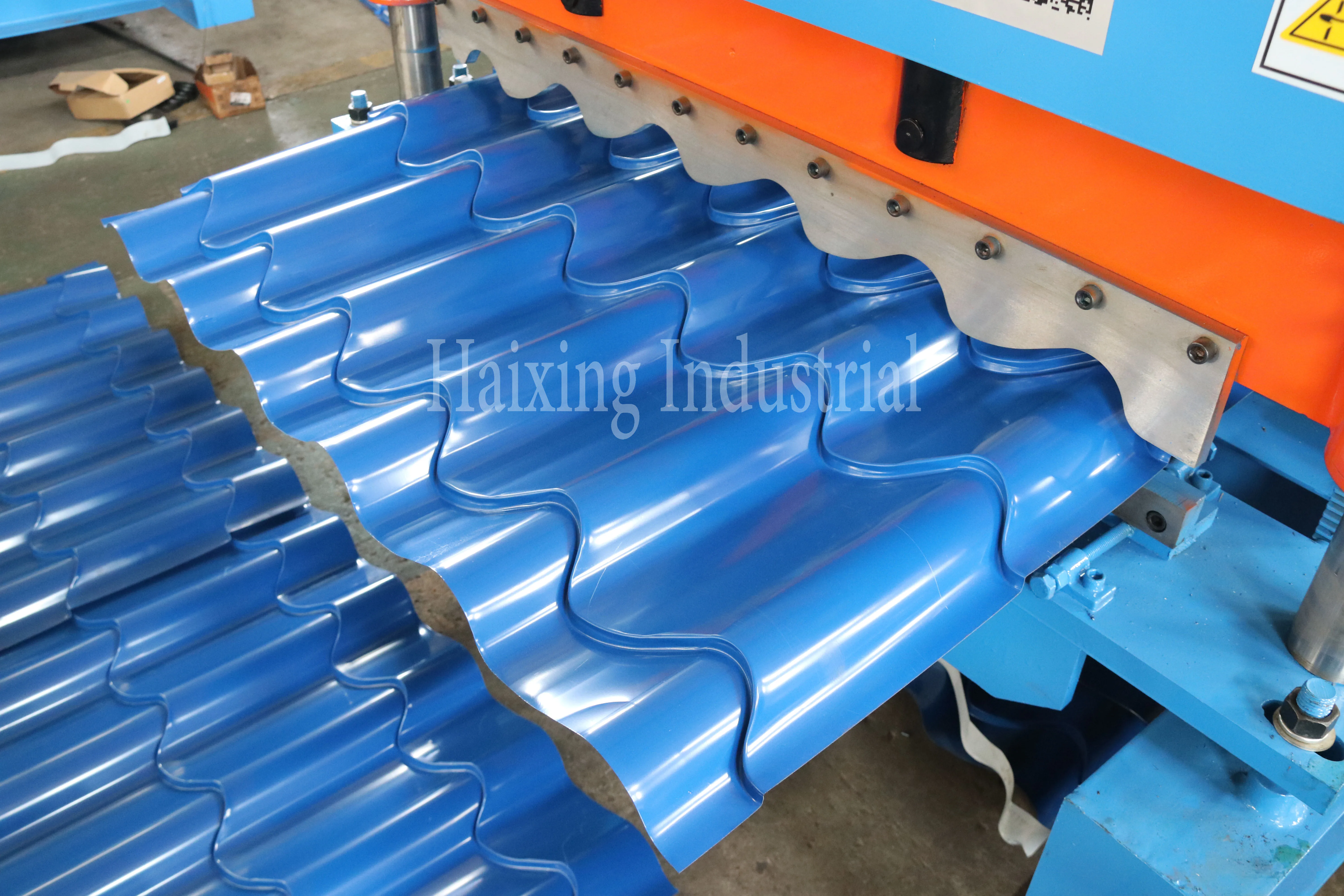

Name：Cutting head
Blade material： Cr12MOV, forged by heat treatment.
Cutting way: the hydraulic guide column cutting.
Characteristic: high quality cutting material can use for a long time, and the cutting surface is smooth and free to blemishes.
NOTE: machine is the double hydraulic cylinder, it will be steady for cutting way,
Nombre: Mesa de recepción
Construcción: la soldadura del cubo de acero, la fijación del tornillo
Usanza:
1.Cuando la parte superior del eje puede girar, es fácil recolectar la materia prima y no hacer que los productos se desvíen.2. la
altura es de ajuste, por lo que es fácil recoger los productos.
Cantidad: 2 juegos (un juego de 3 m de longitud)
1.Cuando la parte superior del eje puede girar, es fácil recolectar la materia prima y no hacer que los productos se desvíen.2. la
altura es de ajuste, por lo que es fácil recoger los productos.
Cantidad: 2 juegos (un juego de 3 m de longitud)
Name：Receiving table
Construction: the steel cube weld, the screw fixation
1.the upper the shaft can rotation, it is easy to gather the raw material, and dont make the demager for the products.
2. the hieght is adjustment, so it is easy to gather the products.
Quantity: 2 set(one set 3m length)
Usage:
1.the upper the shaft can rotation, it is easy to gather the raw material, and dont make the demager for the products.
2. the hieght is adjustment, so it is easy to gather the products.
Quantity: 2 set(one set 3m length)
International brand accessories
When the machine has parts aging due to long service , don't worry about it. We are free to deliver one set of wearing parts, it will use a long time again.
Also , all we used are international brand accessories, you could buy the same one locally and quickly！！！
maquina para hacer teja para fabricar teja metalica laminadora techo advantage :
1.high effective, automatic
2.save labor
3.high qualtiy
About us
Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
Haixing has employed a team of engineers for more than 20 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
We have provided services to customers in 85 countries/regions and provide solutions based on your local hot-selling models, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.
Looking forward to more cooperation with new and old friends from all over the world.
Haixing has employed a team of engineers for more than 20 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
We have provided services to customers in 85 countries/regions and provide solutions based on your local hot-selling models, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.
Looking forward to more cooperation with new and old friends from all over the world.
Packing & Delivery
Size | 8.7 (L) * 1.65 (W) * 1.2(D) |
Weight | 6.5 T |
Packaging Details | 1. We have professional technicians for loading.Guaranteed the goods load into container without any damage. 2. Transportation : Machines need one 20 feet container to hold.. |
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
Engineering case
metal roll forming machine has different types,corrugated, galzed and trapezoid. Different district has the popular types. the shape has a little different. The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and so on. It has advantage of pretty appearance, durable using and so on.
