Products Description


You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.


DESCRIPTION
5V, 2.5A PD(Powered Device) Integrated Module (Isolation Type)

FEATURES
* Fully supports IEEE802.3af
* Input Voltage Range 37V to 57V
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Short Circuit Protection
* Over-temperature Protection
* Programmable Classification (Default:Class 0)
* High Efficiency
* Isolation level 1.5KVrms.
* Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
* Low Output Ripple and Noise
*1500Vrms Isolation (Input-Output)




Model
Input Voltage（after bridge）
Input Current
Output Voltage
Output Current
Efficiency
Ripple Output Noise
V
mA
V
A
%
mV

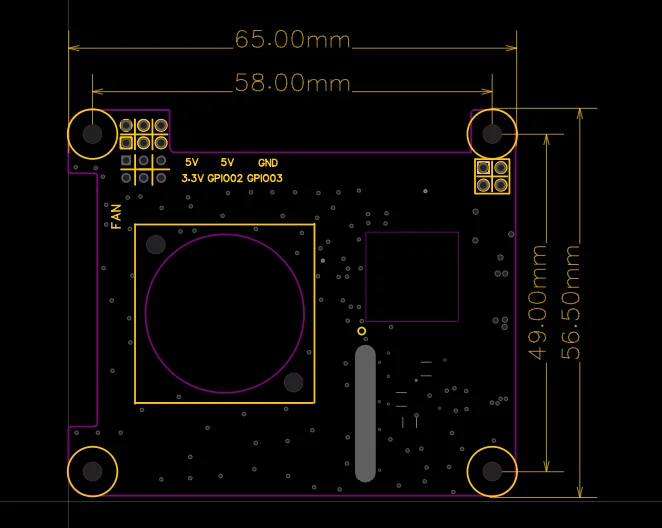

Raspberry Pi
PoE HAT
50.56
298
5.136
2.5
85.22%
140
50.6
236
5.136
2
86.02%
110
50.64
177
5.136
1.5
85.95%
95
50.66
121
5.136
1
83.79%
75
50.72
64
5.136
0.5
79.11%
55
50.9
8
5.136
0
0.00%


No.
Parameter
Symbol
Min
Typical values
Max
Unit
1
Input Voltage
Vin

37

48

57
V
2
output voltage
+VDC
5
5.1
5.3
V
3
output Current
PWR
0.05
2
2.5
A
4
Isolation Voltage
VISO
1.5
KV
5
Ripple Output Noise
VRN
150
mVp-p
6
Storage Temperature
Tj
-40
25
85
℃
7
Operating Temperature
Tstg
-40
25
60
℃
