Инфракрасный промышленная арматура J41H-150LB 3 дюймов Литые стальные плавающий шаровой клапан Тип API WCB
- Категории: Manual Valves >>>
- Поставщик: Xintai,Valve,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
banner
product display
Type | API Globe Valve |
Authentication | ISO9001,CE, API6D |
Medium temperature | Minus 29 degrees to 150 degrees |
Power | Manual |
Flow medium | Water, oil, natural gas |
Interface size | 1/2in,3/4in,1in,1-1/4in,1-1/2in,2in,2-1/2in,3in,4in,5in,6in,8in,10in,12in,14in,16in,18in,20in,24in |
Material | WCB |
Pressure | 150LB |
Application | It is used to connect and block the fluid on the pipeline. Can not be used for fluid control, generally used as a switch on the pipeline.The scope of application is relatively large, and it is used in various pipelines. It is suitable for use in the fields of chemistry, steel, medicine, oil, etc. |
Structure | Simple structure, easy to manufacture, and maintain. Small working stroke and short opening and closing time. Good sealing performance,small friction between sealing surfaces, and long life. |
Valve Comparison

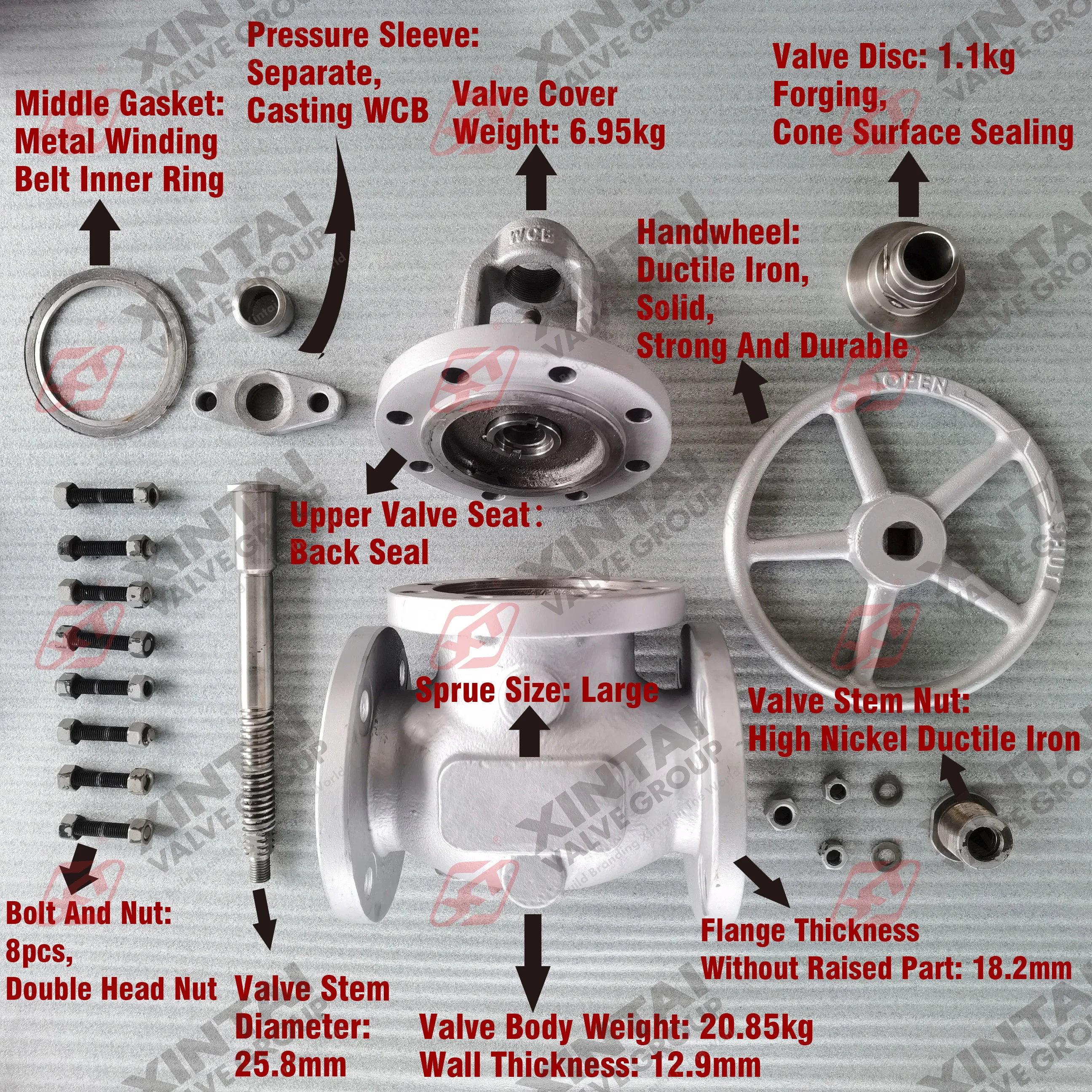

Heavy Weight Type Globe Valve

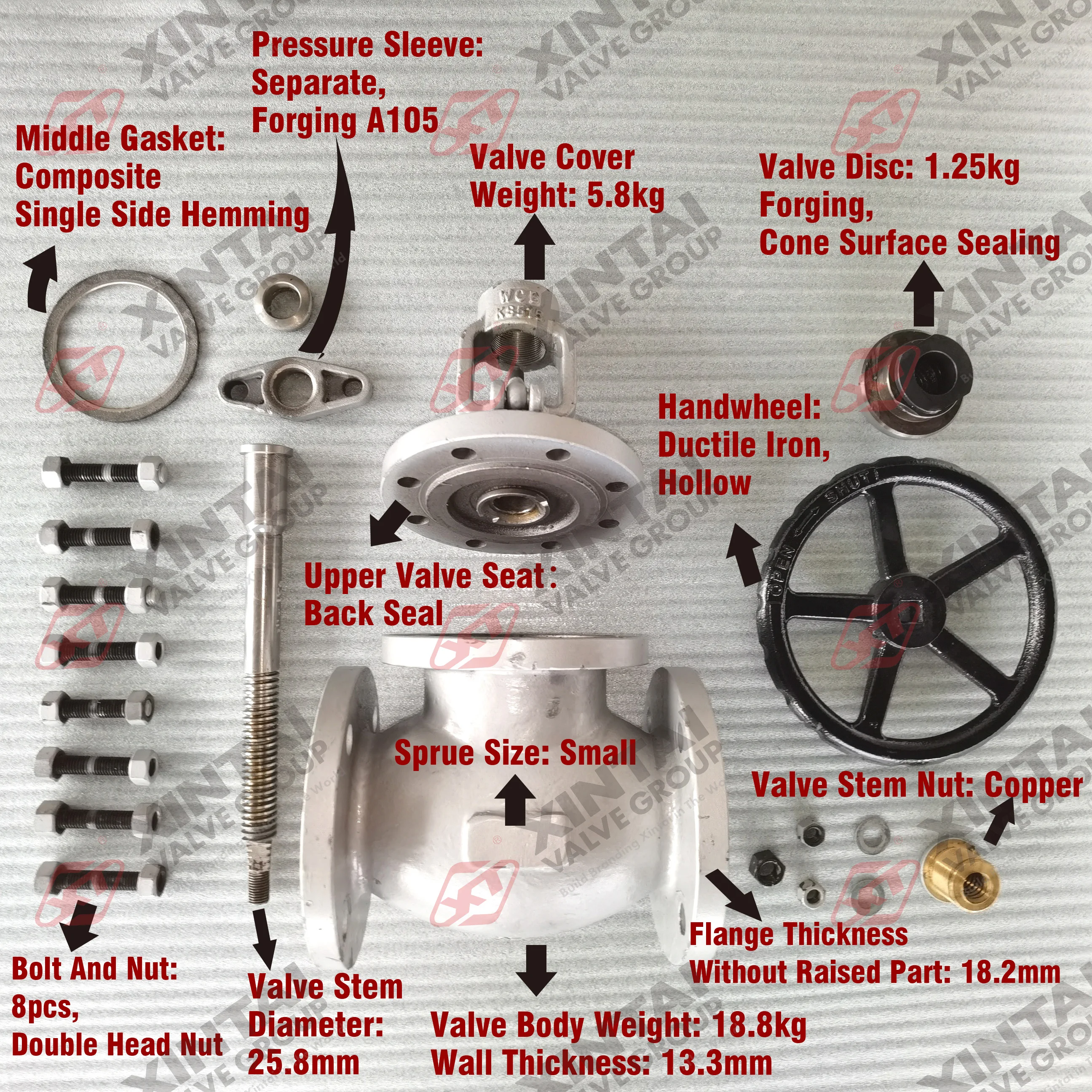

Medium Weight Type Globe Valve
Light Weight Type Globe Valve
Light Weight Type Globe Valve | Medium Weight Type Globe Valve | Heavy weight Type Globe Valve | |
Valve Cover Weight | 3.75KGS | 5.8KGS | 6.95KGS |
Valve Body Weight | 13.35KGS | 18.8KGS | 20.85KGS |
Valve Body Wall Thickness | 7.2MM | 13.3MM | 12.9MM |
Flange Thickness Without Raised Part | 17.5MM | 18.2MM | 18.2MM |
Valve Disc | 1.4KGS, Welding, Flat Sealing | 1.25KGS, Forging, Cone Surface Sealing | 1.1KGS, Forging, Cone Surface Sealing |
Valve Stem Diameter | 23.7MM | 25.8MM | 25.8MM |
Valve Stem And Disc Connect | Straight Mouth And Open Loop Structure | The Stem And Disc Are T Shaped Slots | The Stem And Disc Are T Shaped Slots |
Middle Gasket | Metal Mound Gasket | Composite,Single Side Hemming | Metal Winding, Belt Inner Ring |
Bolt and Nut | 8PCS, Single Head Nut | 8PCS, Double Head Nut | 8PCS, Double Head Nut |
Valve Stem Nut | Ductile Iron, Copper Plating | Copper | High Nickel Ductile Iron, No Rust, High Strength And Toughness |
Inner Wall | Rough Inside, No Treatment | Inner Polished, Shot Blast Treatment | Inner Polished, Shot Blast Treatment |
Upper Valve Seat | No Back Seal | Back Seal | Back Seal |
Handwheel | Ductile Iron, Hollow | Ductile Iron, Hollow | Ductile Iron, Solid, Strong And Durable |
Pressure Sleeve | Integrated, Casting WCB | Separate, Forging A105 | Separate, Casting WCB |
Sprue Size | Small | Small | Large |
