Машина для производства печенья для собак разных размеров и форм
US $40000-$60000
Полностью автоматическая линия по производству печенья твердая машина для производства
- Категории: Biscuit making machine >>>
- Поставщик: Skywin,Foodstuff,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Full Automatic Biscuit Production Line Hard Soft Biscuit Machine Finger Biscuit Making Machine
A whole line consist of:
1.Horizontal dough mixer, vertical dough mixer
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting dough
4.Laminator for overlapping dough to sheeting on gauge rolls,
included cream spreading machine.
5.Three Sets of Gauge rolls B/C/D .
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Salt/sugar spreading machine
9.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length is depend on capacity.
10.Oil spraying machine
11.Turning machine 180degree or 90degree design as per the plant length
12.Cooling conveyor
13.Biscuit stacking machine (start wheel stacker or penny stacker)
14.Packing table
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting dough
4.Laminator for overlapping dough to sheeting on gauge rolls,
included cream spreading machine.
5.Three Sets of Gauge rolls B/C/D .
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Salt/sugar spreading machine
9.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length is depend on capacity.
10.Oil spraying machine
11.Turning machine 180degree or 90degree design as per the plant length
12.Cooling conveyor
13.Biscuit stacking machine (start wheel stacker or penny stacker)
14.Packing table
Product Details
Work Width(mm) & Length of Oven(30-60m) | Capacity(kg) |
400 | 100-200 |
600 | 200-400 |
800 | 400-600 |
1000 | 600-800 |
1200 | 800-1000 |
1500 | 1000-1200 |
1. Chinese famous brand motor & gearbox
2. NSK Main bearing
3. Pneumatic cylinder for belt tension and deflecting adjustment
4. PU and Cotton belt
5. 304 Stainless steel cover, thickness 1.5-2.0mm
6. SIEMENS transducer electric and PLC touch screen control.
7. Guarantee for 1 year along with recommended spare parts for 1 year.
2. NSK Main bearing
3. Pneumatic cylinder for belt tension and deflecting adjustment
4. PU and Cotton belt
5. 304 Stainless steel cover, thickness 1.5-2.0mm
6. SIEMENS transducer electric and PLC touch screen control.
7. Guarantee for 1 year along with recommended spare parts for 1 year.
The biscuit production process is as follows:
The first step: making dough

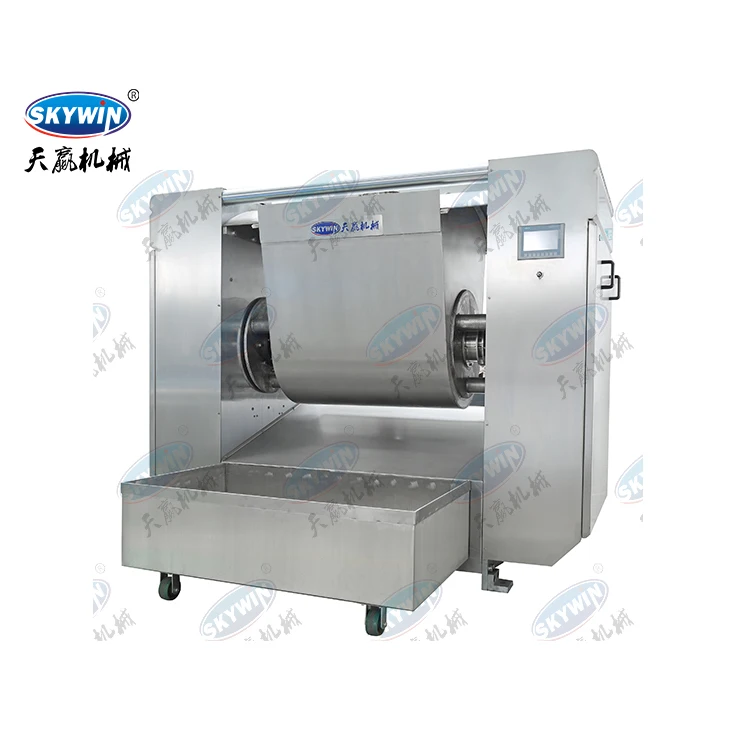

Horizontal Dough mixer(For Both Hard Dough and Soft dough):
1). Speed from 25r/min to Max. Speed60r/min, frequency speed
2). Full stainless steel 304#
3). Siemens PLC control system.
2). Full stainless steel 304#
3). Siemens PLC control system.
The second step: pressing dough in thin dough sheet

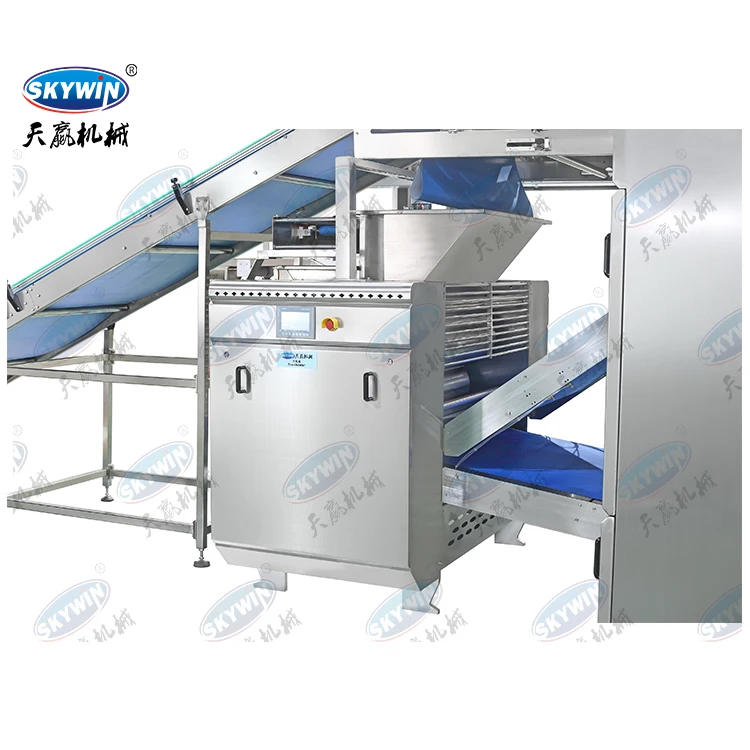

Three Roller Combination Pre-Sheeter:
1). With Feeding Hopper, 304 Stainless steel
2). Food grade PU belt , PU belt has guides groove
3). Groove type feeding roller
4). Siemens inverter and PLC touch screen
5). Dough sheeting thickness can be adjust.
6). Digital display sheet thickness
2). Food grade PU belt , PU belt has guides groove
3). Groove type feeding roller
4). Siemens inverter and PLC touch screen
5). Dough sheeting thickness can be adjust.
6). Digital display sheet thickness

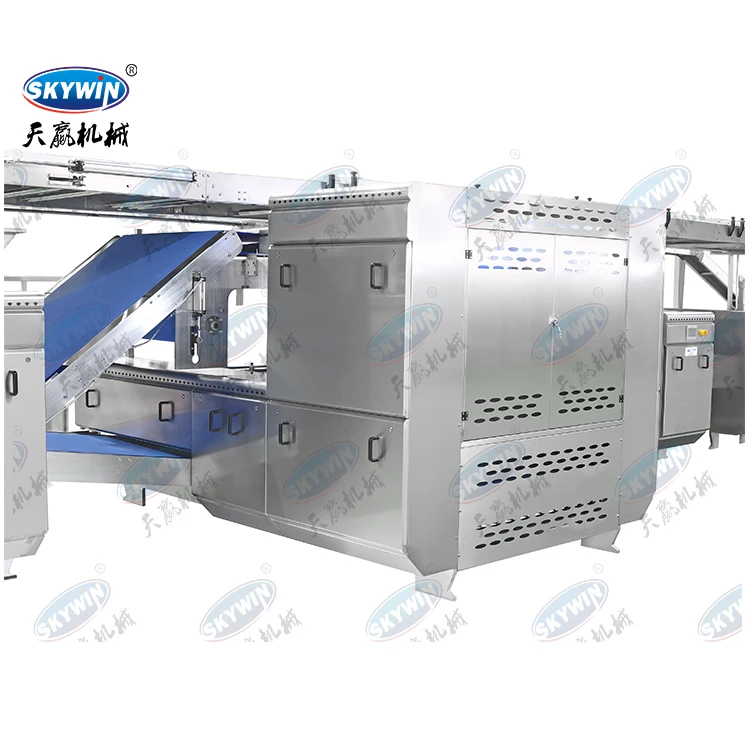

Horizontal Lanminator (Important For Making Soda Cracker)
1). Gauge rolls quantity 4pcs , 2pcs Groove feeding Gauge roller diameter, 2pcs smooth type Gauge roller
2). Food grade PU belt width
3). Dough sheeting thickness can be adjust 1-25mm
4).Sheet cutting and laminating 4-12layers
5).Digital display the thickness of sheet
6).Cutting sheet device controlled by Pneumatic device
2). Food grade PU belt width
3). Dough sheeting thickness can be adjust 1-25mm
4).Sheet cutting and laminating 4-12layers
5).Digital display the thickness of sheet
6).Cutting sheet device controlled by Pneumatic device

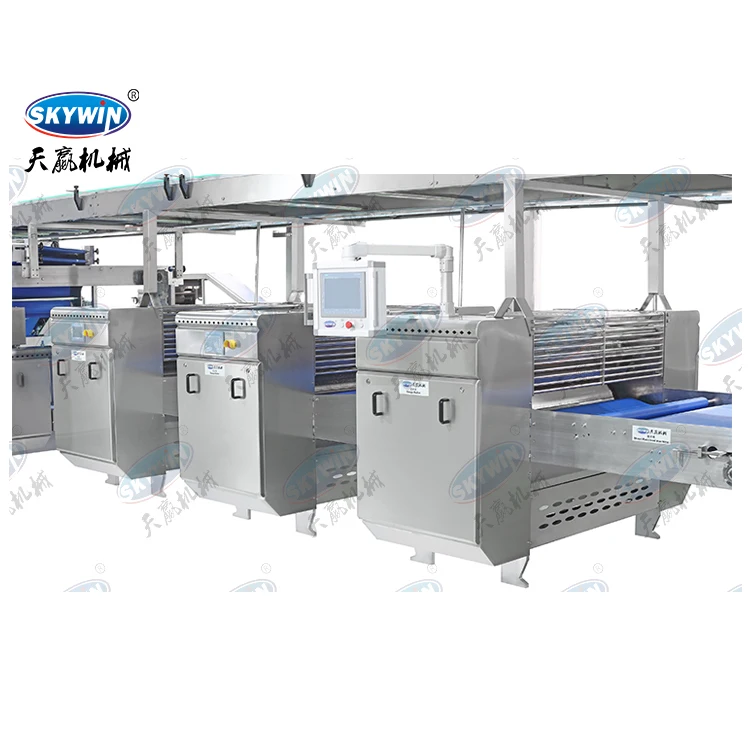

B/C/D Roller
1). Machine cover 304 Stainless steel
2). Wallboard thickness 30mm
3). Dough sheeting thickness can be adjust Minumun thickness is 0.1mm
2). Wallboard thickness 30mm
3). Dough sheeting thickness can be adjust Minumun thickness is 0.1mm

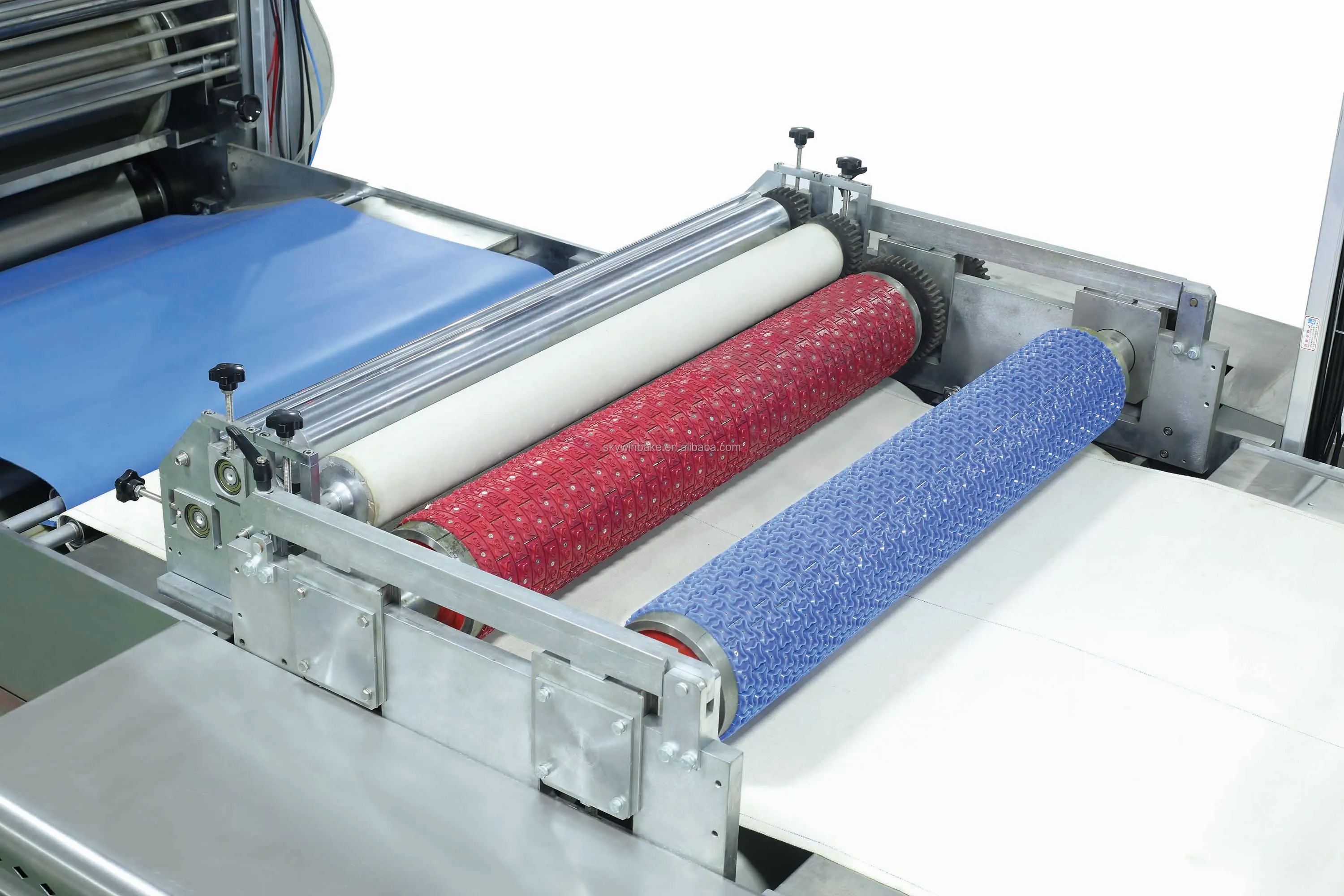

Twin type Rotary Cutter Panda Biscuit, Cracker Biscuit ... ect
1). with independent driver and speed control
2). Forming mould can be installed printing mould and cutting mould separately
3). Rotary cutting mould diameter 200mm
4). Siemens inverter and PLC touch screen
5). Machine cover 304 Stainless steel
6). Wallboard thickness 30mm
2). Forming mould can be installed printing mould and cutting mould separately
3). Rotary cutting mould diameter 200mm
4). Siemens inverter and PLC touch screen
5). Machine cover 304 Stainless steel
6). Wallboard thickness 30mm
Hello Panda Biscuit Forming
Soda Cracker Biscuit Forming
Hard Biscuit Sample
Hard Biscuit Mould
The fourth step: baking biscuits

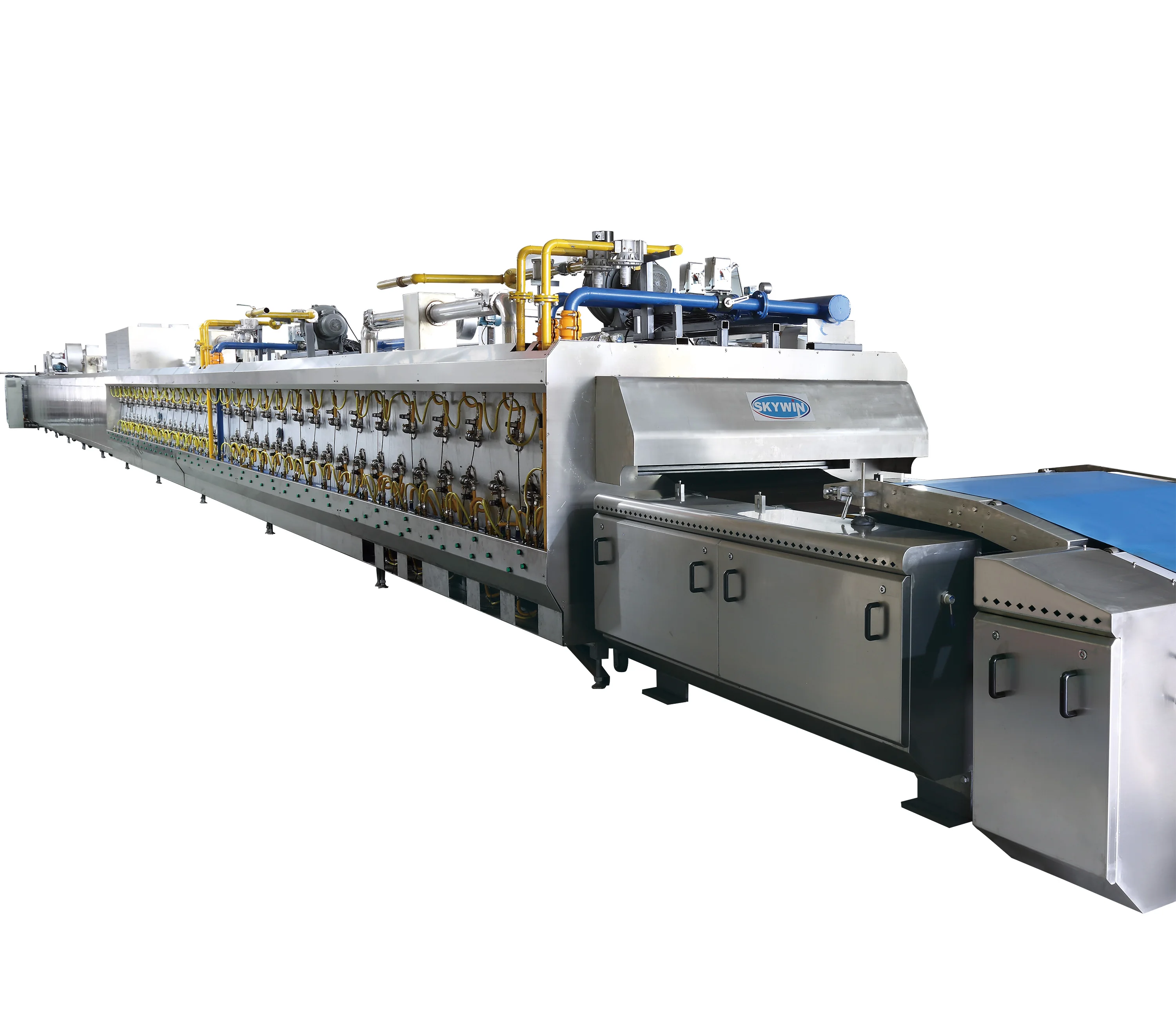

Hybrids Direct Gas and Indirect Gas circulation Tunnel oven
1). Temperature 5 zones
2). 9m pre-heating mesh belt
3). 65m divided into 5 temperature zone
4). Siemens inverter and PLC touch screen
5). Air blower for hot wind circulation system
6). Pneumatic automatic tracking and adjust belt and tension
2). 9m pre-heating mesh belt
3). 65m divided into 5 temperature zone
4). Siemens inverter and PLC touch screen
5). Air blower for hot wind circulation system
6). Pneumatic automatic tracking and adjust belt and tension
7). Oven cover by 304 Stainless steel
8). Heat resistant material: rock wool
8). Heat resistant material: rock wool

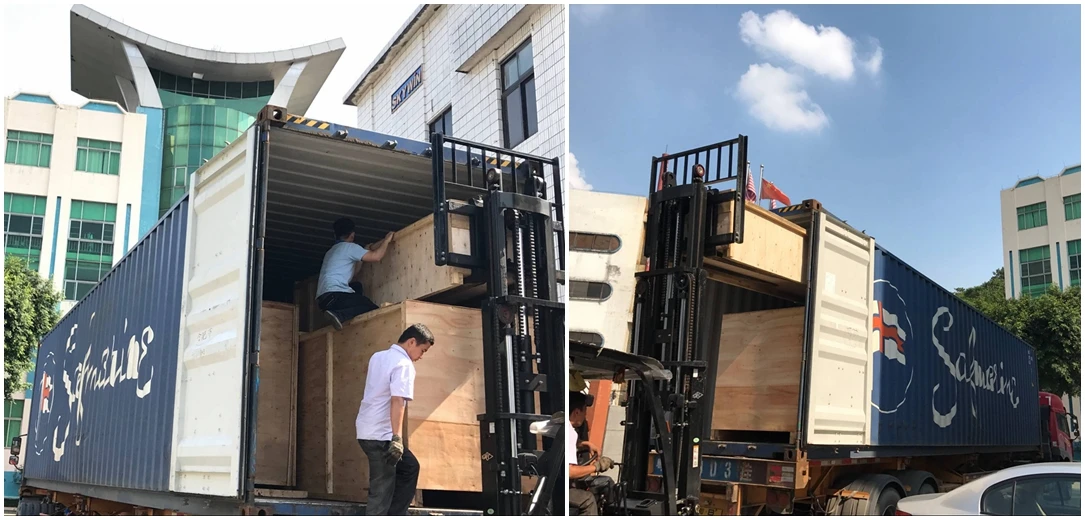

Product packaging
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
FAQ
Why is the discount of this promotion so big???
In order to promote our brand,
In order to promote our brand,
we decided to attract new customers through discounts that reduce prices but not quality! ! !
Don't hesitate, come to me to consult us about preferential products! !
We are based in Guangdong, China, start from 2010,sell to South America(20.00%),Africa(19.00%),Mid East(15.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Central America(4.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.
2. What can you buy from us?
Biscuit Production Line,Cookies Production Line,Biscuit Sandwich Machine,Wafer Biscuit Production Line,Biscuit Packing Line
3. Which kind of biscuit you can produce for your biscuit line?
Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
4. Why should you buy from us not from other suppliers?
Advanced Design since 1983 year
High Qualtiy base on Customer requirement
One-stop service for Biscuit & Cookies & Wafer Production Industry
Full Auto Biscuit sandwiching and packing line
Competive price
In time delivery and Installation service

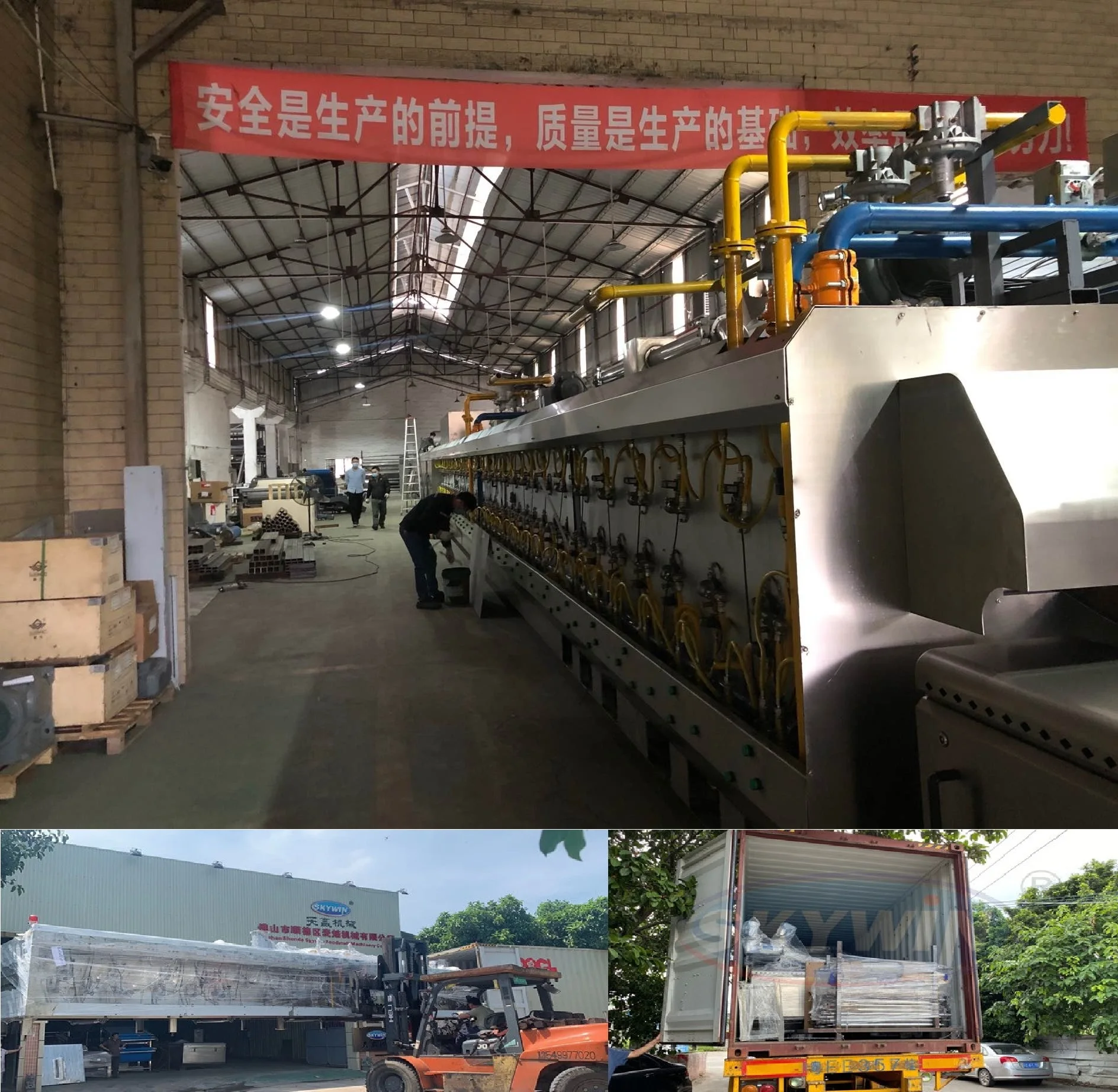

Company Introduction
* SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao,
Shunde, Foshan, Guangdong, CHINA
* Skywin Group Had 30 Years Experience Salers and Engineers in Biscuit Bakry Field.
* Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One
* Skywin Group Had 30 Years Experience Salers and Engineers in Biscuit Bakry Field.
* Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One
is for Automatic Biscuit Sandwiching Machine with Packing System.
* We have more than 60 professional staffs to match delivery time, base on “International Quality,
* We have more than 60 professional staffs to match delivery time, base on “International Quality,
Competitive Price”.
Contact
♥ Looking Forward To Your Specific Enquires.♥
Contact Info: Windy
Mobile/Whatsapp: +86 152 1784 4285
