what is the specifications of our coil winding machine？
ACGW23-2 CNC two spindle Winding Machine
Spindle number | 2 |
Wire size range | 0.1-1.2mm |
Loop diameter | 80mm |
Max wire distance | 9.99mm |
Winder width | 100mm |
Max. speed | 4000RPM |
Spindle motor | Three Phase motor+AC Drivers |
Winder motor | stepping motor |
Max. winder diameter | 80mm |
Input power | 220V 50HZ/60HZ |
Machine size | 460×660×600mm |
Package size | 540×730×580mm |
Net weight | 70kg |
Gross weight | 88kg |
Related products:

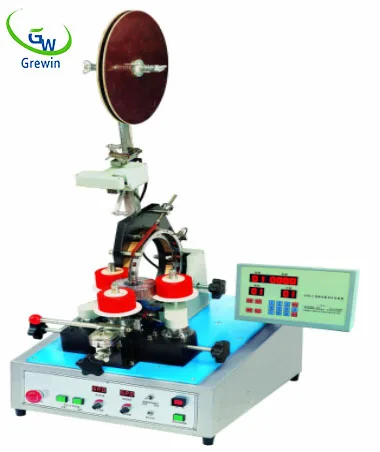

GWTM-0218 TAPE WINDING MACHINE
Wire diameter | 0.20—0.70 | Max.winding speed | 700rpm |
Max.final coil.O.D | φ60—200 | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ35 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 80 | Mechanical dimensions | 550×500×720 |
Controller storage capacity Programs | 29 （set） | Weight | 83kg |

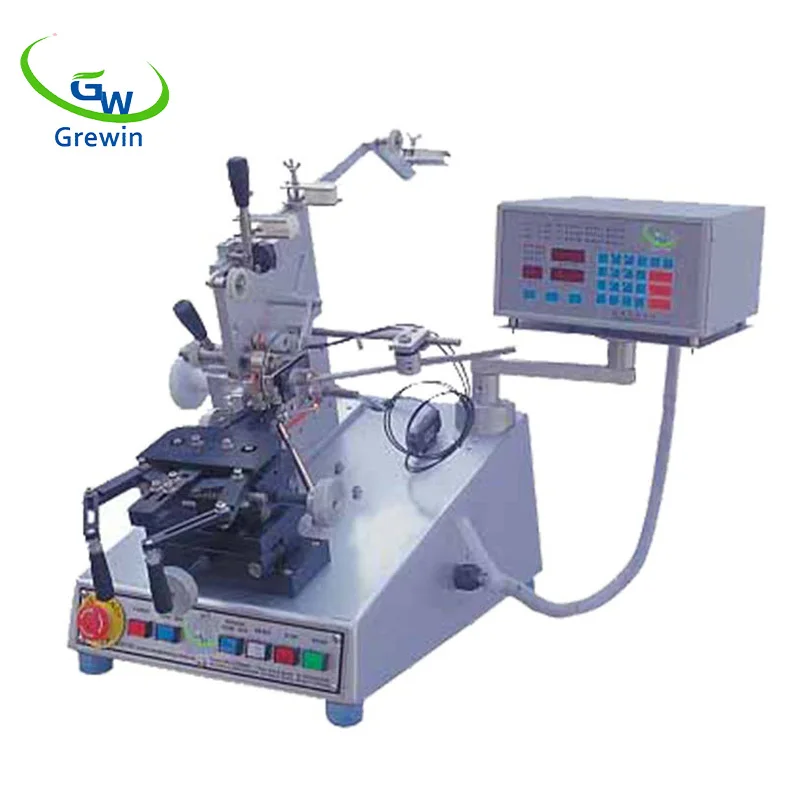

GWSM-0219 Slider head machine
Wire diameter | 0.15-0.60 | Max.winding speed | 700rpm |
Max.final coil.O.D | φ60—200 | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ30 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 80 | Mechanical dimensions | 550×500×700 |
Controller storage capacity Programs | 29 （set） | Weight | 83kg |
GWSM-0219 Series gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately
and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal
transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil,
power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with
heavy wire coils,etc.
Application: Suitable for all kinds of rectangular type inductors, transformers, inductors, relay coils and so on.

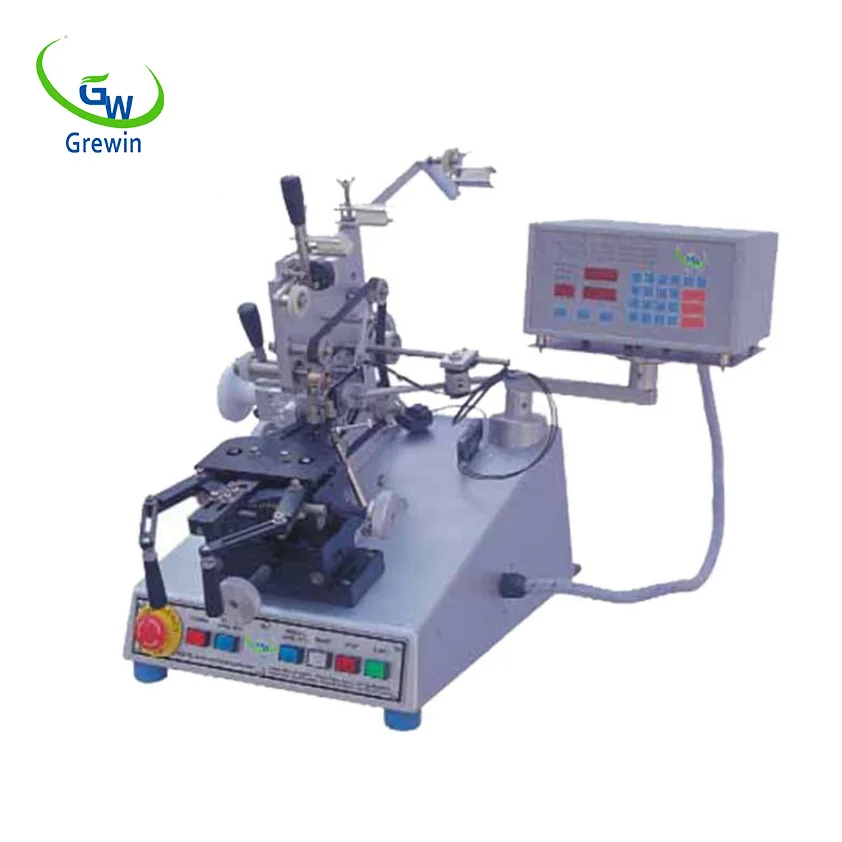

GWSM-0219B Slider head machine
Wire diameter | 0.12-0.40 | Max.winding speed | 700rpm |
Max.final coil.O.D | φ60—200 | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ20 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 80 | Mechanical dimensions | 550×500×700 |
Controller storage capacity Programs | 29 （set） | Weight | 83kg |

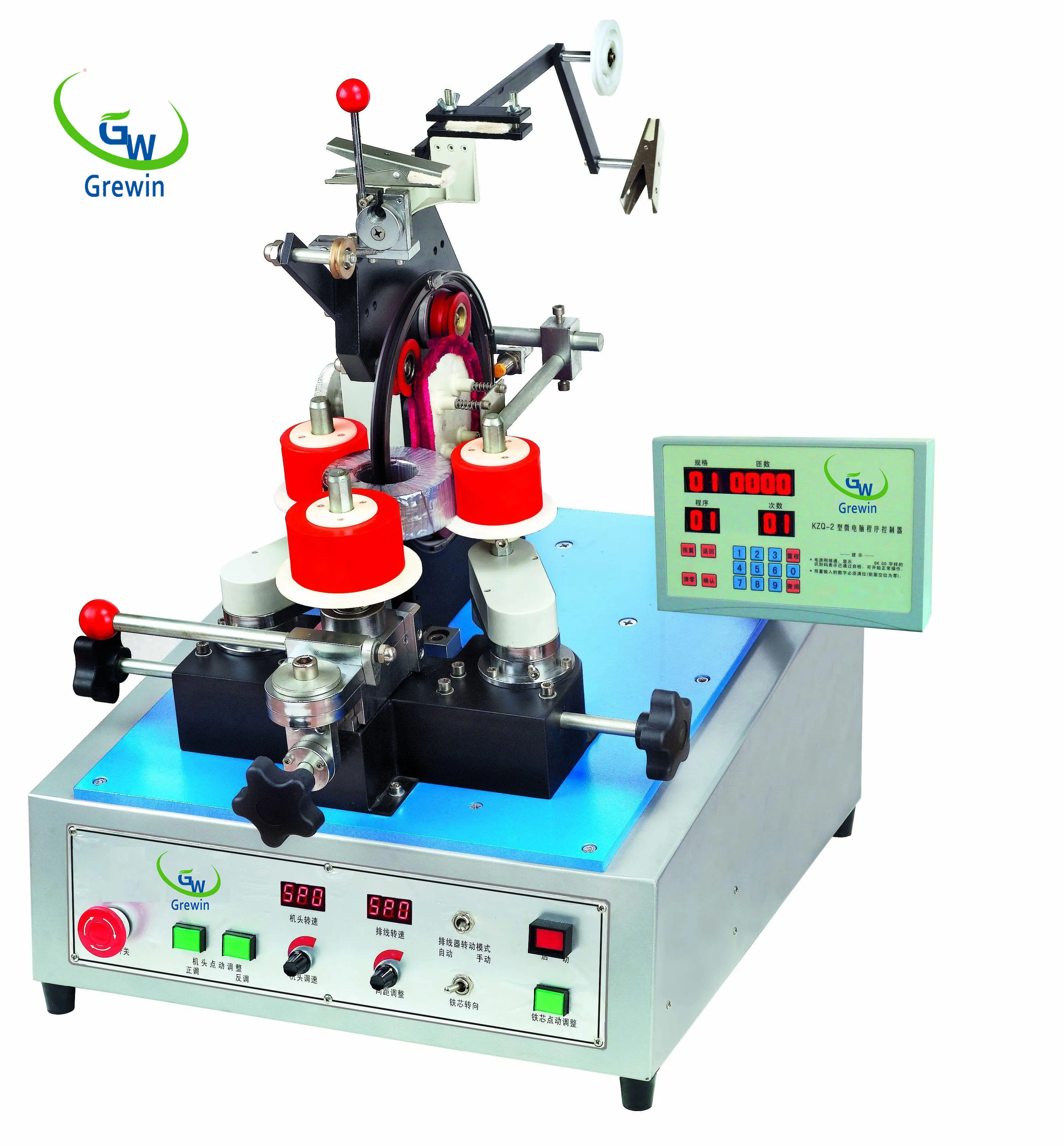

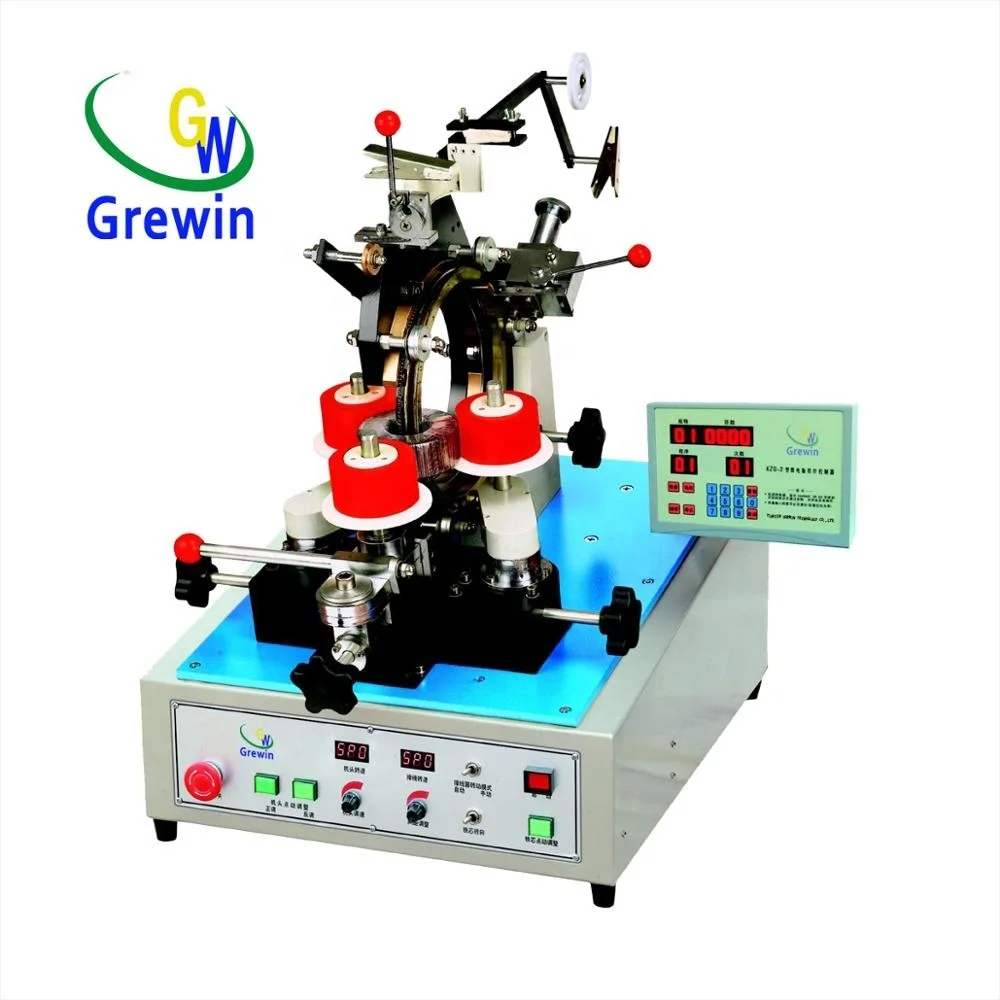

GWSM-H1819 TOROID COIL WINDING MACHINE
Wire diameter | 0.20—0.70 | Max.winding speed | 700rpm |
Max.final coil.O.D | φ60—200 | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ35 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 100 | Mechanical dimensions | 550×500×720 |
Controller storage capacity Programs | 29 （set） | Weight | 83kg |
the show of our coil winding machine
GWM-0319B/GWM-0319
toroid coil winding machine
GWSM-0219/GWSM-H0819
transformer coil winding machine
GWM-0119intermediate speed

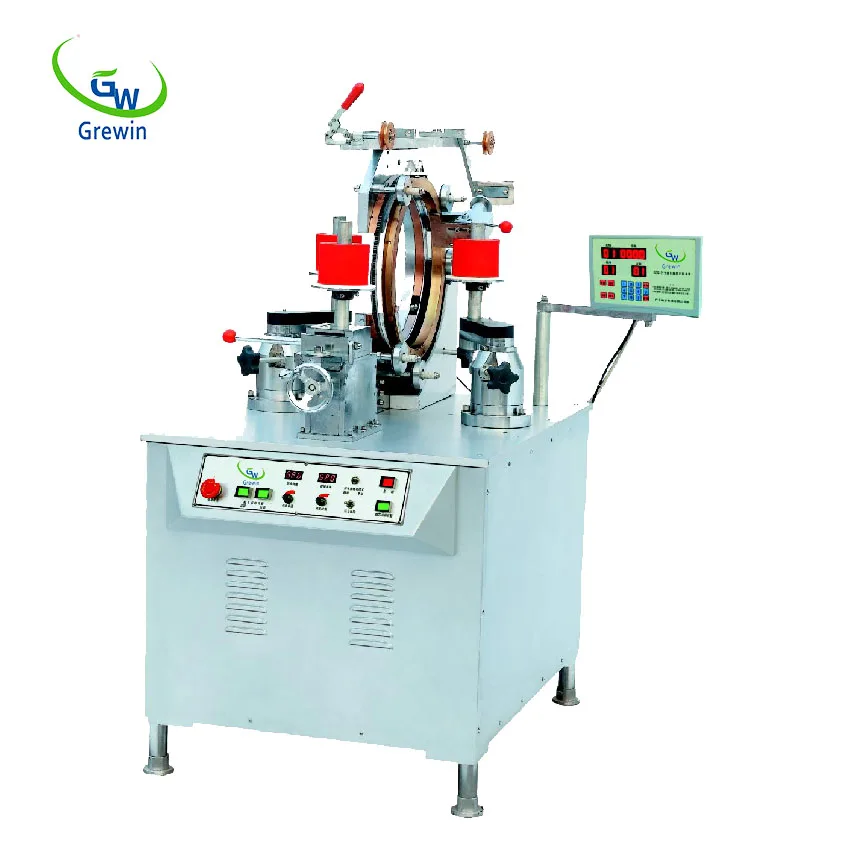

toroidal transformer winding machine
GWM-0619/GWM-0719
toroid winding machine

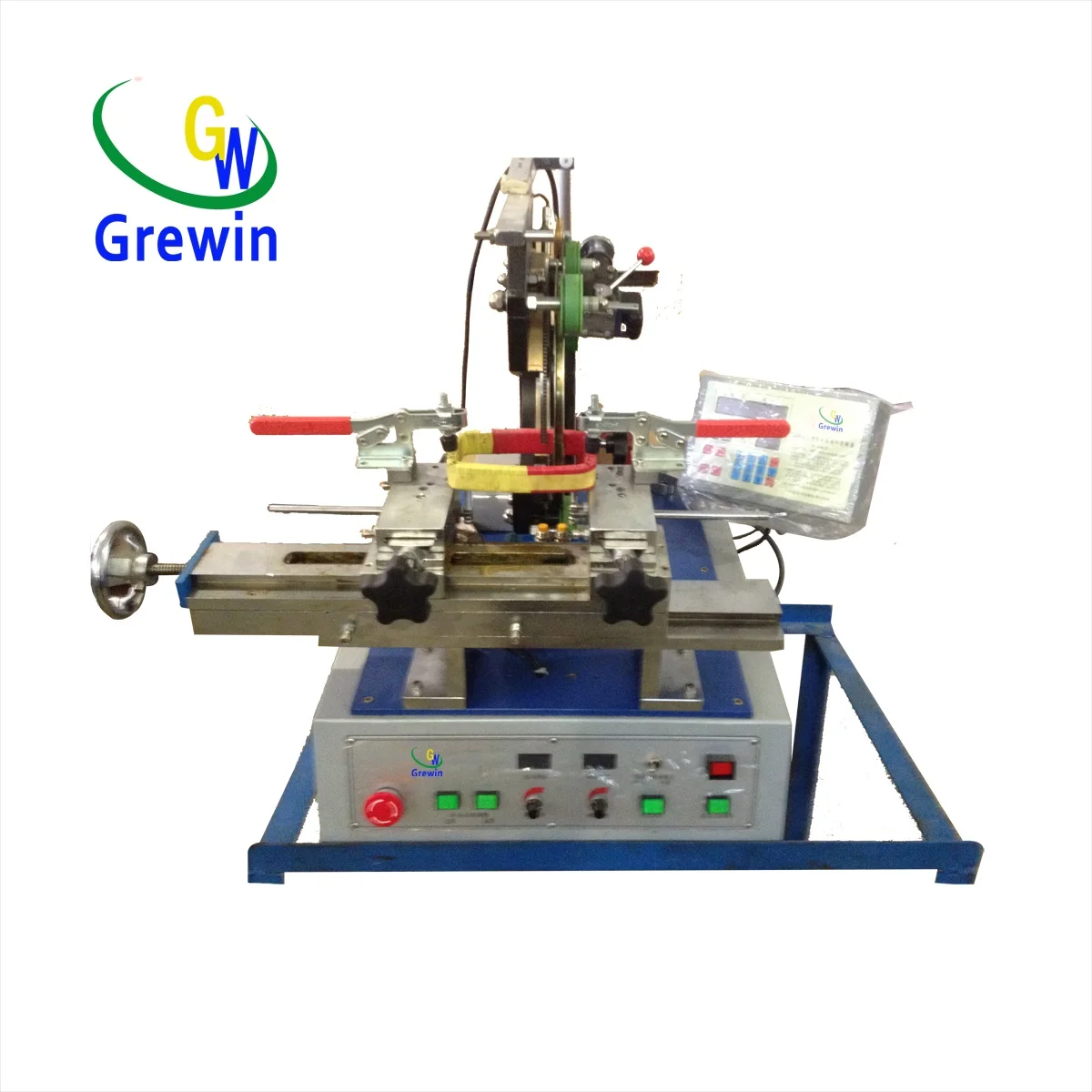

GW0950
rectangle type coil winding machine
GWJ-0519/GW0960
belt type coil winding machine
GWTM-0118
taping machine
GWTM-0218
coil taping machine
GWTM-0418
tape winding machine
GW-9020S
magnetic electric coil winding machine
GW-9020B
magnetic electric coil winding machine

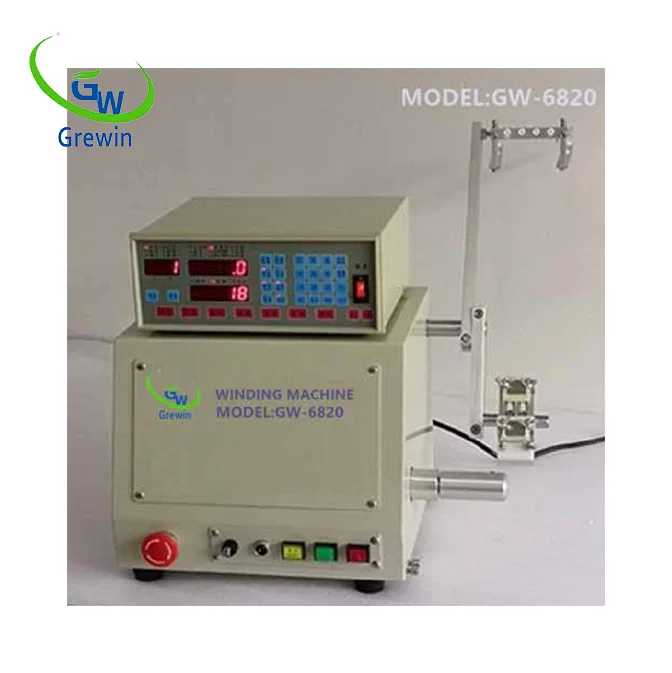

GW-6820
cnc coil winding machine

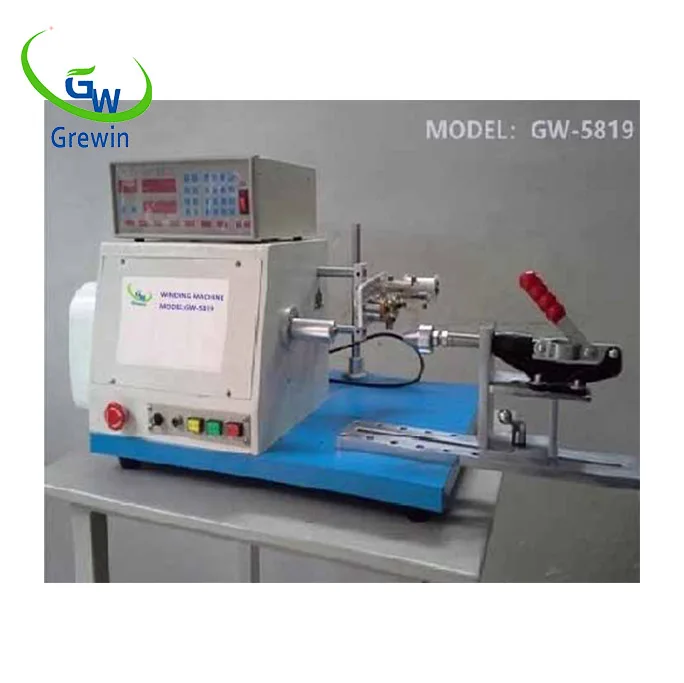

GW-5819
coil winding machine

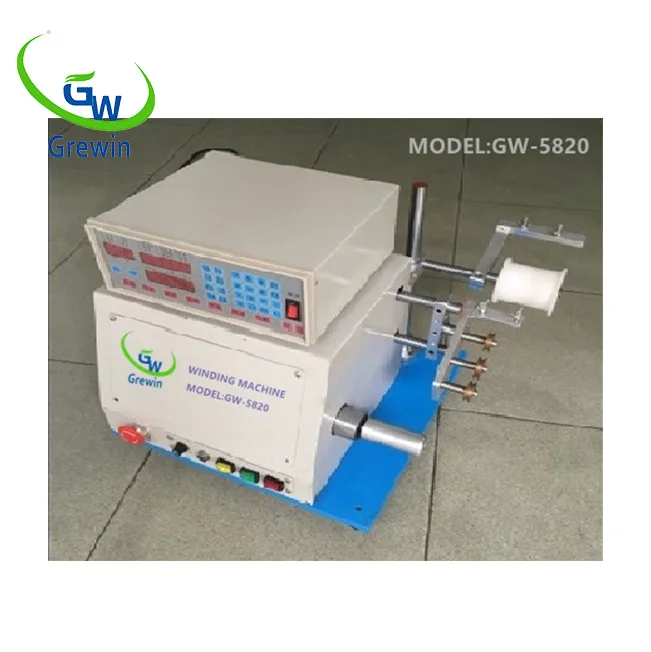

GW-5820
coil winding machine
Why choose us?
1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.
Packaging & Shipping
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during
the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper
wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in
the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick
up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care. All done help to extend the use period.
contect us
sale1grewin-tech.com
CHINA GREWIN INDUSTRIAL GROUP CO.,LTD
Address: 2# MeiNian Plaza No.16 DongTing Road,Hexi Distr,300222,Tianjin
1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.
Packaging & Shipping
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during
the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper
wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in
the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick
up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care. All done help to extend the use period.
contect us
sale1grewin-tech.com
CHINA GREWIN INDUSTRIAL GROUP CO.,LTD
Address: 2# MeiNian Plaza No.16 DongTing Road,Hexi Distr,300222,Tianjin
APPLICATION toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

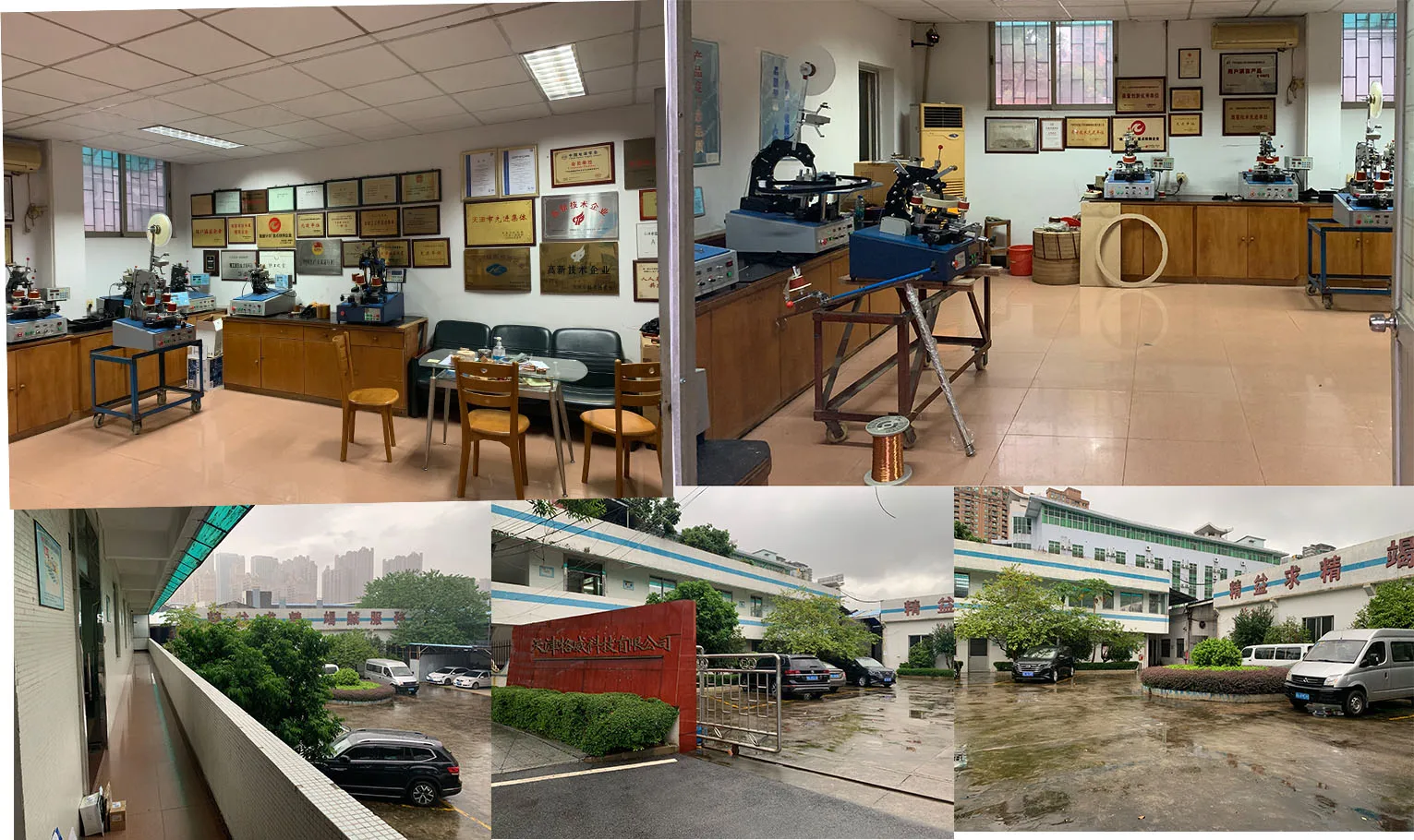

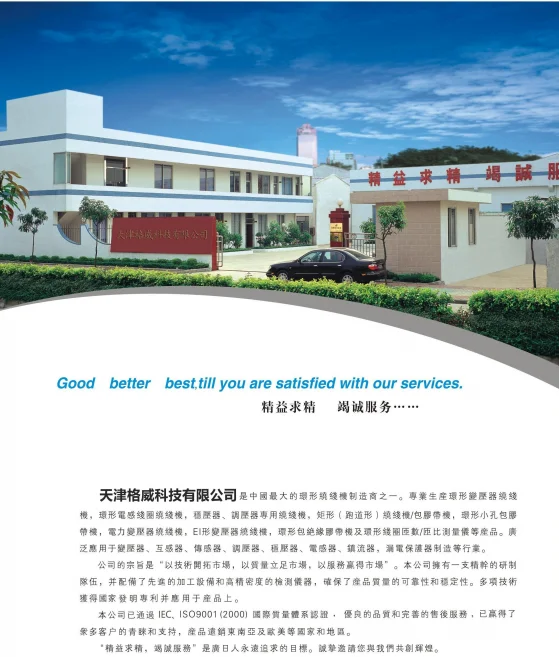

Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in winding machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
