Промышленный вентилятор производство 17 футов большой промышленный
- Категории: Other Ventilation Fans >>>
- Поставщик: Yangzhou,Duel,King,Fans,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
1 | Style NO. | DAWF-6-52 | DAWF-8-52 |
2 | Size(FT) | 17 | 17 |
3 | Diameter(MM) | 5200 | 5200 |
4 | Blade Quantity | 6 | 8 |
5 | Power(w) | 1.5 | 1.5 |
6 | Rotating speed(rpm) | 64 | 62 |
7 | Voltage(V) | 220-240V 380-440V | 220-240V 380-440V |
8 | Frequency(Hz) | 50/60 | 50/60 |
9 | Weight(KG) | 106 | 125 |
10 | Total Height(MM) | 1200 | 1200 |
11 | Air Volume(m3/min) | 6300 | 6800 |
12 | Lift Height(m) | 7-9 | 7-9 |
13 | Coverage area(m2) | 750 | 850 |

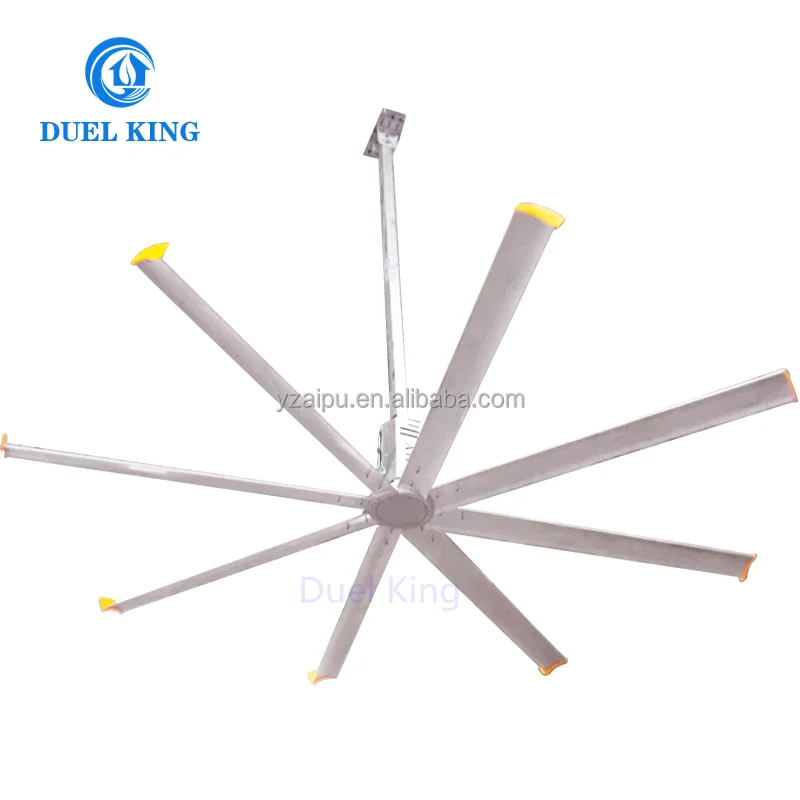

Product Structure
Dehumidification,moisture removal
Due to produce a larger amount of air,effectively promote the air circulation,so that the moisture is well dispersed,greatly reducing the risk of problems such as bugs ,mold and other problems .
Energy saving
Machine power of 1.5kw,can cover750-850m2 operating area,working 8 hours a day ,only 12 degrees electricity!Compare with the small powerful fan and high-power air conditioning ,can make you greatly reduce the operating costs.
1.operation is simple, the control system only needs to rotate the speed control knob to meet the need of wind condition.
2.in case of accident automatically cut off the power supply;more reliable protection frequency converter and cooling fan, control box safety and longer service life.
2.in case of accident automatically cut off the power supply;more reliable protection frequency converter and cooling fan, control box safety and longer service life.
1.High precision of speed control 2.High strength,long service lift 3.convenient to control speed 4.fully sealed ,low environmental requirments 5.compact structure ,small size
Using 4 safety ropes fixed to increase the stability and rigidity of fans

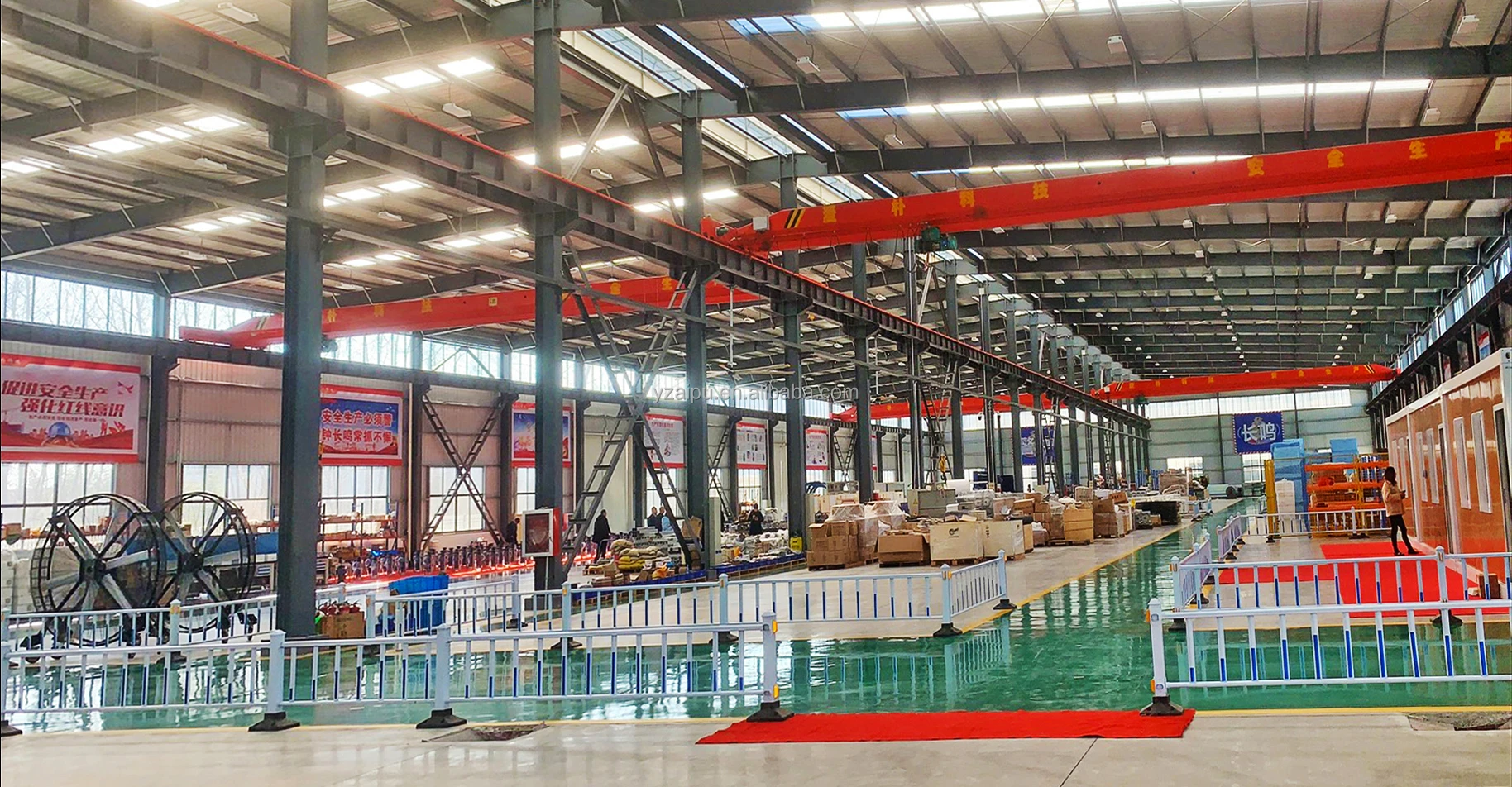

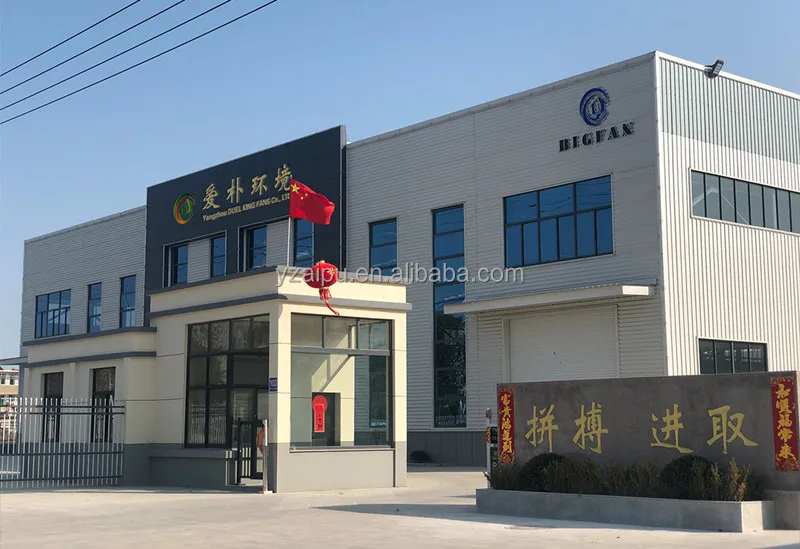

Company Profile

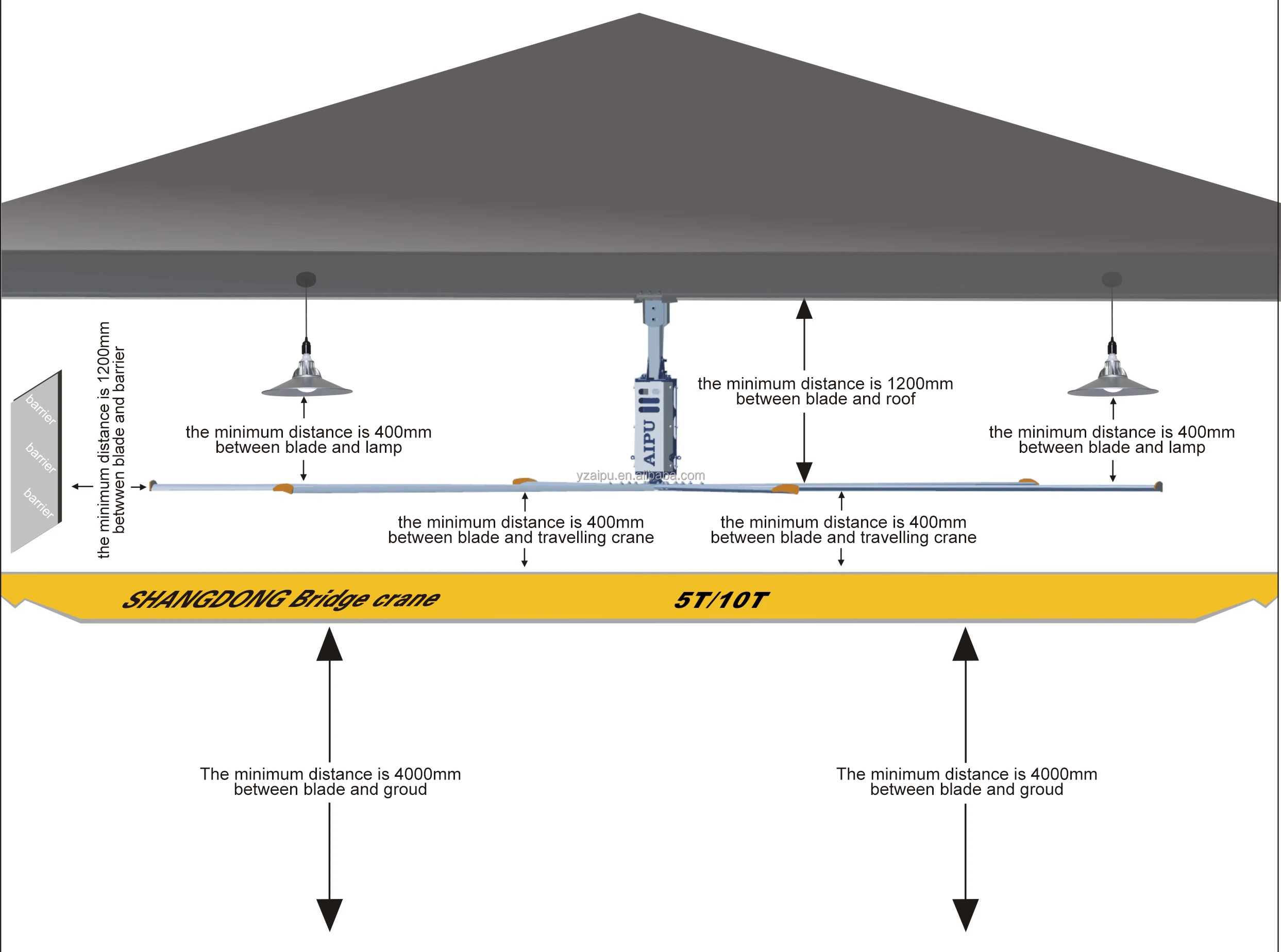

Installation Instructions

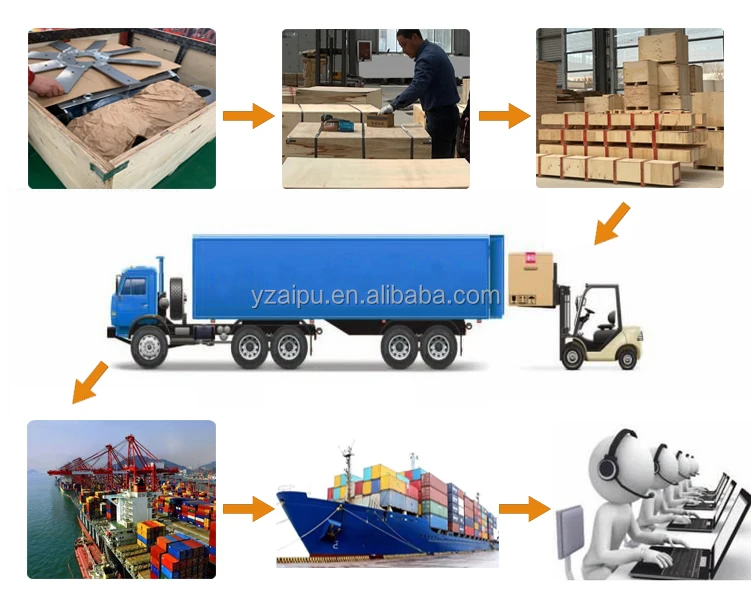

Product packaging
Certifications
Customer Photos
