Product Description
Characteristics

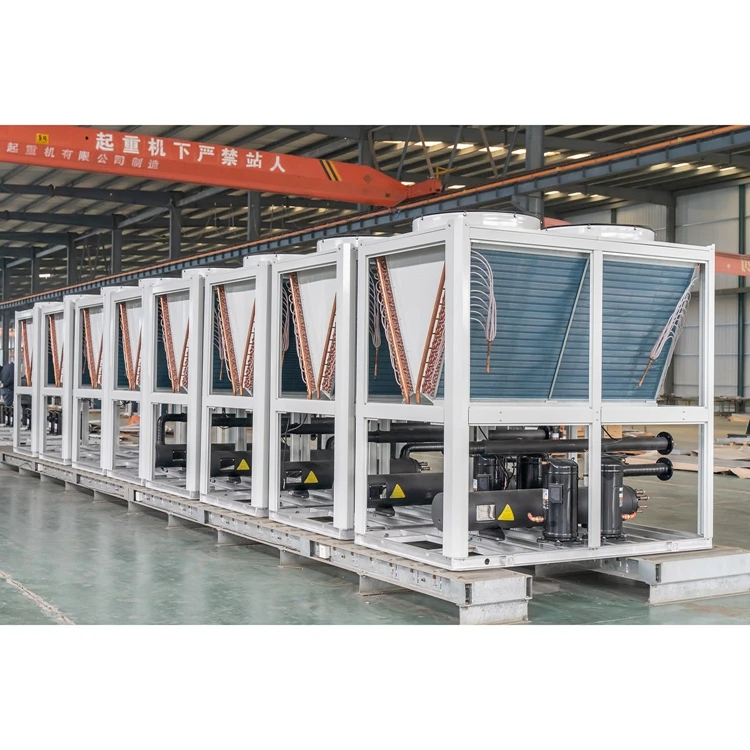

The master module can work independently or together with up to 16 slave modules.

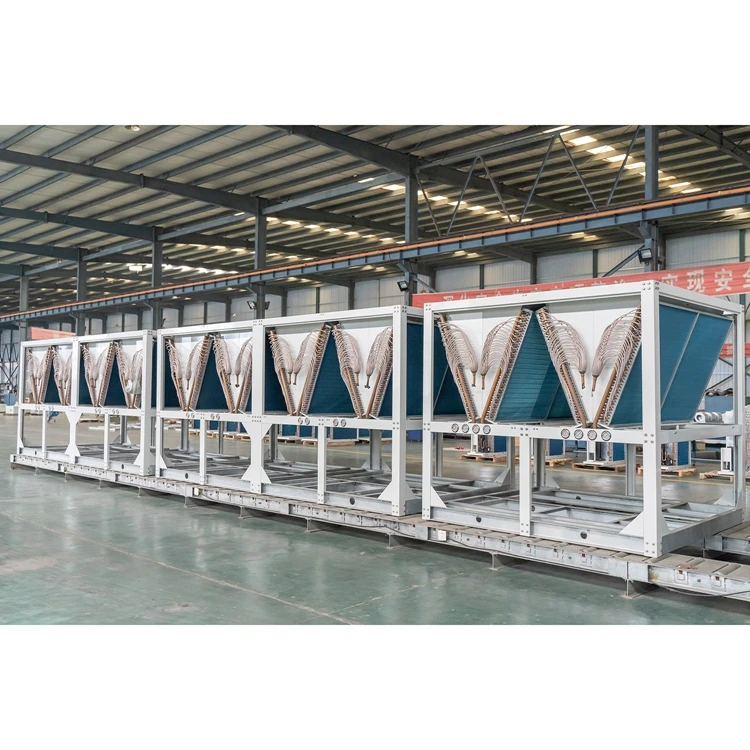

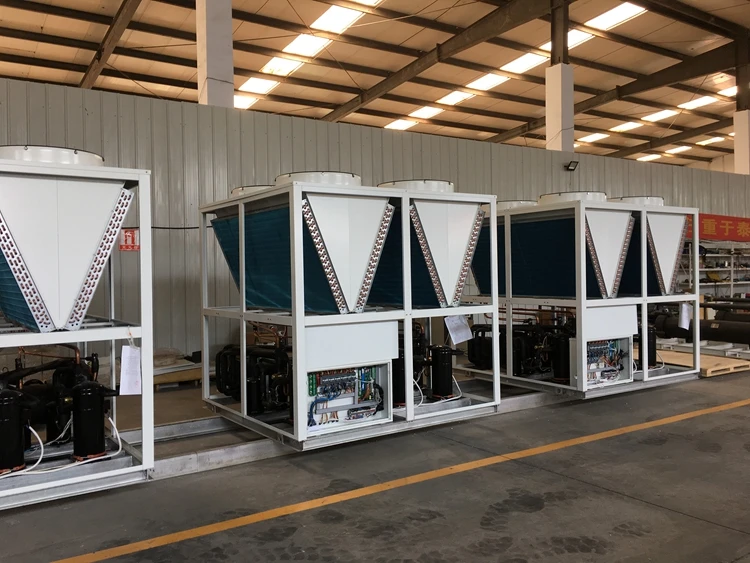

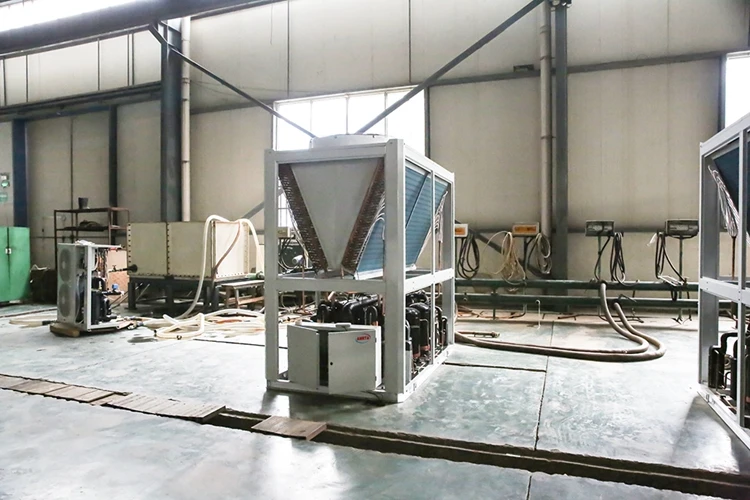

Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.

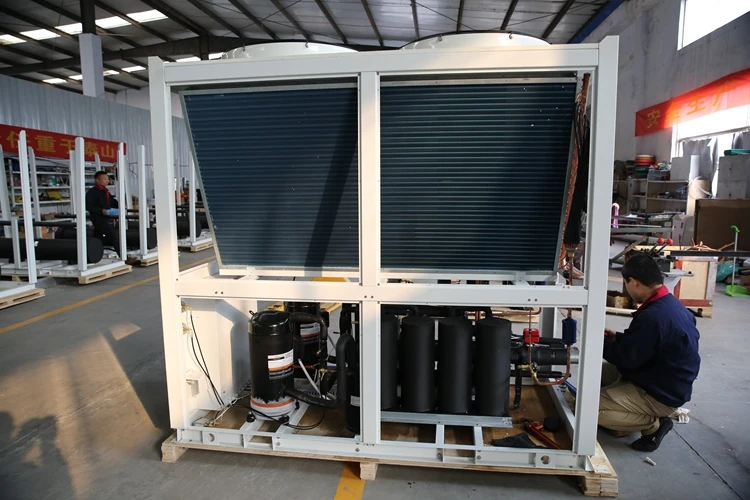

3-phase scroll type compressor, with built- in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

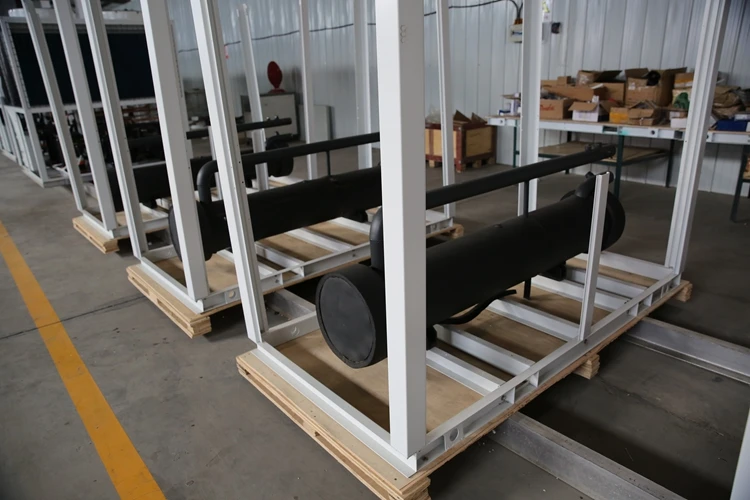

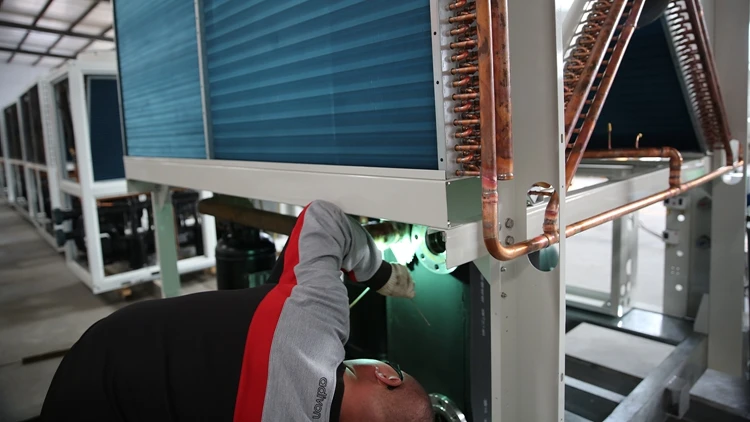

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.
Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
Electric panel consist of:
compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
3-phase scroll type compressor, with built- in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.
Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
Electric panel consist of:
compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
Optional
Paddle flow switch;
Metallic filter for hydraulic circuit;
Paddle flow switch;
Metallic filter for hydraulic circuit;
Water pump;
Rubber antivibration mounting;
Rubber antivibration mounting;
Heat recovery functions.
Technical data
Model | AW60 | AW68 | AW80 | AW100 | ||||||||
Cooling mode | ||||||||||||
Cooling capacity | kW | 58.2 | 66 | 84 | 100.1 | |||||||
Input | kW | 19.9 | 23.3 | 30.5 | 35 | |||||||
EER | / | 2.92 | 3.25 | 3.23 | 2.86 | |||||||
Energy class full load operation | / | B | A | A | B | |||||||
ESEER | / | 4 | 4.41 | 4.42 | 4.35 | |||||||
Seasonal energy efficiency ratio SEER | / | 4.2 | 4.28 | 4.33 | 4.2 | |||||||
Season energy efficiency ɳs,c | % | 165 | 168 | 169 | 168 | |||||||
Seasonal energy performance ratio SEER SEPR-high temperature(7°C) | / | 5.6 | 5.64 | 5.64 | 5.62 | |||||||
Seasonal energy performance ratio SEER SEPR-medium temperature(-8°C) | / | 3.44 | 3.54 | 3.56 | 3.39 | |||||||
Heating mode | ||||||||||||
Rated heating capacity | kW | 62 | 70 | 90 | 106.3 | |||||||
Input | kW | 20.6 | 21.1 | 26 | 34 | |||||||
COP | / | 3 | 3.31 | 3.46 | 3.12 | |||||||
Energy class full load operation | / | B | B | B | A | |||||||
Seasonal coefficient of performance SCOP | / | 3.5 | 3.45 | 3.35 | 3.45 | |||||||
Seasonal energy efficiency | % | 126 | 133 | 135 | 133 | |||||||
Seasonal energy efficiency class | / | A+ | ||||||||||
Electrical data | Voltage | / | 380-415V/3ph/50Hz | |||||||||
Compressor | Type | / | Fixed scroll | |||||||||
Refrigeration circuit and compressor number | / | 4/4 | 2/2 | 2/2 | 2/2 | |||||||
Type | / | Fin-coil | ||||||||||
Fan motor type | / | AC motor | ||||||||||
Quantity of fan motor | Nr. | 2 | 2 | 2 | 2 | |||||||
Air flow | m3/h | 12000X2 | 12000X2 | 17900X2 | 19500x2 | |||||||
Type | / | Shell and tube(standard) spiral drum heat exchanger(option)/plate heat exchanger(option) | ||||||||||
Pressure drop | kPa | 43 | 43 | 42 | 41 | |||||||
Nominal Water flow rate | m3/h | 10.3 | 11.7 | 15.1 | 17.2 | |||||||
Economizer heat exchanger | / | Plate heat exchanger(option) | ||||||||||
Hydraulic connection | Type | / | Threaded-male | |||||||||
Hydraulic connection | Diameter | mm | DN65 | |||||||||
Acoustic data | Sound power level | dB(A) | 70 | 74 | 72 | 73 | ||||||
Refrigerant | Type | / | R410a | |||||||||
Charge volume | kg | 4.4x4 | 8.5x2 | 12x2 | 17x2 | |||||||
Throttle type | / | EXV | ||||||||||
Unit dimension(WxHxD) | mm | 2100x2030x1060 | ||||||||||
Packing dimension(WxHxD) | mm | 2200X2180X1120 | ||||||||||
Net/Gross weight | kg | 720/780 | 740/800 | 810/870 | 1100/1180 | |||||||
Operating limits | ||||||||||||
Cooling mode | ||||||||||||
Min outlet water temperature | oC | -12(option)/+5(standard) | ||||||||||
Max inlet water temperature | oC | 20 | ||||||||||
Min difference water inlet/outlet | oC | 3 | ||||||||||
Max difference water inlet/outlet | oC | 8 | ||||||||||
Min ambient air temperature | oC | -20(option)/+6(standard) | ||||||||||
Max ambient air temperature | oC | 46 | ||||||||||
Heating mode | ||||||||||||
Max outlet water temperature | oC | 50 | ||||||||||
Min ambient air temperature | oC | -25(option)/-12(standard) | ||||||||||
Model | AW130 | AW150 | AW200 | AW240 | AW260 | |||||||||
Cooling mode | ||||||||||||||
Cooling capacity | kW | 120.5 | 148.2 | 199 | 236 | 266 | ||||||||
Input | kW | 39 | 53.9 | 71 | 83.6 | 82 | ||||||||
EER | / | 3.08 | 2.74 | 2.8 | 2.82 | 3.24 | ||||||||
Energy class full load operation | / | B | A | C | C | A | ||||||||
ESEER | / | 4.16 | 4.37 | 3.76 | 3.98 | 4.16 | ||||||||
Comfort application | Seasonal energy efficiency ratio SEER | / | 4.19 | 4.25 | 3.82 | 3.92 | 4.23 | |||||||
Season energy efficiency ɳs,c | % | 161 | 166 | 149 | 154 | 166 | ||||||||
Process application | Seasonal energy performance ratio SEER SEPR-high temperature(7°C) | / | 5.64 | 5.4 | 4.8 | 5.06 | 5.25 | |||||||
Seasonal energy performance ratio SEER SEPR-medium temperature(-8°C) | / | 3.56 | 3.33 | 3.66 | 3.32 | 3.23 | ||||||||
Heating mode | ||||||||||||||
Rated heating capacity | kW | 136 | 158 | 206 | 253 | 296 | ||||||||
Input | kW | 43.4 | 51.6 | 72 | 78.3 | 96 | ||||||||
COP | / | 3.13 | 3.06 | 2.86 | 3.23 | 3.08 | ||||||||
Energy class full load operation | / | A | B | A | A | A | ||||||||
Seasonal coefficient of performance SCOP | / | 3.38 | 3.4 | 3.23 | 3.7 | 3.39 | ||||||||
Seasonal energy efficiency | % | 132 | 133 | 126 | 145 | 132 | ||||||||
Seasonal energy efficiency class | / | A+ | ||||||||||||
Electrical data | Voltage | / | 380-415V/3ph/50Hz | |||||||||||
Compressor | Type | / | Fixed scroll | |||||||||||
Refrigeration circuit and compressor number | / | 4/4 | 4/4 | 4/4 | 4/4 | 4/4 | ||||||||
Air side heat exchanger | Type | / | Fin-coil | |||||||||||
Fan motor type | / | AC motor | ||||||||||||
Quantity of fan motor | Nr. | 4 | 4 | 4 | 4 | 4 | ||||||||
Air flow | m3/h | 12600x4 | 15600x4 | 24000x4 | 24000x4 | 24000x4 | ||||||||
Water side heat exchanger | Type | / | Shell and tube(standard) spiral drum heat exchanger(option)/plate heat exchanger(option) | |||||||||||
Pressure drop | kPa | 44 | 45 | 45 | 46 | 55 | ||||||||
Nominal Water flow rate | m3/h | 23 | 26 | 35 | 41 | 46 | ||||||||
Economizer heat exchanger | / | Plate heat exchanger(option) | ||||||||||||
Hydraulic connection | Type | / | Threaded-male | |||||||||||
Diameter | mm | DN80 | DN80 | DN65 | DN65 | DN80 | ||||||||
Acoustic data | Sound power level | dB(A) | 77 | 77 | 75 | 75 | 75 | |||||||
Sound pressure level 10meters | dB(A) | 57 | 57 | 55 | 55 | 55 | ||||||||
Refrigerant | Type | / | R410a | |||||||||||
Charge volume | kg | 8.5x4 | 12x4 | 17x4 | 20x4 | 22x4 | ||||||||
Throttle type | / | EXV | ||||||||||||
Unit dimension(WxHxD) | mm | 2308x2160x2240 | ||||||||||||
Packing dimension(WxHxD) | mm | 2350x2200x2200 | ||||||||||||
Net/Gross weight | kg | 1400/1440 | 1500/1540 | 1900/1950 | 2000/2050 | 2150/2200 | ||||||||
Operating limits | ||||||||||||||
Cooling mode | ||||||||||||||
Min outlet water temperature | oC | -12(option)/+5(standard) | ||||||||||||
Max inlet water temperature | oC | 20 | ||||||||||||
Min difference water inlet/outlet | oC | 3 | ||||||||||||
Max difference water inlet/outlet | oC | 8 | ||||||||||||
Min ambient air temperature | oC | -20(option)/+6(standard) | ||||||||||||
Max ambient air temperature | oC | 46 | ||||||||||||
Heating mode | ||||||||||||||
Max outlet water temperature | oC | 50 | ||||||||||||
Min ambient air temperature | oC | -25(option)/-12(standard) | ||||||||||||
Note:
(1)T1 application, (380-415V/3ph/50Hz)
Cooling mode: Water temperature=12/7, Ambient temperature=35
Heating mode: Water temperature=40/45, Ambient temperature=7
(2)ESEER in according with standard EN14511
(3)SEER in accordance with standard EN14825
(4)Seasonal energy efficiency following EU2016/2281 on space cooling, normalized leaving water temperature at 7, in accordance with standard EN14825
(5)Following EU2016/2281 on process cooling units, normalized leaving water temperature at 7, in accordance with standard EN14825
(6)Following EU2015/1095 on process cooling chillers, normalized leaving water temperature at -8, in accordance with standard EN14825
(7)SCOP in accordance with standard EN14825 Heating mode performance is defined for average climate conditions
(8)Seasonal energy efficiency: following EU813/2013 on space heaters, normalized leaving water temperature at 7, in accordance with standard EN14825, average climate conditions
(9)Following energy labeling regulation EU811/2013 on space heaters.
Sound power level and sound pressure level at 10m from the unit, in free field conformity with ISO3744 norm.
(1)T1 application, (380-415V/3ph/50Hz)
Cooling mode: Water temperature=12/7, Ambient temperature=35
Heating mode: Water temperature=40/45, Ambient temperature=7
(2)ESEER in according with standard EN14511
(3)SEER in accordance with standard EN14825
(4)Seasonal energy efficiency following EU2016/2281 on space cooling, normalized leaving water temperature at 7, in accordance with standard EN14825
(5)Following EU2016/2281 on process cooling units, normalized leaving water temperature at 7, in accordance with standard EN14825
(6)Following EU2015/1095 on process cooling chillers, normalized leaving water temperature at -8, in accordance with standard EN14825
(7)SCOP in accordance with standard EN14825 Heating mode performance is defined for average climate conditions
(8)Seasonal energy efficiency: following EU813/2013 on space heaters, normalized leaving water temperature at 7, in accordance with standard EN14825, average climate conditions
(9)Following energy labeling regulation EU811/2013 on space heaters.
Sound power level and sound pressure level at 10m from the unit, in free field conformity with ISO3744 norm.

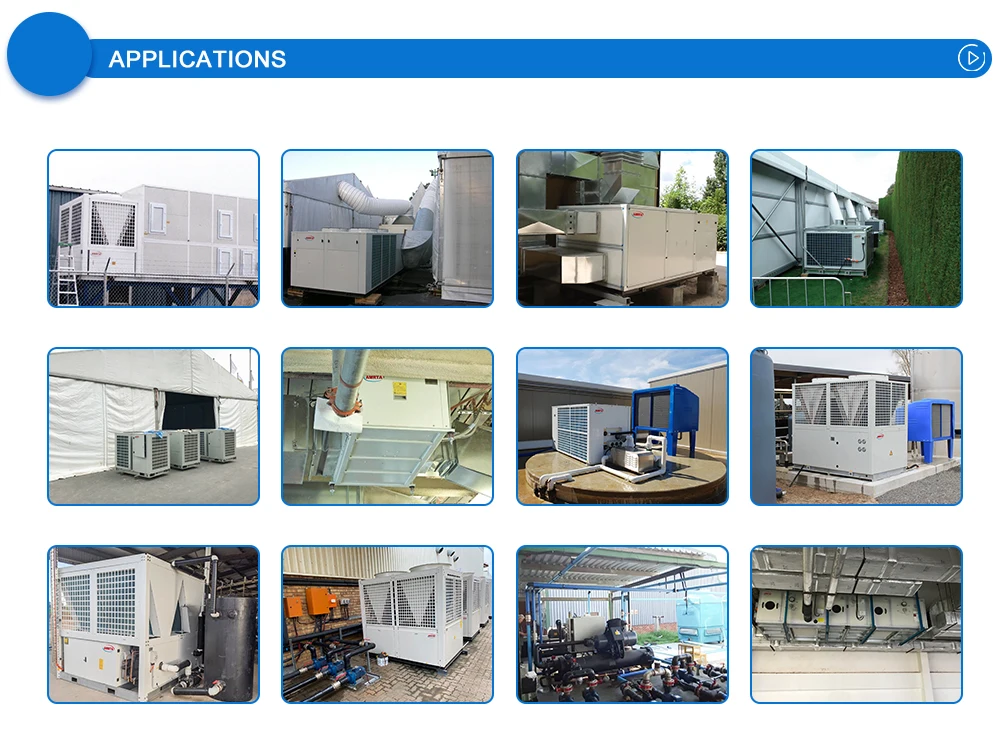

Applications
More Products

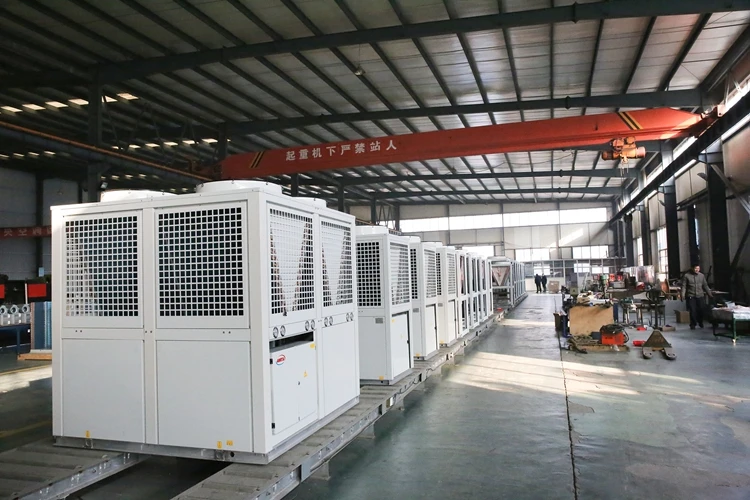

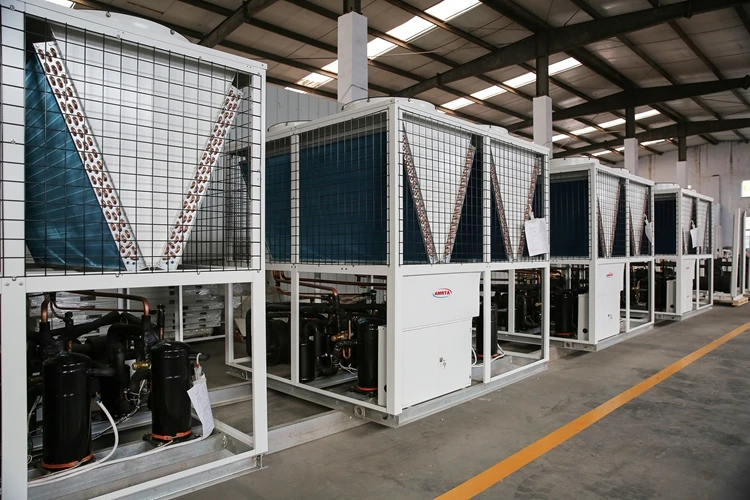

Company View

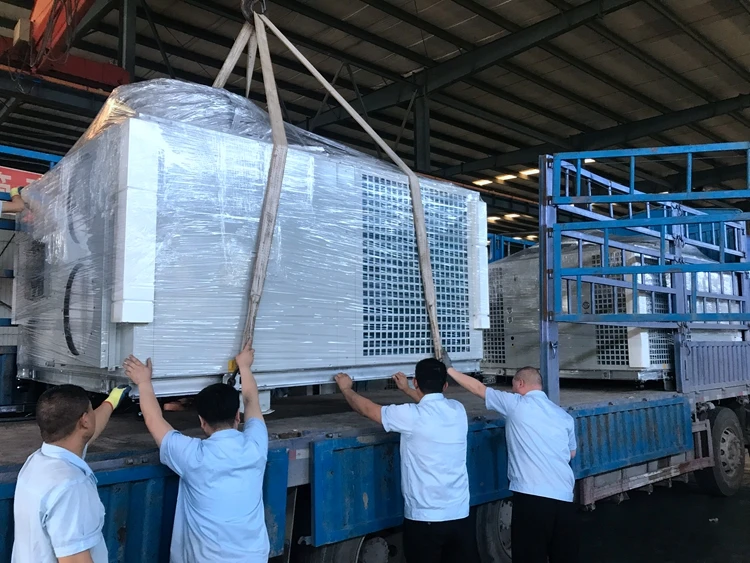

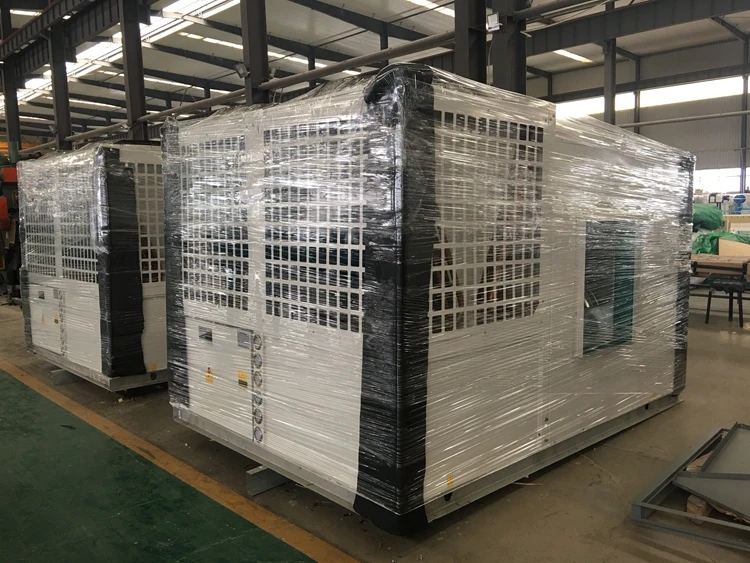

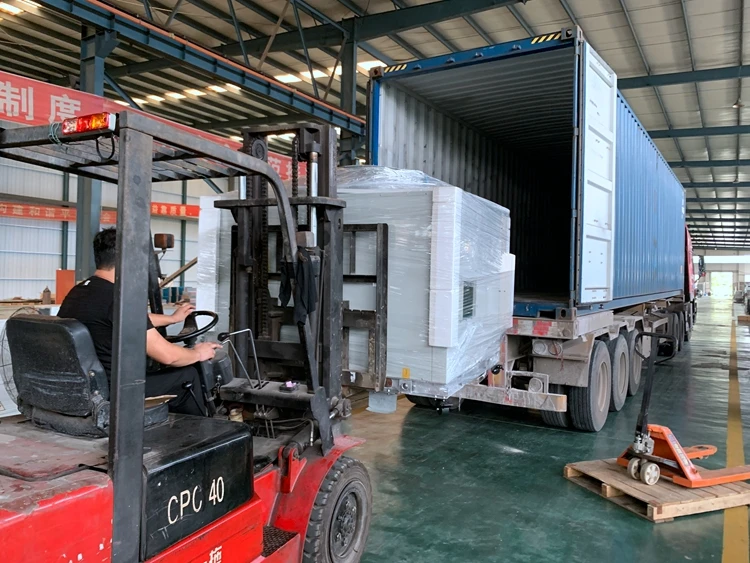

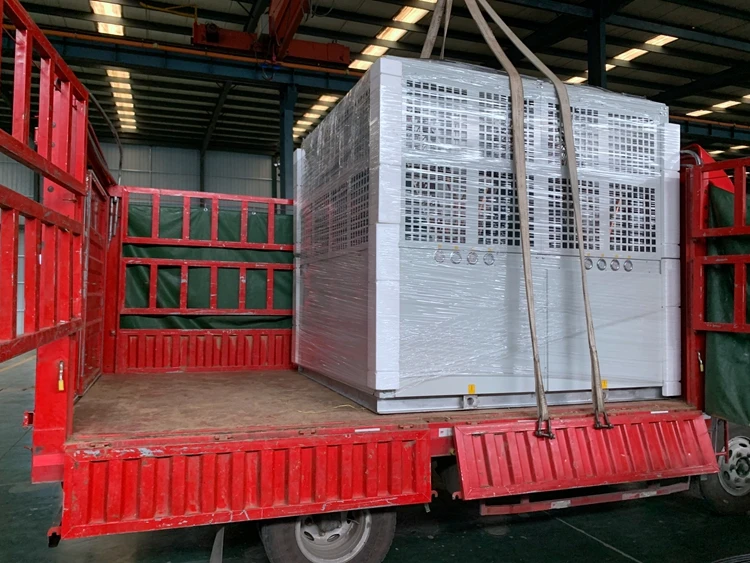

Packaging & Shipping

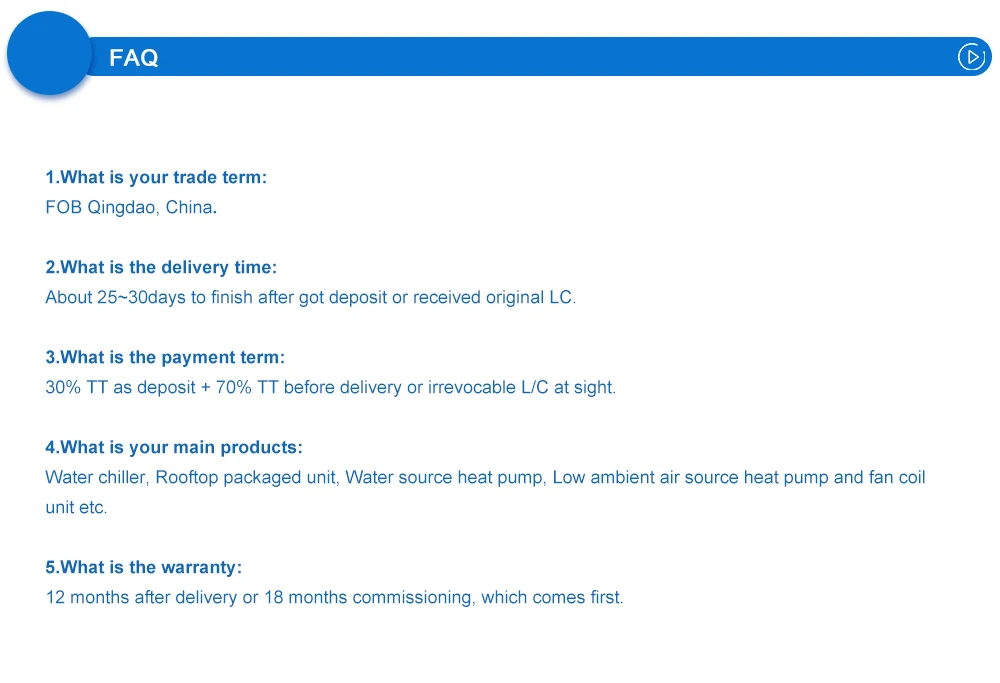

FAQ
