Product Description


ultrasonic quilting machine
1.Adopting the latest ultrasonic control box with strong and stable power. It is suitable for long-time and continuous work. Built-in PC chip and multi-circuit ultrasonic protection system to make the main machine run safely and steadily.

2.Structure of machine 1)Pattern press compound machine 2)Ultrasonic control cabinet 3)End products rolling machine 4)Fabrics feeding rack.


Applications
Producing the compounding of spout gum cotton, non-woven fabrics and needle cotton with chemical fiber fabrics, artificial leather products. It is applied to the production of mattress, multi-cover, bedcover, bed sheet, blanket, seat cushion, winter jacket,robes, polo cases, apron, sleeping bag, show jacket, car seat cover, sofa, etc.

Suitable material
Fabrics of synthetic composition over 30%, polyester,nylon,tetoron,sponge, non woven fabric, thermo-plastic film, compounding of spout gum cotton, artificial leather, TC,PU,PP, PE, etc.

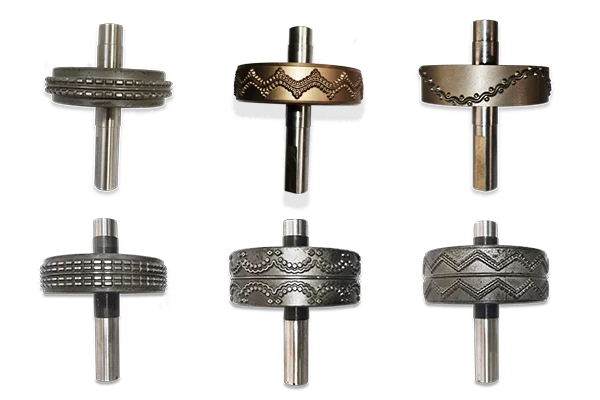

Standard Cutter design
Vertical cutter samples, you can choose designs from them, also support custom Standard is gray color type

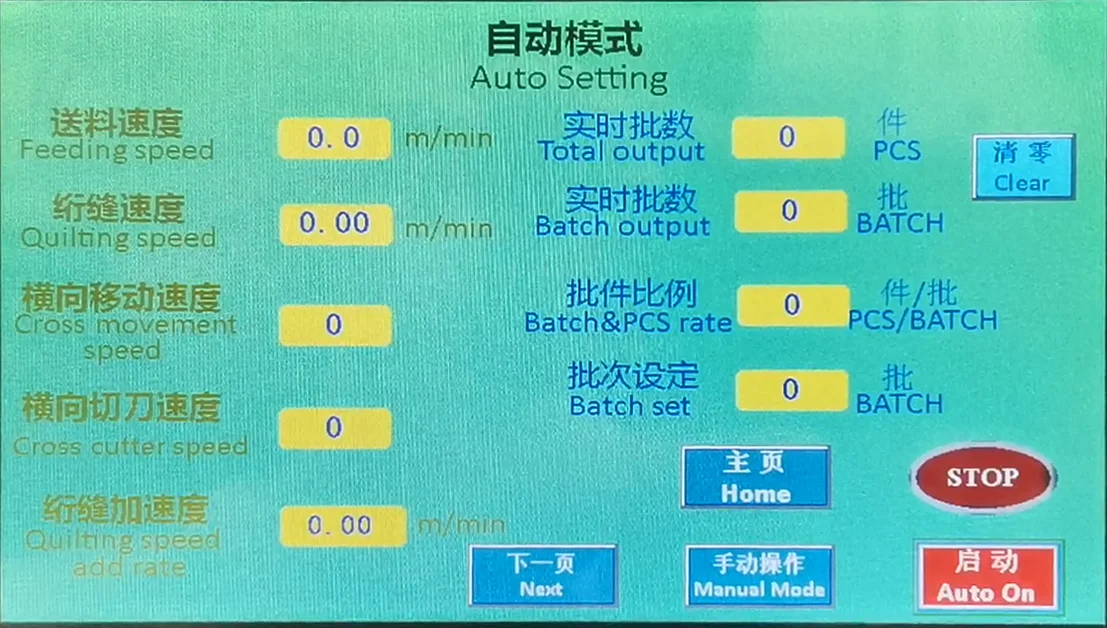

Auto and Manual modes:

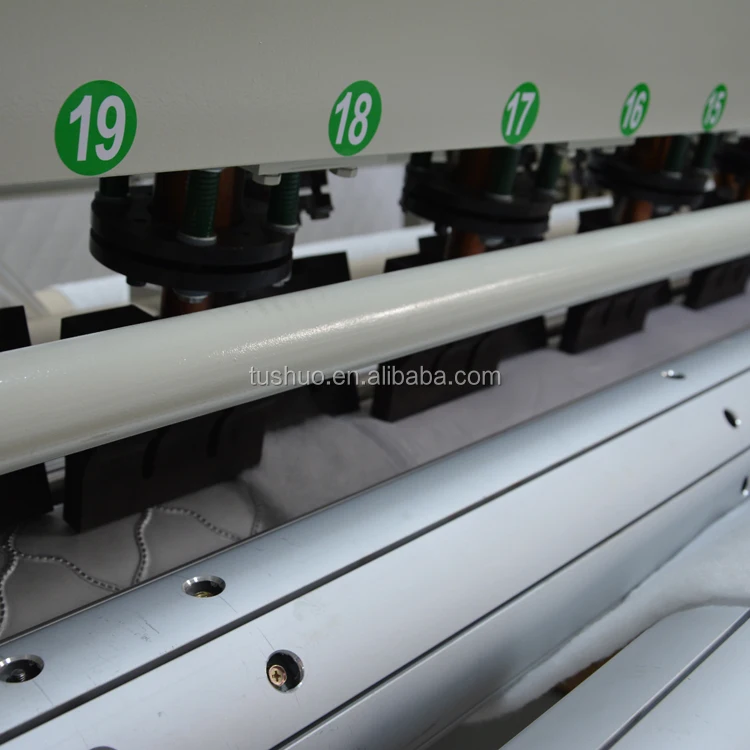

Straight Horns
For straight horns structure,gap between each horn must be 1~1.5mm. If too small,horns will touch easily each other and ultrasonic box&horn will burn. If too big gap,you will see the wrinkle in below pictures.

Cross horns
No gap between each horn, no need to care that horns can touch and burn every day, also no wrinkles on fabrics while working.




Specification


item
value
Applicable Industries
Manufacturing Plant, Home Use
After Warranty Service
Video technical support, Online support, Spare parts
Local Service Location
Italy, Pakistan
Showroom Location
Italy, Pakistan
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Place of Origin
China
Jiangsu
Brand Name
Jitan
Max Sewing Speed
20m/min
Max Sewing Thickness
300gsm
Number of Head
Single Head
Moving Style
Head Moved
Voltage
380V
Power
9000W
Dimension(L*W*H)
5*3.3*1.9m
Weight
3500KG
Certification
CE
Warranty
1 Year
Free spare parts, Video technical support, Online support
Product name
quilting machine ultrasonic
Quilt Size
2.2*2.5m / 2.4*2.6m/2.6*2.8m/2.8*3.0m
Sewing machine
Big Rotary
Work speed
15-20m/minute
QUILTING WIDTH
1000-3000 MM
Application
Comforter Quilt Blanket Mattress
Advantage
Ultrasonic Control Box
Characteristic
Chemical Cloth
Feature
High Efficiency
Suitable for
Maufacturers

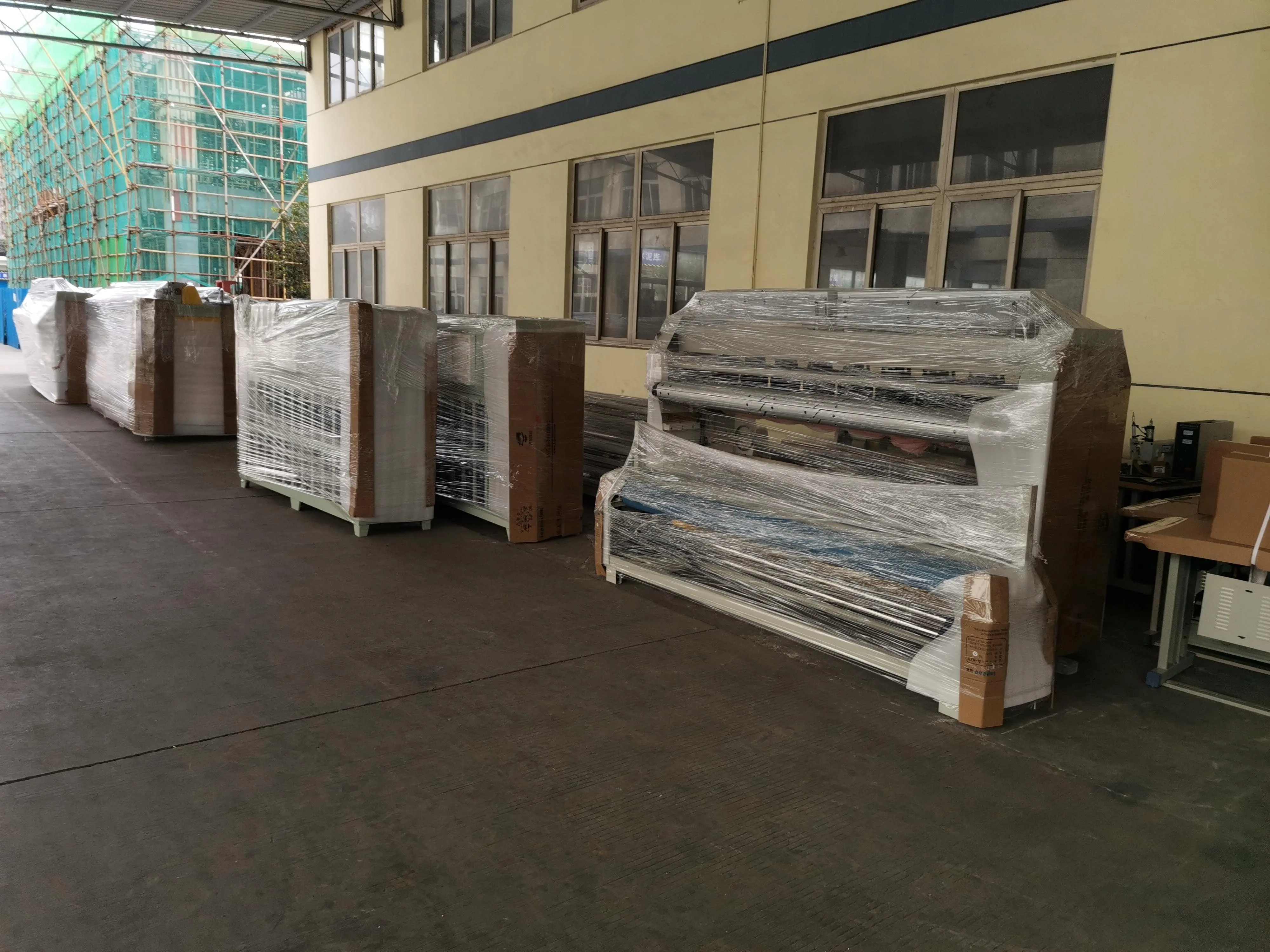

Packing & Delivery






Carton; Wooden case


Company Profile








Changzhou Tushuo Trade Co., Ltd., its origin can be tracked back to 2003, when it was founded as Changzhou Jitan Machinery Company, is China's first factory specializes in producing ultrasonic equipment and pleating machines.

Our company covers an area of 20,000m 2 and it has building area of 40,000m 2. We now have more than 100 employees, a professional enterprise integrating the research, design, production, marketing and service together.

In our plant, we have ultrasonic lace machine, ultrasonic sewing machine, ultrasonic sealing machine, ultrasonic quilting machine, ultrasonic welding machine, ultrasonic cutting machine,ultrasonic slitting machine, face mask machine, nonwoven bag making machine, shoe cover making machine, cap making machine and pleating machine,fabric pleating machine,automatic fabric pleating machine, multifunction fabric pleating machine,computerized pleating machine, computer controlled pleating machine of more than 40 types in 8 series. Our products are available in Singapore, India, Russia, Vietnam, Egypt, Bengal, Brazil, Turkey, Mexico, America, Spain, Argentina, Ukraine, Italy and Poland, etc. We enjoy a good reputation at home and abroad.
Ultrasonic equipment for various special purposes in different industries is available in our plant.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2014,sell to Africa(30.00%),South America(20.00%),North America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ultrasonic Sewing Machine,Ultrasonic Quilting Machine,Ultrasonic Fabric Cutting Machine,Fabric Pleating Machine,Nonwoven Bag/Cap/Shoe cover Making Machine

4. why should you buy from us not from other suppliers?
We have over 20 years experiences in ultrasonic equipment&machines, own good reputation in ultrasonic industry, our strong R&D ability will help your business.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese
