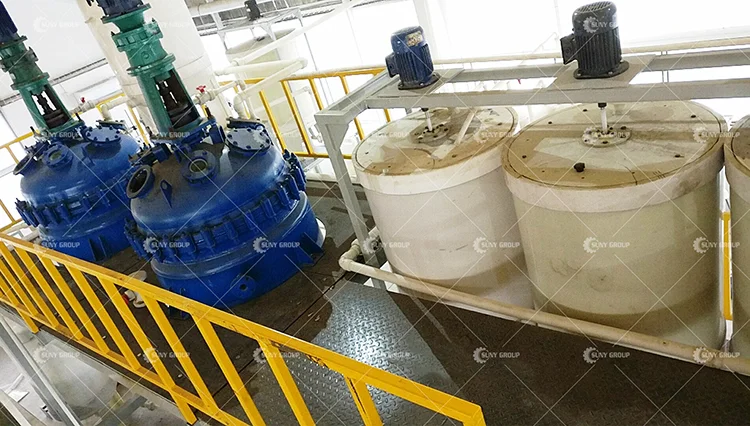

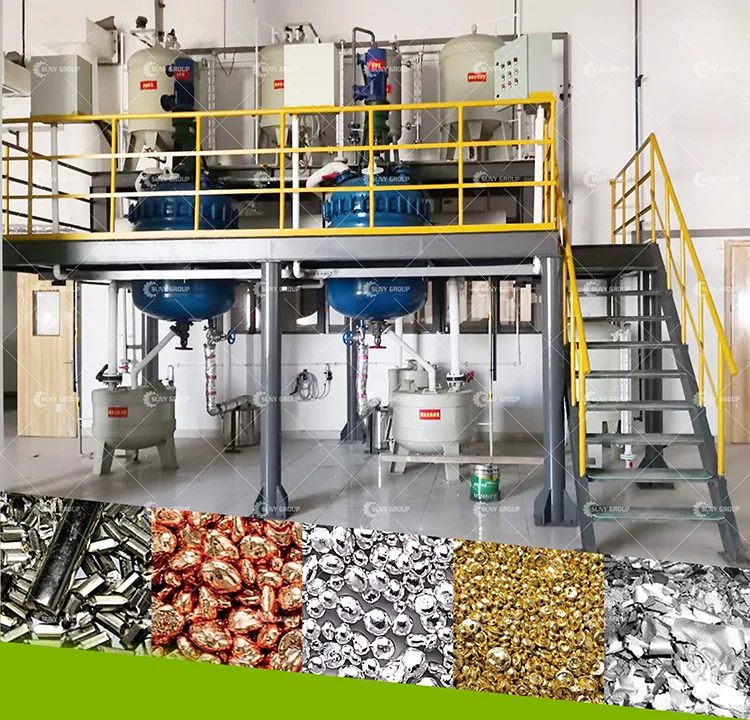

PRECIOUS METAL REFINING PLANT
APPLICATION
Precious Metal Refining Plant is used for recovery and refining precious metals such as gold, silver, palladium and platinum from electronic waste containing precious metal chip components and anode mud.
TECHNICAL PARAMETERS
Model | Capacity | Power | Recycle Rate | Purity |
ZYGJ-100 | 100 Kg/Day | 20 Kw | ≥99% | ≥99% |
ZYGJ-200 | 200 Kg/Day | 30 Kw | ≥99% | ≥99% |
ZYGJ-300 | 300 Kg/Day | 40 Kw | ≥99% | ≥99% |

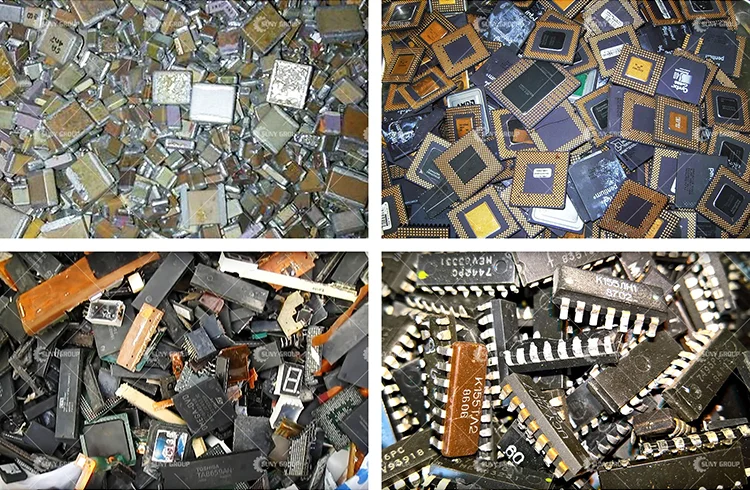

RAW MATERIAL

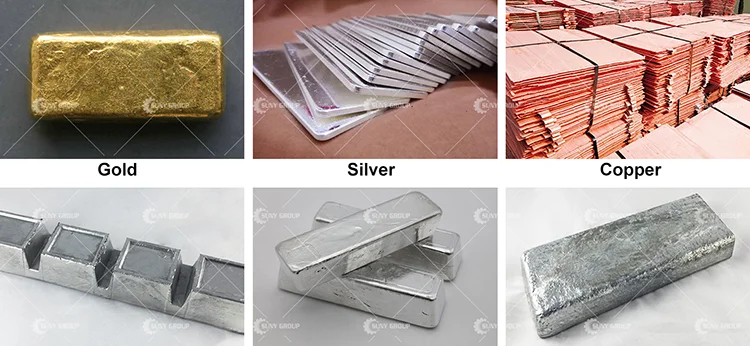

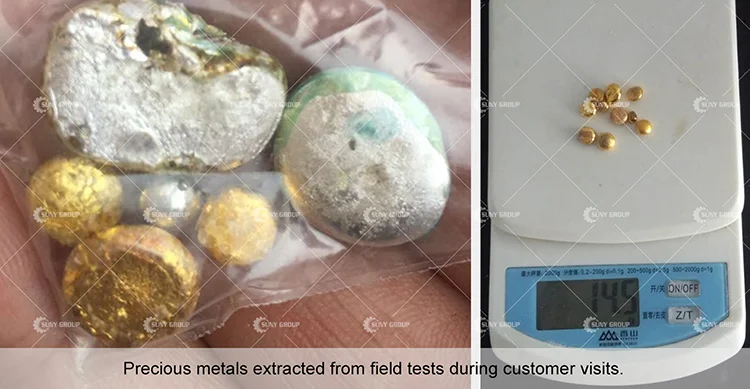

AFTER EXTRACTION
Precious Metal Refining Plant is used for recovery refining precious metals such as gold, silver, palladium and platinum from electronic waste containing precious metal chip components and anode mud.
PROCESS INTRODUCTION

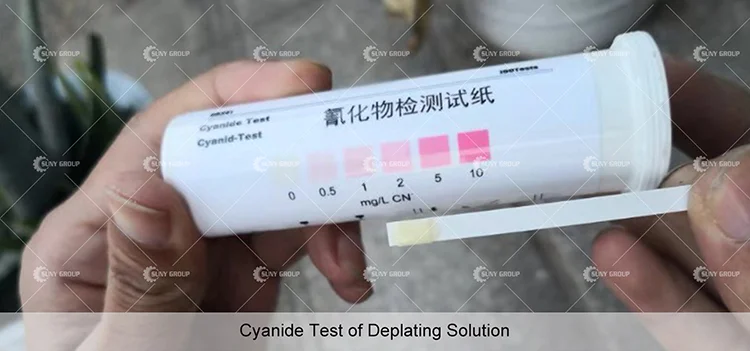

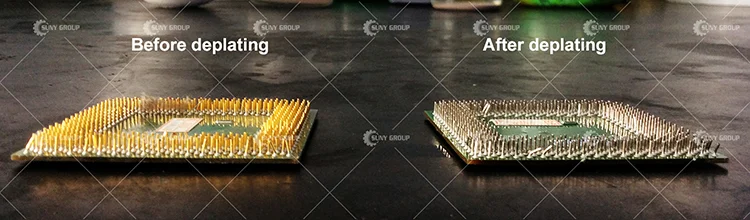

For some components dismanlted from circuit boards, some of them surface plated gold, such as CPU, it will be first to do surface stripping process, to remove and extract the surface gold firstly, the following is the CPU before stripped and after stripped comparison.

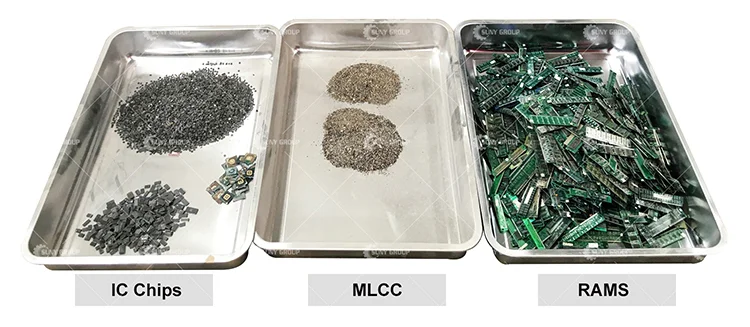

Most part Precious metals are contain in the IC chips, MLCC and some memory card, these materials will be go into our Precious metals recovery system to processing, to recovery the precious metals, such as gold, silver, pd etc.

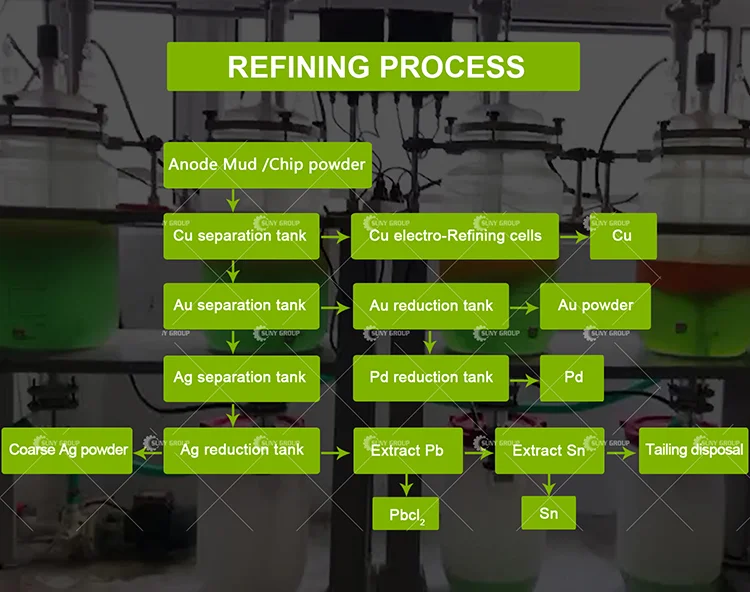

The detailed processing step as: for the above materials will be firstly to put into our special designed carbonization furnace to smetling, to demage the plastic, Second is to grinding into the fine powder, Third is to do the chemical leaching, will be recovery the gold, silver, palladium orderly, as the following drawing.
TECHNICAL CHARACTERISTICS
The recycle rate of gold, slivr can get more than 99%

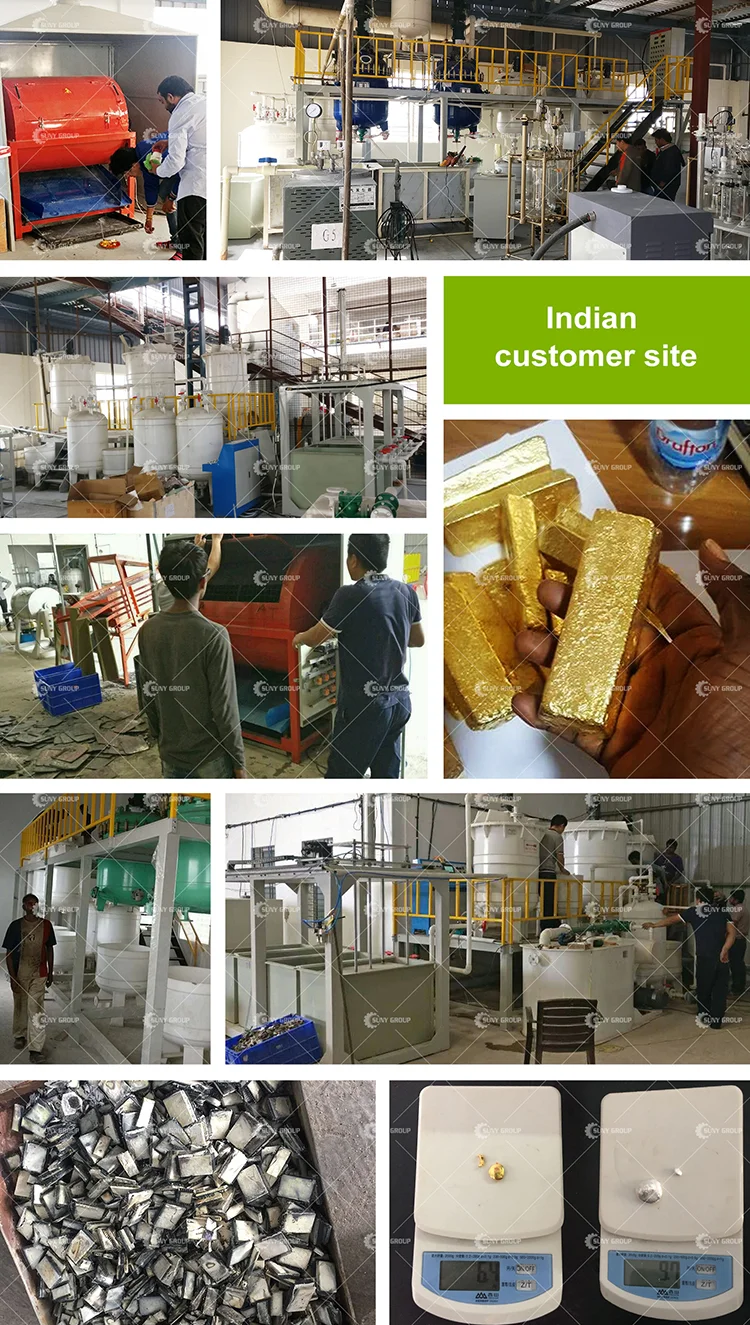

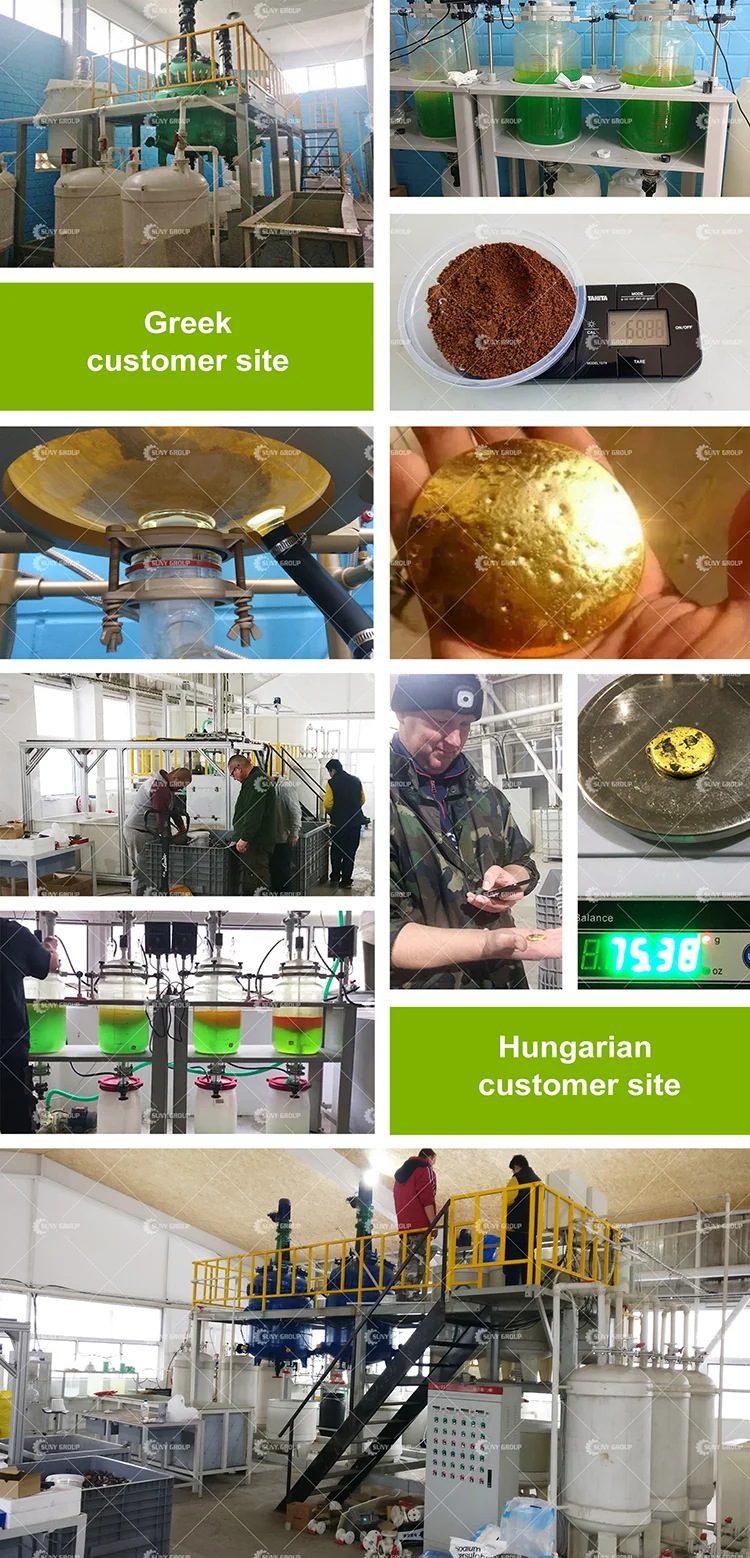

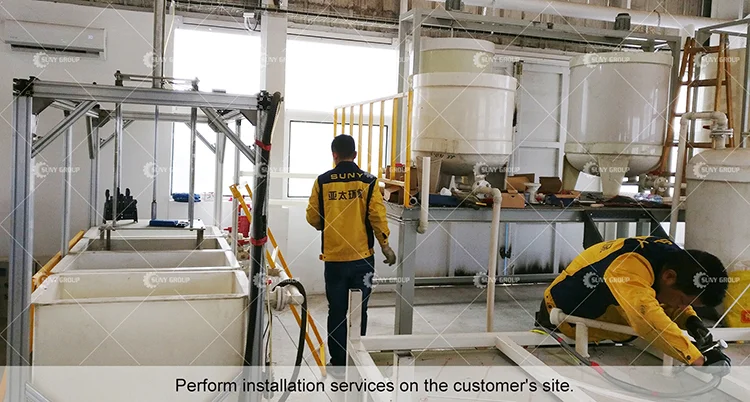

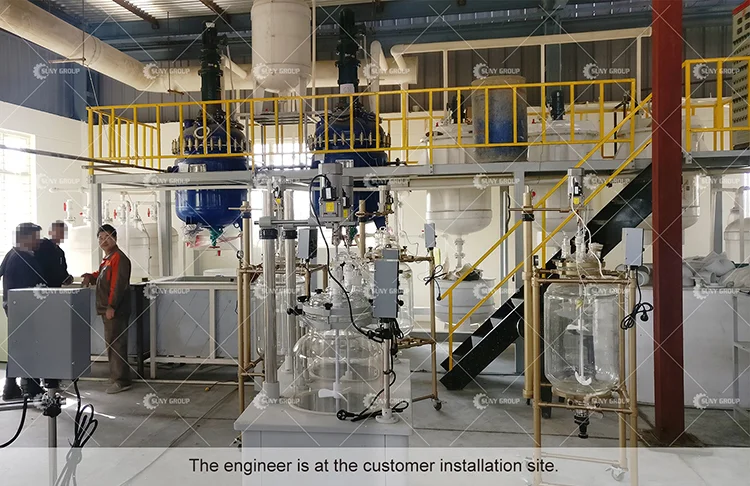

CUSTOMER SITE
