Автоматическая машина для изготовления бисквитов на двух полосах крема сэндвичей

Описание и отзывы

Характеристики

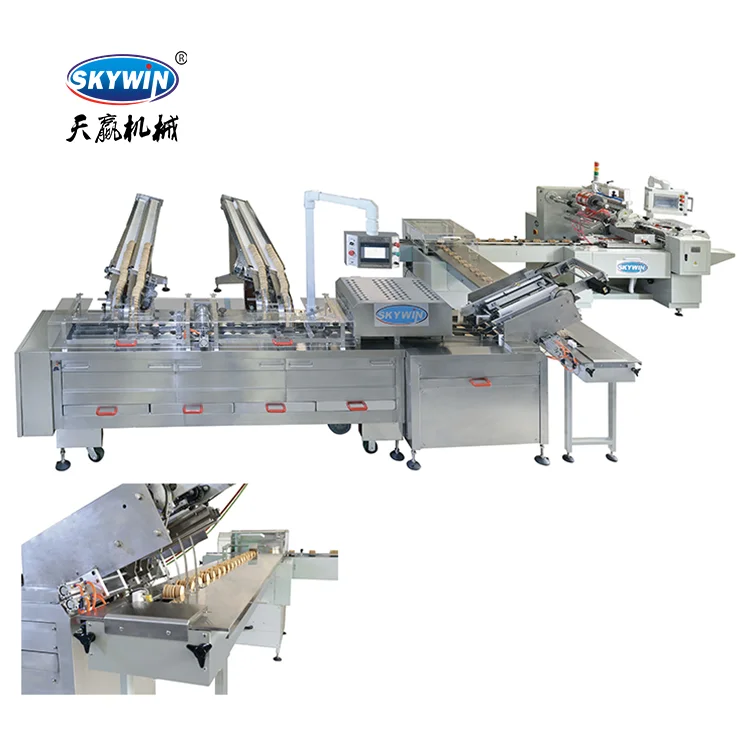

Automatic Two Lanes Cream Biscuit Sandwiching Machine

With Trayless On-edge Packing Machine



Skywin provide different kinds of  biscuit sandwich machines.

The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.

It's used for sandwiching for different flavour then transfer to the packing machine automatically.

Energy saving and labor saving

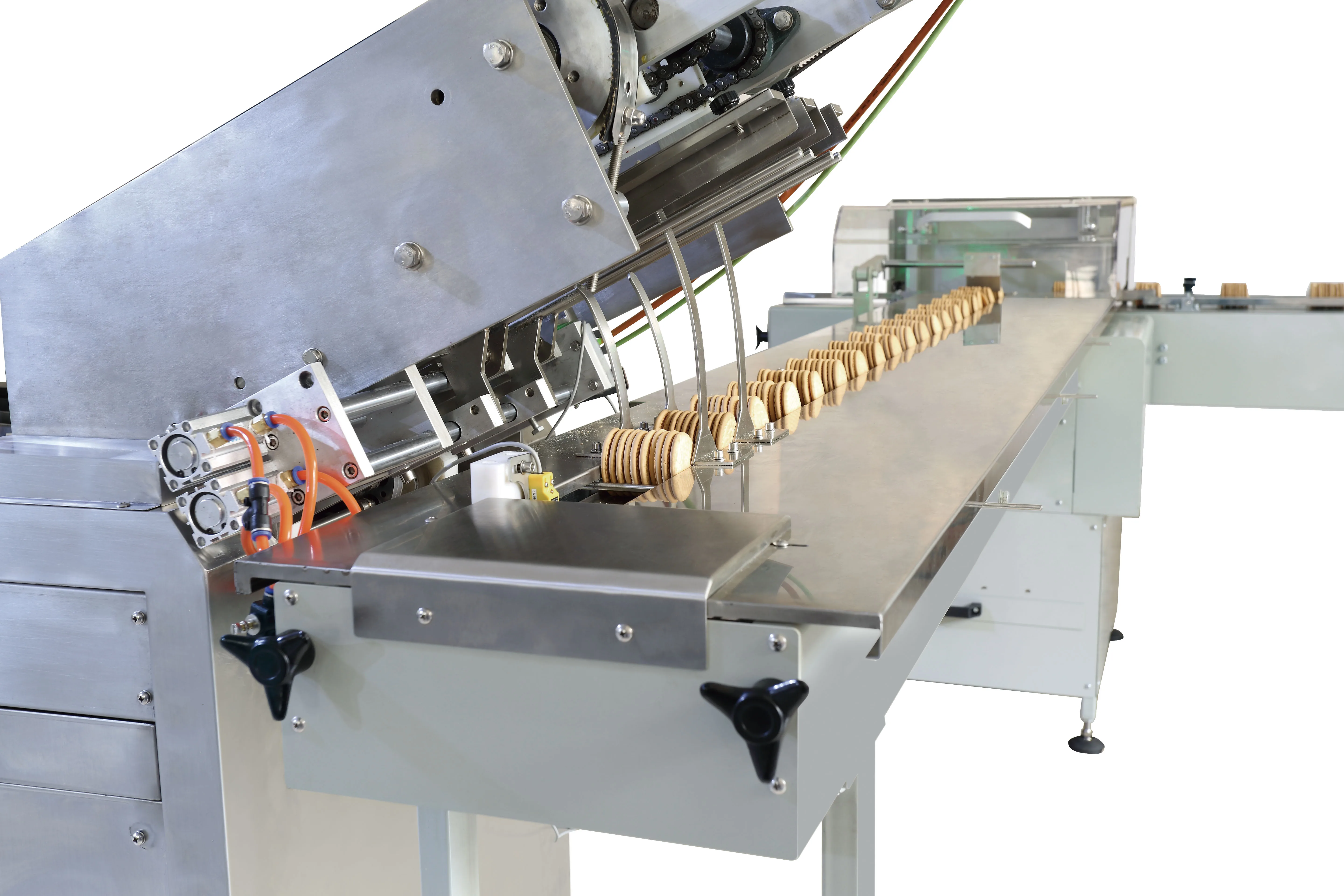

Two Lanes Sandwiching connected Trayless on Edge Packing Machine

machine customized. pictures and videos for reference only.

Funtion	Single Flavor Cream/Jam Sandwiching Machine
	Round		Square
Biscuit size	30-70mm H3-8mm		L35-70mm W30-60mm H3-8mm
Capacity	Two Lane 1200 PCS Sandwiches/min
	single-phase AC 220V 50Hz
Operating voltage
Machine size	4500*1900*1470mm
Total power	4Kw
Weight	850kgs
Special specification is acceptable



Details :

1. Independent frequency inverter control and adjust

2. 2.65m length Conveyor belt feeding the biscuit

3. Siemens inverter and PLC touch screen and Schneider electric

4. Delta servo motor and gearbox

5. All pushers on creaming machine made by stainless steel

6. Double jacket water heating on cream tank



Sandwich Bicsit Sample :

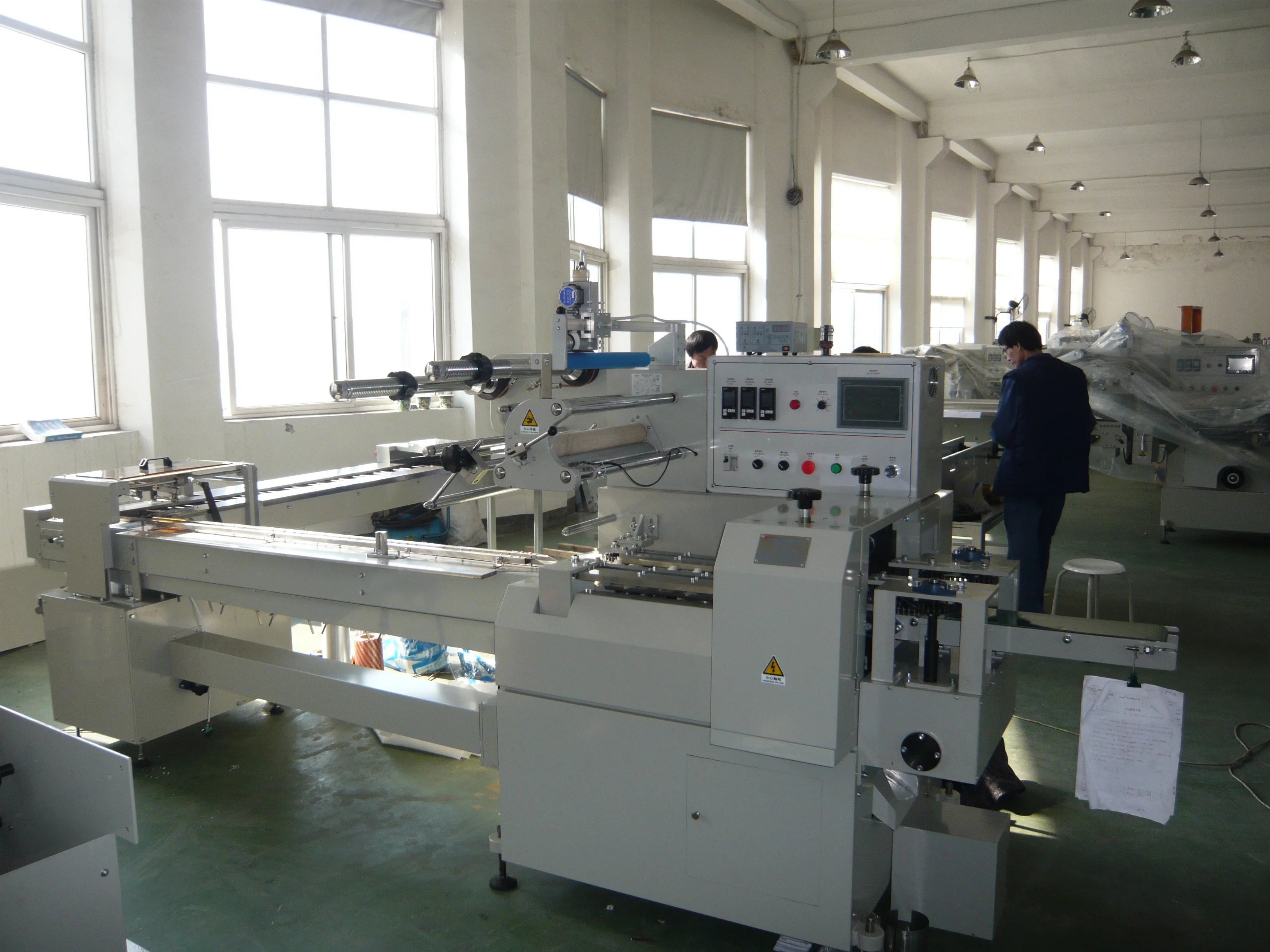

Trayless on edge Packing machine





1. The machine has included: Date printer

2. This type packaging machine is Three servo PLC touch screen control.

     ORMON servo motor from Japan

3. Suitable for packing several pieces of biscuits into one package without tray,

4. Applicable for biscuits of square, round, oval and other shapes

5. Capacity: 30 to 120 packs/minute







Packing Sample :
