GWSM-0219 toroidal transformer inductor transformer gear head winding machine
1 | Wire diameter | 0.15-0.6 | Max.winding speed | 700rpm |
2 | Max.final coil.O.D | φ60-200 | Wire spacing | Proportional linkage |
3 | Min.final coil.I.D | φ30 | Supply voltage | AC 220V（50Hz） |
4 | Max.finalcoil height | 80 | Mechanical dimensions | 550*500*700 |
5 | Controller storage capacity programs | 29组（set） | Weight | 83kg |
Related prodcut:

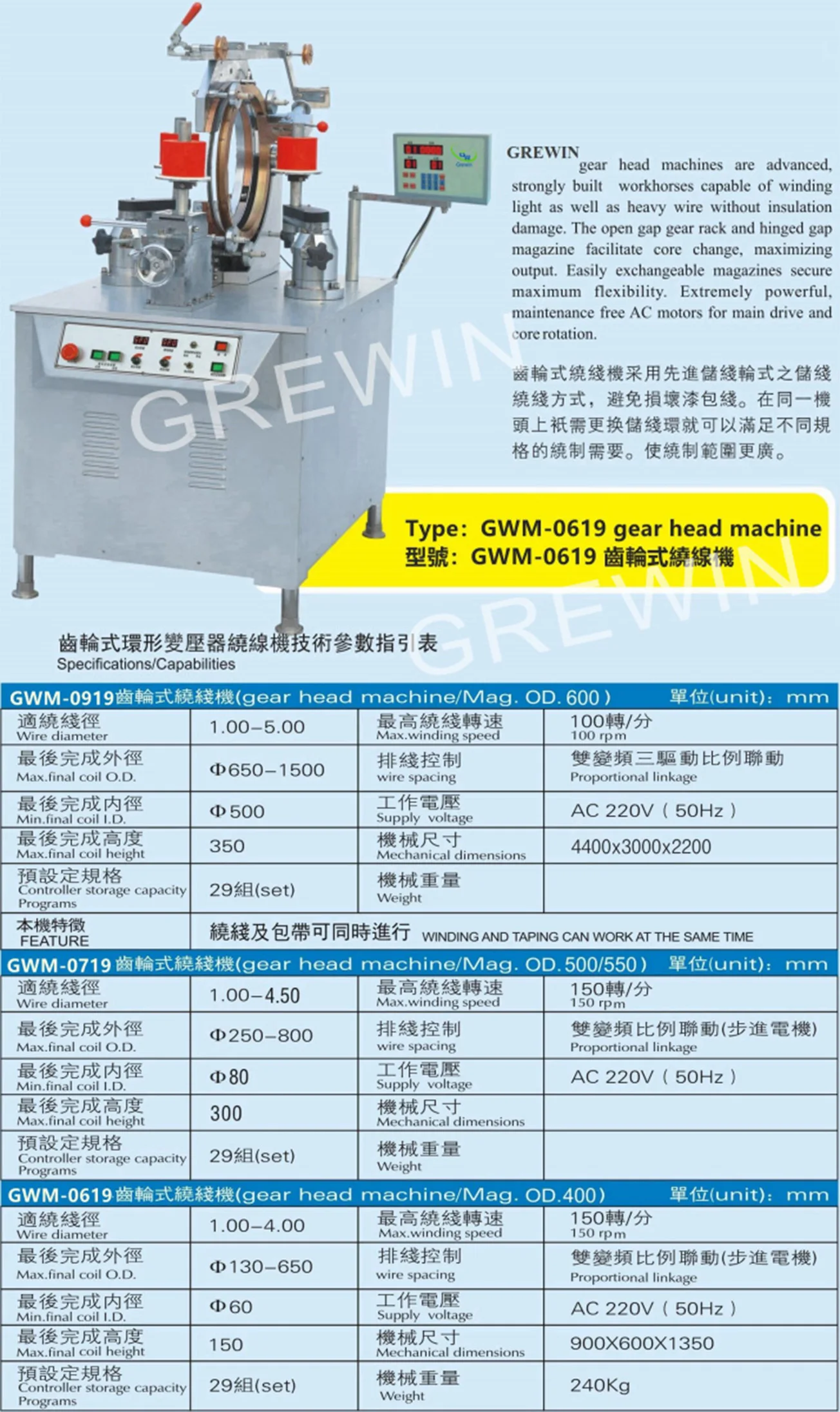

GWM-0619 TOROID COIL WINDING MACHINE
1 | Max.final coil.O.D | 1.0—4.0 | Max.winding speed | 150rpm |
2 | Max.final coil.O.D | φ130—650 | Wire spacing | Proportional linkage |
3 | Min.final coil.I.D | φ60 | Supply voltage | AC 220V（50Hz） |
4 | Max.finalcoil height | 150 | Mechanical dimensions | 900*600*1350 |
5 | Controller storage capacity Programs | 29 （set） | Weight | 240kg |
the show of our coil winding machine
GWM-0319B/GWM-0319
toroid coil winding machine
GWSM-0219/GWSM-H0819
transformer coil winding machine
GWM-0119intermediate speed
toroidal transformer winding machine
GWM-0619/GWM-0719
toroid winding machine
GW0950
rectangle type coil winding machine
GWJ-0519/GW0960
belt type coil winding machine
GWTM-0118
taping machine
GWTM-0218
coil taping machine
GWTM-0418
tape winding machine
GW-9020S
magnetic electric coil winding machine
GW-9020B
magnetic electric coil winding machine
GW-6820
cnc coil winding machine
GW-5819
coil winding machine
GW-5820
coil winding machine
Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for wraping the insulation tape on the toroidal core and windings.
It is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. gear type Digital Toroid Winding Machines adopt
precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. gear type Digital Toroid Winding Machines adopt
precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in winding machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
Why Choose Us
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care.
manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care.
All done help to extend the use period.
Contect us
Could you tell us below electrical datas?
1.Winding inner finish coil dimaeter?
2.Outer diameter(finished coil size)?
3.Wire diameter range?
2.Outer diameter(finished coil size)?
3.Wire diameter range?
4.And other related needs?good packaging and shipping strategy will be sent.
