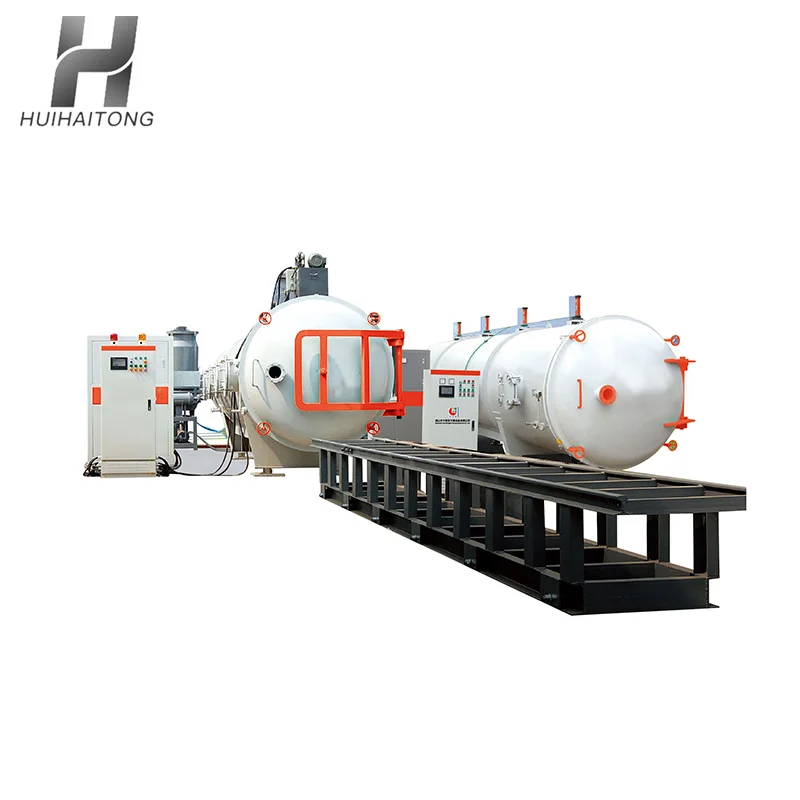

Вакуумная высокочастотная древесная сушилка GS Series 60-SA Быстросохнущий пиломатериал без изгиба для всей
- Категории: >>>
- Поставщик: Foshan,Huihaiton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

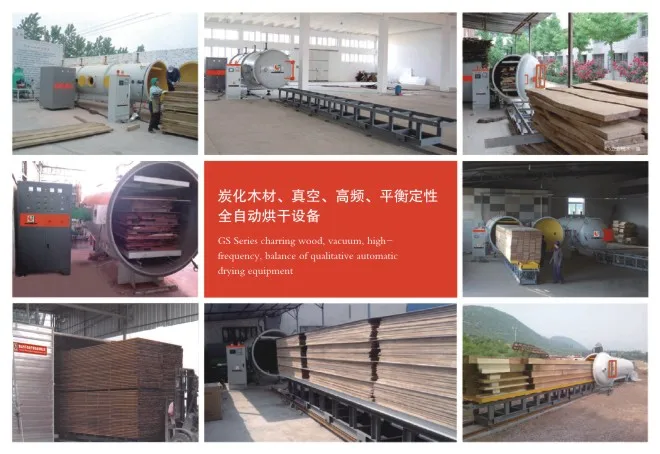

GS series carbonized wood, vacuum, high frequency, balance
Principle of vacuum drying equipment for qualitative and balanced treatment of carbonized wood:
The heating of the drying equipment is the internal self heating based on the principle of high-speed overturning of dipoles such as water in the wood in the high-frequency and high-speed electromagnetic field and friction heat generation, and the part with more water has large calorific value, which can rapidly increase the internal temperature of the wood and form a temperature and pressure gradient with high internal and low external, which is conducive to the outward discharge of water in the wood. Therefore, high-frequency vacuum, qualitative and balanced drying of wood is a combined drying technology integrating the advantages of high-frequency heating and negative pressure vacuum. It is the most ideal drying method of wood.
The heating of the drying equipment is the internal self heating based on the principle of high-speed overturning of dipoles such as water in the wood in the high-frequency and high-speed electromagnetic field and friction heat generation, and the part with more water has large calorific value, which can rapidly increase the internal temperature of the wood and form a temperature and pressure gradient with high internal and low external, which is conducive to the outward discharge of water in the wood. Therefore, high-frequency vacuum, qualitative and balanced drying of wood is a combined drying technology integrating the advantages of high-frequency heating and negative pressure vacuum. It is the most ideal drying method of wood.
FEATURES AT A GLANCE
Characteristics and advantages of wood qualitative and balanced treatment vacuum drying equipment:
1. High frequency heating: in the high frequency drying equipment, the wood is in the middle of the high frequency polar plate, and the electric field directly penetrates the wood for uniform heating, while the high frequency only acts on the water, and the wood itself does not absorb the electric field. Therefore, the water is quickly heated and gasified. Due to the internal temperature and water vapor pressure, a pressure gradient is formed inside the wood, forcing the water in the wood to be discharged to the surface, The water vapor is discharged into the tank, so the high-frequency drying is heated from the inside to the outside, which is just opposite to the traditional steam or hot air heating. Therefore, the relative humidity of the wood surface is very large, eliminating the process of continuous water spraying in the drying process. At the same time, the heating is more uniform, fast and not easy to crack and deform.
2. Vacuum state: the boiling point of water in vacuum state is low, and the water in vacuum, qualitative and balanced drying equipment begins to vaporize when it is heated to 60 ℃, which achieves the purpose of drying at low temperature, greatly reduces the problem of wood cracking and deformation, and is especially suitable for the drying of more valuable wood sensitive to temperature. The effect of vacuum suction accelerates the drying process. The yield can reach more than 95%

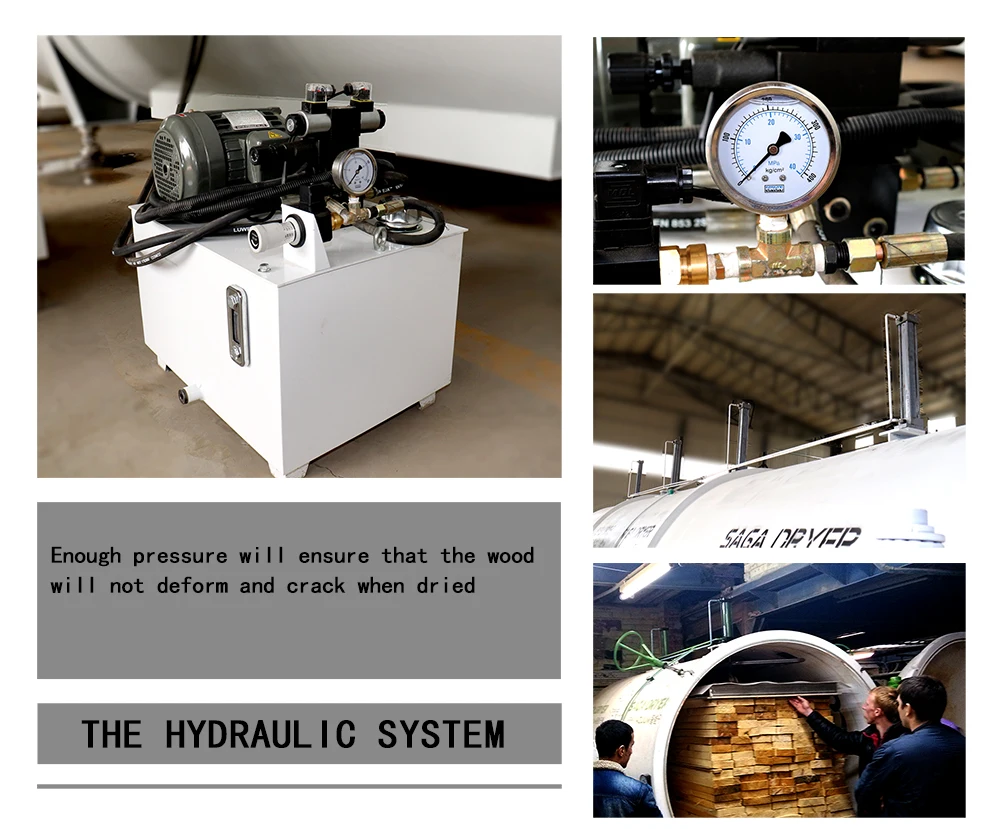

3. The top of vacuum, qualitative and balanced drying equipment adopts hydraulic device, and the wood is dried in the compressed state, which plays the role of wood straightening.
4. In addition, vacuum, qualitative and balanced drying equipment has many characteristics such as sterilization, insecticidal and environmental protection, which will not be described one by one.
2. Vacuum state: the boiling point of water in vacuum state is low, and the water in vacuum, qualitative and balanced drying equipment begins to vaporize when it is heated to 60 ℃, which achieves the purpose of drying at low temperature, greatly reduces the problem of wood cracking and deformation, and is especially suitable for the drying of more valuable wood sensitive to temperature. The effect of vacuum suction accelerates the drying process. The yield can reach more than 95%
3. The top of vacuum, qualitative and balanced drying equipment adopts hydraulic device, and the wood is dried in the compressed state, which plays the role of wood straightening.
4. In addition, vacuum, qualitative and balanced drying equipment has many characteristics such as sterilization, insecticidal and environmental protection, which will not be described one by one.
PRODUCT SPECIFICATIONS
Equipment Type | Dimension(mm) | weight of equipment(T) | Tank diameter（mm） | Reactor material size(mm） | Frequency output power（Kw） |
30-SA | 1000*1000*1900 | 6.38 | 1700 | 3000*1000*1000 | 28 |
45-SA | 1000*1000*1900 | 7.29 | 1700 | 4500*1000*1000 | 28 |
60-SA | 1250*1250*2050 | 7.99 | 1700 | 6000*1000*1000 | 38/48 |
100-SA | 1250*1250*2050 | 9.18 | 1700 | 6000*1300*1300 | 48 |
120-SA | 1250*1250*2050 | 12.9 | 1700 | 8000*1250*1250 | 48 |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Company Profile
Founded in January 2021, HUIHAITONG drying equipment Co., Ltd. is located in Lunjiao town, Shunde District, Foshan City, Guangdong Province. It is an enterprise specializing in the production of drying equipment integrating design, manufacturing, installation and sales. We have first-class engineers and technicians in the industry, who can provide you with first-class quality drying equipment and reliable after-sales service.
The company's main products: vertical hot air drying furnace, atmospheric water heater, wood drying equipment, carbonization equipment, veneer drying equipment, solar energy, photovoltaic pre drying equipment, large steam drying equipment, wood cooking box equipment, vacuum drying equipment, central dust collection equipment, dust-free paint spraying room equipment, paint drying equipment, dust-free grinding platform, constant temperature room, semi-finished product drying equipment Veneer drying and feed, ceramic, textile drying equipment, industrial dehumidifier and drying equipment accessories, etc. The company can design and manufacture non-standard drying equipment and related supporting equipment according to user requirements.
The company's main products: vertical hot air drying furnace, atmospheric water heater, wood drying equipment, carbonization equipment, veneer drying equipment, solar energy, photovoltaic pre drying equipment, large steam drying equipment, wood cooking box equipment, vacuum drying equipment, central dust collection equipment, dust-free paint spraying room equipment, paint drying equipment, dust-free grinding platform, constant temperature room, semi-finished product drying equipment Veneer drying and feed, ceramic, textile drying equipment, industrial dehumidifier and drying equipment accessories, etc. The company can design and manufacture non-standard drying equipment and related supporting equipment according to user requirements.
certificate
Thank you for choosing the equipment of "HUIHAITONG" company! Your trust an praise are our greatest harvest! We will constantly strive to develop new products and equipment. In order to meet the needs of the market and customers, our company has obtained a number of patents in this industry and products. In order to ensure that customers provide more standardized, safer,energy-saving, efficient and low-carbon products and equipment for customers, we will explore new drying methods and design new drying processes, Make our drying equipment applicable to more fields and dry products for you "better, faster and more economical". We will try our best to serve you, promote your productivity to a new level, and make your products sell better. To the world, all over the world! .
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are a professional manufacturer of drying equipment with 16 years of experience in China.
Q2. How long is your delivery time?
A2.The normal delivery is 30 days, and the stock is available within 7 days. You can contact for detailed instructions.
Q3. What is your payment method?
A3.30% deposit in T/T advance payment and 70% of the balance before shipment.
Q4. How long is the warranty? Does your company provide spare parts?
A4. One year. Provide you with spare parts for free.
Q5. If I need to customize different working sizes, can you help us produce them?
A5.Yes, we can help you build a complete production line and provide relevant professional advice.
