XS-001C Infrared Sensor LED Light

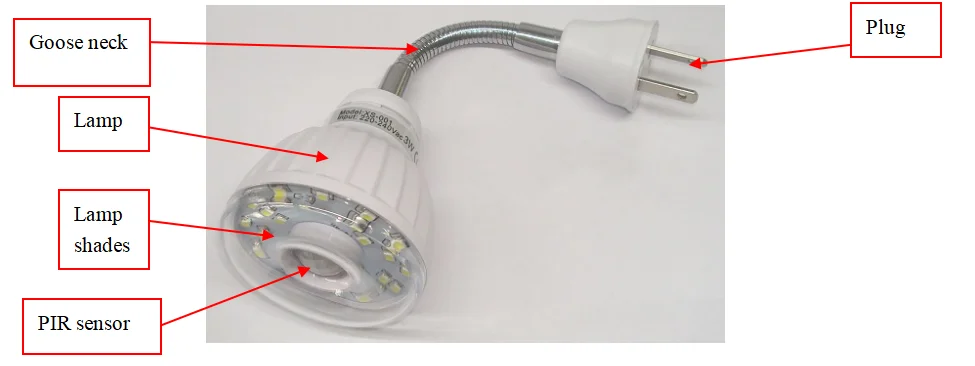

1. Product introduction

The human body induction lamp receives the infrared energy emitted by the human body through an infrared sensor, and after comparison, sends a signal to the processor, and then starts lighting. During use, when a person moves within the detection range, the lighting is automatically turned on; when the person leaves, the lighting will continue for the set time, and then the lighting will be turned off automatically. The product is easy to install and plugs directly into the socket. It has the characteristics of power saving, long life, no radiation, environmental protection, and explosion-proof. It is widely used in the automatic lighting of corridors, corridors, garages, closets, bathrooms, kitchens, basements and other places.



2. Product specifications

1. XS-001 is 23 3528 lamp beads. Single lamp bead brightness: 7-8LM (whole lamp brightness: 150LM). Continuous working for 1000 hours, the lamp bead brightness attenuation is less than 5%. Lamp life: 35,000 hours or more. The whole lamp is guaranteed for 2 years.

2. A metal hose is added, which can be used to increase the angle of the lamp body.

3. Voltage: 220-240V/50Hz and 110-120V/60Hz. Lamp working power: 2.0W, standby power: 0.05W.

4. Delay time: 30 seconds, can be adjusted according to customer requirements in batches.

5. Sensing angle: about 90 degrees.

6. Sensing distance: 5-6 meters.

7. Equipped with a light sensor, when the illuminance is greater than 7 Lux and during the day, the sensor light will not turn on lighting.

8. The material of the lamp body is fireproof ABS plastic, and the material of the lampshade is GPPS plastic.

9. The lamp holder is American-style two plugs.

10. Product size: Φ60X195 mm,



3. How to use

1. Install the socket and plug the sensor light directly into the socket. The direction of the induction light is as far as possible downwards towards the person, perpendicular to the direction of movement of the person. Can not be blocked.

2. Turn on the power switch, the sensor light can work.



Four. Matters needing attention

1. The working temperature is used in the environment of -10℃~+35℃.

2.Do not store in damp and near open flames.

3.Do not use it near water and corrosive liquids, flammable and explosive places.
