Specification | ||||||||||
Panel info | Model No. | S-CN231P1-V01 | ||||||||

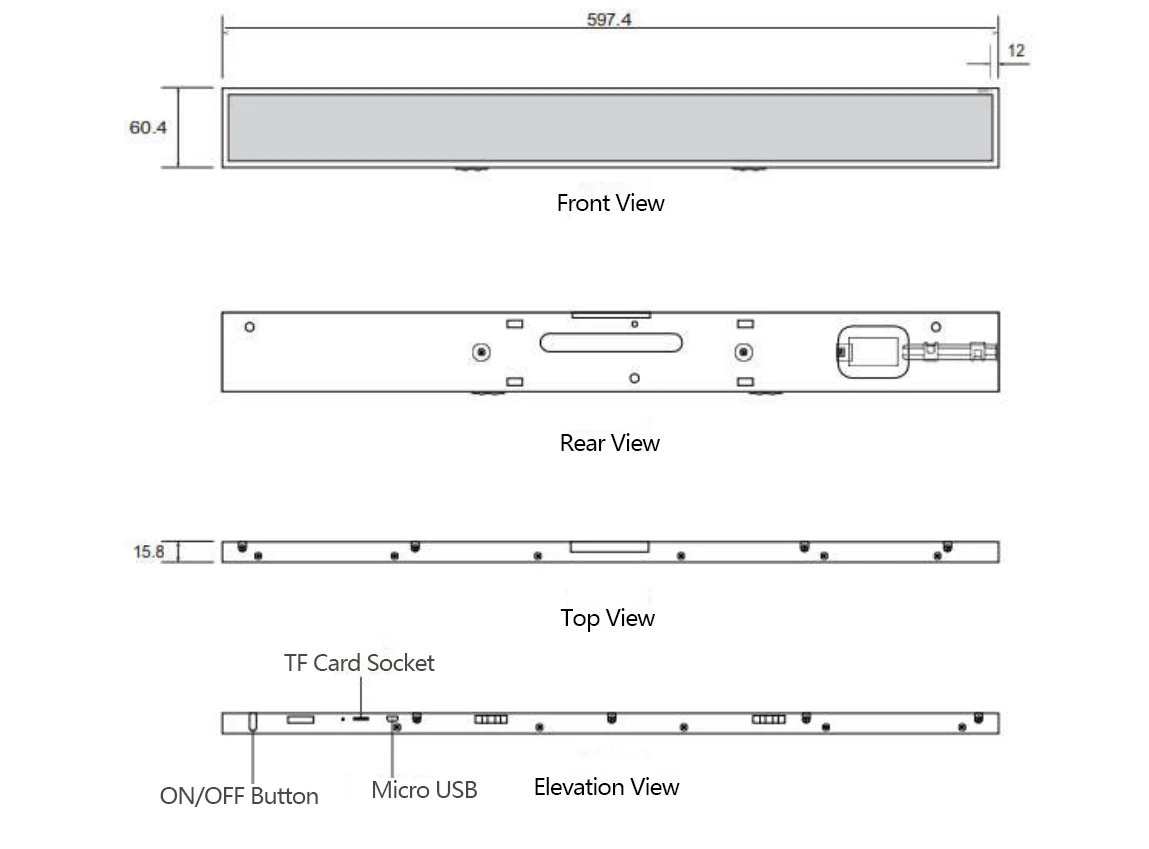

Display Outline Size(mm) | 597.4*60.4*14.5 | |||||||||
Display Area(mm) | 585.6(H)*48.19(V) | |||||||||
Resolution | 1920*158 | |||||||||
Brightness | 400CD/㎡ | |||||||||
Pixel Pitch | 0.305 | |||||||||
Contract Ratio | 3000:1 | |||||||||
View Angle | 89/89/89/89 U/D/L/R | |||||||||
System | CPU | S500,ARM Cortex-A9 R4,28nm | ||||||||
Operating System | Android 5.1.1 | |||||||||
RAM | 1G | |||||||||
ROM | 8G (NAND Flash) | |||||||||
Interface | Micro USB | USB OTG,USB Host | ||||||||
Card Socket | PUSH-PUSH TF Card Socket | |||||||||
Power Jack | DC IN 12V/2A | |||||||||
Internet | Wi-Fi | 802.11b/g/n | ||||||||
LAN | 10M / 100M Network port | |||||||||
Bluetooth | Bluetooth V4.0 of 1, 2 and 3 Mbps. FHSS, GFSK, DPSK, DQPSK | |||||||||
Media play | Video Format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | ||||||||
Audio Format | MP3/WMA/AAC etc. | |||||||||
Picture Format | JPG、JPEG、BMP、GIF、PNG,etc. maximum resolution to 4096*4096; | |||||||||
Other Parameters | VESA | Support wall mount | ||||||||
Power | 20W | |||||||||
Operating Temperature | 0℃~50℃ | |||||||||
OSD Language | Multilingual OSD operation | |||||||||
Wireless Display System | CMS, Windows OS(Optional) |
