Лабораторная электрическая мешалка HiYi высокой резки 20 л, 100-1400 об/мин
US $120.00-$145.00
Высокопроизводительный высокоскоростной однородный пищевой эмульгирующий смеситель и диспергирующий автоматический
- Категории: >>>
- Поставщик: Guangzhou,PM,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

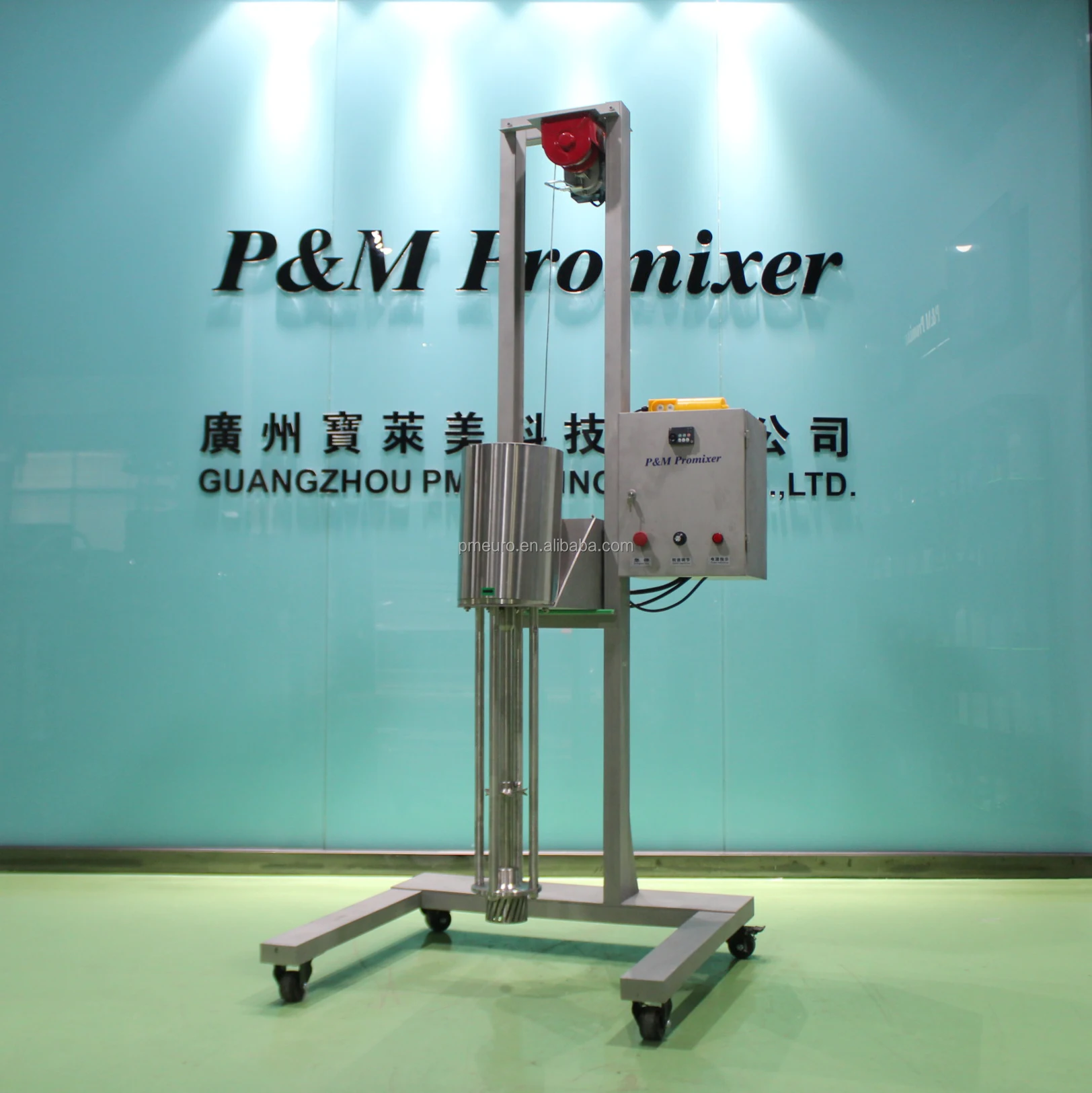

High-shear high-speed homogeneous food emulsifying mixing and dispersing automatic elevator
Disperser is a kind of mixer in a broad sense. Due to the use of high-speed agitators (such as circular saw-tooth agitators),
strong turbulence can be formed locally, which usually has a strong dispersion and emulsification effect on the material.
Therefore, this type of high-speed mixer is also called a disperser.
strong turbulence can be formed locally, which usually has a strong dispersion and emulsification effect on the material.
Therefore, this type of high-speed mixer is also called a disperser.
The dispersing machine is mainly divided into the lifting dispersing machine and the kettle dispersing machine. The lifting
dispersing machine can be divided into: hydraulic lifting dispersing machine, pneumatic lifting dispersing machine, hand lifting dispersing machine, etc. according to the lifting mode. Also called high-speed mixer.
dispersing machine can be divided into: hydraulic lifting dispersing machine, pneumatic lifting dispersing machine, hand lifting dispersing machine, etc. according to the lifting mode. Also called high-speed mixer.
This machine is suitable for high-speed stirring, dissolution and dispersion of liquid and liquid-powder phase materials in
coatings, dyes, inks, pigments, cosmetics, resins, adhesives, emulsions, medicine, petroleum, and other fields. The speed can be adjusted arbitrarily (0- 1800 rpm)
coatings, dyes, inks, pigments, cosmetics, resins, adhesives, emulsions, medicine, petroleum, and other fields. The speed can be adjusted arbitrarily (0- 1800 rpm)
Main feature
1. It is suitable for homogeneous dispersion and emulsion manufacture of medium and low viscosity emulsions. It is suitable for most formulation requirements. The special rotor produces strong shear, grinding, impact and turbulence, emulsifies oil and water, and the particle size reaches a stable state.
2. Use 304 stainless steel and 316 stainless steel according to customer requirements.
3. There are three options for the motor: variable frequency speed regulating motor, ordinary motor and explosion-proof motor. Motor can choose domestic or imported ABB motor.
4. The bottom is equipped with movable casters, which is convenient to move and fix.
5. Variable frequency speed regulation can be adopted, stable operation and convenient operation.
Control cabinet
Mitsubishi inverter, speed temperature, adjustable speed,
Homogenizing head
Stainless steel material, uniform cutting, good homogenization effect
dispersing plate
The radial action area and force are large
PRODUCT SPECIFICATIONS
The below parameter is for reference only.
It can be customized according to clients' requirement.
Type | YLH-50L | YLH-100L | YLH-200L |
Homogenizer（mm) | φ90 | φ100 | φ100 |
Power（kw) | 1.5 | 2.2 | 4 |
Feet wide（cm) | 65 | 65 | 80 |
Lifting height（cm) | 80 | 80 | 100 |
speed（r/min) | 0-3000 | 0-3000 | 0-3000 |
Overall size（cm） | 85*85*173 | 85*85*173 | 100*100*210 |
Voltage（v) | 220/380 | 220/380 | 220/380 |
Applications
UNIVERSAL FOR ALL TYPES OF BOTTLES
Shaped bottle caps & easy screw caps
Our equipment has CE certification, American UL certification, product quality certificate, stainless steel material certificate and pressure vessel certificate, etc.
Cooperation partner
Our Advantages
Company Profile
P&M Promixer is a comprehensive enterprise integrating of production, sales, trade, after sales and others,With market partner in Europe to provide the advanced European technology and after-sales service. The products include Vacuum Emulsifying Mixer, Liquid Washing Mixer, RO Water Treatment, Cream & Liquid Filling machine.Our company provides top-ranking professional project installation experience and management experience. By holding the work attitude of keeping improving, we provide users with good after-sales service and meet customer requirements.
The strict workshop site management, 6S location management and various operation rules for safe production have become driving force for the development of our enterprise. We are continuously intensifying the research, development and innovation of core technology, pursuing prominence and keeping improving, ensuring the excellent performance of every single product by advancedproduction equipment, strict quality control and precise production and inspection procedures.
Exquisite technology provides customers with cutting-edge products. As a supplier of overall solutions, we provide diversified stand-alone equipment, process automation, production process control, MES execution management and data collection, production data analysis and online reports, etc. The industry provides integrated solutions for digital factories such as online M2M and M2B.
In the past and in the future, P&M Promixer will continue to participate in exhibitions around the world, bringing you more
newproducts, new technologies and overall solutions for specific industries in various fields.
Product packaging
We have a variety of packaging methods for customers to choose: vacuum wood packing, ordinary wood packing, frame packing, etc.,to meet the different needs of customers
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
Customer praise
FAQ
Q1. Are you factory or trade company?
A1: We are factory with more than 30 years production experience. Factory inspection andcustomized is acceptable.
Q2. What would be the after-sales service?
A2: We provided 2-year free warranty which base on the quality problem, and lifetime free after-sales consultant. We set up Spain office and Tunis service team in Europe and Africa, provide convenient service for our customers.
Q3. How to ensure the quality?
A3: FAT is acceptable, including CE, IQ, OQ, PQ
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
Q4. Do you provide installation
service?
service?
A4: The single unit machine has finished the installation before shipment, can be used directly. The production line will
arrange engineer to install and operator training on site.
arrange engineer to install and operator training on site.
