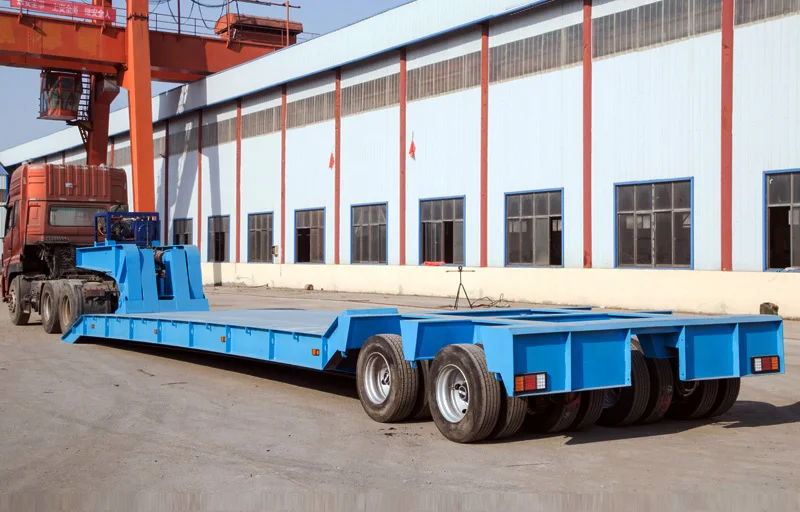

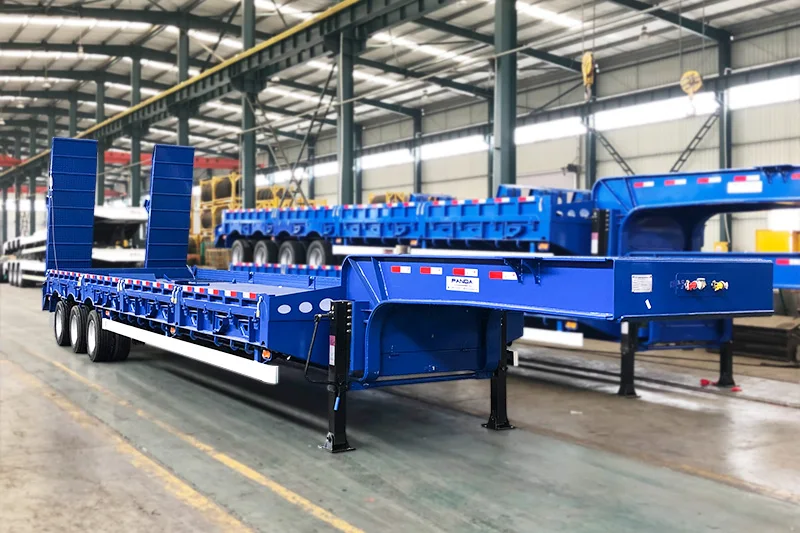

3 axles 60 ton 70 ton lowbed ramp trailer lowboy low bed semi trailer for sale
Product Description
Lowbed semi-trailers are usually used to transport heavy vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy-duty goods.
The lower the center of gravity, the more stable and The better the safety, the stronger the ability to transport ultra-high cargo and pass overhead obstacles.
Panda Mechaincal specializes in R&D and production of various low bed semi-trailers. The whole vehicle adopts advanced computer-aided design software, which is optimized and designed to be flexible and diverse. The load-bearing surface of the frame is designed according to user requirements to meet the transportation of various special goods.
Specification
| Trailer Name | 3 axles 60 ton 70 ton lowbed ramp trailer lowboy low bed semi trailer |
| Dimensions | 9500-16500*2500-3000*3200 (can be customized) |
Tare weight | Approx. 8000kgs-12800kgs |
Capacity | 30 ton - 100 ton |
Main beam | Q345B steel |
Side beam | 16 mm- 25 mm channel steel (Material is Q235 steel) |
Platform | 3 mm - 5 mm thickness chequered plate or can be optional |
Ladder | Manual type or Hydraulic type |
Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
King pin | Jost 2.0 or 3.5 inch bolted type |
Suspension | Mechanical suspension / Germany type or America type / Air suspension |
Braking system | WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank |
Rim | 9.0*22.5 / 8.0-20 / 8.5-20 |
Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
Feature: The whole trailer is made of high-strength board, light weight and high strength
Feature:The vehicle can be designed according to user needs, with optional rear-tail hydraulic climbing ladder, forehead hydraulic lifting, waiting car lifting, multi-axis lifting, etc., convenient and fast for loading and unloading
Feature:The main plane of the cargo platform of the frame is low, which ensures the stability of transportation, and is suitable for carrying all kinds of large equipment and steel materials.
Product Advantages

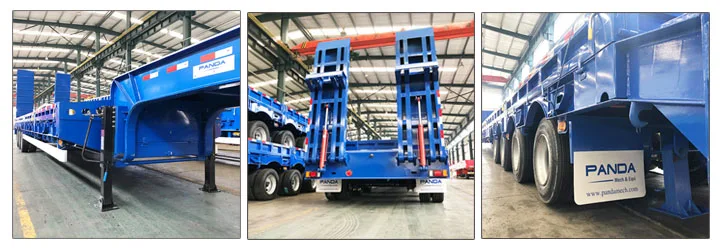

1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.

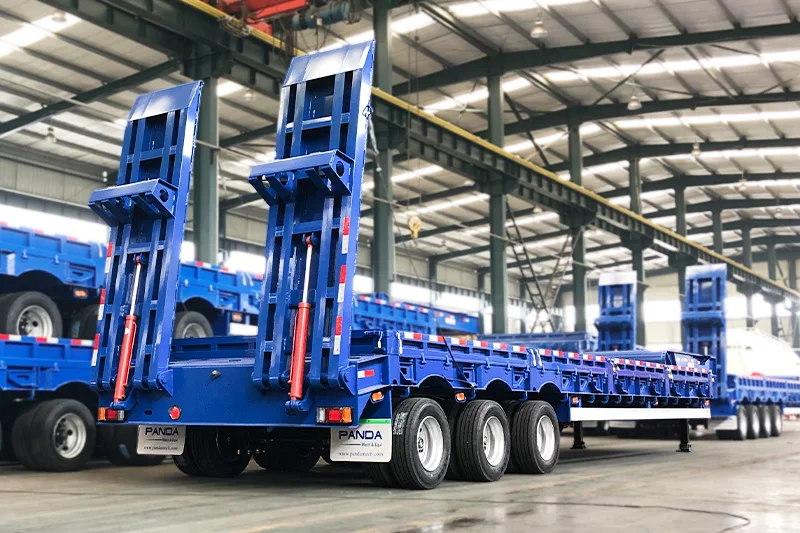

2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel
Company Information
FAQ
1. About customization:
We can recommend and customize suitable products for you according to your national road regulations and your application needs
2. About payment:
We accept T/T, L/C payment methods, and can also provide you with corresponding consulting services
3. About after-sales service:
We have a complete sales service system and professional instructors to provide you with 24-hour online service and local guidance
4. About the price:
The semi-trailer is a customized product. please consult the salesperson for the details and price of the specific configuration
Contact Us
Contact us for more produces, latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair whatever Panda or yourself vehicle, feel free to contact us, we will try our best to support you.
