Электрический штабелер на 1 2 тонны с питанием от переменного тока для склада
- Категории: Stacker & Reclaimer >>>
- Поставщик: Jining,Yikang,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
COMPANY INFORMATION
model | unit | CDD1016 | CDD1025 | CDD1030 | CDD1525 | CDD1530 | CDD2016 | |||||
Full load | kg | 1000 | 1500 | 2000 | ||||||||
Load center | mm | 500 | ||||||||||
Lifting height | mm | 1600 | 2500 | 3000 | 2500 | 3000 | 1600 | |||||
maximum height | mm | 2080 | 3000 | 3900 | 3000 | 3700 | 2080 | |||||
Fork frame width | mm | 600 | ||||||||||
Fork size | mm | 1050*140 | ||||||||||
Turning radius | mm | 1530 | 1668 | 1768 | ||||||||
Cargo channel | mm | 2240 | ||||||||||
Moving speed | Km/h | 4.6 | 4/4.5(Full load/no load) | 5/6(Full load/no load) | ||||||||
Ascent speed | mm/s | 80/130 | 75/116(Full load/no load) | |||||||||
Ascent speed | mm/s | 110/90 | 70/56(Full load/no load) | |||||||||
Maximum slope | ° | 5.8 | 5/10(Full load/no load) | |||||||||
Base wheel y | mm | 1288 | 1388 | |||||||||
x | mm | 370 | 270 | |||||||||
Drive length | mm | 915 | ||||||||||
Battery | v/ah | 24/210 | 24/210-250 | |||||||||
motor | kw | 0.75 | 1.2 | |||||||||
Lifting motor | kw | 3 | ||||||||||
Total length | mm | 1880/2330 | 2040/2440 | |||||||||
Total width | mm | 850 | ||||||||||
Total height | mm | 2080 | 1770 | 2270 | 1770 | 2270 | 2080 | |||||
Self weight (with battery | kg | 750 | 858 | 900 | 888 | 939 | 988 | |||||

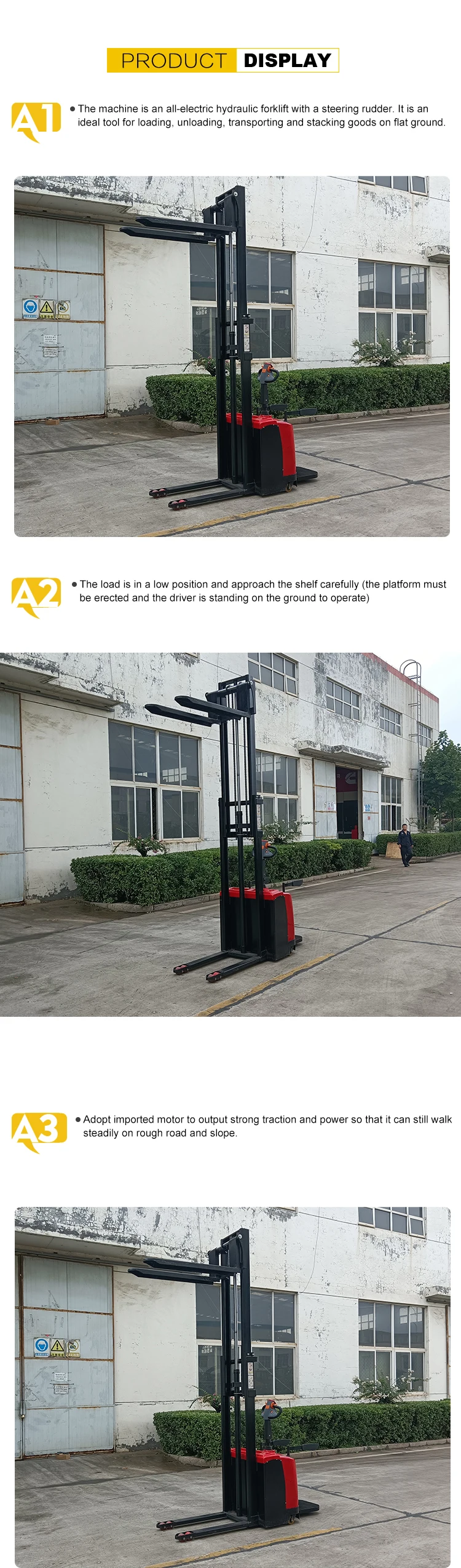

PRODUCT DISPLAY

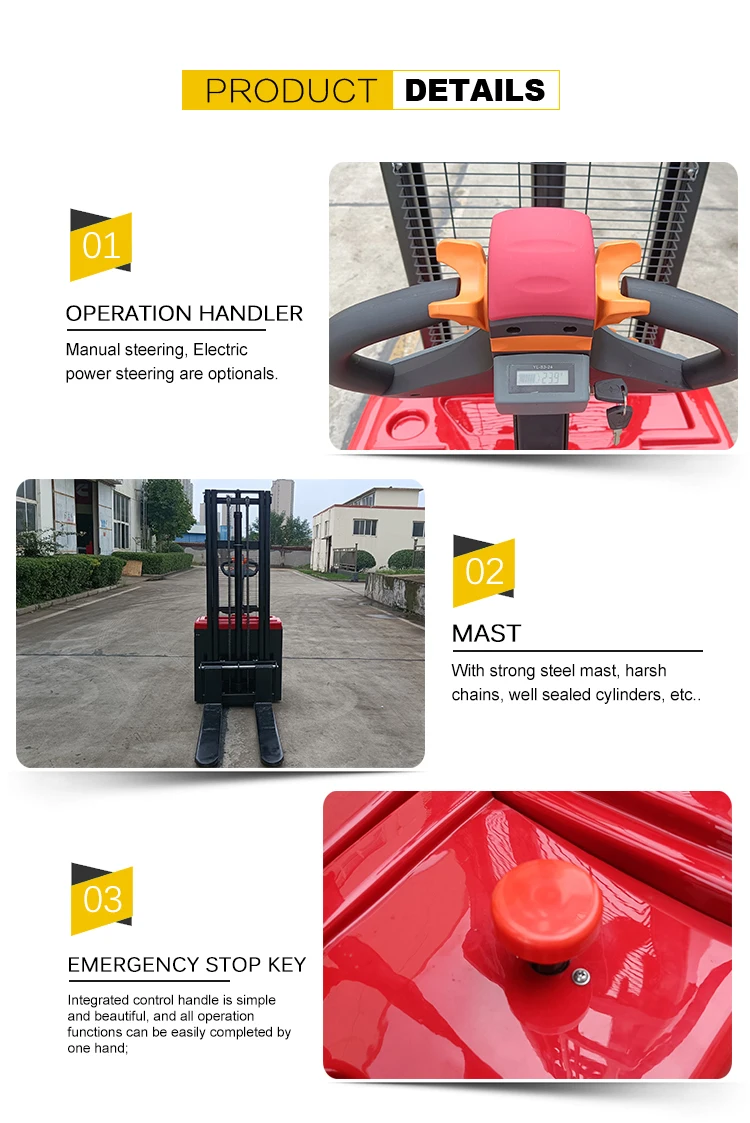

PRODUCT DETAILS

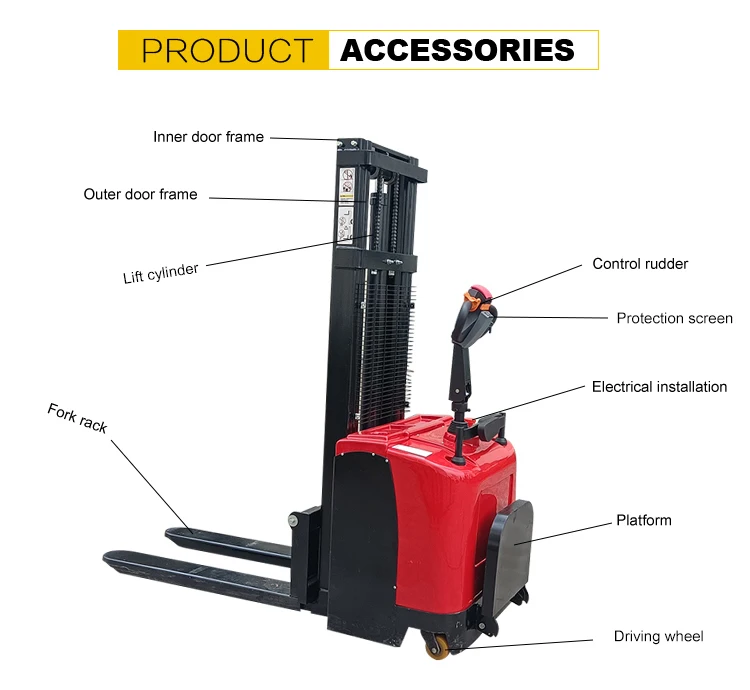

PRODUCT ACCESSORIES

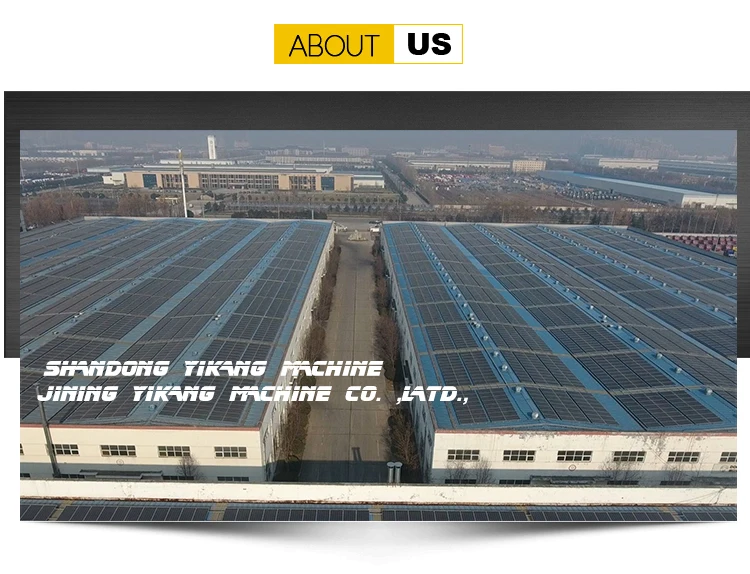

ABOUT US
Jining Yikang Machinery Co. ,Ltd.,is a high-end intelligent equipment manufacturing enterprise integrating industry, learning and research. The company is located in Jining national high tech Zone, covering an area of 40000 square meters, including R & D center, office building, production workshop, warehouse, test field and other facilities etc.
Founded in 2012, the company has the qualification of Cummins authorized dealer. Its main business scope includes the sales and maintenance of Cummins engines and accessories, also covering the production and sales of small engines, generator sets and second-hand engines.In 2018, the company was involved in the R & D and production of construction machinery. At present, the total annual output of stacker, forklift and 0.8-3-ton mini excavator is nearly 10000 sets.
The company has established stable cooperative relations with Cummins, Shandong University, construction machinery association and other units, connected with the national major scientific research achievement transformation and industrialization tasks of scientific research institutes such as Shandong University, and is committed to the transformation of old and new kinetic energy, scientific & technological innovation and intelligent upgrading of manufacturing industry.
Founded in 2012, the company has the qualification of Cummins authorized dealer. Its main business scope includes the sales and maintenance of Cummins engines and accessories, also covering the production and sales of small engines, generator sets and second-hand engines.In 2018, the company was involved in the R & D and production of construction machinery. At present, the total annual output of stacker, forklift and 0.8-3-ton mini excavator is nearly 10000 sets.
The company has established stable cooperative relations with Cummins, Shandong University, construction machinery association and other units, connected with the national major scientific research achievement transformation and industrialization tasks of scientific research institutes such as Shandong University, and is committed to the transformation of old and new kinetic energy, scientific & technological innovation and intelligent upgrading of manufacturing industry.
CERTIFICATE
PACKING&SHIPPING
