Product Description
Features

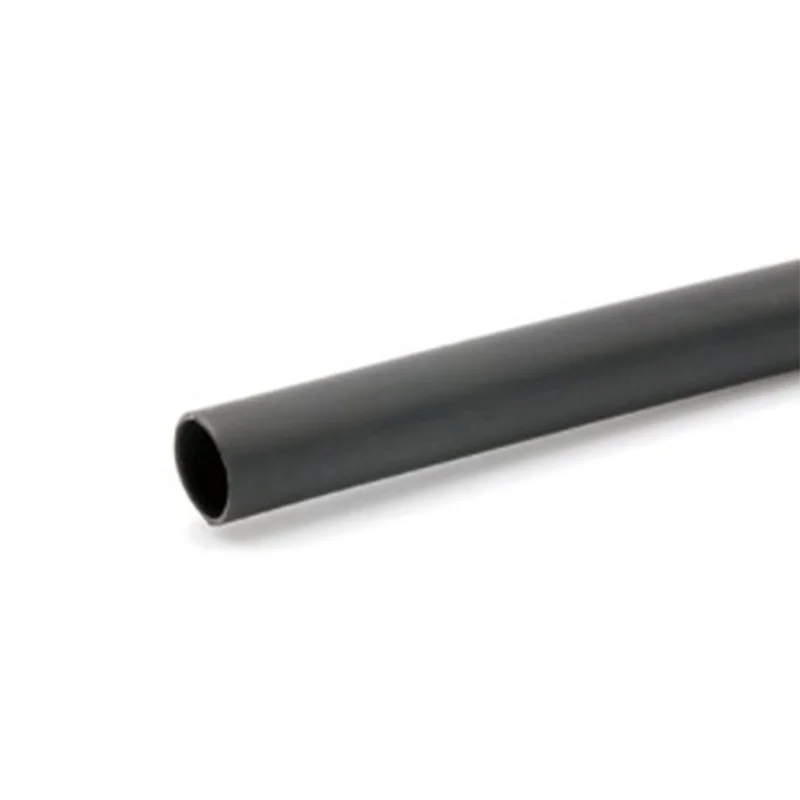

This product is a kind of insulating material, which is mainly used in the insulation protection of outdoor and indoor busbars in high-voltage switch cabinets, power plants, and substations. It can prevent foreign matter from overlapping, prevent short-circuiting of small animals, prevent maintenance personnel from entering the live clothing by mistake, prevent condensed flashover, and increase the insulation between phases. It is a single segmented type, and can be produced in any length within 1-2 meters according to customer requirements.
Product Comparison
Using inferior raw materials, many small manufacturers use inferior raw materials produced by small domestic manufacturers in order to reduce costs, resulting in products that fail to meet technical requirements. The appearance of oiliness and stickiness in the heat-shrinkable tube indicates that the heat-shrinkable tube has entered a severely aging state.
The inner layer of the double-walled pipe is hot melt adhesive with good bonding performance, and the outer layer is soft irradiated cross-linked polyethylene. Its shrinkage ratio is three times. Maintenance required; able to withstand the impact of harsh environments, humidity, etc., and reach the protection zero group
Product Paramenters
Specification model | Inner diameter before contraction | After full contraction | Recommended applicable bus specifications | Standard length M/root | ||||
the inside diameter of | Wall thickness | Applicable rectangular bus size | Applicable circular bus diameter | |||||
BT-10M30/12 | ≥30 | ≤12 | 2.3±0.2 | 30×3 | Ф20 | 1 | ||
BT-10M40/16 | ≥40 | ≤16 | 2.3±0.2 | 40×4 | Ф30 | 1 | ||
BT-10M50/20 | ≥50 | ≤20 | 2.6±0.2 | 50×5 | Ф35 | 1 | ||
BT-10M60/20 | ≥60 | ≤20 | 2.6±0.2 | 60×6 | Ф40 | 1 | ||
BT-10M 80/28 | ≥80 | ≤28 | 3.0±0.3 | 80×8 | Ф60 | 1 | ||
BT-10M 100/36 | ≥100 | ≤36 | 3.1±0.3 | 100×10 | Ф70 | 1 | ||
BT-10M 120/36 | ≥120 | ≤36 | 3.1±0.3 | 120×12 | Ф85 | 1 | ||
BT-10M 140/56 | ≥140 | ≤56 | 3.3±0.3 | 140×14 | Ф100 | 1 | ||
BT-10M 160/56 | ≥160 | ≤56 | 3.3±0.3 | 160×16 | Ф115 | 1 | ||
BT-10M 180/56 | ≥180 | ≤56 | 3.3±0.3 | 180×18 | Ф125 | 1 | ||
BT-10M200/72 | ≥200 | ≤72 | 3.8±0.3 | 200×20 | Ф140 | 1 | ||
BT-10M300/100 | ≥300 | ≤100 | 4.3±0.3 | 300×30 | Ф210 | 1 | ||
Appllcatlon
The inner layer of the double-walled pipe is hot melt adhesive with good bonding performance, and the outer layer is soft irradiated cross-linked polyethylene. Its shrinkage ratio is three times. It needs maintenance, can withstand the impact of harsh environment, humidity, etc., to protect the components. Widely used in the wiring of electronic equipment for waterproofing, air leakage, sealing and waterproofing of multi-strand wiring harnesses (such as home wiring harnesses, automotive wiring harnesses, etc.), sealing and moisture-proofing, waterproofing, corrosion-proofing and insulation protection of components, sealing and waterproofing of wire and cable branches, Corrosion protection of metal pipelines, repair of wires and cables, water pumps and submersible pump wiring and other occasions.
Features:
Applicable temperature: -55℃~125℃;
initial shrinkage thermometer: 70℃;
complete shrinkage thermometer: 125℃;
melting temperature of inner glue layer: 70℃-80℃.
Shrinkage ratio: 3:1. (A larger shrinkage ratio can be provided according to customer requirements, such as 4:1) Sealed and waterproof, large strain capacity; easy to use, can shrink when heated by oven and hot air gun; timely delivery and strong production capacity.
Shrinkage ratio: 3:1. (A larger shrinkage ratio can be provided according to customer requirements, such as 4:1) Sealed and waterproof, large strain capacity; easy to use, can shrink when heated by oven and hot air gun; timely delivery and strong production capacity.

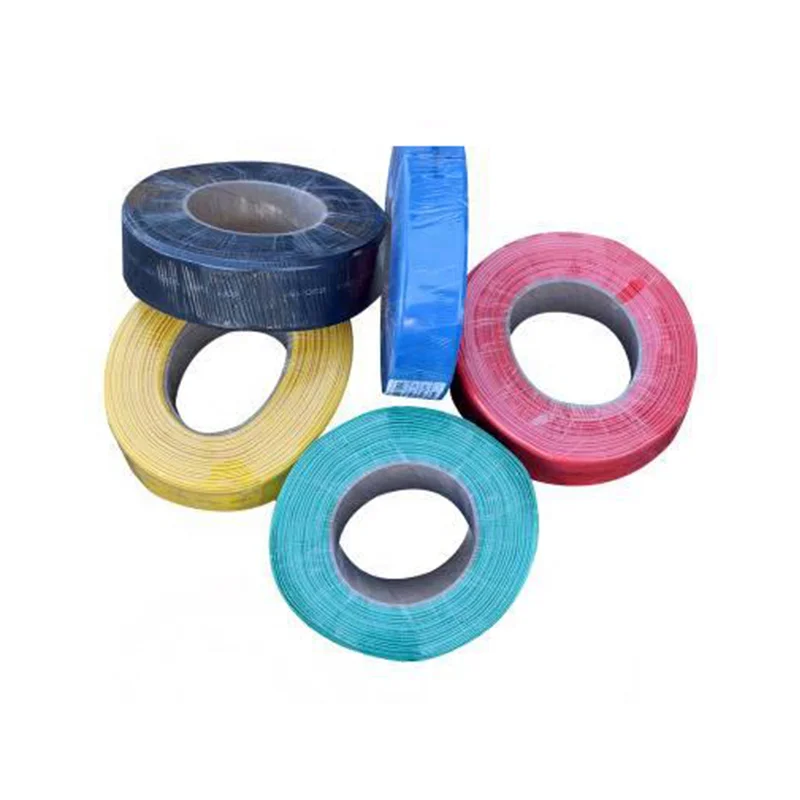

Standard colors: red, green, yellow, blue, black, white, transparent, orange.
Related Products
Company Information

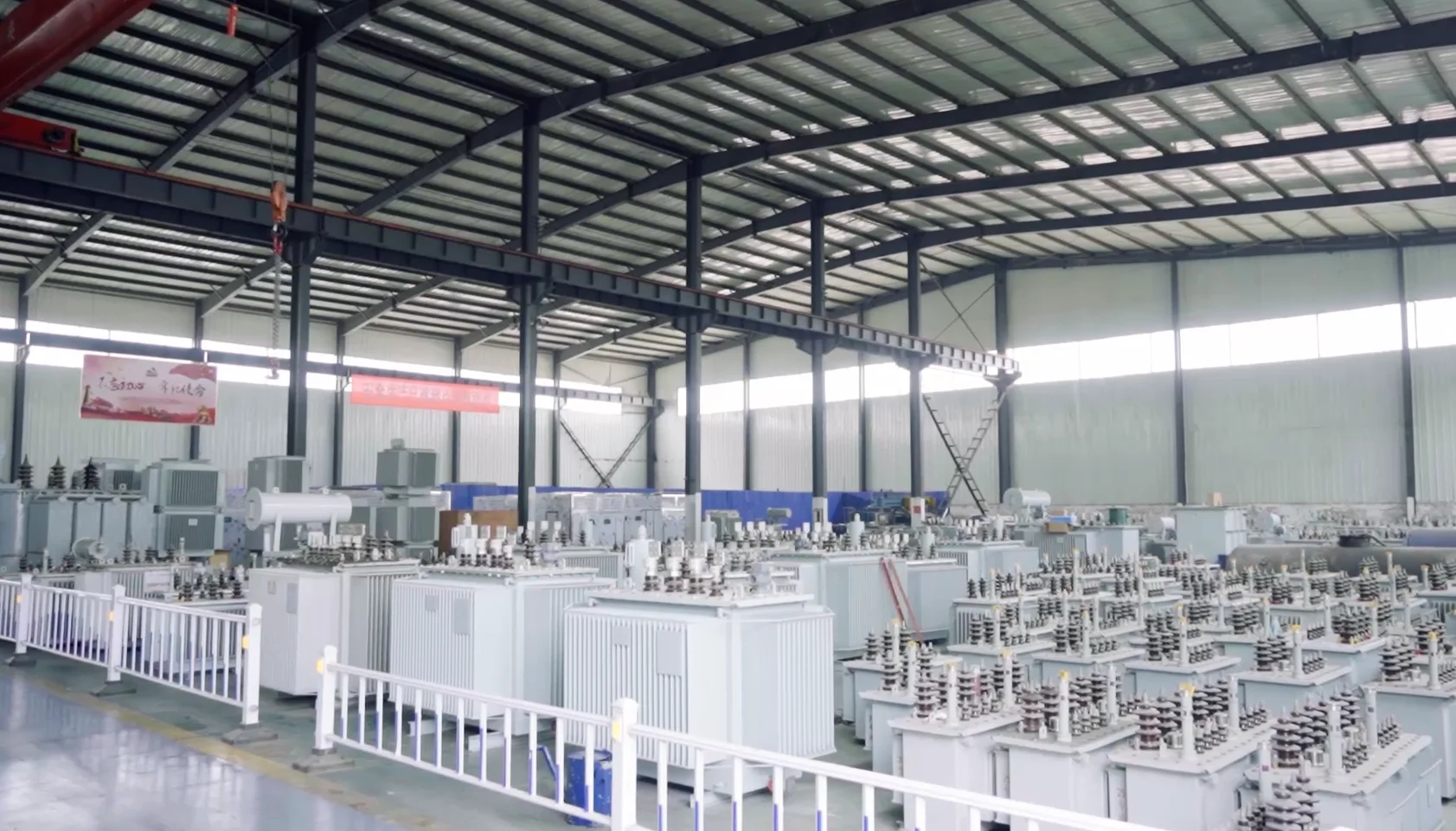

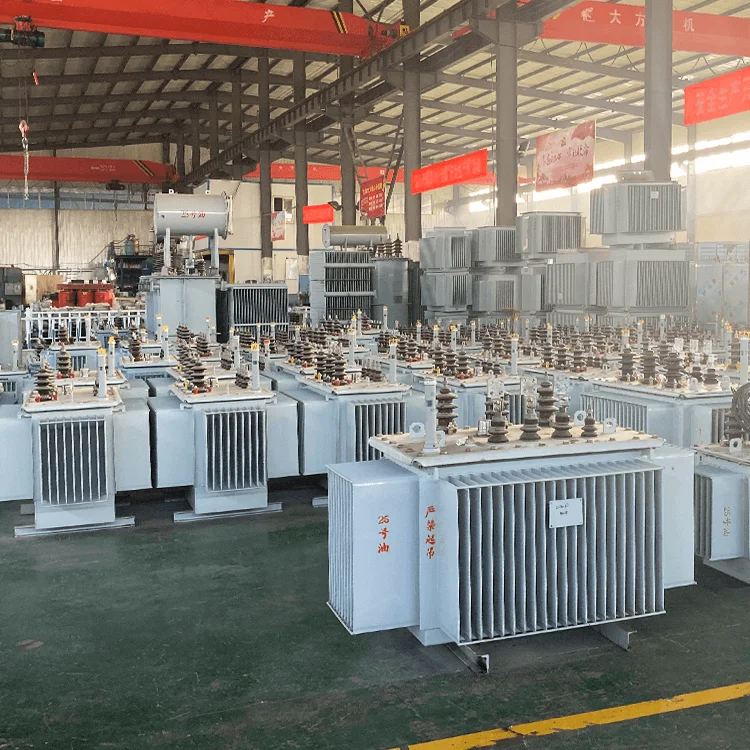

Shanxi Yawei Electric Technology Co., Ltd. is located in the Wusu Comprehensive Bonded Zone, Shanxi Comprehensive Reform Demonstration Zone.

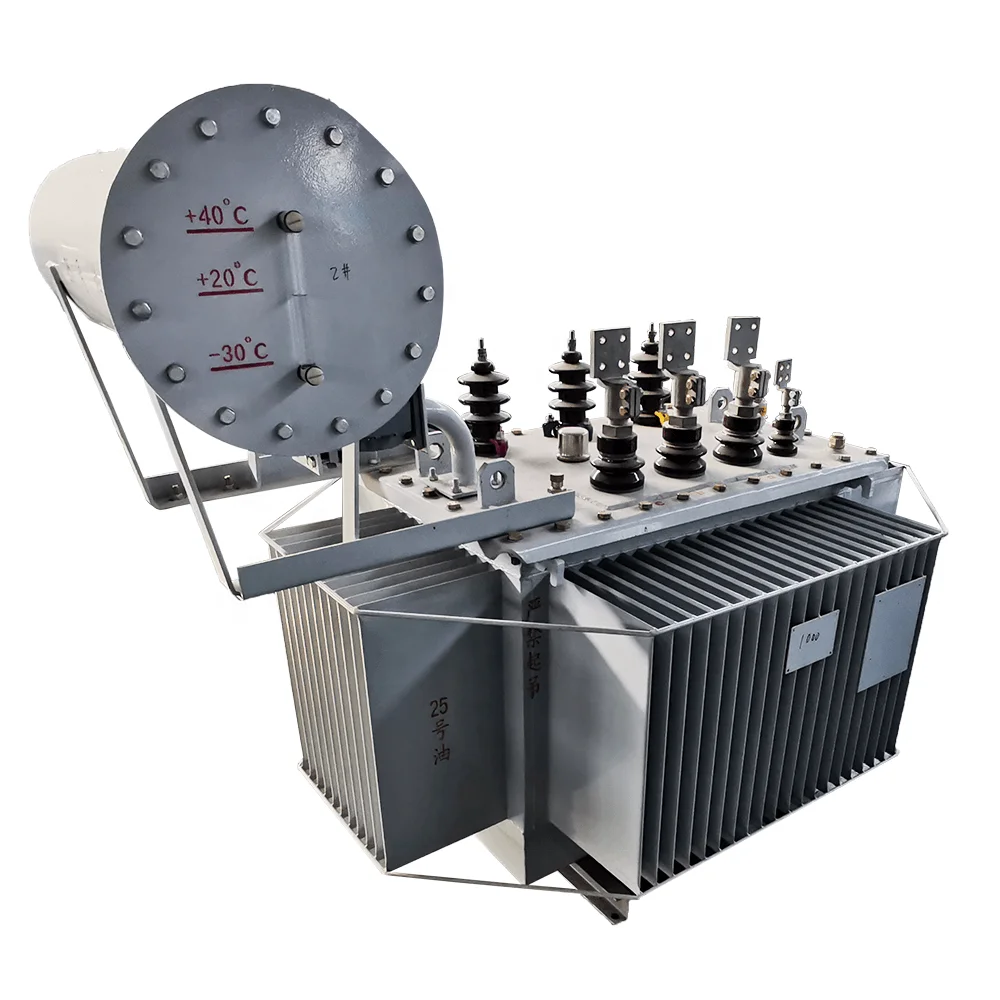

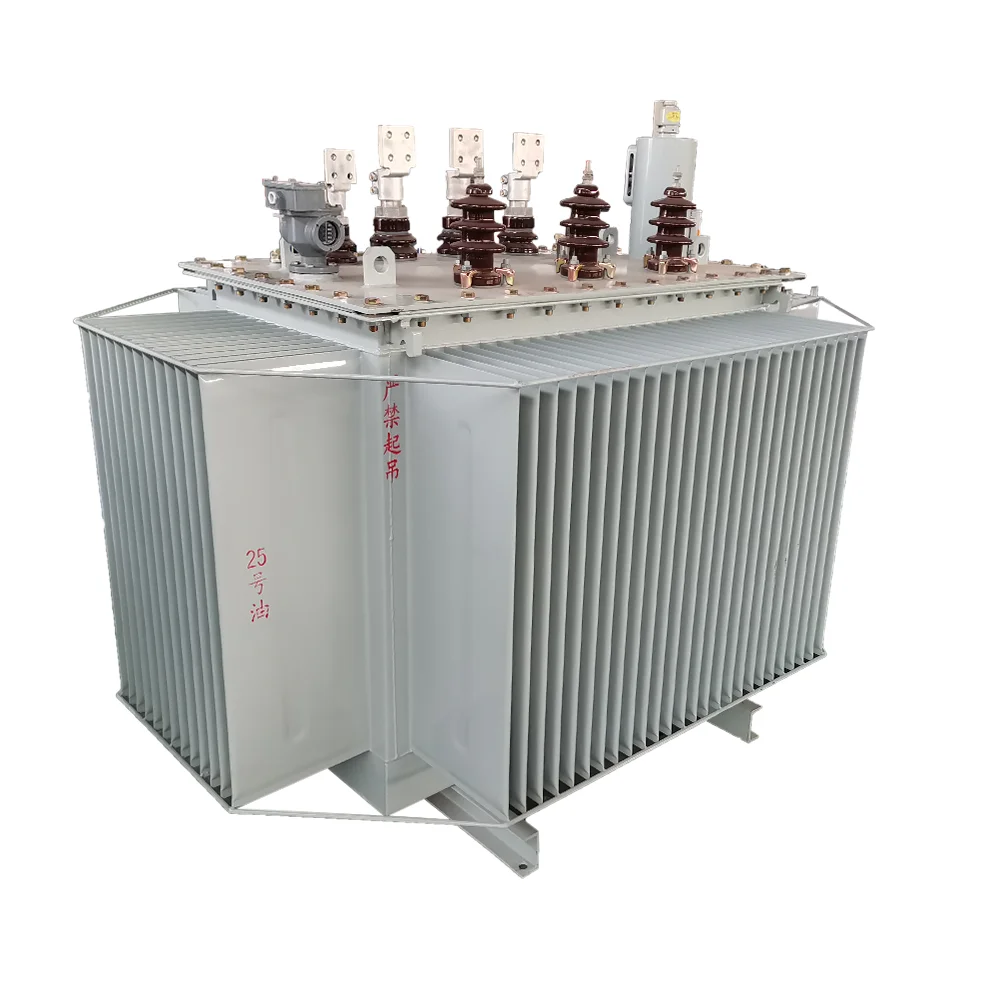

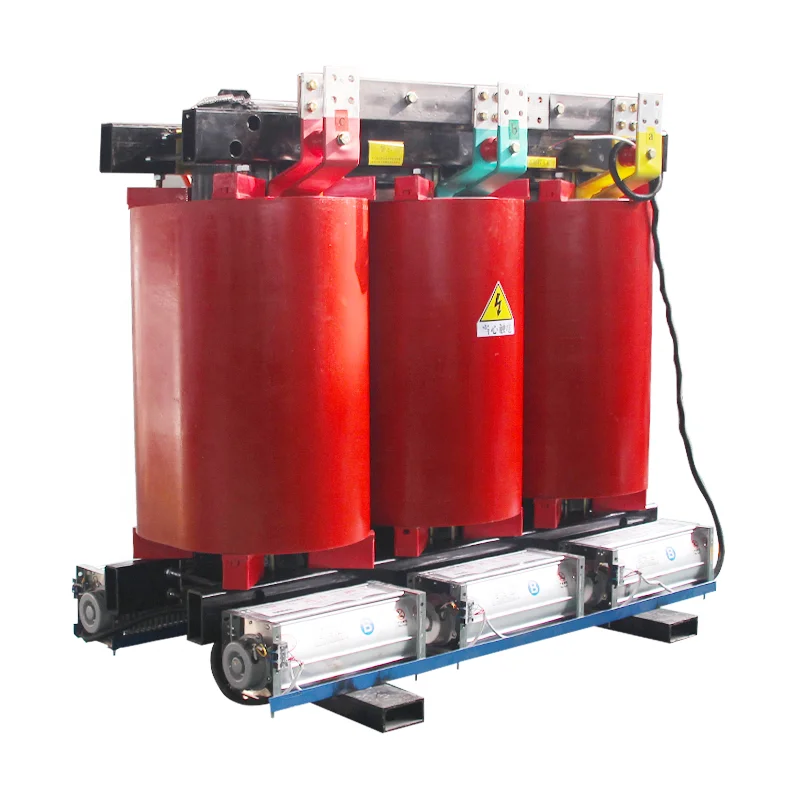

It mainly produces transformers of 110KV and 220KV large ultra-high voltage transformers and various dry-type transformers below 35KV. Oil-immersed transformers, amorphous alloy transformers, pre-assembled transformer substations, and special transformers of various specifications such as box transformers, electric furnace transformers, rectifier transformers, and mine transformers.
