Hbyb Умный Цифровой ультразвуковой измеритель расхода воды с импульсным medidor de agua
- Категории: Water Meters >>>
- Поставщик: Kaifeng,Huabang,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

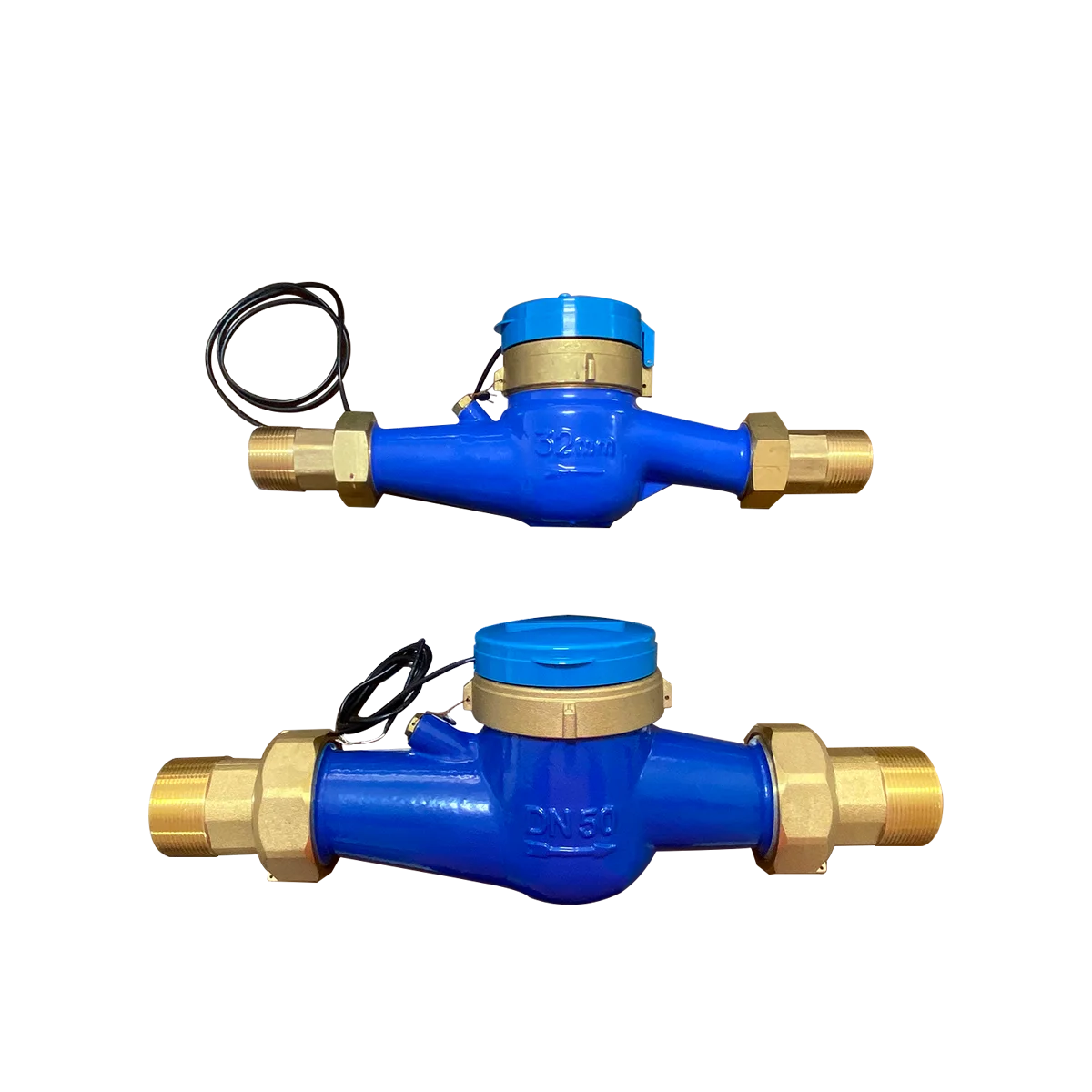

The externally adjustable multi-stream beam water meter is used to measure the cumulative amount of fluid in the pipeline, and the water meter is made of high-quality copper. It features high measurement accuracy and wide range ratio. The water meter is equipped with a pulse sensor to send signals, which can be adapted to remote transmission equipment such as MBUS, LORAWAN GPRS, NB-IOT, etc., to implement smart meter reading.

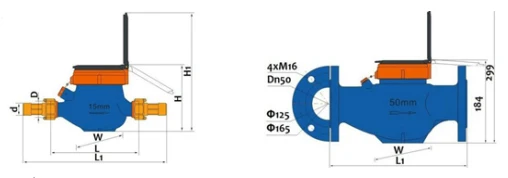

Product Parameter
Type | Size | Length (mm) | Width (mm) | Height (mm) | Outer diameter of flange (mm) | The center diameter of connecting bolt D1(mm) | Connecting bolt (Pcs) |
LXLC(R)-50 | 50 | 200 | 165 | 215 | 165 | 125 | 4xM18 |
LXLC(R)-65 | 65 | 200 | 185 | 216 | 185 | 145 | 4xM18 |
LXLC(R)-80 | 80 | 225 | 200 | 279 | 200 | 160 | 8xM18 |
LXLC(R)-100 | 100 | 250 | 220 | 288 | 220 | 180 | 8xM18 |
LXLC(R)-125 | 125 | 250 | 250 | 308 | 250 | 210 | 8xM18 |
LXLC(R)-150 | 150 | 300 | 285 | 319 | 285 | 240 | 8xM22 |
LXLC(R)-200 | 200 | 350 | 340 | 348 | 340 | 295 | 8xM22 |
LXLC(R)-250 | 250 | 400 | 395 | 438 | 405 | 355 | 12xM24 |
LXLC(R)-300 | 300 | 450 | 445 | 465 | 460 | 460 | 12xM24 |
Flow technical parameters | ||||||||||||
Caliber (DN) | 15MM | 20MM | 25MM | 32MM | 40MM | 50MM | ||||||
Measurement gradeQ3/Q1 | 160 | 160 | 80 | 80 | 80 | 80 | ||||||
Unit of measurement | m³ | m³ | m³ | m³ | m³ | m³ | ||||||
Overload flow Q4 | 3.125 | 5 | 7.875 | 7.875 | 20 | 31.25 | ||||||
Comon flow Q3 | 2.5 | 4 | 6.3 | 6.3 | 16 | 25 | ||||||
Demarcation flow Q2 | 25 | 40 | 126 | 126 | 320 | 500 | ||||||
Minimum flow Q1 | 15.62 | 25 | 78.75 | 78.75 | 200 | 312.5 | ||||||
Minimum reading | 0.00005 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | ||||||
Minimum reading | 99999 | 99999 | 99999 | 99999 | 99999 | 99999 | ||||||
Operat ing temperature | T30 | T30 | T30 | T30 | T30 | T30 | ||||||
Working water pressure | MAP10 | MAP10 | MAP10 | MAP10 | MAP10 | MAP10 | ||||||

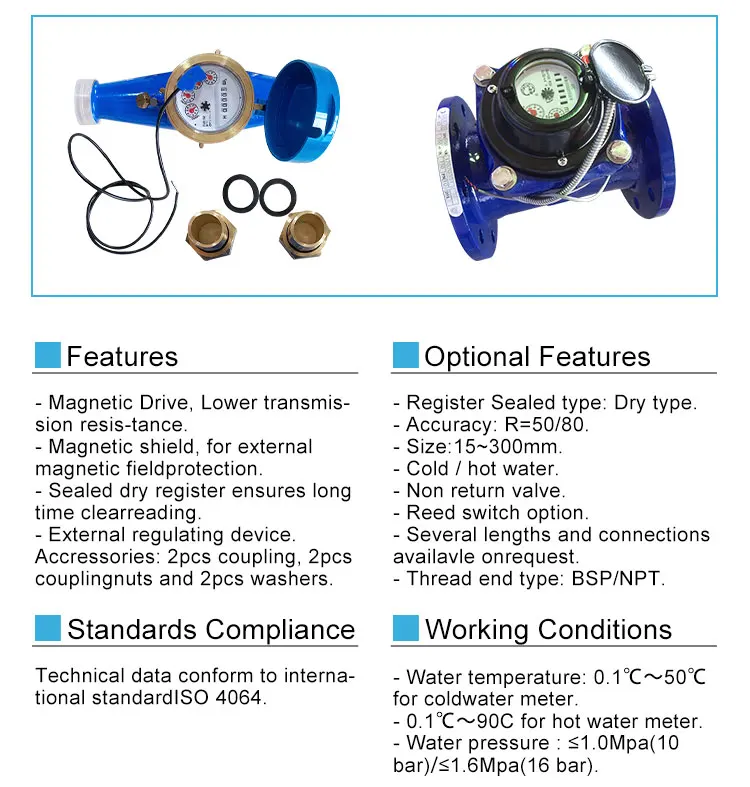

Product Details
Central Gear
The center gear is equipped with four samarium cobalt magnets,which are not easy toweathering, degaussing and losing data. This ensures the life of the central transmissionpart of the water meter and the accuracy of measurement.
Dial Cover
The counter disc is made of POM, white porcelain, clear reading and durable service life.Fixed with screws, easy to replace.With double reed switch design, if one of them is damaged,it can still work normally.
Anti Magnetic Ring
When the reed switch is installed, the anti-magnetic ring is added, the pig iron material isrequired, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,which ensures the stable output of the pulse signal.
Turbine Component
The impeller shaft is made of stainless steel, agate, bushing and corundum. The service life andaccuracy are guaranteed.
Transmission Gear
High precision die, 1 million sets will be replaced to ensure small error, high throughput, andensure the accuracy of water meters and delivery time.
Certifications
Company Profile
Our company has CE, ISO certification, explosion-proof certification, more than 30 real-type new patents.
The company’s main products are electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, turbine flowmeters, open channel flowmeters, orifice flowmeters, metal rotor flowmeters, thermal gas mass flowmeters, etc., which can meet the needs of different occasions.And can design and produce special customized products according to user requirements.
Every year, customers from all over the world come to visit our factory, and our company will also travel to many countries to participate in exhibitions from all over the world. We sincerely invite you to visit our factory and the exhibition site, and sincerely invite you to join us!
FAQ
1. If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.
2. How is the product quality?
We have ISO, CE certification, we can send you the certification test of our company.
3. How about the price?
Because we believe that quality is the most important, we will provide the best quality products at reasonable prices.
4. Can I visit your factory?
Of course, if you need, we will help you visit our factory.
5. Can you produce products according to my own drawings?
Yes, we provide OEM service.
