Melt Flow Rate Tester Fully Automatic Index PVC PP PE Plastic Compound Particle ASTM

Melt Flow Rate Tester Fully Automatic Melt Index Tester PVC PP PE Plastic

Compound Particle Melt Index Tester

This melt flow rate meter is an improved one, which has added many functions, greatly improved in instrument configuration, instrument service life, operation convenience and test accuracy, and has incomparable advantages and cost performance compared with the domestic general melt flow rate meter.

Standards: ISO 1133,ASTM D1238,GB/T3682

General Introduction:

It is used to measure MFR value of melt flow rate of various plastics and resins in viscous flow state. It is not only suitable for engineering plastics such as polycarbonate, polyarylsulfone, fluoroplastics and nylon with higher melting temperature, but also suitable for testing plastics with lower melting temperature such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM) and polycarbonate (PC) resin.

The melt flow rate meter is applicable to the determination of thermoplastic melt mass flow rate specified in the national standard GB/T3682-2000 Determination of Melt Mass Flow Rate and Melt Volume Flow Rate of Thermoplastics. This standard is equivalent to ISO 1133:1997 and can meet ASTM D1238 test standard.

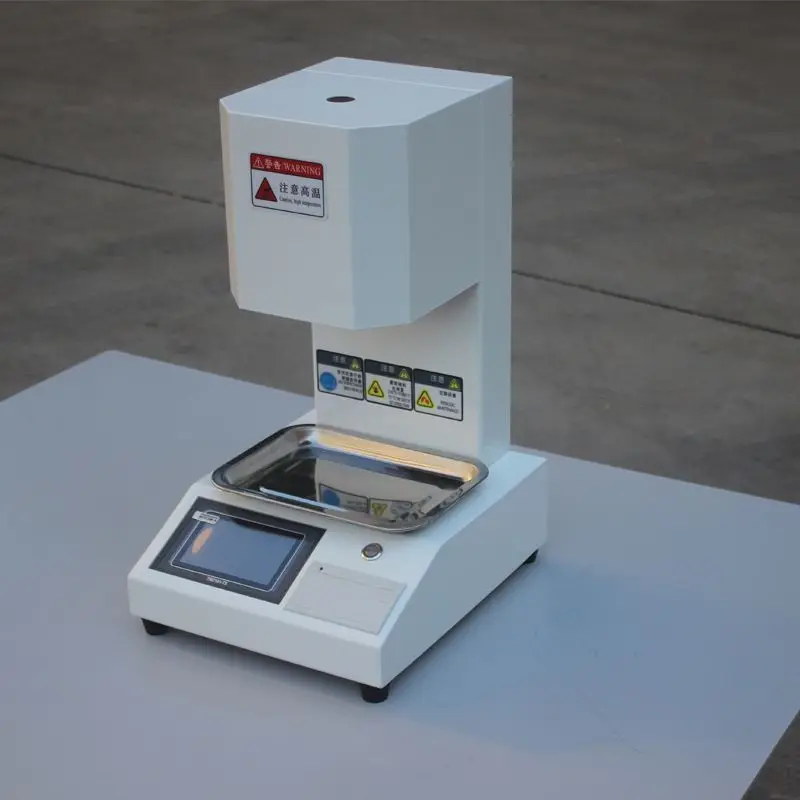

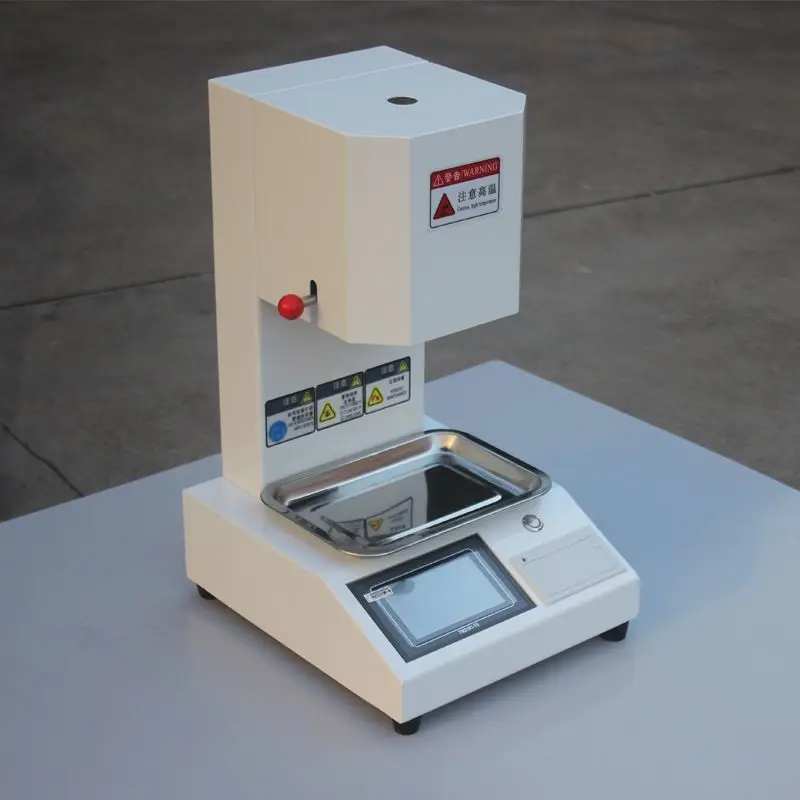

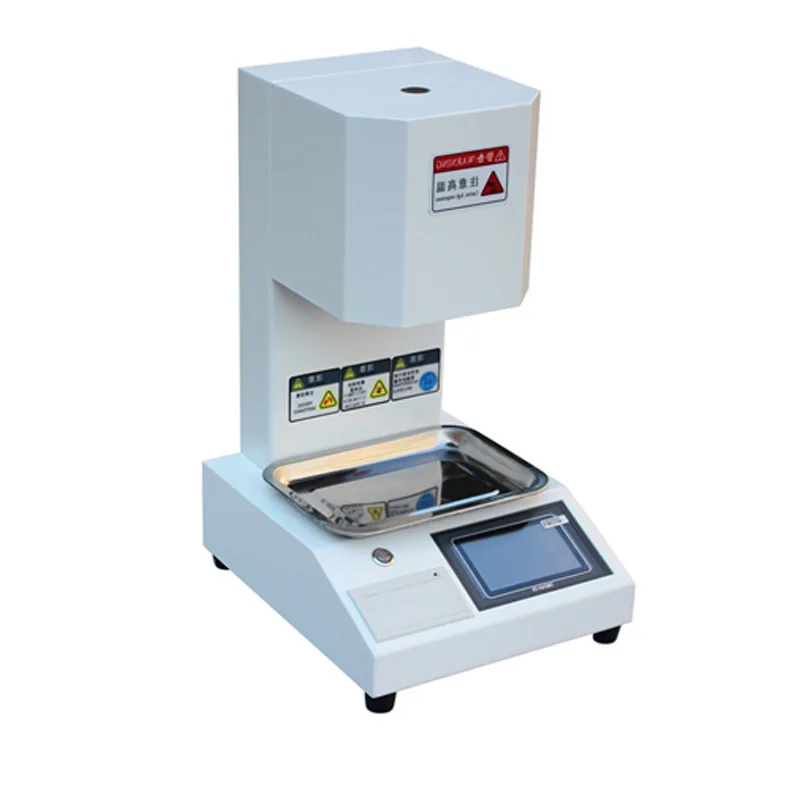

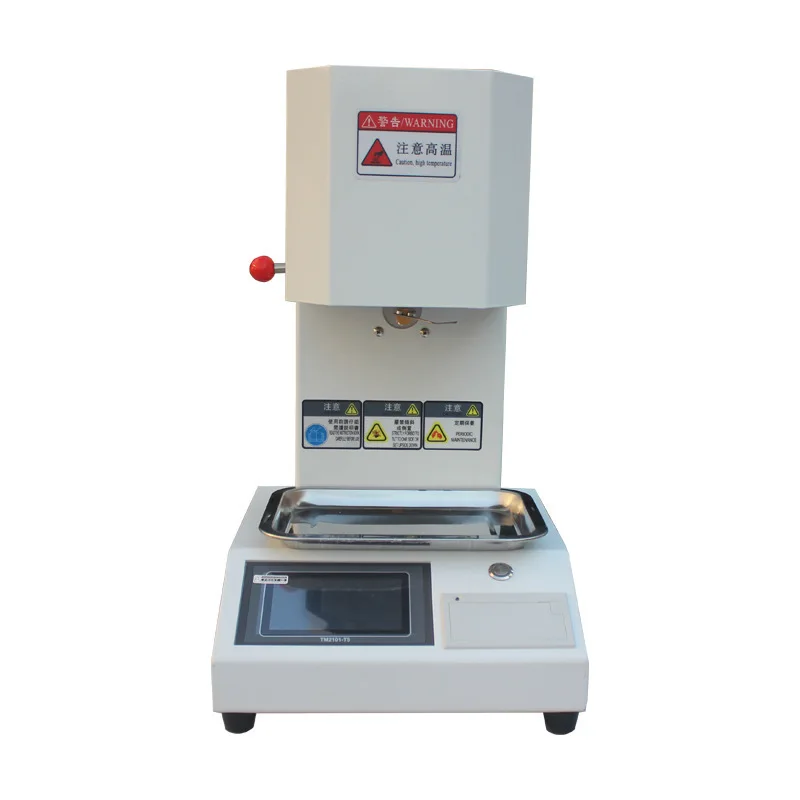

The melt flow rate meter is a desktop structure, with reasonable design, stable and reliable performance, beautiful appearance and convenient operation. The high-performance and high-precision control meter has the characteristics of high sampling precision and fast control rate, and the fuzzy PID algorithm is used for constant temperature control.

Highlights

1.      The heating cylinder is made of Hastelloy, so as to avoid oxidation and rusting of the melt flow rate meter when working at high temperature (up to 400~500℃) for a long time.

2.     Dual sensor configuration, accurate temperature control, better temperature gradient and longer service life.

3.     According to the requirements of the national standard, add a four-minute countdown function after charging.

4.     RS232 interface, which can be directly connected to the computer to output data (optional).

5.  Stainless steel weight (optional).

6. The last test condition can be displayed directly after starting up, so as to avoid that every user. Reset test parameters to reduce the workload of operators.

7.  The maximum temperature can reach 450~500 degrees (optional, special instructions are required when ordering).

8.  Strong corrosive plastics can be tested for a long time without damaging the accuracy of instruments, such as all fluoroplastics (due to special materials, please specify when

ordering), and only our company has this technology in China.

Main Features

1. The heating speed is fast and the overshoot is extremely small.

2. High constant temperature precision.

3. After filling, the constant temperature can be quickly restored.

4. It is convenient to calibrate and correct the test parameters.

5. Manual and automatic cutting test methods can be adopted.

6. LCD display in Chinese and English.

7. Equipped with a printer, the test results will be automatically printed and output.

Technical Parameters

1. Extrusion discharge part.

Outlet diameter: φ 2.095 0.005 mm, outlet length: 8.000 0.025 mm.

Charging barrel diameter: φ 9.550 0.025 mm, charging barrel length: 152 0.1 mm.

Diameter of piston rod head: 9.475 0.015mm, length of piston rod head: 6.350 0.100mm.

2. Standard test load (a total of 8 complete sets of weights).

3. Temperature range: normal room temperature-400℃ (500℃ is optional).

4. Constant temperature accuracy: 0.5℃.

5. Display resolution: 0.1℃.

6. Cutting method: Manual or automatic cutting can be performed.

7. Temperature recovery time: less than 4 minutes.

8. Printing: The micro printer automatically prints out the output.

9. Power supply voltage: AC 220 V 10% 50 Hz.

Parts & Accessories

Ø  7 pieces and 8 loads (1# is within level 1 load) of the weight sleeve:

1875g, 1835g, 2500g, 2915g, 3475g, 4675g, 5000g.

Ø  Weight TrayX1: within the first-level load.

Ø  Loading HopperX1

Ø  Die Cleaning RodX1

Ø  Loading RodX1

Ø  Material Barrel Cleaning RodX1

Ø  Piston Rod Piece 1 (within level 1 load)

Ø  Mouth ModuleX1

Ø  GauzeX2

Ø  Printing PaperX2
