Новый продукт автоматизированный CD-инструмент 1325 CNC гравировальное
- Категории: CNC Engraving & Milling Machine >>>
- Поставщик: Jinan,Youteng,Numerical,Control,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Operating Voltage | AC380V 50HZ 3HP three four-wire |
Work plan | X1250*Y2480*Z200mm |
Maximum empty travel speed | XY50000mm/min Z20000mm/min |
Working speed | 15000-30000mm/min |
Table structure size | Vacuum adsorption table 1260*2480 6 partitions 24 holes |
Bed structure | Heavy-duty double-layer unloading trapezoidal bed |
Transmission | Rail 25 square rail |
Tool library | 12-tool follow-up tool magazine ISO30 |
Frequency converter | Shenzhen TETRAN 11kw |
Spindle power | JST 9kw automatic tool change spindle |
Spindle speed | 0-18000rmp |
Motor | Shenzhen LEADSAHINE 1000w servo |
Run command | G code |
Operating system | Taiwan LNC MW2200 system |
Total Weight | 1.2T |
Plate fixing | 7.5kw water circulation vacuum pump |
Dust removal | 5.5kw high power vacuum cleaner |
Assist | Automatic feeder for secondary dust removal |
Positioning 2+3 right-angle positioning | |
Tool setting Fully automatic one-key tool setting | |
Z-axis counterweight, pneumatic zero-gravity cylinder |
Product Description
1. This machine is suitable for diversified and complex product processing or diversified processing, with a wide range of
functions: engraving, drilling, cutting, side milling, chamfering, etc.
2.The mechanical and electrical components of this model are all top international products, such as the vacuum system and transmission system from Germany, the servo drive system from Japan, and the spindle imported from Italy3. Hat type automatic tool change system, 8 tool magazine capacity, tool change time only 8 seconds.
4.The double-track bilateral transmission machine is a heavy-cutting machine type.
functions: engraving, drilling, cutting, side milling, chamfering, etc.
2.The mechanical and electrical components of this model are all top international products, such as the vacuum system and transmission system from Germany, the servo drive system from Japan, and the spindle imported from Italy3. Hat type automatic tool change system, 8 tool magazine capacity, tool change time only 8 seconds.
4.The double-track bilateral transmission machine is a heavy-cutting machine type.

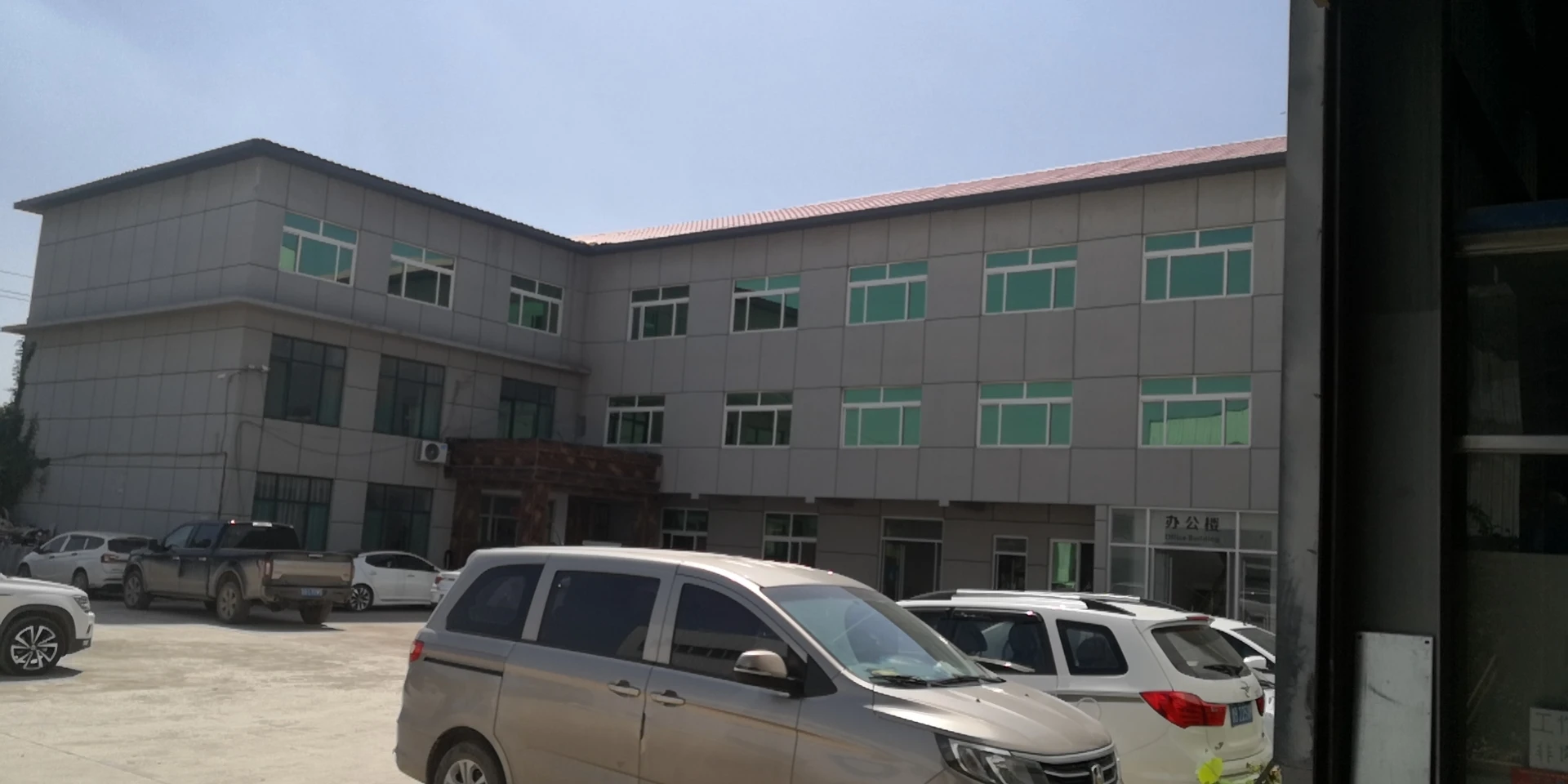

Company Profile
The company in line with the "quality first, reputation first, service first, time first" business philosophy, "integrity management, credibility for the purpose of business.Believes that customer is the source of company development, always adhere to market-oriented, with perfect after-sales service commitment, the company adhering to the pursuit of excellence, we are actively involved in the promotion and industry exchange activities, the company in the long-term development process with the advantages of excellent product quality and the domestic many large companies have established long-term good partnership, we sincerely welcome customers at home and abroad to visit our company, visit and technical exchanges;We are willing to cooperate with friends from all walks of life to create a better home!
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
