3PJ316 Hutchinson транспортная xonic beltMulti-groove пояс резиновый мульти-паз ремень
- Категории: >>>
- Поставщик: Kunshan,Meilide,Industrial,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
brand introduction
The Hutchinson ConveyXonic® belt transmits power from the drive roller to all drive rollers on the belt. The molding process adopted by Hutchinson can ensure the high quality and durability of the belt, and greatly reduce the maintenance cost. Hutchinson's solution reduces the number of drive rollers, which in turn reduces transmission costs across the board.
French Hutchinson is the inventor of the drum V-ribbed belt!
A roller conveyor drive method developed and created by Hutchinson and Interroll is applied to light and medium loads to compensate for the small load of O-belt (round belt), the skipping of teeth and the high cost of the timing belt, the large noise and pollution of the chain, and the demand. Deficiencies such as maintenance have gradually become the mainstream driving mode of roller conveyors.
A roller conveyor drive method developed and created by Hutchinson and Interroll is applied to light and medium loads to compensate for the small load of O-belt (round belt), the skipping of teeth and the high cost of the timing belt, the large noise and pollution of the chain, and the demand. Deficiencies such as maintenance have gradually become the mainstream driving mode of roller conveyors.

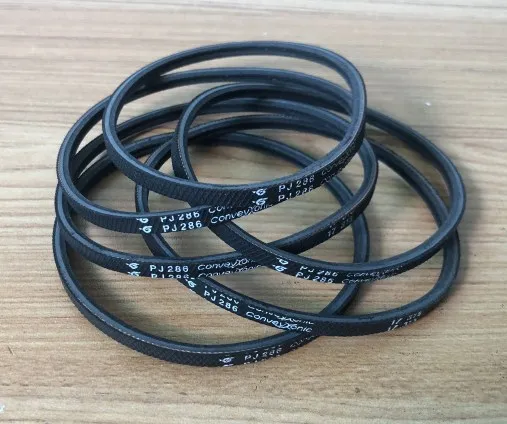

Photographs of products
Product advantages
Hutchinon roller Advantages of V-ribbed belts |
High transmission efficiency: up to 97%! |
Fast transmission speed: 3m/s |
Mute: elastic properties can effectively avoid the belt beating, and significantly reduce vibration and noise belt |
Reliability: The average life span is more than 5 years, and it can operate 24 hours a day |
Clean: No maintenance, no lubrication, no dust accumulation! |
Specification parameter table
French Hutchinson drum multi-mode belt PJ series is suitable for drum V-ribbed belts with a diameter of 42~43mm | ||||||
2PJ | 3PJ | 4PJ | ||||
1 unit load: 1-120 kg | 1 unit load: 120-220 kg | 1 unit load:220-350 kg | ||||
60 | PJ256 | |||||
68 | PJ270 | |||||
73 | PJ282 | |||||
75 | PJ286 | |||||
80 | PJ290 | |||||
83 | PJ302 | |||||
90 | PJ314 | |||||
94 | PJ316 | |||||
100 | PJ336 | |||||
105 | PJ346 | |||||
120 | PJ376 | |||||
133 | PJ416 | |||||
150 | PJ435 | |||||
160 | PJ456 | |||||
175 | PJ486 | |||||
Payment and transportation
After-sales service
1. Manufacturers supply genuine products
The Hutchinson drum V-ribbed belt sold by our company is 100% genuine, and a penalty of ten is imposed for fake!
2. Regarding the length
When the elastic V-ribbed belt is not installed, it is in a tightened state, so the measured data must be less than the length of the mark!
3. About the delivery speed
The company’s common specifications have a certain amount of stock, and the rest need to be delivered by Hutchinson, Hutchinson needs to go through the process, so it usually takes 1 to 2 weeks, and non-standard specifications (4PJ and specifications with *) generally take 2 to 3 weeks!
The Hutchinson drum V-ribbed belt sold by our company is 100% genuine, and a penalty of ten is imposed for fake!
2. Regarding the length
When the elastic V-ribbed belt is not installed, it is in a tightened state, so the measured data must be less than the length of the mark!
3. About the delivery speed
The company’s common specifications have a certain amount of stock, and the rest need to be delivered by Hutchinson, Hutchinson needs to go through the process, so it usually takes 1 to 2 weeks, and non-standard specifications (4PJ and specifications with *) generally take 2 to 3 weeks!
