Цена:6 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Name
Parameter
Processing length
200-1500mm (can make 2000mm and 2500mm,according to customer’s requirement )
Material diameter
20-300mm Single axis ：20mm-300mm Double axis：20mm-160mm Note: It does not represent the processing diameter. The processing
diameter depends on many factors such as material and finished product shape.
Application

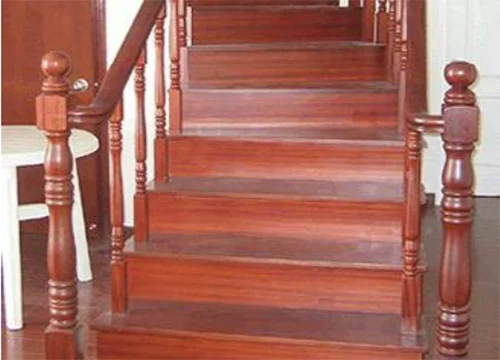

Stair handrails, railings, stairs supporting legs, dining table and coffee table legs, sofa legs, bar tables, table and chair
legs, bed railings, lamp posts, baseball bats, etc
Min setting data
0.01cm
Spindle power
5.5kw
Spindle rotary speed
0-3000r/min
Driving motor
Yako 2811
Working voltage
3-phrase 380V AC power
Working frequency
50HZ
Control system
RichAuto DSP control system

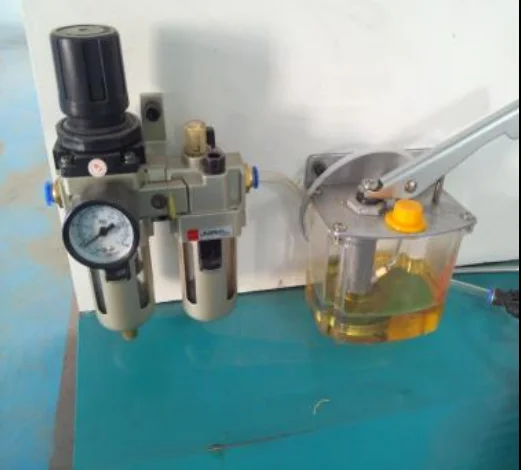

Pneumatic pressure
0.6-0.8Mpa
Machine size
Length:2900mm Height :1250mm Width:1100mm
Total weight
1600kg


Company Profile

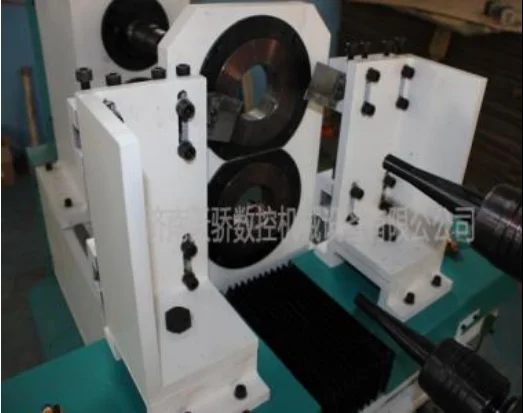

Machine Feature

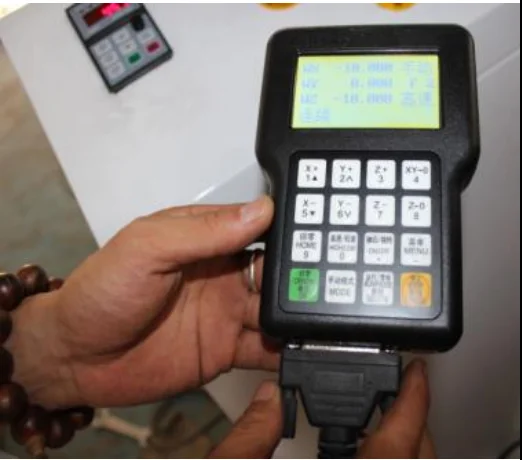

◆ Control system :DSP control,simple and convenient operation\\

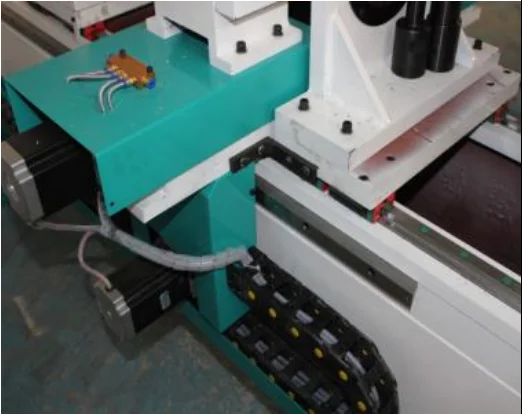

◆ Feeding part: Taiwan HIWIN linear slide rail and precision ball
screw drive , effectively control the linear error and improve the working efficiency of the machine.
◆ Auxiliary part: cast iron
bed is stable structure, total weight1.6ton,low vibration and stable performance! The whole machine is sprayed with car paint,

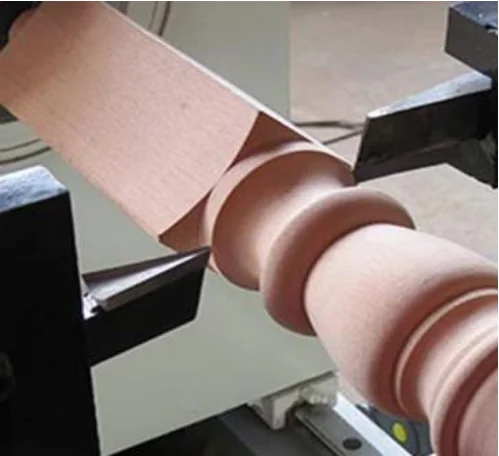

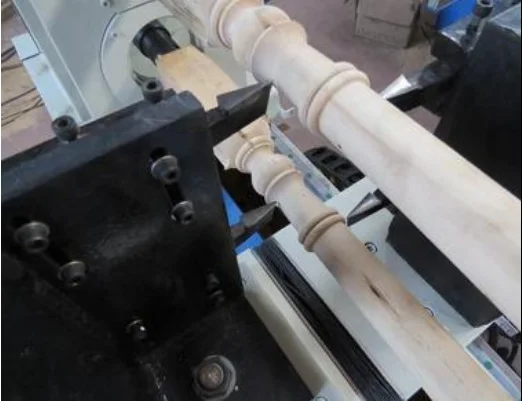

won’t fade or change color. (Note: The processing time of standard stair column is about 1-1.5 minutes. Double knife, X axis is
coarse knife, Z axis is fine knife. There is a 1 cm gap between the two blades in the axial distance)

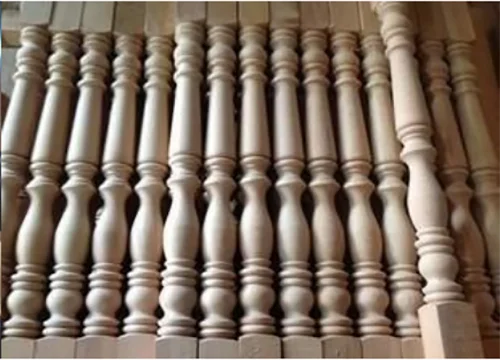

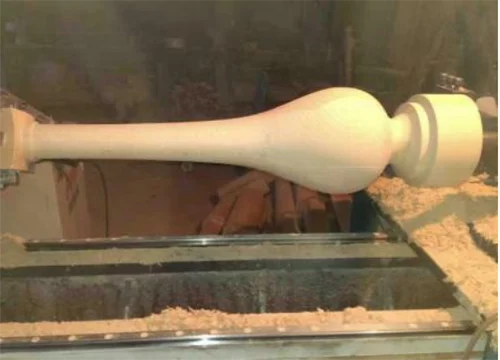

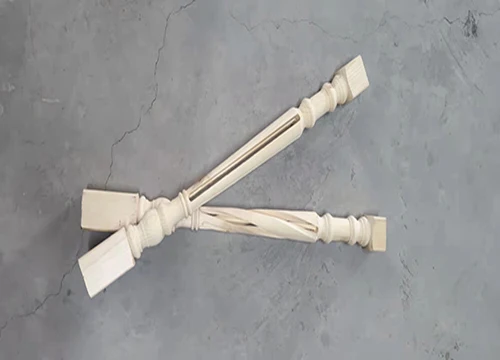

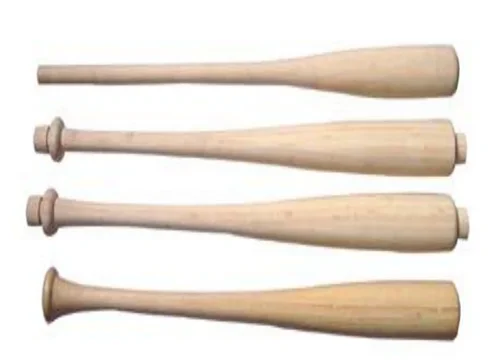

Samples
