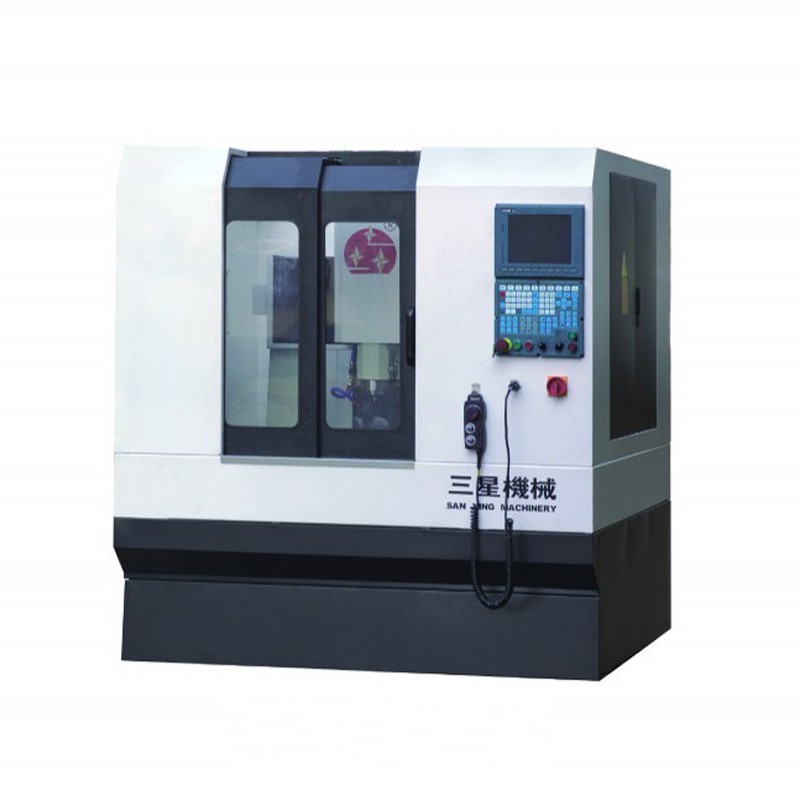

SXDK6050E CNC vertical engraving machine with linear ABBA
Product Description
| Type | Unit | SXDK6050E |
| Max. engraving size | mm | 600*500*260 |
| Max. dryrunning speed | mm/mir | 15000 |
| Power of spindle | kw | 3 |
| Max. spindle speed | r/min | 18000 (optional 21000) |
| Max. tool diameter | mm | 3~12 |
| Power of spindle | kw | 8 |
| Drive power | Japan/Taiwan servo motor optional | |
| CNC control system | SYNTEC, LNC optional | |
| Table loading capacity | kg | 500 |
| Weight | T | 3 |
| Table size | mm | 600*500 |
♦ Product Advantages
1. Whole steel structure, after high-temperature tempering, good rigidity and stability.
2. Multiple spindle, can working at the same time, high efficiency, suitable for large-scale standardization of batch processing .
3. Vertical bracket, removable gantry, imported rack gear and ball screw transmission, Taiwan square linear orbit, can engrave 2mm-3mm little letter.
4. Adopt advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. Professional high flexibility anti-bending cable, the number of anti-bending can be up to 70,000 times.
6. Automatic oil lubrication system is easy to operate by one key press, equiped with dust proof and water proof for XY axis, make the maintenance operation easily.

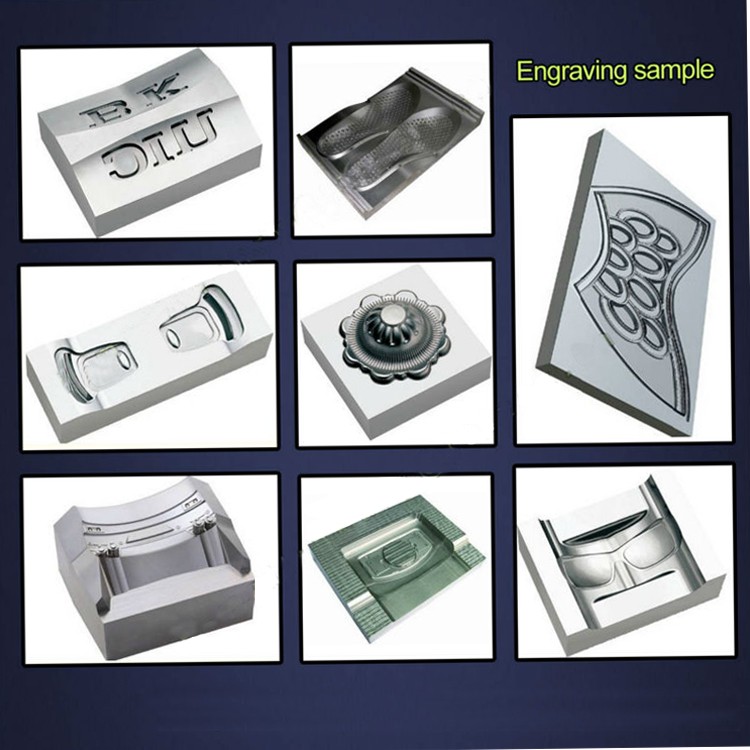

Application
Packaging
| ♦ Packaging details: inner plastic, outer plywood case |
| ♦ Delivery detail: 15-20 days afterpayment |
| Minimum order quality: 1 set |
Port: Shanghai or any Chinese port |
| Payment Method: L/C, T/T, Western Union, MoneyGram |
| Supply Ability: 200 sets/month |
| Warranty period: 12 months |
Company profile
Jiangsu Sanxing Machinery Manufacture Co.,Itd was founded in 1993. The company is a high-tech enterprise integrating research and development, production and sales. Our company has been awarded IS09001-2008 international quality certificate CE certificated for Europe, and also honored with "enterprise of high-tech". Our many products are titled “high-tech products” and “provincial famous trademark”, get the Machinery Industrial Science And Technology Award and the Small & Medium Enterprises Innovation Award of the Ministry of Science and Technology, meanwhile, the products own 3 invention patents, 27 New practical patents, 3 designing patents and 7 patents during application. |
FAQ
| 1. What’s your MOQ ? |
| Our MOQ is one set for each machine. |
| 2. Could we use our own brand on your machine ? |
| Yes, we would love to accept. |
| 3. Could your engineers go to our factory to install the machine and train our workers? |
| Yes, our engineers could go to your factory and assist you. |
| 4. Whats your fast delivery time ? |
| According to machine, our production time is from 7 days to 30 days, and some machines are in stock. |
| 5. Could I visit your factory ? |
| Yes, sure, welcome. |
