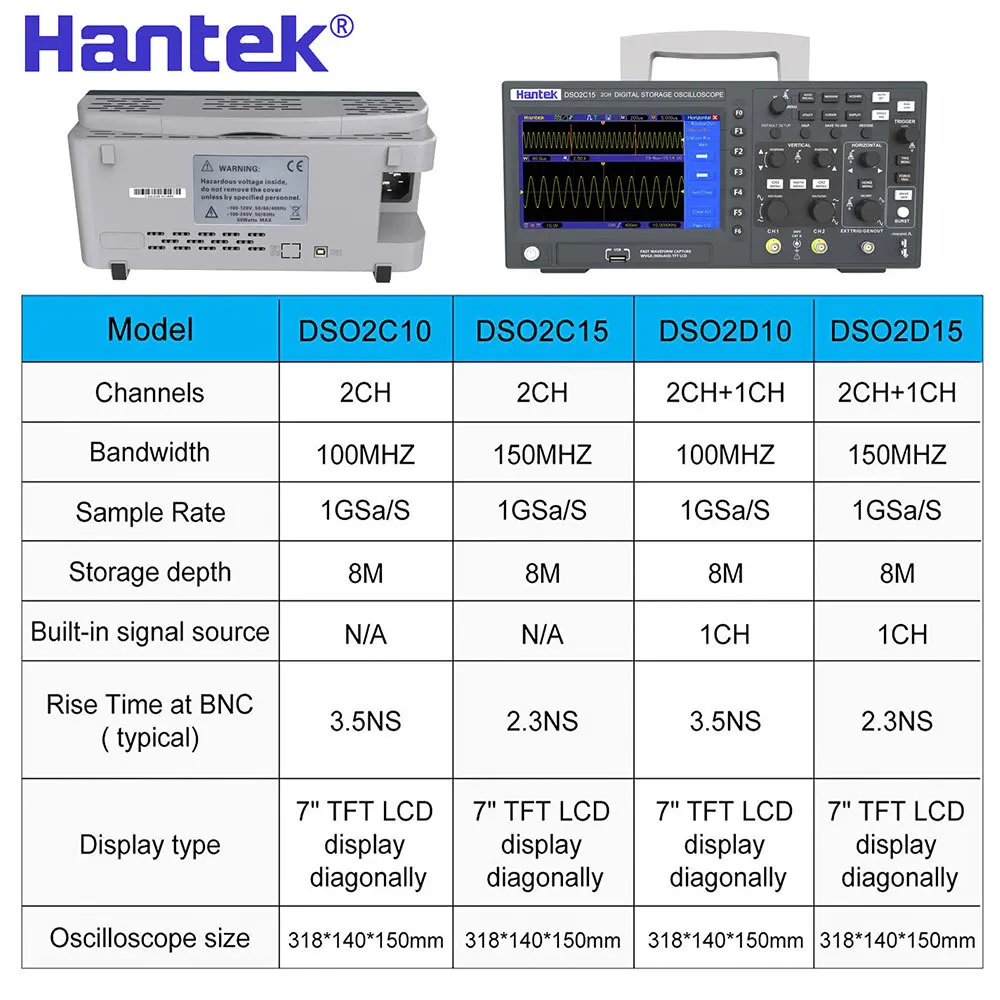

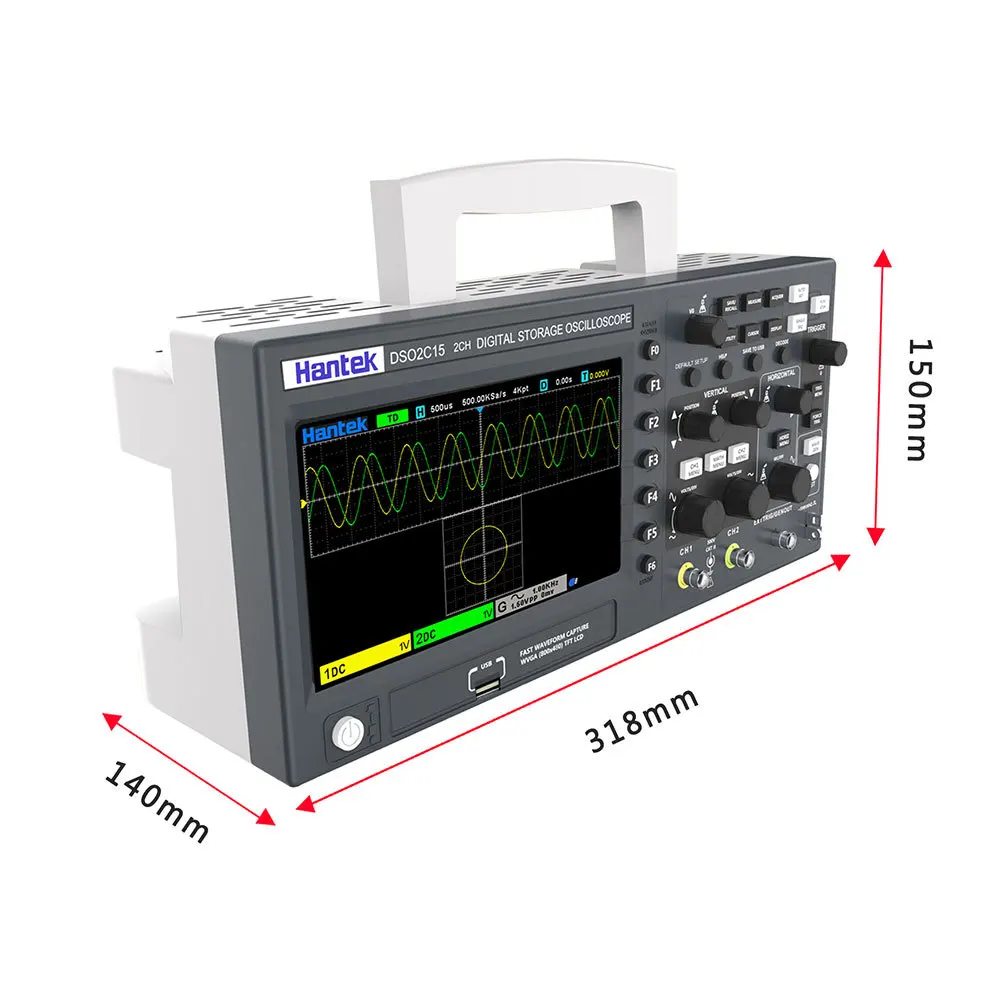

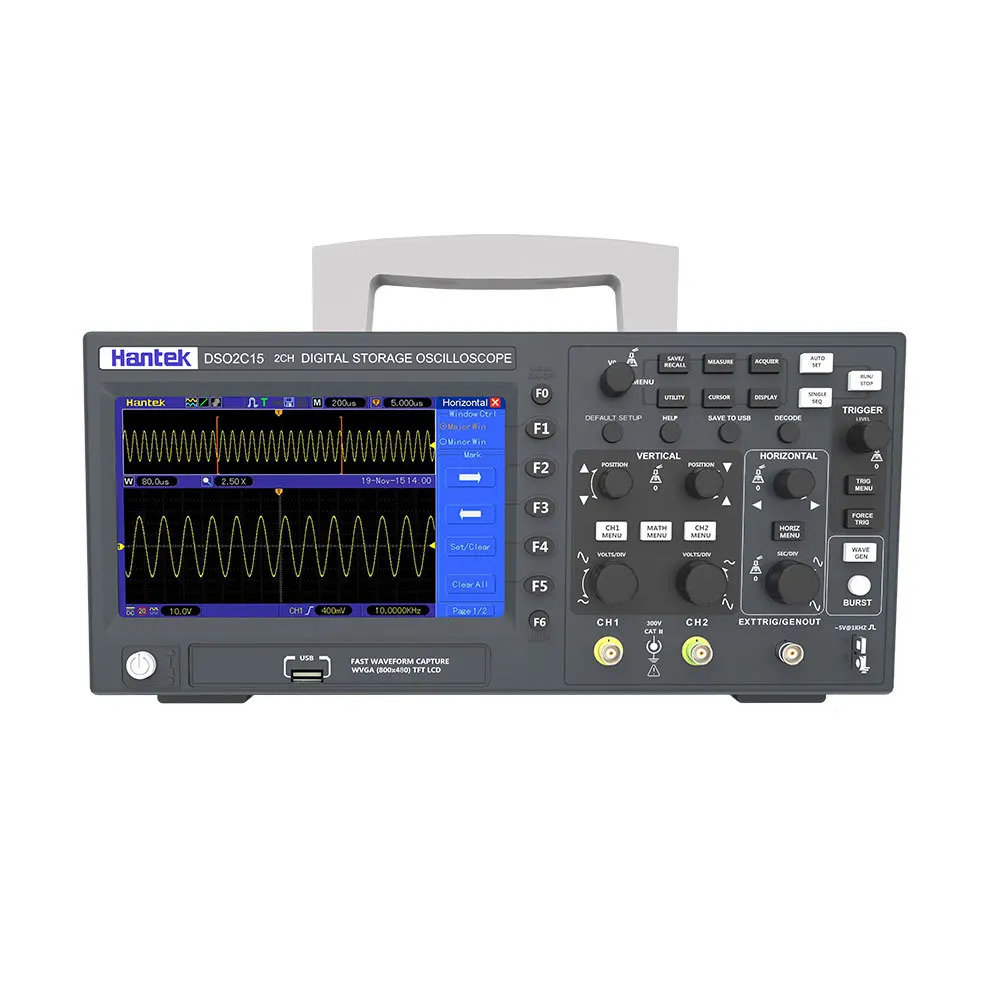

Hantek Digital Oscilloscope DSO2C10 2C15 2D10 2D15 2 Channels 100Mhz/150Mhz USB Storage Osciloscopio 1GSa/s  Sample Rate

Features:

1) 2 channels, both are respectively controlled by independent knobes;

2) 100 MHZ, 150MHZ analog channel bandwidth;

3) 1 GSa/s real-time sample rate;

4) 8M memory depth;

5) Vertical range 2mV/div ~ 10V/div;

6) Built-in 1 CH 5MHz waveform generator;

7) Vertical resolution : 8bit;

8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;

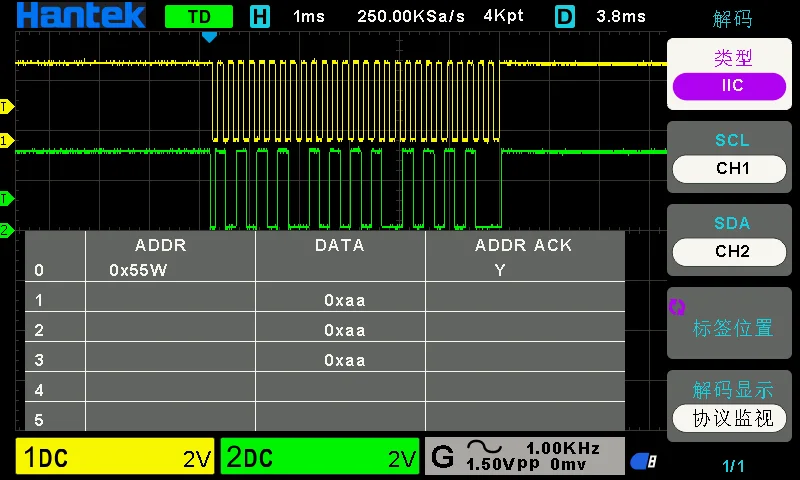

9) CAN decode and protocol analysis: RS232/UART,I2C,SPI,CAN,LIN

10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;

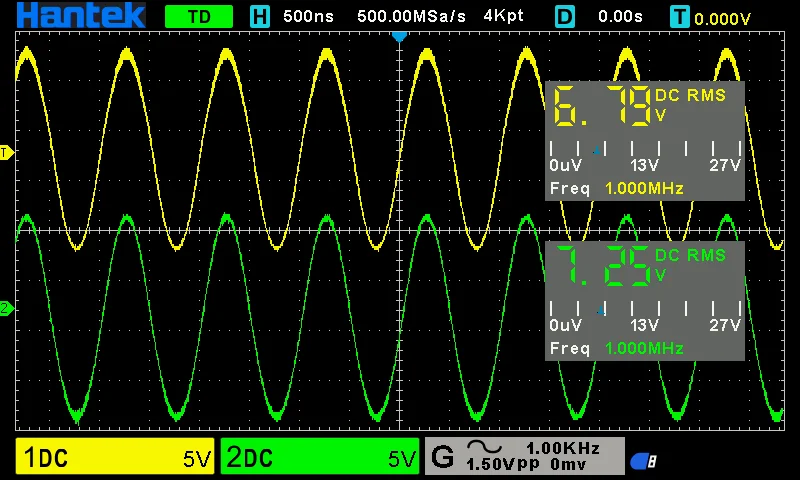

11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;

12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;

13) 2 sets of digital voltmeter;

14) Support threshold testing, free measurements within the screen;

15) Abundant SCPI remote command control;

16) Many external interface: USB Host/Device.

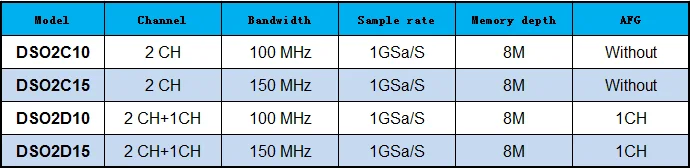

NOTE:DSO2C10 and DSO2C15 have no waveform generator function!
