Многофункциональная шиномонтажная машина для изгиба резки

Описание и отзывы

Характеристики

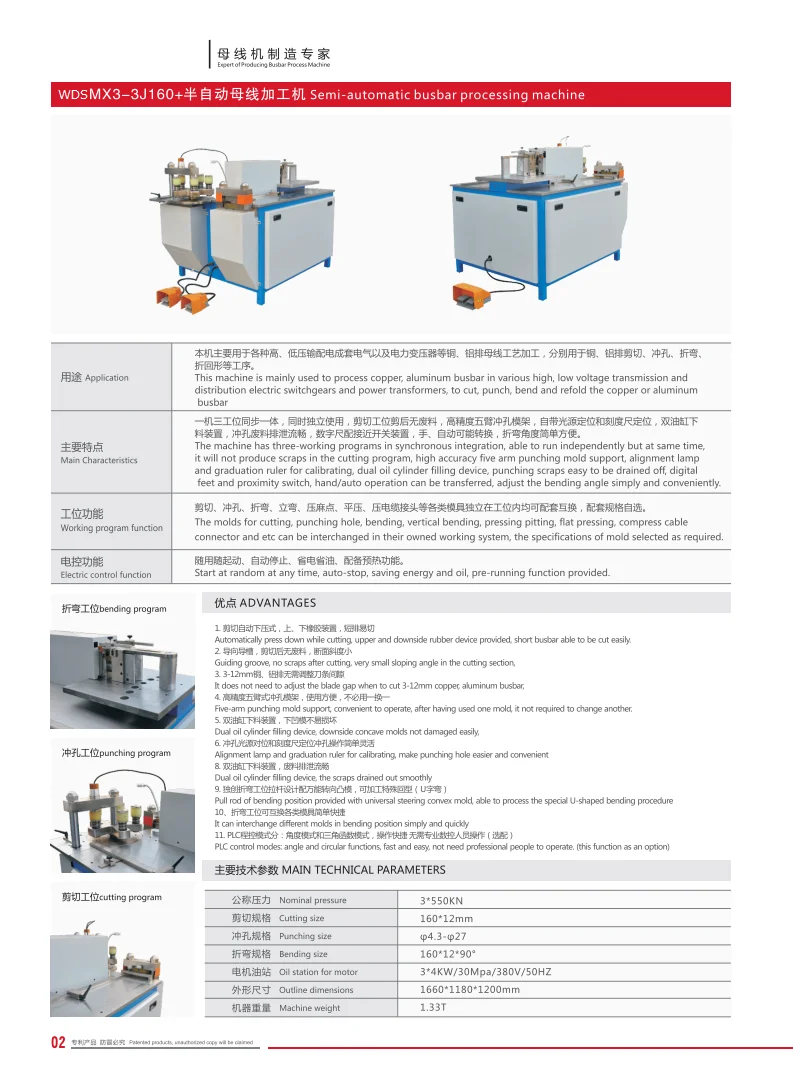

This machine is mainly used to process copper, aluminum busbar in various high, low voltage transmission and distribution electric switchgears and power transformers, to cut, punch, bend and refold the copper or aluminum busbar

The machine has three-workina programs in synchrongus intearation, able to run independenthy but at same time, will not produce scraps in the cutting program, high accuracy five arm punching mold support, alignment lamp and graduation ruler for calibrating, dual oil cylinder fillinga device, punching scraps easy to be drained off, digital feet and proximity switch, hand/auto operation can be transferred, adjust the bending angle simply and convenient

Nominal pressure	3* 550KN
Cutting size	160*12mm
Punching size	4.3-27
Bending size	160*12*90
Ol station for motor	3*4KW/30Mpa/380V/50HZ
outline dinensions	1660*1180*1200mm
Machine weight	1.33T
