HC02 replace Otter car window lift wiper motor over load thermal protector SIZE:

HC02 replace Otter car window lift wiper motor over load thermal protector

HC02 series is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively

Special Features:

1.Small size, long life and high reliability;

2.Protected with overload, plugging turn, or short circuit flow well;

3.According to the customer request, setting overload trip current, max 30A;

4.Accurate trip off time can prevent motor from overheating(4~10s);

5.Each type of parts strictly implemented European ROHS environmental standards;

6.Terminals are optional and customized.

Electrical Characteristics:

1.1~30amps/15volts DC

2.1~15amps/30volts DC

3.1~30amps/250volts AC

4.1~30amps/125volts AC

Technical Parameters:

1.Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.

2.Temperature tolerance:±8℃,±10℃.

3.Trip off current range: 1~30A.

4.Trip off time: 4~10s.

Main Applications are as follows:

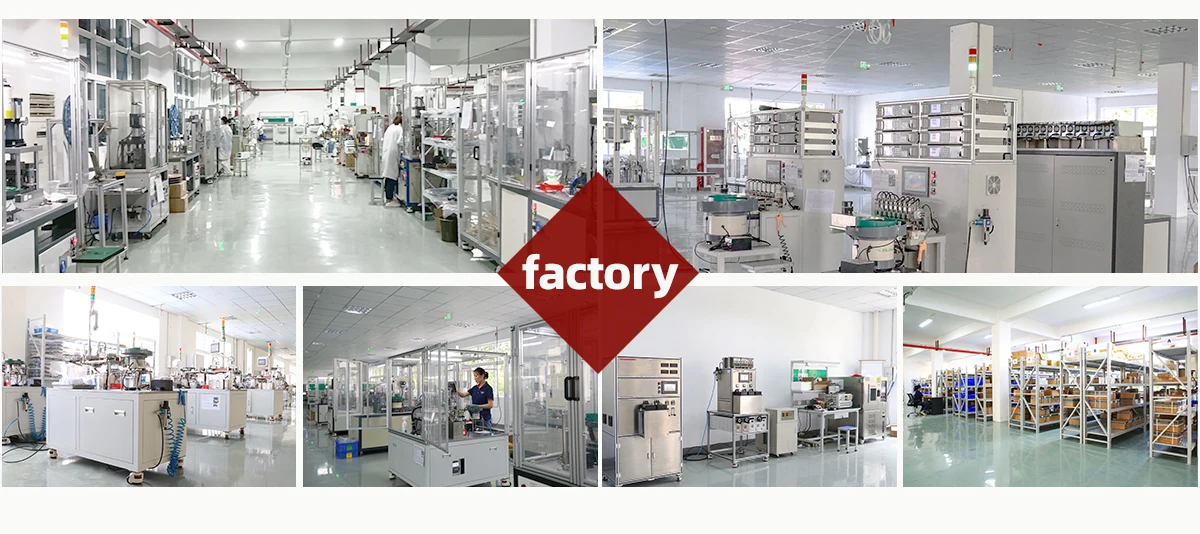

We are an engineering and manufacturing factory with specialization in high quality motor protectors,overload current protectors,thermal protectors,thermal cutoff switches, temperature switches, thermal cutouts and thermostats. The products have passed ISO/TS 16949 ,UL and CQC certificates. Our products are widely used in glass elevator motor, wiper motor,juicer,mixer,small tubular motor,electric tools,batteries, and transformers ...We have experiences engineers to develop products for customers, and we own the brand HCET.
